Culligan Smart Controller
The Culligan Smart Controller is designed to operate a wide range of existing and new High
Efficiency softener and filtration valves. The Smart Controller is designed to be both reliable and
easy to use. The Smart Controller features a bright and easy to read display.
New Smart Controller features:
• Optional wireless remote control.
• Optional telephone modem—calls for service.
• Upgrade to the latest firmware when it becomes available (requires GBE Updater).
• Automatically sets time and date.
• Five-year battery backup with real-time-clock.
• Support for auxiliary outputs.
The Smart Controller uses a circuit board designed to mount onto the control valve attached to a water softener or filter.
There are four other, optional, add-on modules in the Smart Controller family. These modules include:
Wireless Remote Control
This remote control displays the current status of the water softener or filters and allows for remote control. It can be
located up to 200 feet away from the Smart Controller (depending upon building construction materials).
Modem Board
This module can be installed into either the Smart Controller or the Wireless Remote. It allows for the system to be re-
motely monitored detecting problems before they occur.
NOTE
Modem kit requires a one-year subscription to either Level 1 or Level 2 Telecom package. See on
C-Port (www.cport.culligan.com) under the
RF Transmitter
This module is installed into BOTH the Smart Controller and the Wireless Remote to allow them to communicate via
Radio Frequency (RF) communications. In North America, these modules communicate at 915 MHz and are designed to
work without interference with other 915
MHz devices such as cordless telephones
and baby monitors. Other frequencies are
used in other countries.
Auxiliary Board
This module can be installed into the
Smart Controller to provide a variety of
add-on capabilities such as operation of
external solenoid valves and relays(typi-
cally used in commercial applications).
Flow Meter
The High Efficiency filter can monitor any
hall-effect type flow meter signal and use
it as the basis of monitoring the amount of
water flowing through the valve.
The connectors used with these add-on
modules, as well as connectors for the HE
Sensor Products, are shown in Figure 2.
Cat. No. 01024514
™
Telemetry Tab
MODEM BOARD
MOTOR CONNECTOR
POSITION SENSOR
CONNECTION
FLOW METER

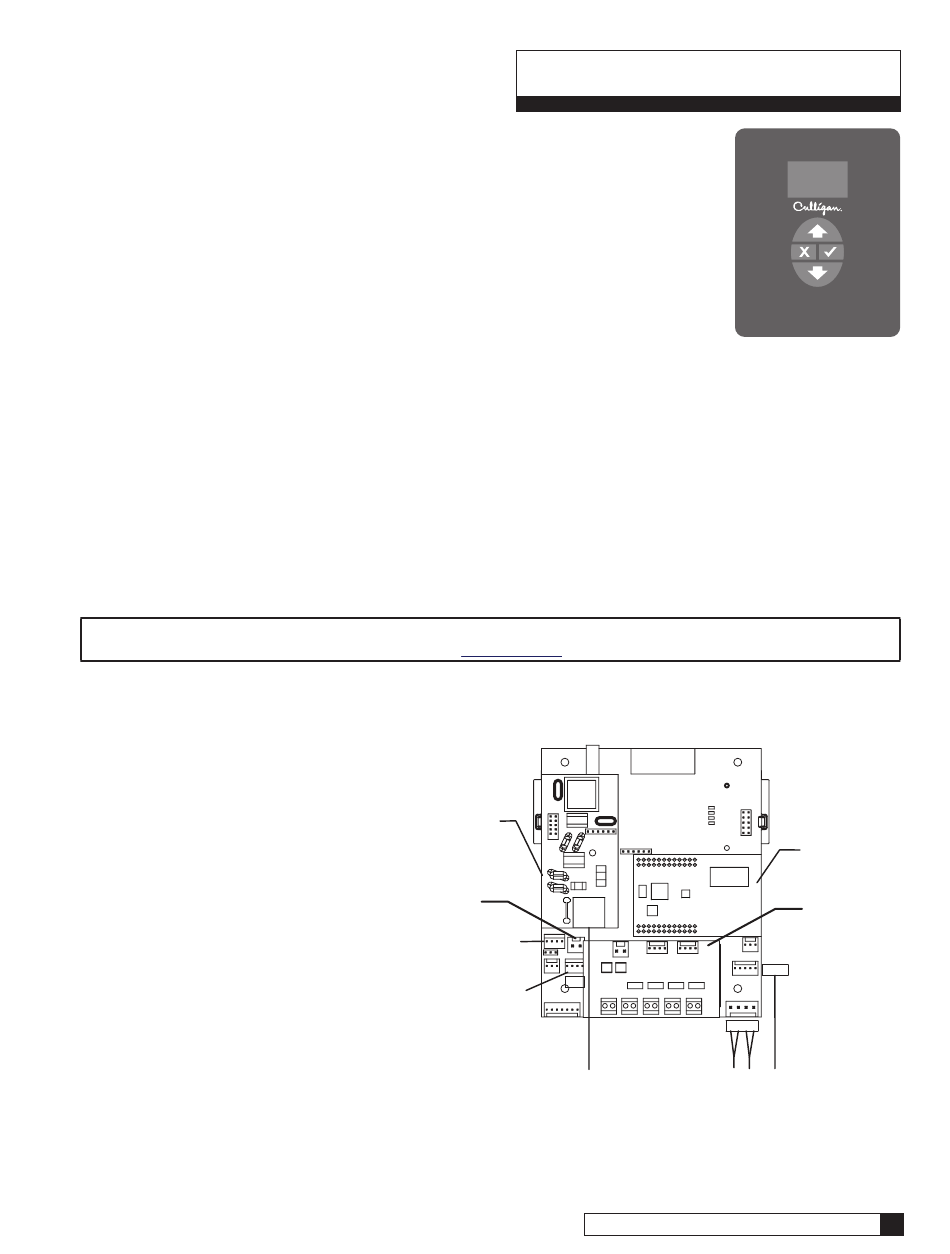

Figure 2. Smart Controller circuit board for HE filter.
Controller Features
for details.
PHONE
2.5V
POWER
RF BOARD 915MHz
AUXILIARY BOARD
AQUA SENSOR
24V
Controller Features
9
