NOTE The wire connectors must be connected to the circuit board properly. The wires must exit the plug-in
connector opposite of the raised white base of the circuit board connector. Failure to properly connect
any of the connectors will result in a malfunction of the circuit board operation.
6. Connect the other end of the power cord, with the spade terminals, to the two 24 Volt terminals on the trans-
former. See Figure
7. Pull any excess cable wire out of the enclosure and route the wiring inside the enclosure to avoid interference.
Power to circuit
board 24V
8. Connect the power supply cord to the circuit board.
Returning the Circuit Board into the Enclosure
1. Angle the circuit board opposite the front enclosure and into the support bracket on the side of the enclosure.
2. Gently push down and rotate forward until you hear a click (the pins on the bottom of the enclosure being insert-
ed into the circuit board).
3. Check to make sure the circuit board is rigidly fastened.
Cat. No. 01024514
25.
Modem Board
Motor Connector
Position Sensor Connector
Flow Meter Connector
24VAC
on TRANSFORMER

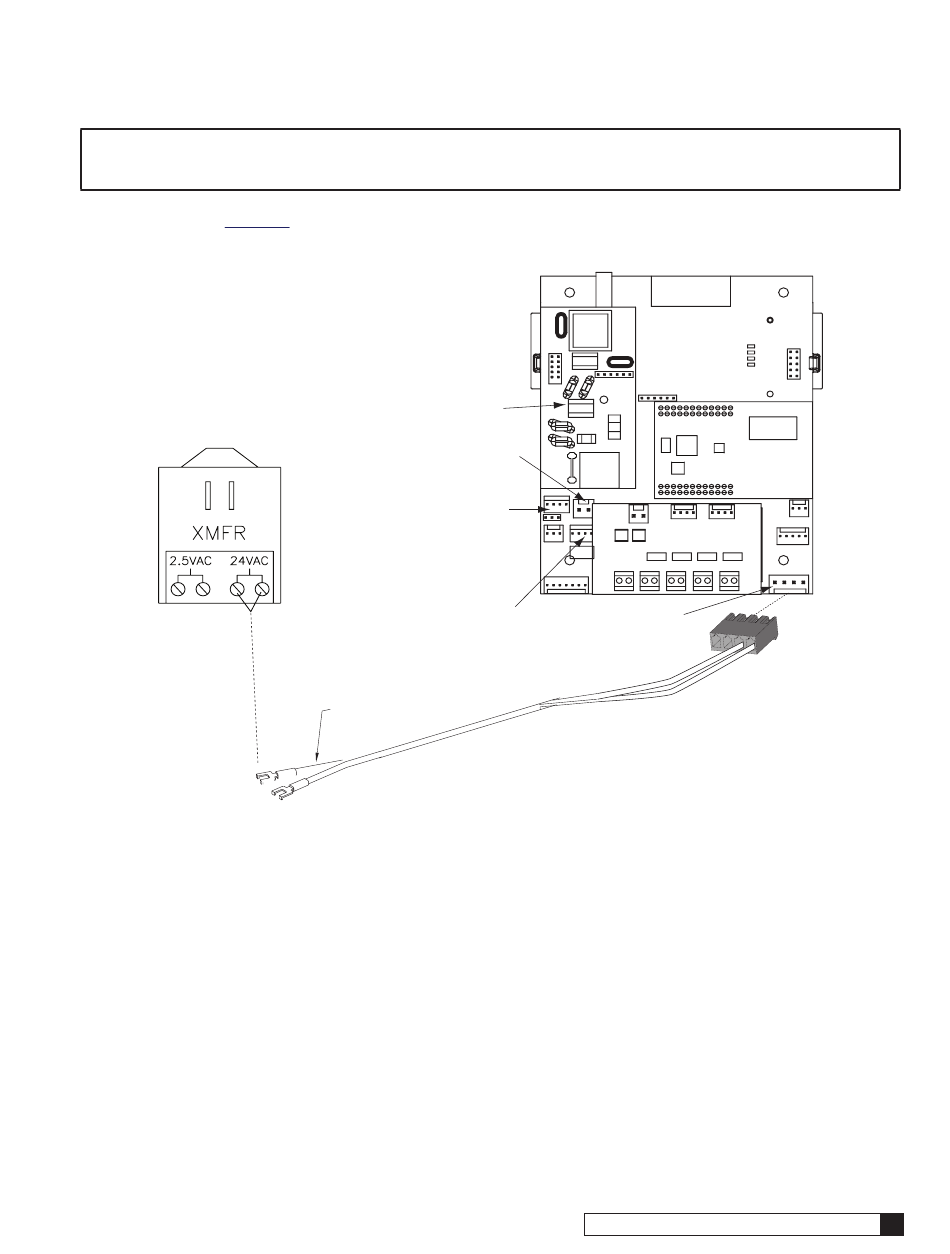

Figure 25.
PHONE
Power Connector
24 Volt power connection.
RF Board
Auxiliary Board
