Installing the Wireless Remote (P/N 01020553)
1.

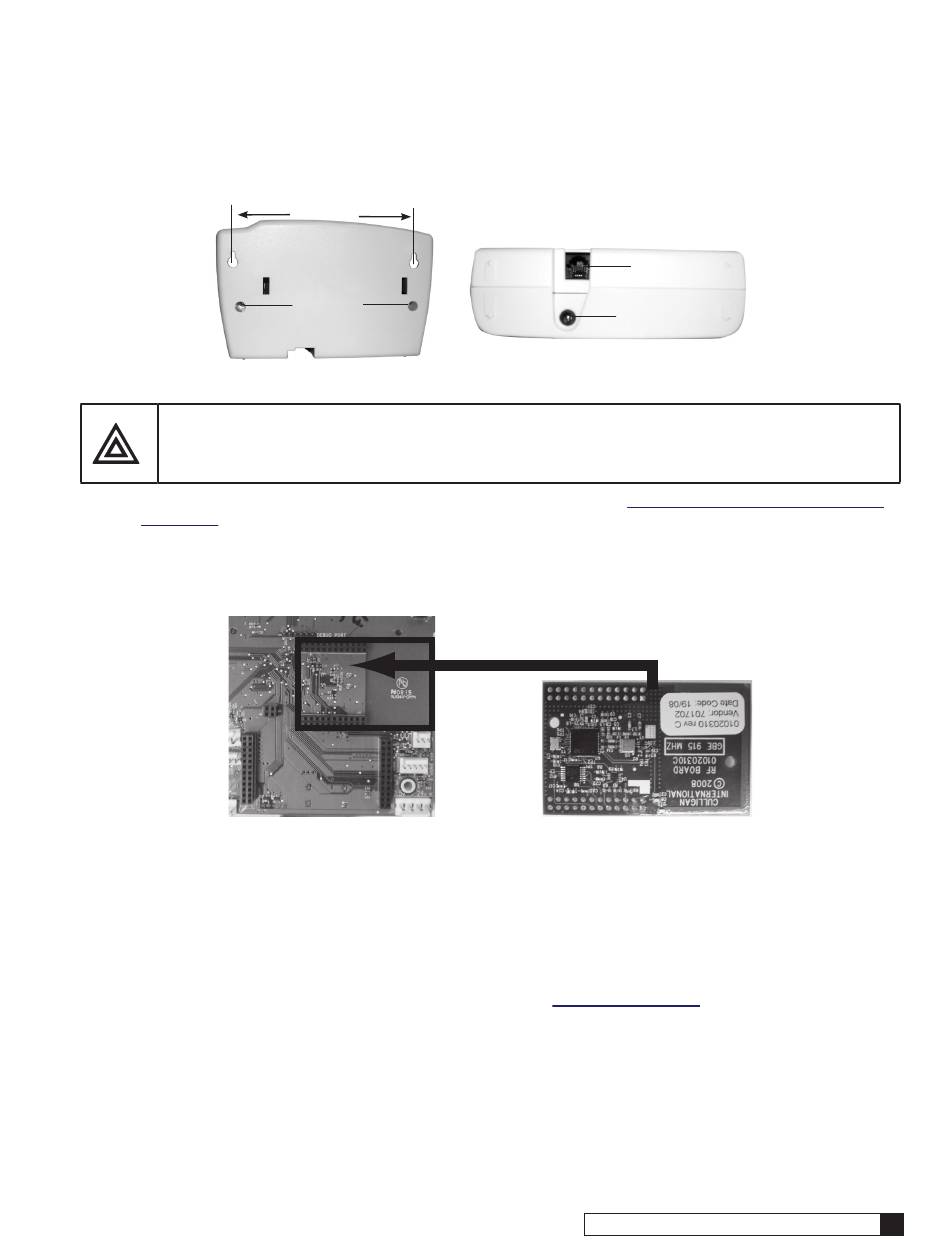

Select a location for the wireless remote monitor (Figure 45). The location must be near an electrical outlet. If a
modem is used in the remote, then the location should also be near a standard RJ-11 type telephone wall jack.
Figure 45.
Wireless remote monitor.
CAUTION!
2.
(Optional) If a modem is to be installed into the remote monitor, refer to
on page 37
for installation and setup.
3.
Connect the power cord to the bottom of the remote monitor. If a modem is to be used in the remote, plug a
standard telephone extension cord into the bottom of the remote monitor. Plug into 120V outlet.
4.
Disconnect power to the softener. Open the control.
Back of GBE Board
5.
Install RF board into unit controller. Line up pins in RF board and press firmly into black connectors. Note ori-
entation of RF board (see Figure 46). Make sure the RF board is fully seated into all of the sockets. Reconnect
power.
6.
Program the remote and main monitor units using the instructions found in the GBE Programming for
Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295). This manual can be obtained from
your local dealer, C-Port (www.cport.culligan.com) under the
7.
Place the remote monitor against the wall in the selected location, then check the signal strength. Refer to the
GBE Programming for Commercial Softeners and Filters (except for HFxN) Manual (P/N 01027295) for instruc-
tions.
8.
Use the Hole Drilling Template (Figure 45) as a guide to drilling two holes to mount the remote monitor. If drill-
ing into wall board, drill two 5/16" diameter holes and insert the plastic drywall anchors into the holes securing
them with the two #10 screws provided. If drilling into a solid surface, drill two 7/32" holes into the surface and
screw the two #10 screws into the holes. In either case, leave a gap of approximately 3/32" between the head
of the screw and the wall. Hang the remote monitor on the two screws.
Cat. No. 01024514
5 3/8"
SCREWS
Do not touch any surfaces of the circuit board. Electrical static discharges may cause
damage to the board. Handle the circuit board by holding only the edges of the circuit
board. Keep replacement boards in their special anti-static bags until ready for use.
Mishandling of the circuit board will void the warranty.
Figure 46.
RF board location on Smart Controller board.
MODEM CONNECTION
POWER CONNECTION
"Installing the Modem In the Remote"
RF Board (note orientation)
Technical Service Tab
or the Service Tech App.
