Culligan Smart Controller HE DF 12 Installation, Operation, And Service Instructions With Parts Lists page 46

Option 2: No dry contacts from External Source
Use Option 2 to bypass the HE unit for a preset time and if the system (i.e. irrigation system) has NO dry contacts.
Required Components
• GBE Auxiliary Board (P/N 01020748)
• GBE Alarm Relay Board (P/N 01022238)
WARNING! Disconnect all electrical power to the unit before servicing.
CAUTION! Do not touch any surfaces of the circuit board. Electrical static discharges may cause
damage to the board. Handle the GBE circuit board by holding only the edges of the
circuit board. Keep replacement boards in their special anti-static bags until ready for
use. Mishandling of the circuit board will void the warranty.
1. Remove the circuit board from the enclosure. (see
2. Install the Auxiliary Board and Alarm Relay Board to the GBE Circuit Board (see Figure 51)
3. Connect the Common and Normally Open Contacts of the Alarm Relay Board to the Aux Input on the Auxiliary
Board. (see Figure 51)
4. Insert the circuit board into the enclosure; assemble the electrical enclosure to the control and power-up the
control. (Figure 26 on page
5. Follow the programming procedure in the GBE Programming for Commercial Softeners and Filters, except HF
xN Manual (P/N 01027295) to bypass the HE at a preset time.
Culligan® High Efficiency 1.5 Water Filter
42
Figure 21 on page
22)

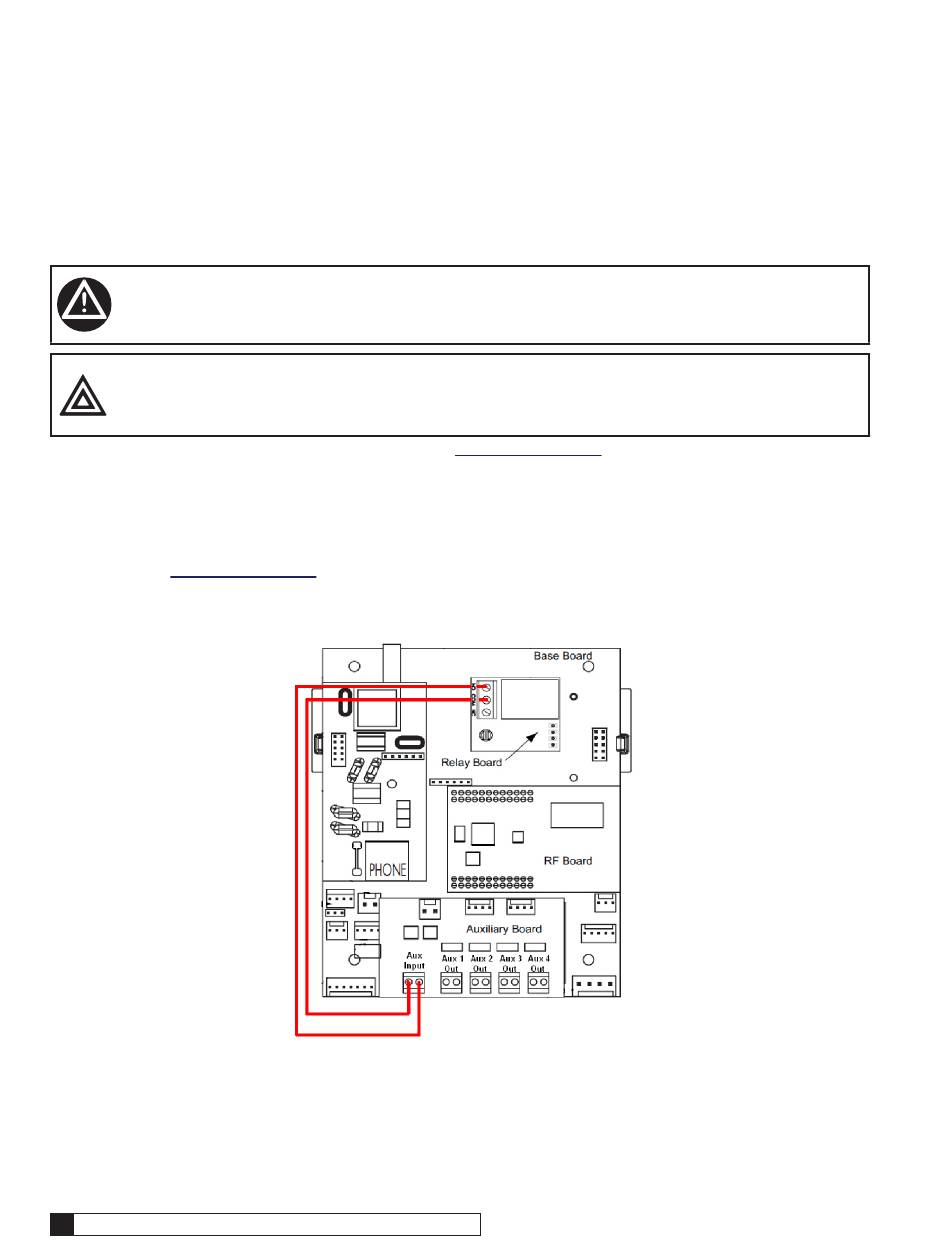

Figure 51. HE Automatic Bypass, Option 2
19)
Cat. No. 01024514
42
