Culligan Smart Controller HE DF 12 Installation, Operation, And Service Instructions With Parts Lists page 47

Separate Source
Bypass Valve (Normally Closed)
Filter Water
Outlet
Manual
Outlet Valve
Figure 52.
Qty Part Number
1 01025234
1 01019594
1 00445981
1 01004169
1 01002940
1 00402447
1 01020748
Cat. No. 01024514
Untreated Water
Inlet
Manual Inlet Valve
Inlet Valve
(Normally Open)
Vacuum Breaker
Regeneration Valve
(Normally Closed)

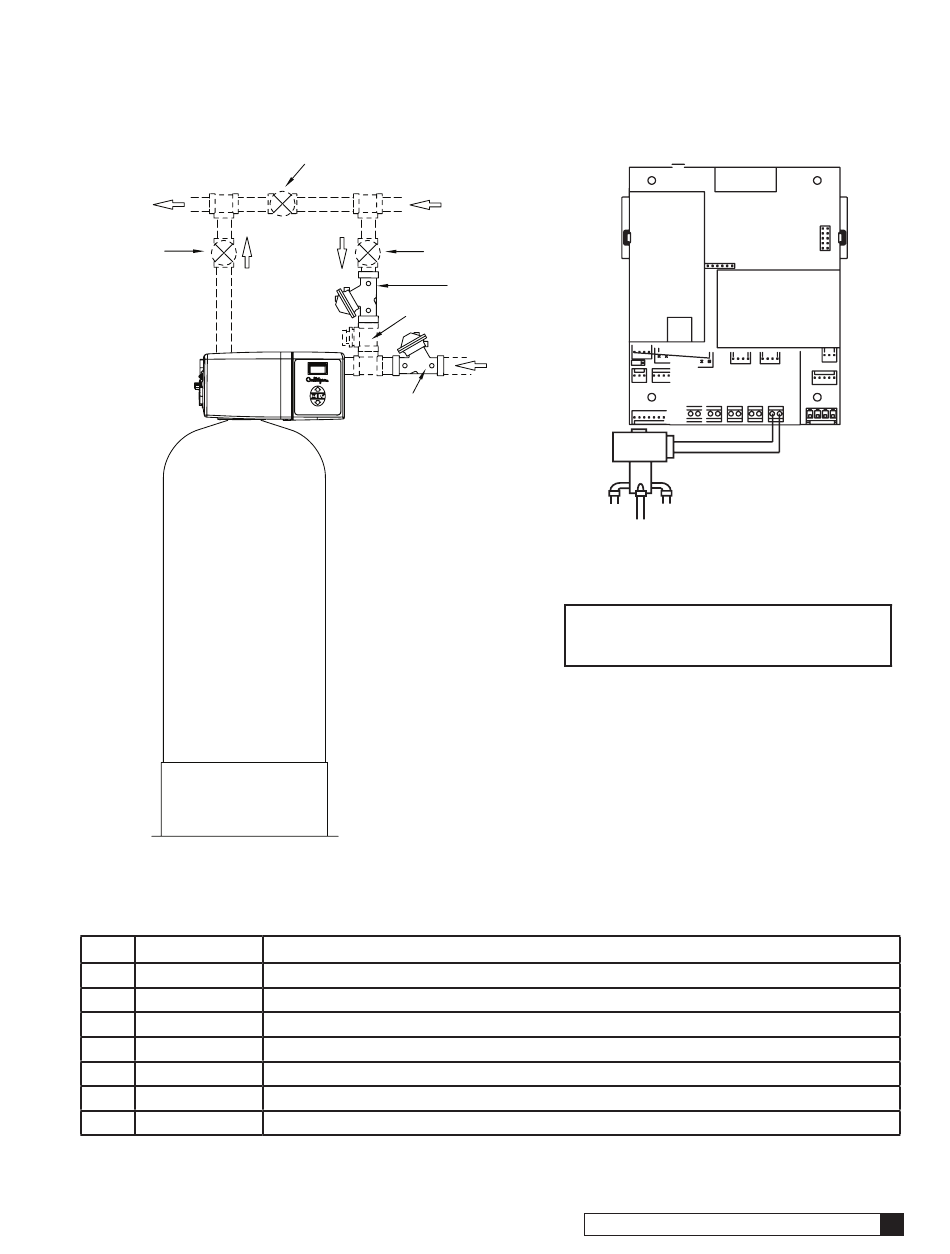

HE 1.5 Separate Source Piping
Table 6. Parts Required for Separate Source
Bracket for external blocking valve
Valve, Solenoid, 3-Way, 1/8", 24V, UO, SS
Valve, Dia, Noryl, 1-1/2"NO/SAO with adapters
Valve, Diaphragm Noryl, 1-1/2"Normally Closed
Connector Kit, 1-1/2"/2" Valve, 2PK
Adapter Kit, PVC, 1-1/2"Male Slip, 2PK
Circuit Board, GBE Aux
MODEM
BOARD
RJ11
PHONE
AUXILARY BOARD
24 V
1 2 3
Valves Feed
Drain
Figure 53. HE 1.5 Separate Source
Wiring
NOTE If using Aux Out 4 for external
blocking, use the Aux 5 relay for
separate source.
Description
BASE BOARD
RF BOARD
