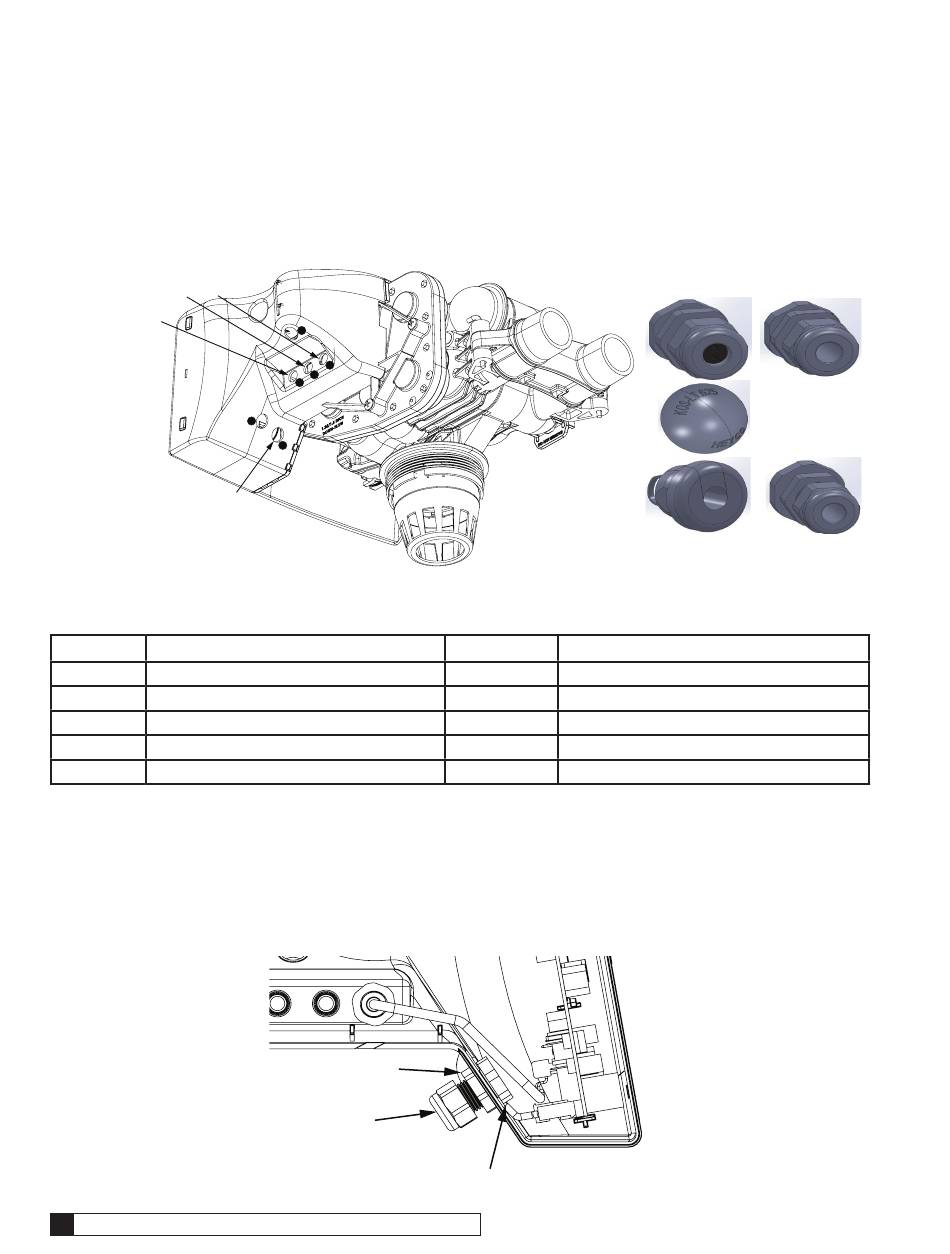

Installing Accessory Connections
The HE 1.5 Controller enclosure has several portals to allow connections to HE accessories. Each connection portal is
molded into the controller enclosure. If the portal is not already opened and/or plugged, it may be opened by pushing a
sharp object (screwdriver or knife) through the plastic. See Figure 22.
A connector/bushing and/or plug should be placed in the port assigned for each HE 1.5 accessory. See Figure 22 and
Figure 23 and Table 4 for connector/bushing and plug types and their position on the HE 1.5 Controller enclosure.
Communication
Cable
Optional Cable
Flow Meter Cable
24V Power Cord
Figure 22.
Part No.
P1025274 Strain Relief Fitting, 10 PK
P1025264 Strain Relief Fitting, 10 PK
P1025277 Liquid Tight Hole Plug, 10 PK
P1025278 Bushing, strain relief, 10 PK
— Cord Grip, Liquid Tight
To install an HE 1.5 accessory connection:
1. Remove the plastic plug from the port on the enclosure, or open the port through the molded recessed area.
2. Remove the plastic nut from the bushing attached to the preinstalled connector cable.
3. Place the bushing with the cable through the port.
4. Tighten the nut on the interior side of the port opening on the controller enclosure. See Figure 24.
5. Attach the female connector to the Smart Controller circuit board at the appropriate location.
Culligan® High Efficiency 1.5 Water Filter
20
3
6
5
4
2
1
HE 1.5 Controller connection ports.
Table 4. Accessory connectors and possible connections.
Description
Nut
Bushing
Figure 24. Connector bushing and nut position.
Location(s)
1 24V Power (pre-installed)
1, 2, 3
1, 2, 3,
4, 5
4, 5, 6 Flow Meter, Communication
Nut Inside Controller Housing
01025274 01025264
01025277
01025278 01024983
Figure 23. Connectors.
Connection
—
—
—
Cat. No. 01024514
