Attaching the Cover
Once the drain and brine line is connected re-attach the cover. Refer to the below instructions and Figure 12 through
Figure 14.
1. Insert the two pins on the top of the cover into the two holes on top of the frame; the cover should be slightly
angled. See Figure 12.
2. Rotate the cover downward inserting the two pins on the side of the cover into the two holes on side of the
frame. See Figure 13.
3. Attach the cover fastener onto the control valve. See Figure 14.

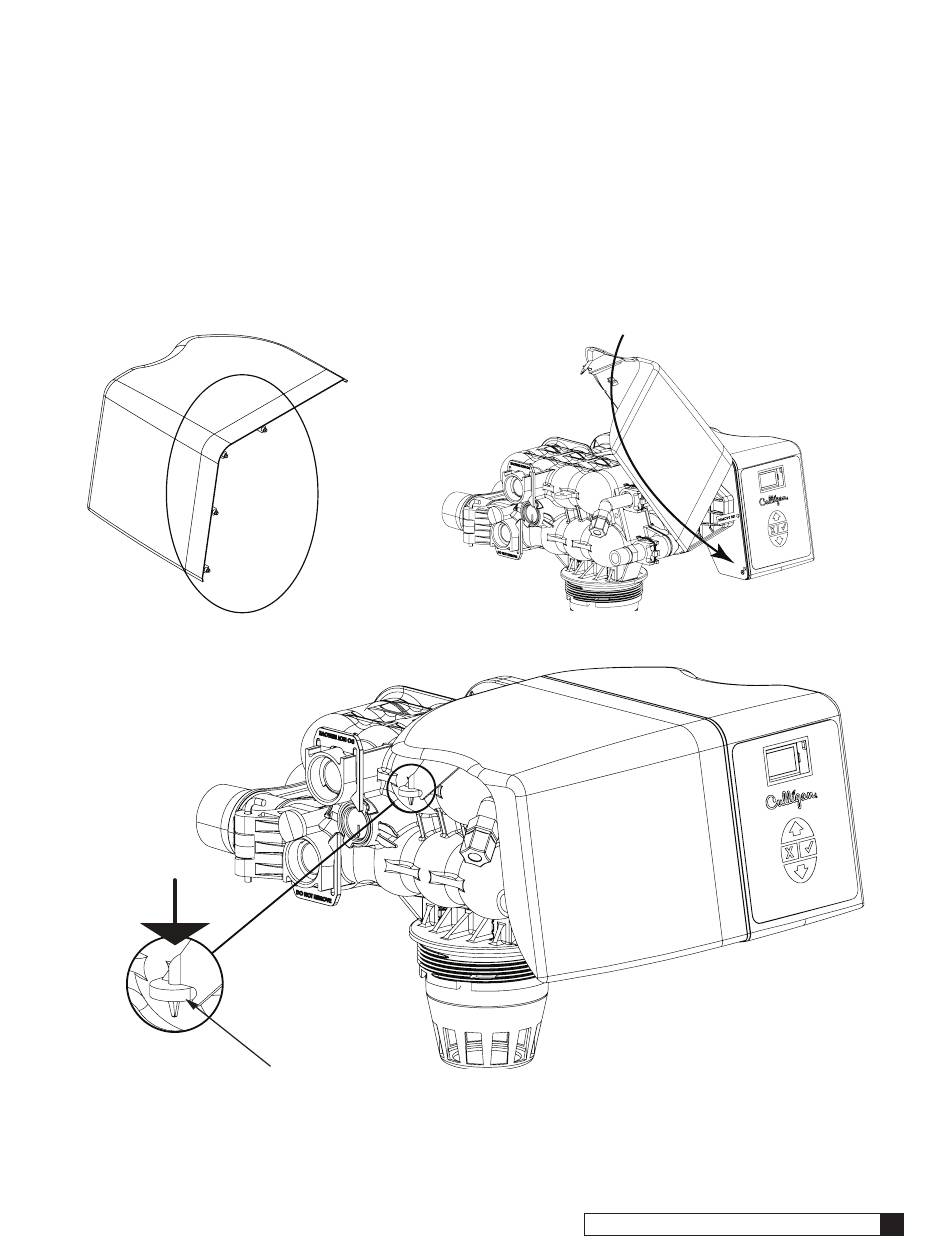

Figure 12. Cover fastener clip.
Push down into place
Cover Fastener
Cat. No. 01024514
Figure 13.
Figure 14. Reattaching the cover fastener.
Reattaching the HE 1.5 filter cover.
