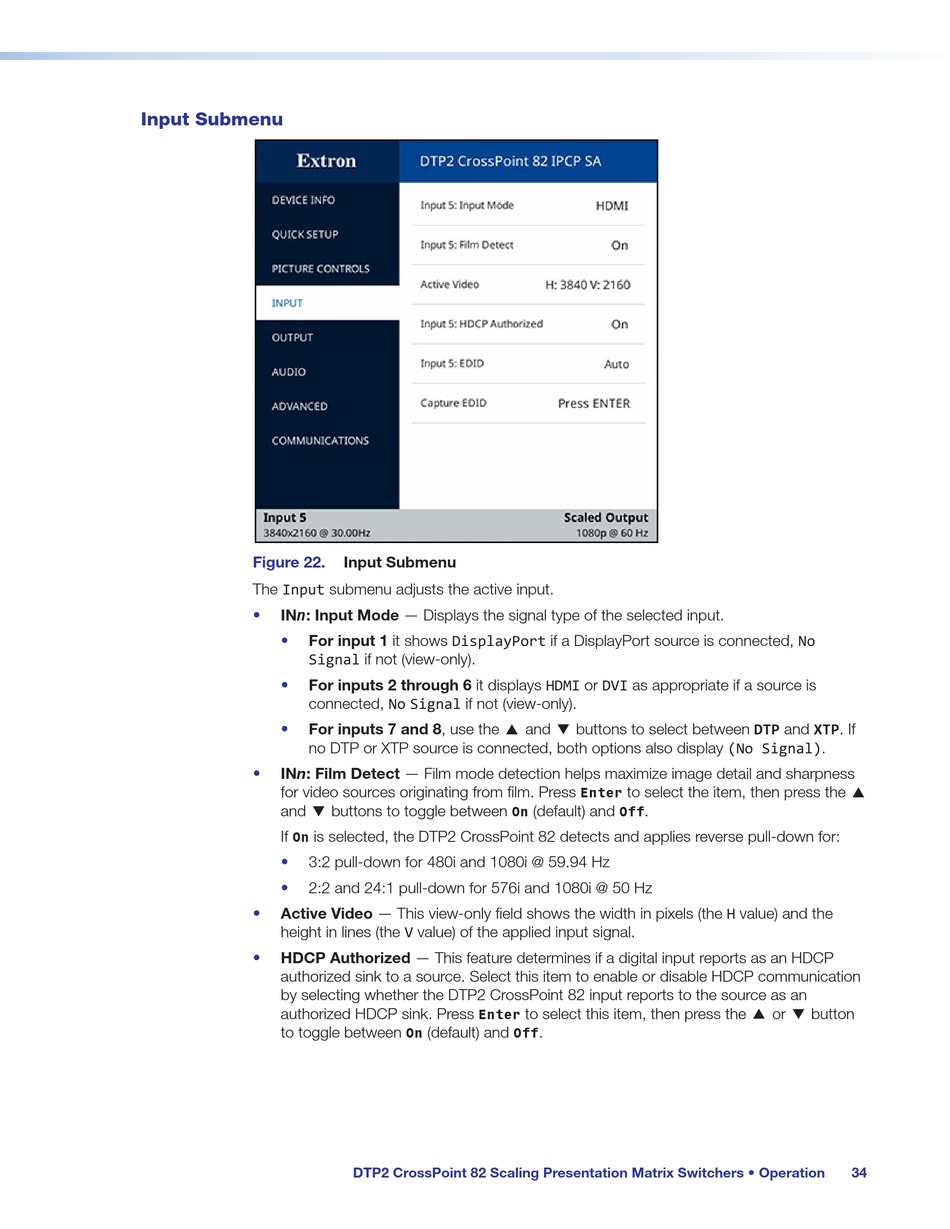

Input Submenu
Figure 22.
The Input submenu adjusts the active input.
INn: Input Mode — Displays the signal type of the selected input.
•
For input 1 it shows DisplayPort if a DisplayPort source is connected, No
•
Signal if not (view-only).
•
For inputs 2 through 6 it displays HDMI or DVI as appropriate if a source is
connected, No Signal if not (view-only).
For inputs 7 and 8, use the
•
no DTP or XTP source is connected, both options also display (No Signal).
•
INn: Film Detect — Film mode detection helps maximize image detail and sharpness
for video sources originating from film. Press
and
If
is selected, the DTP2 CrossPoint 82 detects and applies reverse pull-down for:
On
•
3:2 pull-down for 480i and 1080i @ 59.94 Hz
•
2:2 and 24:1 pull-down for 576i and 1080i @ 50 Hz
Active Video — This view-only field shows the width in pixels (the H value) and the
•
height in lines (the V value) of the applied input signal.
•
HDCP Authorized — This feature determines if a digital input reports as an HDCP
authorized sink to a source. Select this item to enable or disable HDCP communication
by selecting whether the DTP2 CrossPoint 82 input reports to the source as an
authorized HDCP sink. Press
to toggle between
Input Submenu
buttons to toggle between
Enter
(default) and
On
DTP2 CrossPoint 82 Scaling Presentation Matrix Switchers • Operation
and
buttons to select between DTP and XTP. If
to select the item, then press the
Enter
(default) and
.
On
Off
to select this item, then press the
.
Off
or
button
34
