Power Management - Fluke OptiView III Series Getting Started Manual

Integrated Network Analyzer
Using the Analyzer
ahq31f.eps

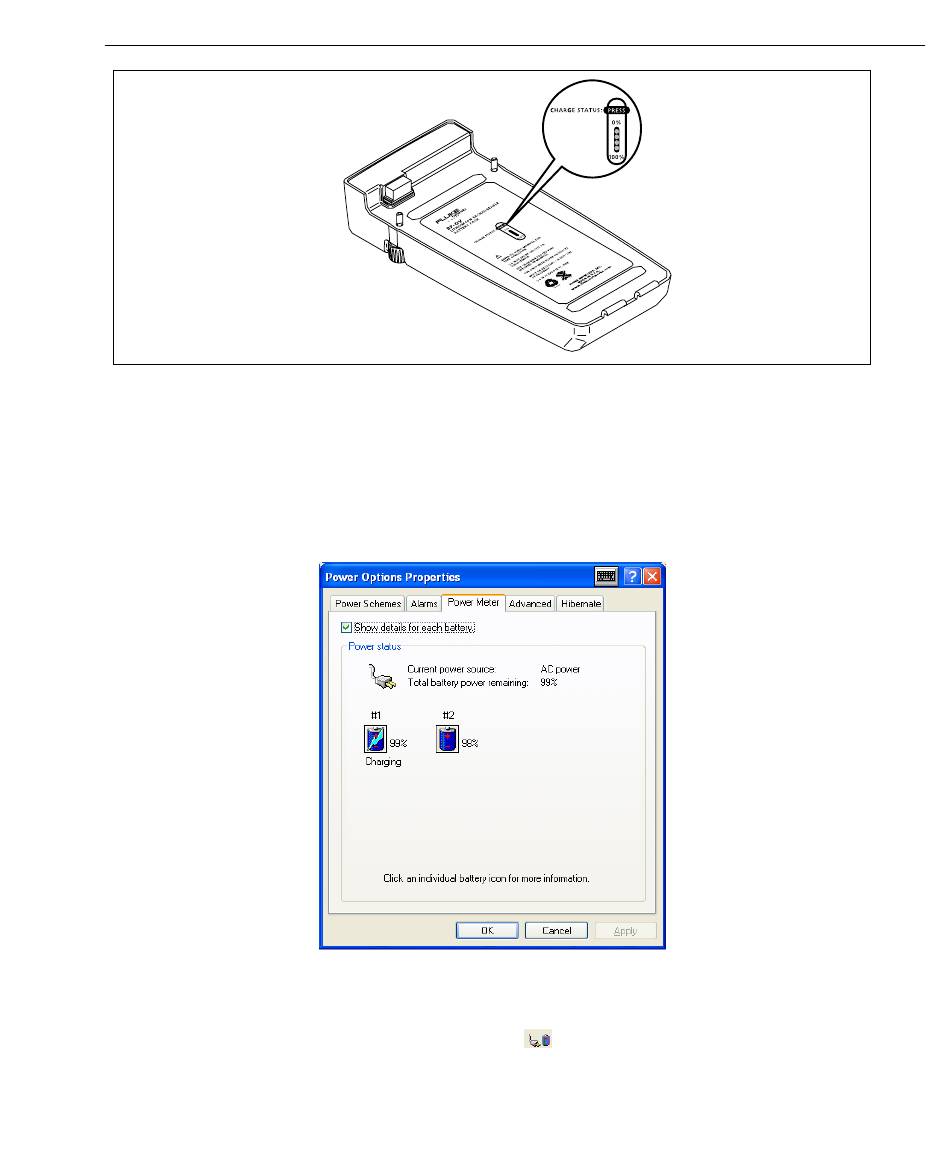

Figure 6. External Battery Charge Status Button
By pressing the Charge Status button, the appropriate number of LEDs turn on
and indicate the charge state as shown in Table 4.

Power Management

Figure 7. Power Management Window
Pressing the analyzer battery/power icon in the Windows taskbar opens the
Power Options Properties screen. Press the Power Meter tab to see the current
battery charge state.
15
