Charging the Internal and External Batteries

The external battery and AC adapter/charger (hereafter referred to as the charger)
are shipped with every OptiView
internal and external batteries while operating the analyzer.
The internal battery takes approximately 5 hours to fully charge (see note on page
8 about initially charging the batteries). It will take longer if the analyzer is on

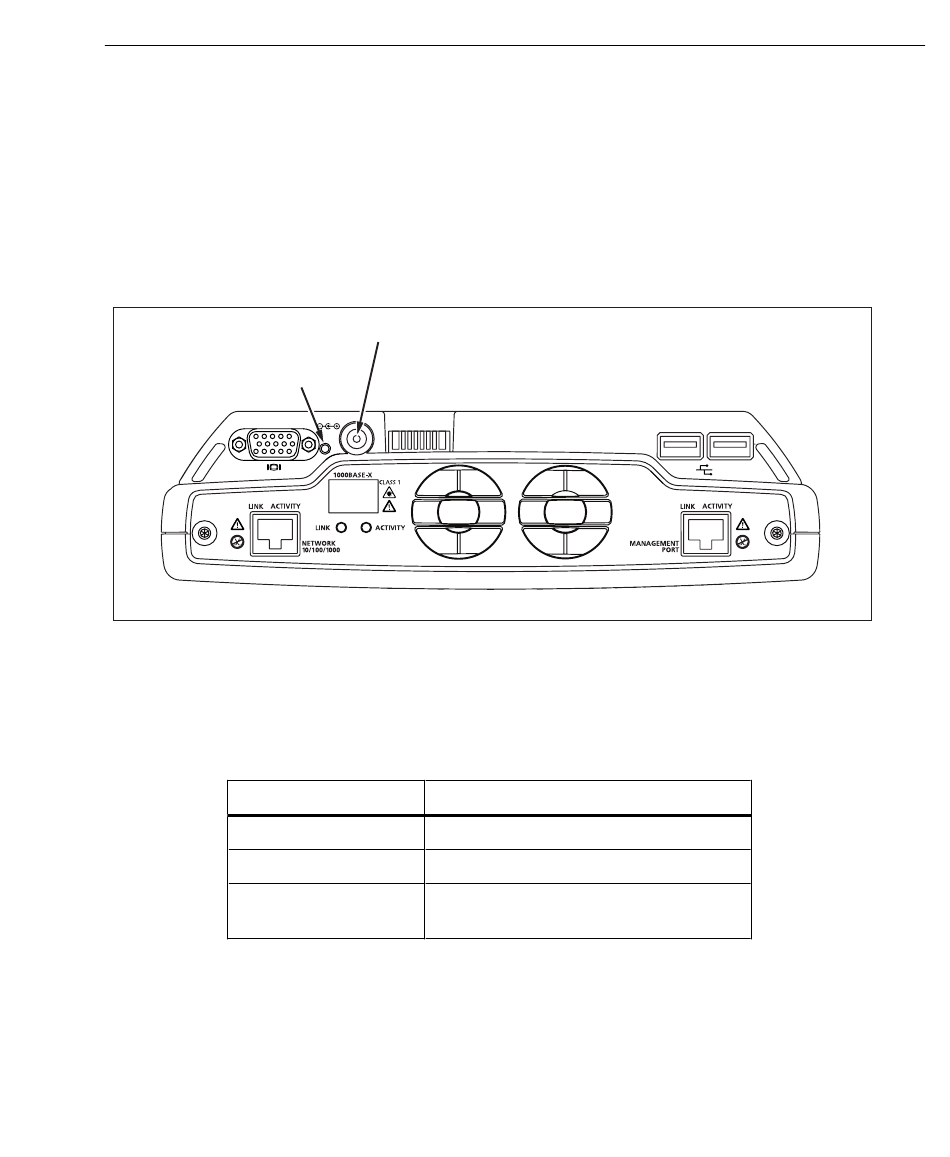

while the battery is charging. Figure 5 shows the internal battery charging jack and
charging status LED.
Charging LED
Figure 5. Charging Jack and LED Location for Internal Battery Only
The charging LED states are as follows:
Off
Flashing
Continuous on, solid
analyzer. The charger will charge both the
TM
Charging Jack
15V
Table 3. Red Charging LED States
Status
Charger not connected
Charging
Battery is fully charged, AC power
applied
