❒ You can scan non-standard
sized documents as standard
sized using the Irregular Scan
Area feature. When you turn on
this feature, the area scanned
will be in the specified range re-
gardless of the actual document
size. A blank margin will ap-
pear or the image will be cut at
the receiving end.
❒ Make sure that all ink, correct-
ing fluid etc., has completely
dried before placing your origi-
nal. If it is still wet, the exposure
glass will be marked and those
marks will appear on the re-
ceived image.
❒ If you place an A4 size original
in the portrait direction, the ma-
chine rotates the image by 90
degrees before sending it. ⇒
Chapter 4, "Transmission with
Image Rotation" in the Ad-
vanced Features manual
Reference
For how to place 2-sided docu-
ments, see Chapter 4, "2-Sided
Transmission" in the Advanced
Features manual.

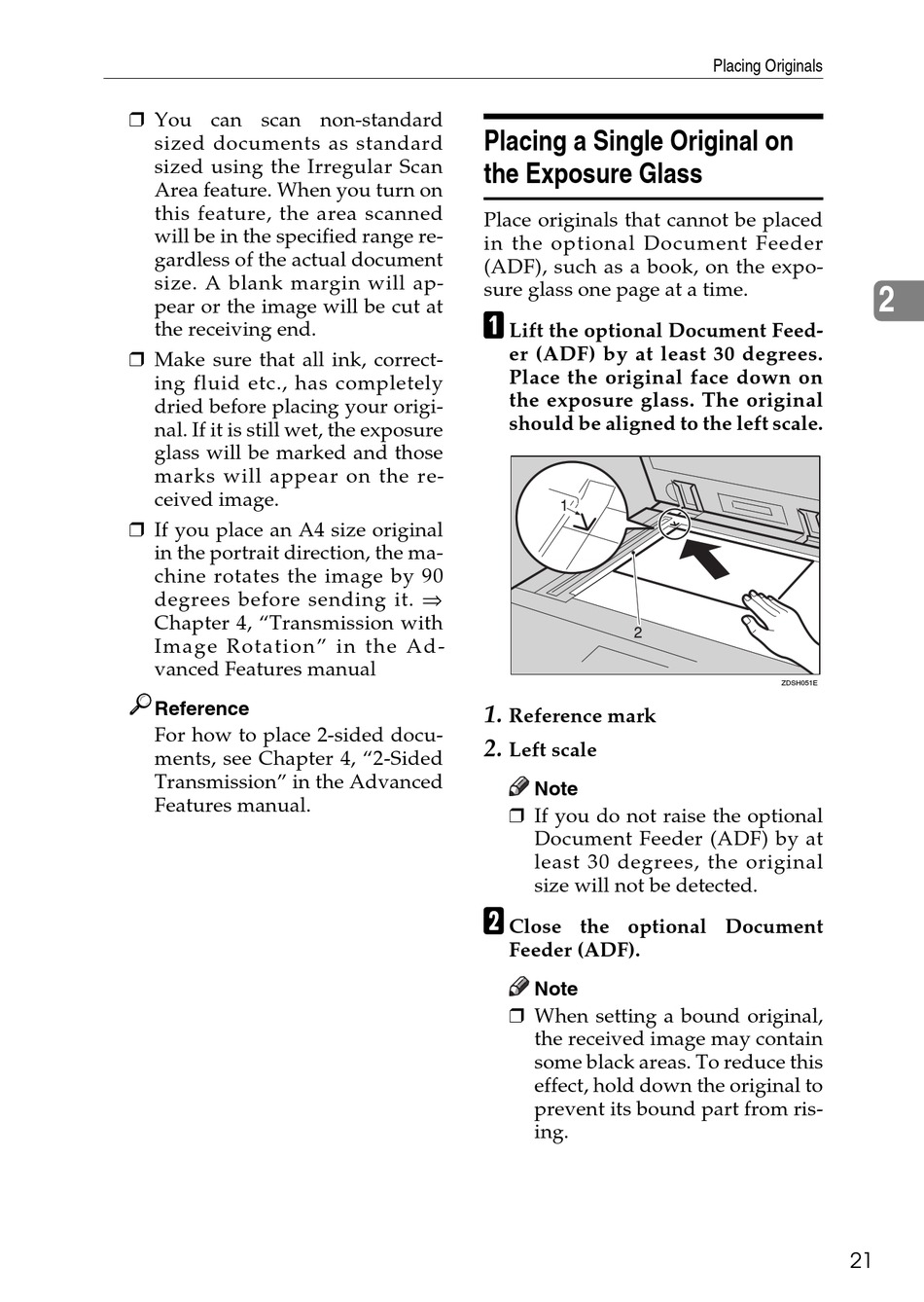

Placing a Single Original on
the Exposure Glass
Place originals that cannot be placed
in the optional Document Feeder
(ADF), such as a book, on the expo-
sure glass one page at a time.
A A A A
Lift the optional Document Feed-
er (ADF) by at least 30 degrees.
Place the original face down on
the exposure glass. The original
should be aligned to the left scale.
1.
Reference mark
2.
Left scale
Note
❒ If you do not raise the optional
Document Feeder (ADF) by at
least 30 degrees, the original
size will not be detected.
B B B B
Close the optional Document
Feeder (ADF).
Note
❒ When setting a bound original,
the received image may contain
some black areas. To reduce this
effect, hold down the original to
prevent its bound part from ris-
ing.
Placing Originals
2
ZDSH051E
21
