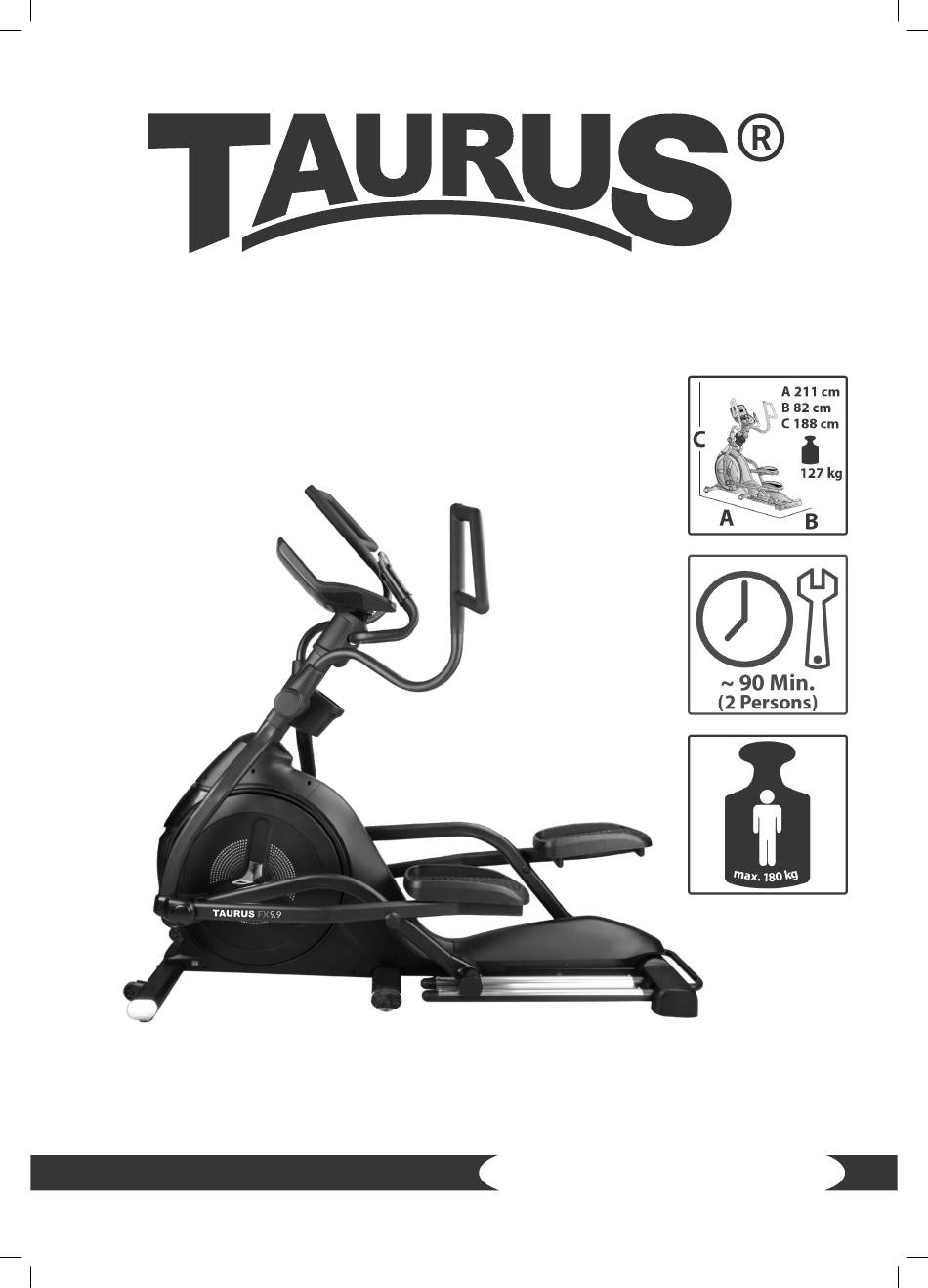

- Page 1 Assembly and Operating Instructions TF-FX99.01.02 Elliptical Trainer FX9.9 TF-FX9.9...
- Page 2 FX9.9...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console display Button functions Powering on the crosstrainer Standby mode MANUAL (Manual programs) 3.5.1 Quick-Start program 3.5.2 Target programs PROGRAM (Profile programs) USER (User defined program) H.R.C. - Page 4 RECOMMENDED ACCESSORIES ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT FX9.9...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. FX9.9...
-
Page 7: General Information
GENERAL INFORMATION Technical Data LCD Display: Training duration in min. Speed in km/h Training distance in km Calories in kcal Incline in % Heart rate (using the hand pulse sensors or a chest strap) Watts Brake system: Electro-magnetic induction brake Resistance levels: Watt range: 50 - 400W... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. FX9.9... -
Page 9: Electrical Safety
Electrical Safety ⚠ DANGER In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Assembly
To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. FX9.9... -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 12: Assembly
Screw the rear foot with the rails (155) to the M8*1.25*55L main frame (1) with eight washers (51), eight M8*1.25*55L spring washers (4), four hexagonal screws (147), M8*1.25*35L four hexagonal screws (148) and hand tighten M8*1.25*35L the screws in place. D15.4*D8.2*2T D15.4*D8.2*2T D25*D8.5*2T D25*D8.5*2T step1 step1 FX9.9... - Page 13 Step 2: Assembling the console mast Connect the console cable in the mast (101) with the console cable in the main frame (102). Connect the signal cable in the mast (178) with the signal cable in the main frame (179). ࣑...
- Page 14 Screw the left arm (12L) onto the console mast (11) with two Allen screws (6). Screw the right arm (12R) onto the console mast (11) with two Allen screws (6). Only hand tighten the screws in place. M8*1.25*20L step3 FX9.9...
- Page 15 Step 4: Mounting the pedals Mount the right and left pedal poles (14R/14L) on their respective sides of the main frame (1), each with two washers (73), one Allen screw (72) and one locking nut (74) (see fig. 4-1). Mount the right and left pedal mounts (15R/15L) on their repsective arm (12R/12L), each with two washers (73), one Allen screw (72) and one locking nut (74) (see fig.
- Page 16 Screw the right and left handles (13R/13L) onto the respecitve arm (12R/12L), each with three curved washers (9), three Allen screws (8) and three locking nuts (10) (see figs. 5-1 & 5-2). Only hand tighten the screws in place. M8*1.25*50L D22*D8.5*1.5T M8*1.25*8T step5 FX9.9...
- Page 17 Step 6: Mounting the console Connect the console cable from the console (100) with the console cable from the console mast (101) (see fig. 6-1). Connect the first hot-key cable from the console (106) with the first hot-key cable from the console mast (108) and the second hot-key cable from the console (107) with the second hot- key cable from the console mast (109) (see fig.
- Page 18 Screw the wheel covers (63) on both sides of the crosstrainer, each with two screws (97) (see fig. 7-6) and hand tighten the screws in place. Screw the axial covers (71) on both sides if the crosstrainer, each with two screws (97) (see fig. 7-7)and hand tighten the screws in place. FX9.9...
- Page 19 ST4.2*15L M5*0.8*12L step7...
- Page 20 This could also lead to technical errors occurring. Firstly connect the power cord (117) to the crosstrainer and then plug it into the wall socket, making sure the electrical prerequisites covered in the chapter about electrical safety are met. step8 FX9.9...
-
Page 21: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console display DISPLAY DESCRIPTION Display of the elapsed training time (0:00 - 99:59) TIME Set a target time with the rotary knob (0:00 - 99:00) in 1 min. -
Page 22: Button Functions
Returns you to the previous training mode while making settings or RESET selecting an option. To reset the console, press and hold the button for 2 seconds START/STOP Start and stop your training INCLINE DOWN Decreases the incline level INCLINE UP Increases the incline level FX9.9... -
Page 23: Powering On The Crosstrainer
Powering on the crosstrainer The console starts automatically as soon as the crosstrainer is plugged into the mains supply. Various components will light up. Choose a user profile (U1 - U4). Enter in your gender (SEX), age (AGE), height (HEIGHT) and weight (WEIGHT). You will proceed onto the main menu. -
Page 24: Manual (Manual Programs)
During training it is possible to change the resistance level with the rotary knob. The target value counts down and the other values count upwards. To pause the program, press the START/STOP button again. To end the program, press the RESET button. FX9.9... -
Page 25: Program (Profile Programs)
Training with multiple target values In the main menu select MANUAL and confirm your choice with a single push of the rotary knob. Select your target value for time, calories, distance and/or heart rate with the rotary knob and confirm your choice with a single push of the rotary knob. ⚠... - Page 26 FX9.9...
-
Page 27: User (User Defined Program)
USER (User defined program) There are 16 segments available in user defined programs. In the main menu select USER and confirm your choice with a single push of the rotary knob. Select the resistance level of each segment and confirm each value with a single push of the rotary knob. -
Page 28: Heart Rate Controlled Programs)
Your current heart rate will be displayed during training. NOTICE If no heart rate is detected, the display will show: To pause the program, press the START/STOP button again. To end the program, press the RESET button. FX9.9... -
Page 29: Watt (Watt Program)
WATT (Watt program) In the main menu select WATT and confirm your choice with a single push of the rotary knob. Using the rotary knob, select a Watt value and confirm your setting with a single push of the rotary knob. NOTICE The pre-set value is 120. -
Page 30: Body Fat (Body Fat Analysis)
BODY FAT button again. After successfully ending the test you'll be shown your body fat ratio (FAT%) and your BMI. NOTICE Should you body fat ratio be outside of the 5% - 50%, the display will show the error code E-4. FX9.9... -
Page 31: Bluetooth And Fitness Apps
3.12 Bluetooth and fitness apps The console of this crosstrainer is equipped with a Bluetooth receiver. In order to use training apps, you need to connect the crosstrainer and your mobile device (Tablet or smartphone) together. Turn on Bluetooth on your mobile device and choose your crosstrainer. The name of your crosstrainer can be found on a sticker on the back of the console. -
Page 32: Storage And Transport
After that, you easily can move the equipment to a new position. For long transport distances the equipment should be disassembled and safely packed. Select the new location by following the instructions in the section 1.4 of this manual. FX9.9... -
Page 33: Troubleshooting, Care And Maintenance
TROUBLESHOOTING, CARE AND MAINTENANCE General Instructions ⚠ WARNING Do not make any improper changes to the equipment. CAUTION ⚠ Damaged or worn components may affect your safety and the life of the equipment. Therefore, immediately replace damaged or worn components. In such a case, contact the contract partner. -
Page 34: Error Codes And Troubleshooting
The materials can be recycled as per their symbols. Through the reuse, recycling of materials or other forms of recovery of old equipment, you make an important contribution to the protection of the environment. FX9.9... -
Page 35: Recommended Accessories
RECOMMENDED ACCESSORIES To make your training experience even more efficient and pleasant, we recommend that you add suiting accessories to your fitness equipment. This could be a floor mat, for example, which makes your fitness equipment stand more securely and also protects the floor from falling sweat, but it could also be additional handrails on some treadmills or silicone spray to keep moving parts in good shape. -
Page 36: Ordering Spare Parts
Maximum weight/max. Benutzergewicht: Class/Klasse: Date/Datum: Sport-Tiedje GmbH, Flensburger Str. 55, 24837 Schleswig MADE IN Serial nº.: Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Cross-Elliptical Trainer Model Name: FX9.9 Article Number: TF-FX99 FX9.9... -
Page 37: Parts List
Parts List Name Supplier Part No. Specification Qty. main frame 747S1-3-1000-J0 front stabilizer 747S0-3-2100-J0 hex bolt M8*1.25*120L,8.8 50108-5-0120-F5 spring washer D15.4xD8.2x2T 55108-2-1520-FA hex bolt M8*1.25*70L,8.8 50108-5-0070-F4 allen bolt M8*1.25*20L,8.8 54008-5-0020-F0 flat washer D16*D8.5*1.2T 55108-1-1612-FA allen bolt M8*1.25*50L,8.8 50308-5-0050-F3 curved washer D22xD8.5x1.5T 55108-3-2215-FA... - Page 38 75000-6-2781-00 hex bolt M8*1.25*20L 50108-2-0020-U0 flat washer D25*D8.5*2T 55108-1-2520-FA buffer D27*D8.2*2.5T 739S0-6-1081-B0 sleeve D30*D25.2*45L 747S0-6-2707-00 fixing nut M25*1.5*32*6T 75000-6-2807-N0 allen screw M6*1.0*10L,8.8 54006-5-0010-F0 flat washer D28*D6.5*2T 55106-1-2820-FA allen screw M6*1.0*15L,8.8 54006-5-0015-D0 flat washer D13*D6.5*1.0T 55106-1-1310-NA spring washer D10.5*D6.1*1.3T 55106-2-1013-NA FX9.9...
- Page 39 movable axle D25*180.5L 747S0-6-3771-00 moving wheel D70*43 73800-6-3886-B3 bearing 6002 ZZ 58006-6-1032-00 moving wheel cover 162*136.2*87 747S0-6-3897-B0 front handlebar protective 240.5*127.8*59 747S0-6-3780-B0 cover(black) rear handlebar protective 240.5*127.8*50 747S0-6-3781-B0 cover(black) bearing #6004ZZ 58006-6-1017-00 sleeve(2) D25.4*D20.2*44L 747S0-6-2788-00 front foot cover (left)(black) 152.3*91.1*46.7 747S0-6-3775-B0 front foot cover (right)(black) 152.3*91.1*60...
- Page 40 337.6*225.5*58.4 747S0-6-2529-B0 allen bolt M8*1.25*25L,8.8 54008-5-0025-F0 allen bolt M8*1.25*40L,8.8 50308-5-0040-F3 transporting wheel D70.5*23 84302-6-2175-00 bushing D22.2*D8.2*7T 58002-6-1099-00 cross screw M3*0.5*30L 54203-2-0030-F0 cross screw M3*0.5*12L 54203-2-0012-F0 oval square 30*60*15 55315-3-3060-B8 buffer D21*D8.2*2.5T 747S0-6-1081-B0 spacer D19*D15.2*25.5L 747S0-6-3892-00 cross screw M6*1*15L 52606-2-0015-F0 FX9.9...
- Page 41 oval square 25*50*28L,1.5T tube 55328-3-2550-B1 square cap D50.8*15 55350-1-0015-B8 rear cover 766.7*169.6*144.3 747A2-6-4514-B0 D6*26.5*7.7 71600-6-4586-60 cross screw ST4*1.41*12L 52804-2-0012-F0 rear stabilizer welding set 747A2-3-2112-J0 hex bolt M8*1.25*55L,8.8 50108-5-0055-F3 hex bolt M8*1.25*35L,8.8 50108-5-0035-F3 buffer D20*10L*M8*1.25 55308-4-0010-BB bushing D19.15x(D25.6x32) 58002-6-1051-B0 xL(17+3) allen bolt M8*1.25*20L,8.8 50308-5-0020-UF0...
-
Page 42: Exploded Drawing
Exploded Drawing FX9.9... -
Page 43: Warranty
WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline. - Page 44 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. FX9.9...
-
Page 45: Contact
CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��... - Page 46 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! FX9.9...
- Page 48 Elliptical Trainer FX9.9...
