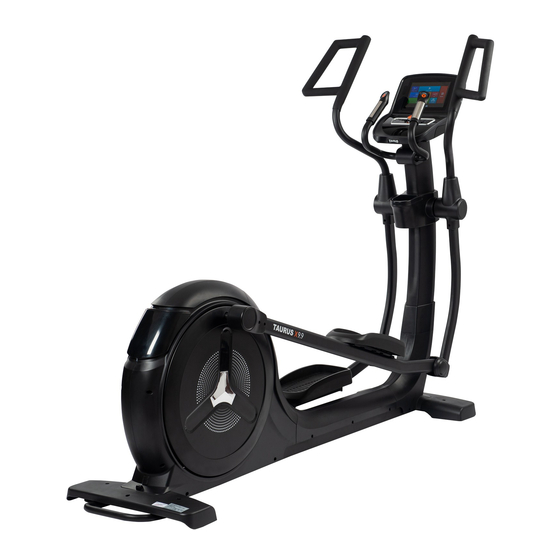

- Page 1 Assembly and Operating Instructions max. 180 kg ~ 60 Min. 95 kg L 232 | W 95 | H 172 TFX99TFT.01.01 Crosstrainer X9.9 Touch TF-X99-TFT...
- Page 2 X9.9 Touch...
-
Page 3: Table Of Contents
Content GENERAL INFORMATION Technical Data Personal Safety Electrical Safety Set-Up Place ASSEMBLY General Instructions Scope of Delivery Assembly OPERATING INSTRUCTIONS Console Display Button Functions Programmes 3.3.1 Quick Start 3.3.2 Target programmes 3.3.3 Pre-set programmes 3.3.4 User-defined programmes 3.3.5 Heart rate-oriented programmes Fitness Test Media Bluetooth and Fitness Apps... - Page 4 ORDERING SPARE PARTS Serial Number and Model Name Parts List Exploded Drawing WARRANTY CONTACT X9.9 Touch...
- Page 5 With Taurus® fitness equipment, the focus is on what sport is all about: maximum performance! Therefore, the equipment is developed in close consultation with athletes and sports scientists.
- Page 6 This notice indicates potentially hazardous situations which, if not avoided, will result in death or serious injuries! NOTICE This notice indicates further useful information. Retain these instructions in a safe place for future reference, maintenance or when ordering replacement parts. X9.9 Touch...
-
Page 7: General Information
GENERAL INFORMATION Technical Data TFT Display of: Training time in min. Speed in km/h Traning distance in km Calories in kcal Resistance level Heart rate (using the hand pulse sensors or a chest strap) RPM (Rotations per minute) Watts Resistance system: Electro-magnetic induction brake Resistance levels: Watts: 50 - 400 Watts... -
Page 8: Personal Safety
Make sure that nobody is within the range of motion of the equipment during training so as not to endanger you or other persons. ࣑ ATTENTION Do not insert any objects of any kind into the openings of the device. X9.9 Touch... -
Page 9: Electrical Safety
Electrical Safety ⚠ DANGER In order to reduce the risk of an electric shock, always unplug the equipment from the mains socket immediately after your workout, before assembly or dismantling, and before maintenance or cleaning. Do not pull on the cable. ⚠... -
Page 10: Assembly
To prevent damage to the equipment and the floor, assemble the equipment on a mat or packaging board. NOTICE In order to make the assembly as simple as possible, some screws and nuts to be used can already be pre-assembled. Ideally, assemble the equipment at its later set-up place. X9.9 Touch... -
Page 11: Scope Of Delivery
Scope of Delivery The scope of delivery consist of the following parts. At the beginning, check whether all parts and tools belonging to the device are included in the scope of delivery and whether damage has occurred. In the event of complaints, the contractual partner must be contacted directly. ⚠... -
Page 12: Assembly
In the following step, please pay attention to the correct positioning of the feet (see fig.). Place the cover (58) and screw the front and rear feet (2 & 3) onto the main frame (1), each with four hexagonal screws (13), four spring washers (12) and four washers (11). M8*1.25*15L D15.4*D8.2*2T D16*D8.5*1.2T X9.9 Touch... - Page 13 Step 2: Mounting the console mast Slide the cover (62) up around the console mast (4) (see fig. 2-1) and connect cable (98) to cable (99) (see fig. 2-2). Place the console mast (4) in the holder in the main frame (1) and screw it in with four hexagonal screws (13), four spring washers (12) and four washers (11).
- Page 14 Connect cable (117) to cable (98) and feed the two console cables from through the opening of Guide the ground cable through the console braket on the console mast (4) and mount the the screws. M8*1.25*15L D15.4*D8.2*2T D16*D8.5*1.2T M5*0.8*12L X9.9 Touch...
- Page 15 Step 4: Mounting the pedal rails and handlebar Connect the cables (117 & 102) and the cables (117 & 103) with each other (see fig. 4-1). Mount the handlebar (5) onto the console mast (4) with two hexagonal screws (73) and two curved washers (74).
- Page 16 (74) and three locking nuts (20) (see fig. 5-2). Mount the pedals (91) onto the pedal rails (10r & 10L), each with four screws (96). Place the pedal pads (92) onto the pedals (91). M8*1.25*50L D22xD8.5x1.5T M8*1.25*8T M6*1.0*15L X9.9 Touch...
- Page 17 Step 6: Mounting the covers Assemble the drink bottle holder parts (71 & 72) together and screw into place on the console mast (4) with four screws (64). Click the front drink bottle holder cover (70) onto the drink bottle holder (71) (see fig.
- Page 18 Do not use or switch off the equipment during the update. Check whether another update is available and carry it out as described above at regular intervals. If a new version is available, the display shows a white icon. Otherwise the icon will be grey. X9.9 Touch...
-
Page 19: Operating Instructions
OPERATING INSTRUCTIONS NOTICE Familiarise yourself with all the functions and setting options of the device before starting training. Have the proper use of this product explained to you by a specialist. Console Display DISPLAY DESCRIPTION Display of the current resistance level Level Display range: 1–32 Display of the training time in minutes... -
Page 20: Button Functions
Start programme START Continue after pausing the programme Pause programme Press in paused programme to end the programme and get an STOP overview of the collected training data Press after an ended programme to get to the main menu X9.9 Touch... -
Page 21: Programmes
Programmes This equipment offers many different programmes. This includes: a quick start programme, target programmes, pre-set programmes, user-defined programmes, heart rate-oriented programmes and one fitness test. 3.3.1 Quick Start When you are in the main menu, simply press START to start a training session via quick start. Alternatively you can also tap on „QUICK START“... - Page 22 Setting time / 30 = time for each section Programme LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL X9.9 Touch...
- Page 23 Setting time / 30 = time for each section Programme LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL LEVEL...
-
Page 24: User-Defined Programmes
Press the STOP button to pause your training. The resistance level is set to 0. 6.1. Press STOP again to end your training and an overview of the collected training data will be displayed. 6.2. Press START to continue with your training. X9.9 Touch... -
Page 25: Heart Rate-Oriented Programmes
3.3.5 Heart rate-oriented programmes WARNING ⚠ Your training equipment is not a medical device. The heart rate measurement of this equipment may be inaccurate. Various factors can affect the accuracy of the heart rate measurement. The heart rate measurement serves only as a training aid. There are three different heart rate-oriented programmes. -
Page 26: Fitness Test
In case the console does not receive a signal for 15 seconds the programme will be stopped. If your heart rate gets to high the console will display „OVER PULSE“. In this case, please interrupt your test immediately. Upon completion of the test an overview of the collected training data will be displayed. X9.9 Touch... -
Page 27: Media
Media Here you will find many different apps like YouTube, Twitter, Facebook or Instagram. IMPORTANT NOTE To make sure the preinstalled apps are working correctly, you will have to update them from time to time. The apps that need to be updated will give you a message. To update the app, you need to have a google account. -
Page 28: Bluetooth And Fitness Apps
You will find the fitness apps in the app stores of Google or Apple. There you will find the apps “Kinomap” or “Zwift”. Please note that these apps are produced by an external manufacturer. Sport-Tiedje does not take any responsibility regarding the availability, functionality or contents of these programmes. Example: Kinomap X9.9 Touch... -
Page 29: Storage And Transport
STORAGE AND TRANSPORT General Instructions ⚠ WARNING The storage location should be chosen so that improper use by third parties or children can be prevented. If your equipment does not have transportation wheels, the equipment must be disassembled before transportation. ࣑... -
Page 30: Troubleshooting, Care And Maintenance
(e.g. Mobile, Speakers, etc.) Chest strap Use a compatible chest strap (see compatible recommended accessories) No pulse displayed Position of the chest Re-position the chest strap and/or strap is incorrect moisten the electrode(s) Batteries are empty Change the batteries X9.9 Touch... -
Page 31: Maintenance And Inspection Calendar
Maintenance and Inspection Calendar To avoid damage from body sweat, the equipment must be cleaned with a damp towel (no solvents!) after each training session. The following routine tasks must be performed at the specified intervals: Part Weekly Monthly Quarterly Half-yearly Yearly Display of the console... -
Page 32: Recommended Accessories
Of course, you can also contact our customer service: by telephone, e-mail, in one of our branches or via our social media channels. We will be happy to advise you! chest strap floor mat chest strap contact gel silicone spray towels X9.9 Touch... - Page 33 Standard/Norm: Maximum weight/max. Benutzergewicht: Class/Klasse: Date/Datum: Sport-Tiedje GmbH, Flensburger Str. 55, 24837 Schleswig MADE IN Serial nº.: Enter the serial number in the appropriate field. Serial number: Brand / Category: Taurus / Crosstrainer Model Name: X9.9 Touch Article Number: TF-X99-TFT...
- Page 34 50308-5-0040-F3 M8*1.25*40L anti-loose nut 55208-1-2008-FA M8*1.25*8T flat washer 55110-1-2020-NA D20*D11*2t c-clip 55517-1-0010-00 S-17(1T) waved washer 55117-5-2203--DA D17*D22*0.3T bearing 58006-6-1026-01 6203-2RS flat washer 55108-1-2830-NA D28*D8.5*3T hex nut 55208-2-2006-NA M8*1.25*6T hex bolt 50108-5-0030-C4 M8*1.25*30L plastic flat washer 55110-1-5010-BF D50*D10*1.0T X9.9 Touch...
- Page 35 anti-loose nut 55206-1-2006-CA M6x1.0x6T hex bolt 50106-2-0075-N0 M6*75L fix plate 815G0-6-1673-N0 20*27*4T allen screw 54006-5-0015-D0 M6*1.0*15L hex nut 55206-2-2005-NA M6*1*5T bearing 58006-6-1057-00 #6205ZZ,NBK allen bolt 54010-8-0065-F6 M10*1.5*65L hex nut 55210-A-2008-FA M10*1.5*8T spacer 75000-6-2781-01 D29.5*D25.2*9T hex bolt 50108-2-0020-U0 M8*1.25*20L flat washer 55108-1-2115-CA D21*D8.5*1.5T sleeve...
- Page 36 747S0-6-3776-B0 152.3*91.1*60 sleeve(2) 747S0-6-2788-00 D25.4*D20.2*44L allen screw 50412-8-0070-F4 M12*1.75*70L flat washer 55112-1-2425-FA D24*D13.5*D2.5T anti-loose nut 55212-1-2012-FA M12*1.75*12T front pedal axle cover 747S0-6-3880-B0 182.4*95.7*67.6 short axle 749S0-6-3890-00 D25*16L pedal 58029-6-1147-B0 434.2*210.7*84 pedal pad 75000-6-3896-B0 379*168.5*5T bearing 58006-6-1031-00 #2203-2RS X9.9 Touch...
- Page 37 C-clip 55540-3-0018-D0 S-40(1.8T) bushing 58002-6-1109-UC0 D25*D20*5.5L cross screw 52606-2-0015-F0 M6*1*15L upper computer cable 734S5-6-2572-00 300L middle computer cable 734S5-6-2587-00 1000L lower computer cable 749S2-6-2573-00 2050L sensor cable 815G0-6-2576-00 450L round magnet 742G0-6-2574-00 quick key lower cable(1) 734S5-6-2544-00 850L quick key lower cable(2) 734S5-6-2536-00 850L control board...
- Page 38 Exploded Drawing X9.9 Touch...
- Page 39 WARRANTY Training equipment from Taurus® is subject to strict quality control. However, if a fitness equipment purchased from us does not work perfectly, we take it very seriously and ask you to contact our customer service as indicated. We are happy to help you by phone via our service hotline.
- Page 40 For that reason, we also want to resolve your queries quickly and in a straightforward manner. Thus, please always keep your customer number and the serial number of the faulty equipment handy. X9.9 Touch...
- Page 41 CONTACT TECHNICAL SUPPORT TECHNICAL SUPPORT & SERVICE TECHNICAL SUPPORT & SERVICE �� �� �� +49 4621 4210-900 80 90 16 50 +33 (0) 172 770033 +49 4621 4210-945 +49 4621 4210-933 �� +49 4621 4210-698 �� �� info@fitshop.dk service-france@fitshop.fr �� technik@sport-tiedje.de ��...
- Page 42 The company employs numerous sports scientists, fitness trainers and competitive athletes. Visit us also on our social media platforms or our blog! X9.9 Touch...
