Valve Details; Exhaust Valve - Kohler Command PRO EFI Series Service Manual

Disassembly/Inspection and Service
Inspection and Service

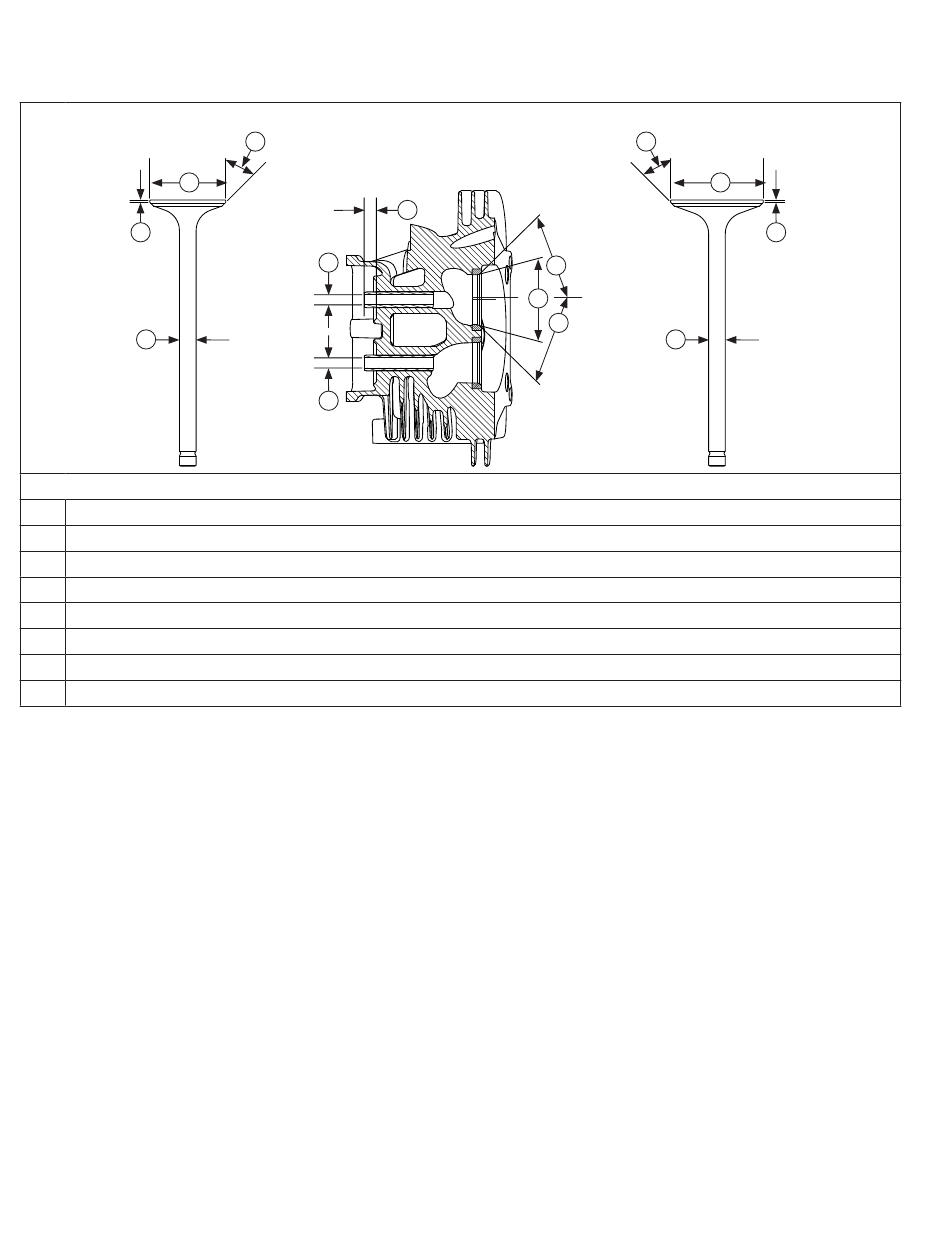

Valve Details

EXHAUST VALVE

E
G
H
Dimension
A Seat Angle
B Seat Taper
C Guide Depth
D Guide I.D.
E Valve Head Diameter
F Valve Face Angle
G Valve Margin (Min.)
H Valve Stem Diameter
After cleaning, check fl atness of cylinder head and
corresponding top surface of crankcase using a
surface plate or precision straight edge and feeler
gauge. Maximum allowable out of fl atness is 0.076 mm
(0.003 in.).
Carefully inspect valve mechanism parts. Inspect valve
springs and related hardware for excessive wear or
distortion. Check valves and valve seat area or inserts
for evidence of deep pitting, cracks, or distortion. Check
clearance of valve stems in guides.
Hard starting or loss of power accompanied by high
fuel consumption may be symptoms of faulty valves.
Although these symptoms could also be attributed to
worn rings, remove and check valves fi rst. After removal,
clean valve heads, faces, and stems with a power wire
brush.
Then, carefully inspect each valve for defects such as a
warped head, excessive corrosion, or a worn stem end.
Replace valves found to be in bad condition.
Valve Guides
If a valve guide is worn beyond specifi cations, it will not
guide valve in a straight line. This may result in burnt
valve faces or seats, loss of compression, and excessive
oil consumption.
98
F
C
D
D
Intake
44.5°
30°
8.5 mm (0.334 in.)
7.038/7.058 mm (0.2771/0.2779 in.)
38.625/38.685 mm (1.5206/1.5230 in.)
45°
1.0 mm (0.0393 in.)
6.982/7.000 mm (0.2749/0.2756 in.)
KohlerEngines.com
A
INT
B
A
EXH
7.038/7.058 mm (0.2771/0.2779 in.)
31.625/31.825 mm (1.2450/1.2549 in.)
6.970/6.988 mm (0.2744/0.2751 in.)
To check valve guide-to-valve stem clearance,
thoroughly clean valve guide and, using a split-ball
gauge, measure inside diameter of guide. Then, using
an outside micrometer, measure diameter of valve stem
at several points on stem where it moves in valve guide.
Use largest stem diameter to calculate clearance by
subtracting stem diameter from guide diameter. If intake
clearance exceeds 0.038/0.076 mm (0.0015/0.0030
in.) or exhaust clearance exceeds 0.050/0.088 mm
(0.0020/0.0035 in.), determine if valve stem or guide is
responsible for excessive clearance.
Maximum (I.D.) wear on intake valve guide is 7.135
mm (0.2809 in.) and 7.159 mm (0.2819 in.) for exhaust
guide. Guides are not removable but can be reamed
0.25 mm (0.010 in.) oversize. Valves with 0.25 mm
oversize stems must then be used.
If guides are within limits but valve stems are worn
beyond limits, install new valves.
Valve Seat Inserts
Hardened steel alloy intake and exhaust valve seat
inserts are press fi tted into cylinder head. Inserts are
not replaceable but can be reconditioned if not too badly
pitted or distorted. If cracked or badly warped, cylinder
head should be replaced.
INTAKE VALVE
F
E
G
H
Exhaust
44.5°
30°
8.5 mm (0.334 in.)
45°
1.0 mm (0.0393 in.)
