Install Crankshaft Position Sensor

NOTE: Ensure all parts are clean, undamaged, and free
of debris; make sure electrical connectors have
seal in place.
NOTE: On engines with earlier design bracket, an air
gap must be set when installing. Later design
brackets require no adjustment.
1. Install crankshaft position sensor and bracket
assembly to crankcase posts.
2. On engines with earlier design bracket, snug screws
and check air gap of sensor with a feeler gauge. It
must be 0.20-0.70 mm (0.008-0.027 in.). Torque
bracket screws to 9.7 N·m (86 in. lb.).
On engines with later design bracket, secure bracket
assembly to crankcase posts. Torque bracket screws
to 7.3 N·m (65 in. lb.)
3. Check electrical connector on crankshaft position
sensor making sure a good connection is made.

Install Cooling Fan and Debris Screen (Style A)

Failure to utilize or reassemble debris screen
as designed could result in debris screen
failure and serious personal injury.
If cooling fan was removed from fl ywheel perform step 1;
if hex studs were removed from fl ywheel perform step 2;
otherwise proceed to step 3.
1. Position cooling fan onto fl ywheel aligning mounting
locations. Apply a small amount of Loctite
Threadlocker to threads and install long mounting
screws. Torque screws to 10.4 N·m (92 in. lb.).
2. Apply a small amount of Loctite
to external threaded section, (unless new parts with
preapplied locking compound are being used).
Thread debris screen hex studs into mounting holes
in fl ywheel. Torque each stud to 21.5 N·m (190 in.
lb.).
3. Install stiff ener followed by metal debris screen onto
studs. Secure with special washers and mounting
screws using Loctite
threads. Torque hex fl ange screws to 20.3 N·m (180
in. lb.) and button head cap screws to 9.9 N·m (88
in. lb.).
62 690 05 Rev. E
CAUTION
243™
®
243™ Threadlocker
®
243™ Threadlocker on
®

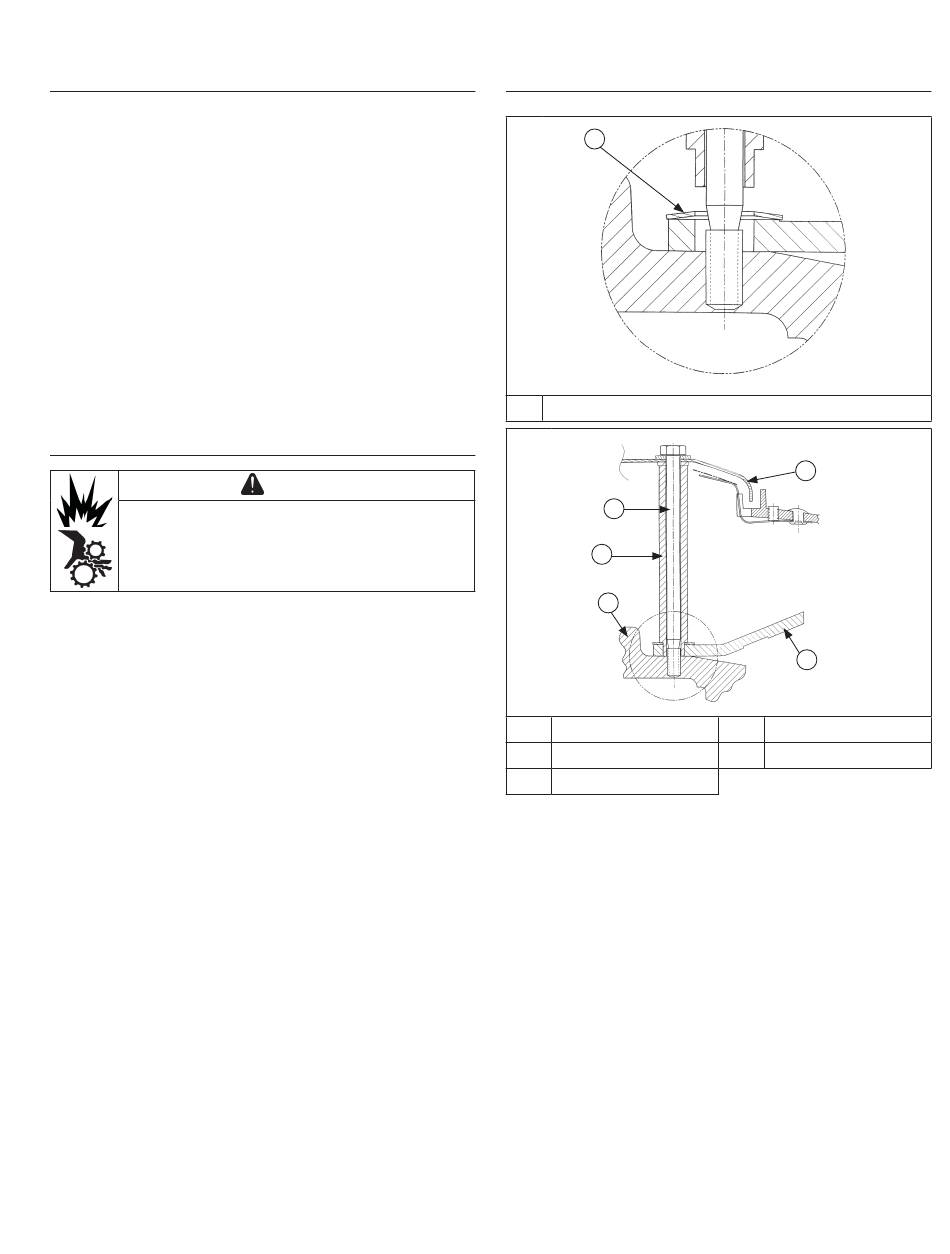

Install Metal Debris Screen (Style B)

Spring Washer Details

A
A
D
A Metal Debris Screen
C
E
1. Verify locating tabs on back of fan are inserted into
locating holes on fl ywheel.
2. To assist assembly, fi nd intake manifold studs with
M6 thread at least 100 mm in length to be used as
guide pins. Insert intake manifold studs through
cooling fan mounting holes and thread them 4 or 5
turns into fl ywheel.
3. Install a spring washer on each stud with concave
side down toward cooling fan.
4. Install a spacer on each stud with stepped end
down. Smaller diameter should extend through
spring washer and fan, so tip is resting on fl ywheel,
and shoulder is resting on spring washer
5. Install support ring on studs, so it is resting on
spacers. Then install metal screen on top of support
ring.
6. Install a plain washers on each of screws. Apply
Loctite ®
7. Carefully remove studs and replace with screws.
Torque screws to 9.9 N·m (88 in. lb.). Repeat
procedure for other studs and screws.
KohlerEngines.com
Spring Washer
E
C
B
Flywheel D
Hex Bolt
242 ® to screw threads.
Reassembly
A
B
Fan
Spacer
