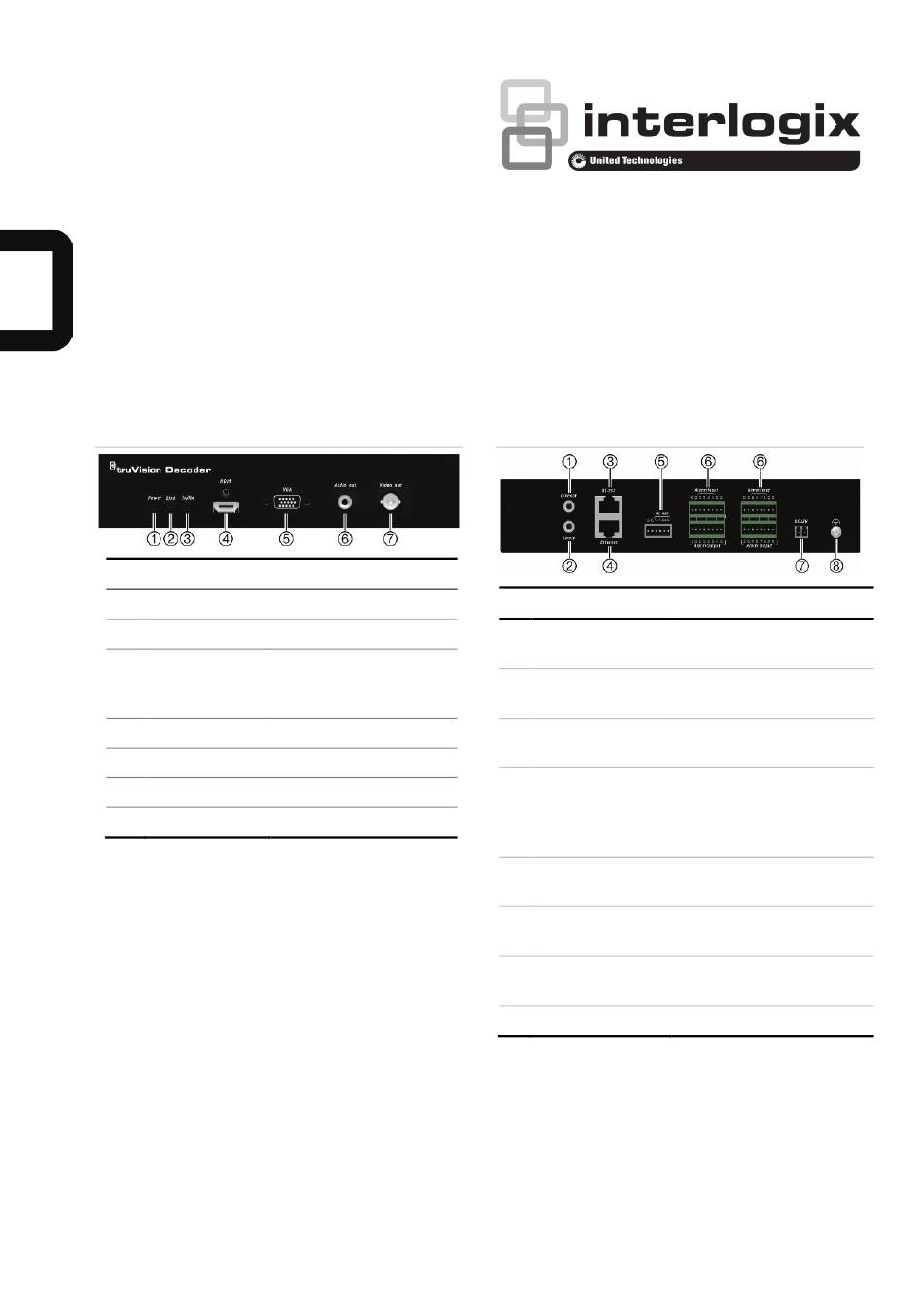

TVE-DEC12 IP Video Decoder Quick
Start Guide

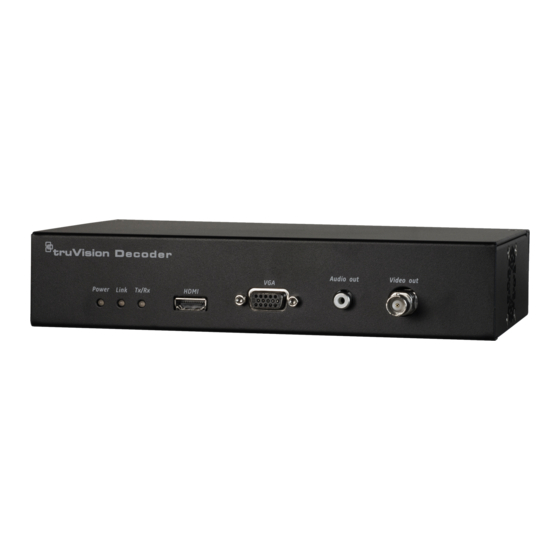

Figure 1: Front panel
LED indicator
1.
Power
2.
Link
3.
Tx/Rx
4.
HDMI
5.
VGA
6.
Audio out
7.
Video out
P/N 1073628-EN • REV A • ISS 08APR19
Description
Power LED
Network connection LED
Data
transmitting/receiving
status LED
HDMI output
VGA output
RCA Audio output
BNC decoding output
Figure 2: Back panel
Name
1.
Line out
2.
Line in
3.
RS-232
4.
Ethernet
5.
RS-485
6.
Alarm
Input/Output
7.
DC 12V
8.
GND
Description
Audio output, 3.5mm
connector.
Audio input, 3.5mm
connector.
Connect to an RS-232
device, such as a computer.
Connect the
10M/100M/1000Mbps self-
adaptive UTP Ethernet port
to a network.
Connect to RS-485 serial
port.
Not applicable.
Connect a 12 V power
supply via a PSU.
Connect to ground.
1
