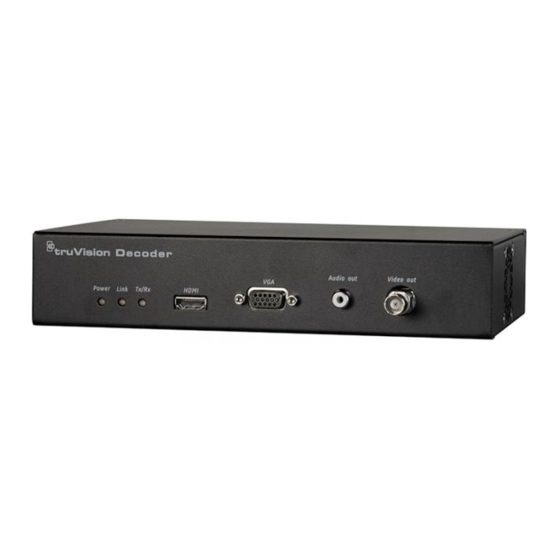

Interlogix TVE-DEC11 User Manual

Ip video decoder
Hide thumbs Also See for TVE-DEC11:
Table of Contents

Advertisement

Quick Links

Download this manual
TVE-DEC11 IP Video
Decoder User Manual
P/N 1072901B-EN • REV 1.0 • ISS 04MAR15

Advertisement

Table of Contents
loading

Related Manuals for Interlogix TVE-DEC11

Summary of Contents for Interlogix TVE-DEC11

  • Page 1 TVE-DEC11 IP Video Decoder User Manual P/N 1072901B-EN • REV 1.0 • ISS 04MAR15...
  • Page 2 Copyright © 2015 United Technologies Corporation. Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved. Trademarks and Trade names used in this document may be trademarks or patents registered trademarks of the manufacturers or vendors of the respective products.

  • Page 3: Table Of Contents

    Configuration 19 Device properties 19 Time settings 20 Network settings 21 Serial port settings 23 Alarm settings 25 Arming time 26 User account management 26 Import/Export Configure File 28 Device management 29 Specifications 30 TVE-DEC11 IP Video Decoder User Manual...

  • Page 4: Introduction

    Based on a powerful DSP and a stable embedded system design, the TVE-DEC11 decoder provides a high resolution decoding function for both live view and playback streams from Interlogix IP cameras, digital video recorders and network video recorders.

  • Page 5: Product Description

    Connect to RS-485 serial port. RS-485 Alarm Input Connect up to four alarm relay inputs. Alarm Output Connect up to four alarm relay outputs. DC 12V Connect a 12 V power supply via a PSU. Connect to ground. TVE-DEC11 IP Video Decoder User Manual...

  • Page 6: Connections

    The TVE decoder supports the open/close relay input as the alarm output mode. The alarm input can be selected to NO or NC. Different alarm output connection methods are applied to the AC or DC load. See Figure 3. TVE-DEC11 IP Video Decoder User Manual...
  • Page 7 JJ1can be safely used both in NC and NO methods. It is recommended to use 12 V / 1 A. For an external AC input, JJ1 must be open. The motherboard has two jumpers, each corresponding to one alarm output. Both jumpers are factory set to be connected. TVE-DEC11 IP Video Decoder User Manual...

  • Page 8: Network Settings

    1. Insert the CD in the computer’s CD/DVD drive. 2. Browse to the folder Tools and double-click the Setup file located in the folder. 3. Click Next. 4. Select the folder where the setup will install the files then click Next. TVE-DEC11 IP Video Decoder User Manual...
  • Page 9 2. The list of TruVision devices located on your network appears. Note: The TruVision Device Manager can only detect devices that are on the same LAN. The tool cannot detect devices placed on a VLAN. TVE-DEC11 IP Video Decoder User Manual...
  • Page 10 4. Change/modify the IP address and or subnet mask as required. Input the device’s logon password and press Save. 5. Repeat this process for each device that needs to be modified. When all changes to all discovered devices is complete, press Exit to close the tool. TVE-DEC11 IP Video Decoder User Manual...

  • Page 11: Using A Web Browser

    2. Enter the user name (default: admin) and password (default: 1234) to log into the system. The main page of the decoder appears. 3. If you need to install the TruVision Device Manager, You can find the tool on the CD shipped with the product. TVE-DEC11 IP Video Decoder User Manual...

  • Page 12: Decoder Operation

    Dynamic decoding Use this function to set up the parameters of each channel to be decoded. To set up dynamic decoding: 1. Click Decoding Operation > Decoding Mode > Dynamic Decoding. Dynamic Decoding window appears. TVE-DEC11 IP Video Decoder User Manual...

  • Page 13: Sequence Mode

    Set up the decoder so that the decoded images of multiple streams from a camera are automatically sequenced with a set dwell time between each image. To set up the decoding sequence: 1. Click Decoding Operation > Decode Mode > Sequence Decoding. Sequence Decoding window appears. TVE-DEC11 IP Video Decoder User Manual...

  • Page 14: Remote Playback

    Use this function to remotely access the encoder to stream and decode stored files for local output. The encoder must have storage capabilities. To set up remote playback: 1. Click Decoding Operation > Decode Mode > Remote playback. The Remote Playback window appears. TVE-DEC11 IP Video Decoder User Manual...
  • Page 15 Control playback by using the buttons on the toolbar . Click to start, stop, slow forward, fast forward and turn audio on/off respectively. Slow forward is 1/2X, 1/4, 1/8X and minimum. Fast forward is 2X, 4X, 8X and 16X. TVE-DEC11 IP Video Decoder User Manual...

  • Page 16: Display Settings

    This option depends on the output display option selected. Click the icons to enable or disable audio and image scaling respectively for each channel. 6. Click Save to save the settings. TVE-DEC11 IP Video Decoder User Manual...

  • Page 17: Enable/Disable Decoding Channel

    A resolution up to 128 x 128 is supported. To set up picture overlay: 1. Click Decoding Operation > Decode Control > Picture Overlay. The Picture Overlay window appears. 2. Select the desired decoding channel from the drop-down list. TVE-DEC11 IP Video Decoder User Manual...

  • Page 18: Connection Status

    Use this menu to check the current decoding channel for information such as the channel number, decoding channel status, stream compression type and video frame rate, for example. The information is regularly updated automatically. TVE-DEC11 IP Video Decoder User Manual...

  • Page 19: Check Display Channel Status

    Up to 64 encoders can be used to address a decoder. Note: If RS-232 is selected as the local serial port, you must set up the operation mode as transparent under Configuration > Serial Port Parameters > RS-232. TVE-DEC11 IP Video Decoder User Manual...
  • Page 20 Remote Host Port: Enter the host port of the remote encoding device. User Name and Password: Enter the user name and password used to log into the encoding device. 3. Click Save to save the settings. TVE-DEC11 IP Video Decoder User Manual...

  • Page 21: Configuration

    Create, modify or delete users and allocate user permissions. Config File Import/Export Import/export configuration files. Device properties You can edit the decoder name and view the decoder type and serial number as well as firmware version. TVE-DEC11 IP Video Decoder User Manual...

  • Page 22: Time Settings

    NTP software can be used to establish a NTP server used for time synchronization. To set up the decoder properties: 1. Click Configuration > Time Settings. The Time Settings window appears. TVE-DEC11 IP Video Decoder User Manual...

  • Page 23: Network Settings

    You must configure your decoder’s network settings before using it over the network. To configure general settings: 1. Click Configuration > Network Settings > General. The General Network Settings window appears. 2. Enter the required values for the following options: TVE-DEC11 IP Video Decoder User Manual...
  • Page 24 IPServer, DynDNS, PeanutHull, NO-IP and ezDDNS. 4. Enter the Server Address Port for DDNS Server. 5. Enter the User Name Password that you applied from the server. 6. Click Save to save the settings. TVE-DEC11 IP Video Decoder User Manual...

  • Page 25: Serial Port Settings

    Serial port settings Use this menu to configure the settings of the RS-232 and RS-485 ports. To set up RS-232 port: 1. Click Configuration > Serial Port Settings > RS-232 Port. The RS-232 Port window appears. TVE-DEC11 IP Video Decoder User Manual...
  • Page 26 RS-485 Port. The RS-485 Port window appears. 2. Input the values for the following parameters: RS-485 camera number, duplex mode, baud rate, data bit, stop bit, and parity type. 3. Click Save to save settings. TVE-DEC11 IP Video Decoder User Manual...

  • Page 27: Alarm Settings

    Rule, check one or more of the desired response methods: Alarm Output 1 to Alarm Output 4. 5. Click Save to save settings. To set up alarm outputs: 1. Click Configuration > Alarm Settings > Alarm Output. The Alarm Output window appears. TVE-DEC11 IP Video Decoder User Manual...

  • Page 28: Arming Time

    The Administrator can add, delete or configure parameters for all decoder functions. There can only be one administrator. The user name is admin. The name cannot be modified. The default password is 1234. Note: Default passwords should be changed for security reasons. TVE-DEC11 IP Video Decoder User Manual...
  • Page 29 1. Click Configuration > User Management. The user Management window appears. 2. Select the desired user and click Delete. 3. Click in the pop-up window to confirm deletion. The user is immediately deleted. 4. Click TVE-DEC11 IP Video Decoder User Manual...

  • Page 30: Import/Export Configure File

    Browse to select the file from the local directory and then click the Import button to import a configuration file. -Or- Click the Export button to export configuration files to the local backup device. TVE-DEC11 IP Video Decoder User Manual...

  • Page 31: Device Management

    IP address and network settings. The default settings are restored immediately. To restart the decoder: 1. Click Device Management > Reboot. The Reboot window appears. 2. Click The decoder restarts. TVE-DEC11 IP Video Decoder User Manual...

  • Page 32: Specifications

    General Operating temperature -10 to +55 °C (14 to 131 °F) Operating humidity 10% to 90% Dimension (W ×D × H) 220×180×45 mm (8.66 × 7.1 × 1.77 in.) Weight 1.12 kg (2.47 lb.) TVE-DEC11 IP Video Decoder User Manual...
