TVE-DEC11 IP Video Decoder Quick Start
Guide
Description

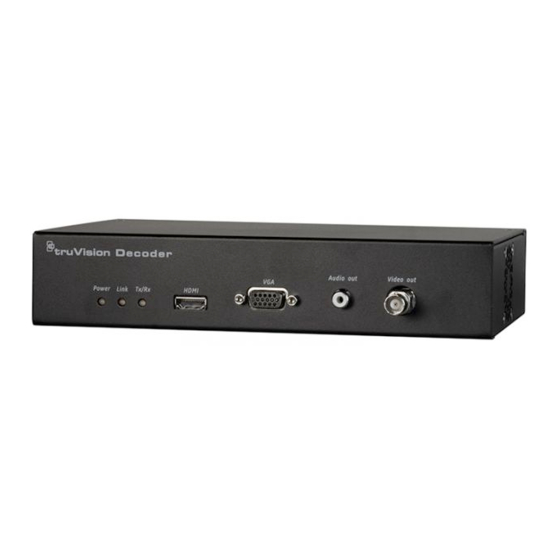

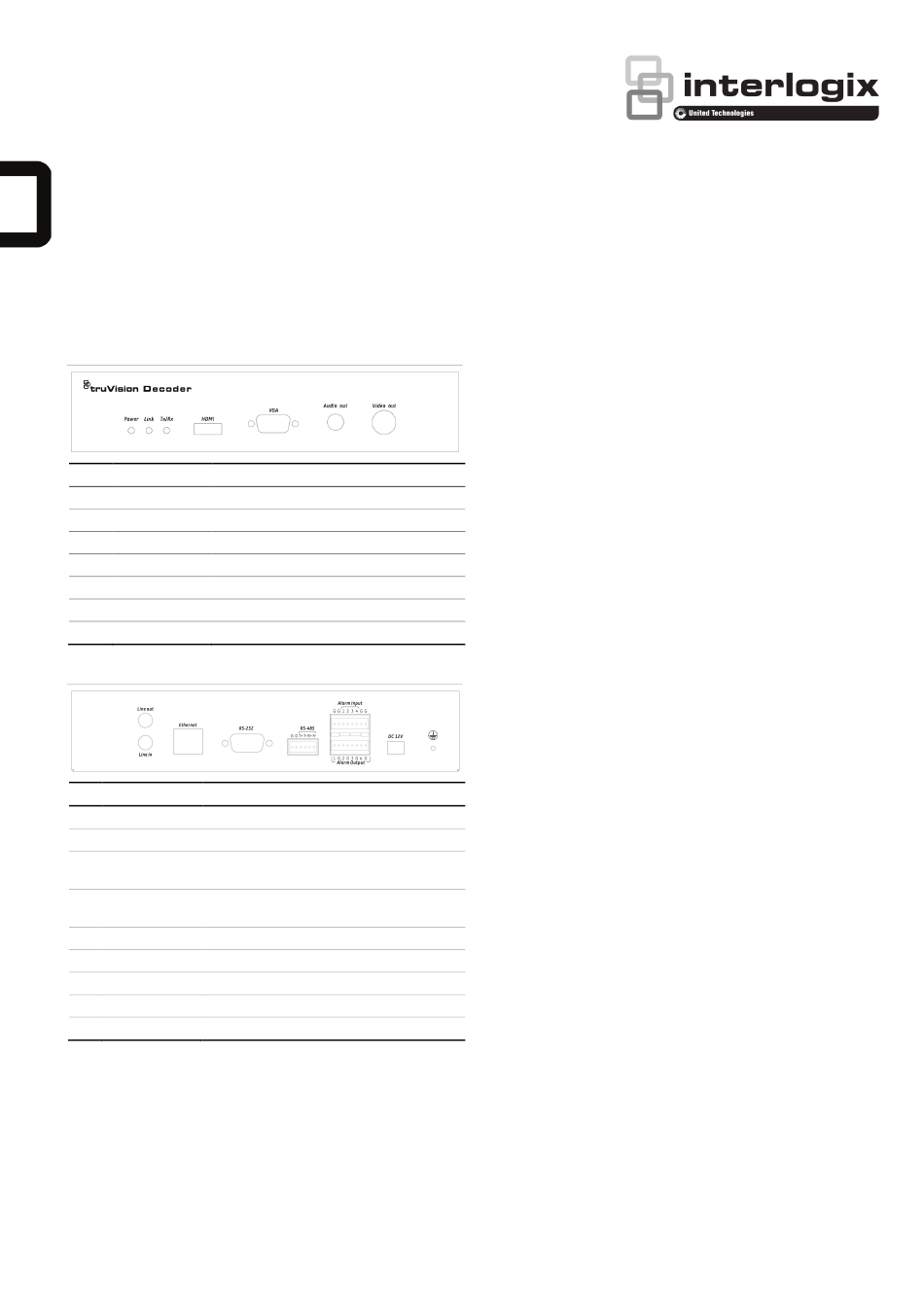

Figure 1: Front panel
Item LED indicator Description
1. Power The power LED
2. Link Network connection LED
3. Tx/Rx Data transmitting/receiving status LED
4. HDMI HDMI output
5. VGA VGA output
6. Audio out RCA Audio output
7. Video out BNC decoding output
Figure 2: Rear panel
Item Name Description
1. Line out Audio output, 3.5mm connector.
2. Line in Audio input, 3.5mm connector.
3. Ethernet Connect
adaptive UTP Ethernet port to a network.
4. RS-232 Connect to an RS-232 device, such as a
computer.
5. RS-485 Connect to RS-485 serial port.
6. Alarm Input Connect up to four alarm relay inputs.
Alarm Output Connect up to four alarm relay outputs.
7. DC 12V Connect a 12 V power supply via a PSU.
8. GND Connect to ground.
Package contents
The TruVision TVE H.264 IP video decoder is shipped with the
following items:
• TVE-DEC11 decoder
• Power adaptor
• Power cable
© 2015 United Technologies Corporation. All rights reserved.
Interlogix is part of UTC Building & Industrial Systems, a unit of United Technologies Corporation. All rights reserved.
the 10M/100M/1000Mbps self-
• Quick start guide
• CD (includes the user manual and TruVision Device
Manager)

Network settings

Use TruVision Device Manager to find and configure the IP
address and other parameters of the device. This tool
automatically identifies TruVision devices that support "auto-
discovery" anywhere on the network, even in different subnets.
The TruVision Device Manager tool can be found on the CD
shipped with the decoder.
To install the TruVision Device Manager:
1. Insert the CD in the computer's CD/DVD drive.
2. Browse to the folder Tools and double-click the Setup file
located in the folder.
3. Following the instructions, select the folder where setup
will install the files then click Next.
4. The program requires a utility called WinPcap to be
installed on the computer. If it is already installed, go to
step 5. If the program is not installed, the WinPcap window
appears. Follow the on-screen instructions.
5. The TruVision Device Manager Wizard appears. Click
Finish to complete its installation. The shortcut icon
appears on your desktop.
To use the TruVision Device Manager:
1. Double-click the shortcut icon to open the tool. Click
Device Manager to begin the discovery process. The list
of TruVision devices located on your network appears.
Note: The TruVision Device Manager can only detect
devices that are on the same LAN. The tool cannot detect
devices placed on a VLAN.
2. Change the device settings as required. Click
right corner when completed.
Before you start
Before accessing the browser, you need to configure the
network settings of the decoder. Connect the decoder to the
LAN, and connect a computer to the same LAN as the
decoder.
The decoder's factory default user name is admin and the
password is 1234. The decoder's factory default IP address is
192.168.1.70.
P/N 1072900A-EN • REV 1.0 • ISS 27JAN15
