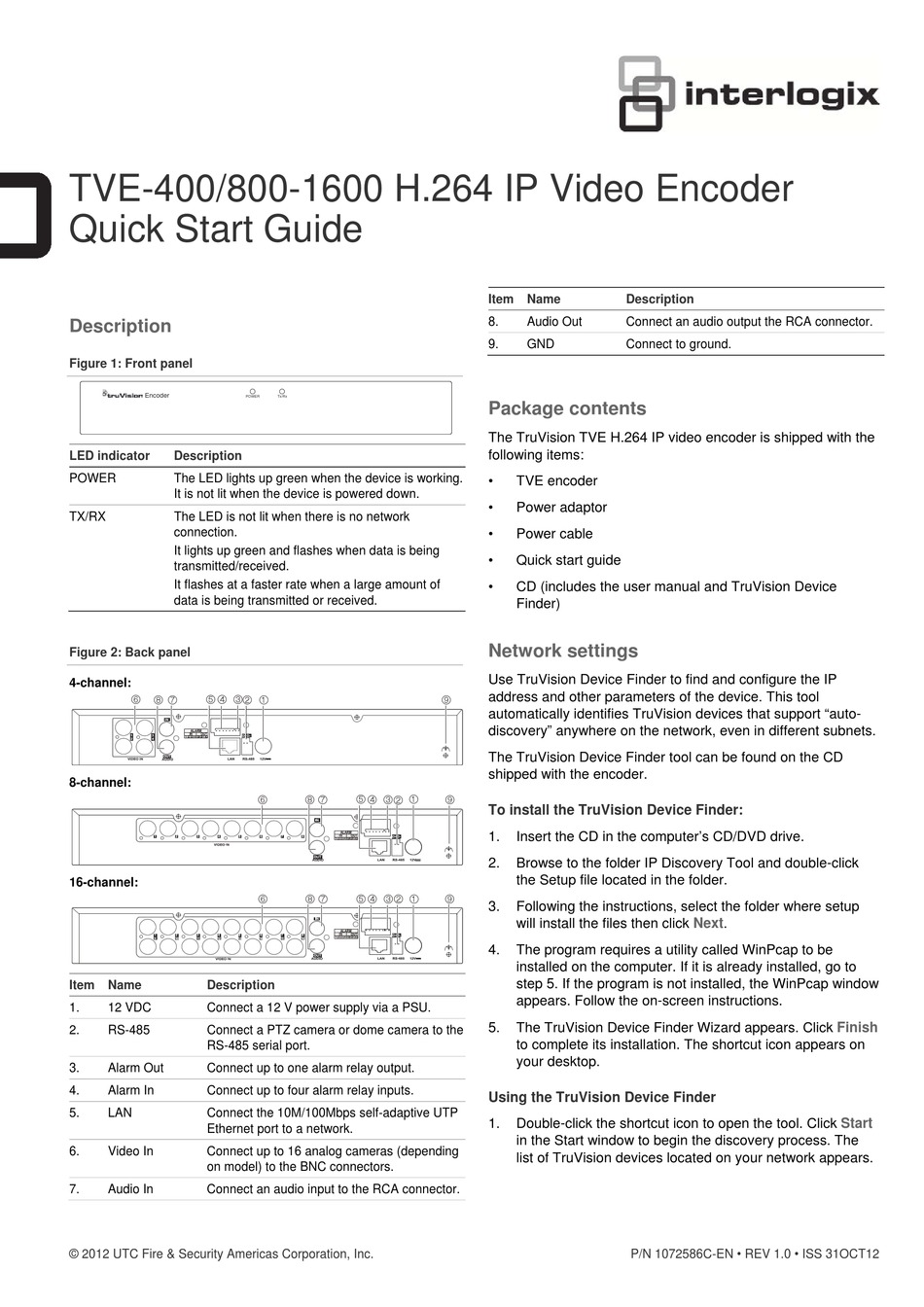

TVE-400/800-1600 H.264 IP Video Encoder
Quick Start Guide
Description
Figure 1: Front panel
Encoder
LED indicator Description
POWER The LED lights up green when the device is working.
It is not lit when the device is powered down.
TX/RX The LED is not lit when there is no network
connection.
It lights up green and flashes when data is being
transmitted/received.
It flashes at a faster rate when a large amount of
data is being transmitted or received.
Figure 2: Back panel
4-channel:
   
   
8-channel:
16-channel:
Item Name Description
1. 12 VDC Connect a 12 V power supply via a PSU.
2. RS-485 Connect a PTZ camera or dome camera to the
RS-485 serial port.
3. Alarm Out Connect up to one alarm relay output.
4. Alarm In Connect up to four alarm relay inputs.
5. LAN Connect the 10M/100Mbps self-adaptive UTP
Ethernet port to a network.
6. Video In Connect up to 16 analog cameras (depending
on model) to the BNC connectors.
7. Audio In Connect an audio input to the RCA connector.
© 2012 UTC Fire & Security Americas Corporation, Inc.
POWER Tx/Rx
      

       
Item Name
8. Audio Out
9. GND

Package contents

The TruVision TVE H.264 IP video encoder is shipped with the
following items:
• TVE encoder
• Power adaptor
• Power cable
• Quick start guide
• CD (includes the user manual and TruVision Device
Finder)

Network settings

Use TruVision Device Finder to find and configure the IP
address and other parameters of the device. This tool

automatically identifies TruVision devices that support "auto-
discovery" anywhere on the network, even in different subnets.
The TruVision Device Finder tool can be found on the CD
shipped with the encoder.

To install the TruVision Device Finder:
1. Insert the CD in the computer's CD/DVD drive.
2. Browse to the folder IP Discovery Tool and double-click
the Setup file located in the folder.

3. Following the instructions, select the folder where setup
will install the files then click Next.
4. The program requires a utility called WinPcap to be
installed on the computer. If it is already installed, go to
step 5. If the program is not installed, the WinPcap window
appears. Follow the on-screen instructions.
5. The TruVision Device Finder Wizard appears. Click
to complete its installation. The shortcut icon appears on
your desktop.
Using the TruVision Device Finder
1. Double-click the shortcut icon to open the tool. Click
in the Start window to begin the discovery process. The
list of TruVision devices located on your network appears.
Description
Connect an audio output the RCA connector.
Connect to ground.
P/N 1072586C-EN • REV 1.0 • ISS 31OCT12
Finish
Start
