Technical Information

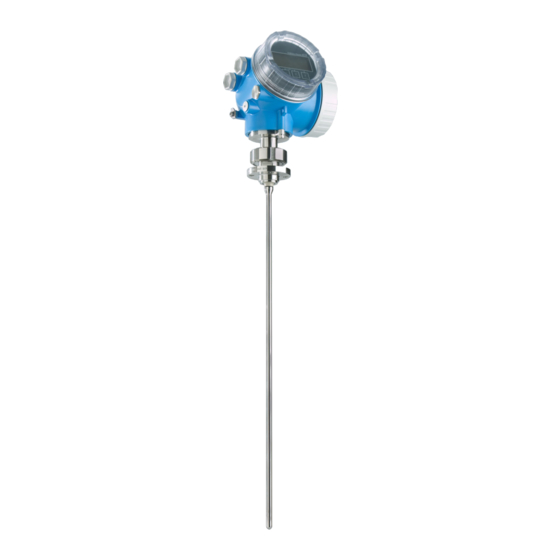

Levelflex FMP53
Guided Level-Radar
Level measurement in liquids and hygienic applications
TI01002F/00/EN/15.12
71206471
Application
• FMP53 - premium device for the highest hygiene
requirements. ASME BPE and USP Class VI
compliant.
• Measuring range up to 6 m (20 ft)
• Process connections for hygiene applications (Tri-
Clamp, DIN 11864, Ingold fitting, ...)
• Temperature range: –20 to +150 °C (–4 to +302 °F)
• Pressure range: –1 to 16 bar (–14.5 to 232 psi)
• The following interfaces are available for system
integration:
– HART with 4...20 mA analog
– PROFIBUS PA (Profile 3.02)
– FOUNDATION Fieldbus
• Used for level monitoring (MIN, MAX, range) up to
SIL 2 (single device) or SIL 3 (redundancy, even if
homogeneous), independently assessed by TÜV as
per IEC 61508
Your benefits
• Reliable measuring:
– in case of moved surface and foam
– for changing media
– for filling via spray head
• High availablility
• Integrated data memory
• Factory precalibrated to probe length
• Intuitive, menu-guided operating concept in national
languages
• Simple integration into control or asset management
systems
• Exact instrument and process diagnosis to assist fast
decisions
• Approvals: ATEX, IEC Ex, CSA, FM, NEPSI
Sanitary compatibility: CoC (Certificate of
Compliance)
3-A
