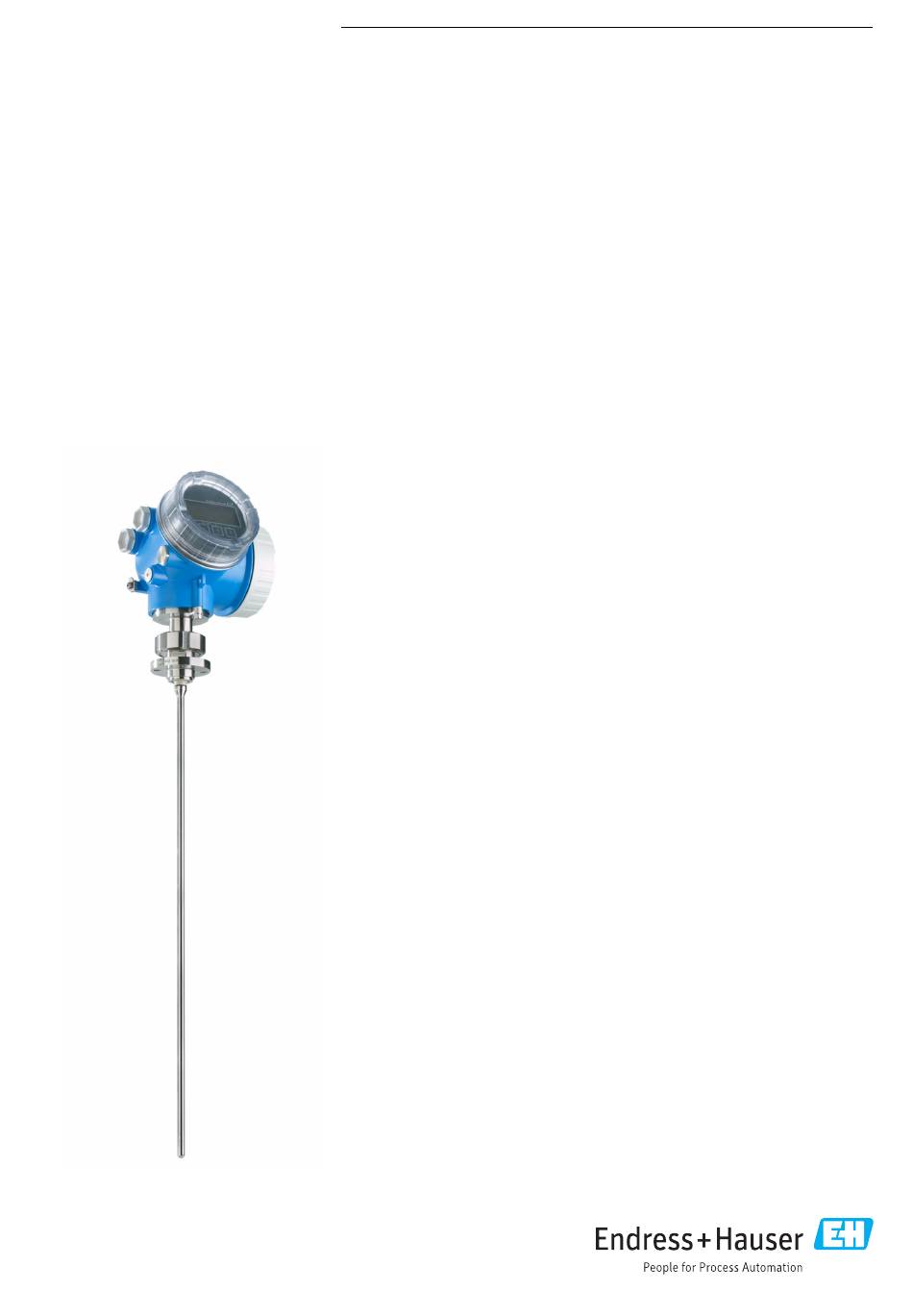

TI01002F/00/EN/24.22-00
71567333
2022-04-12
Products
Technical Information

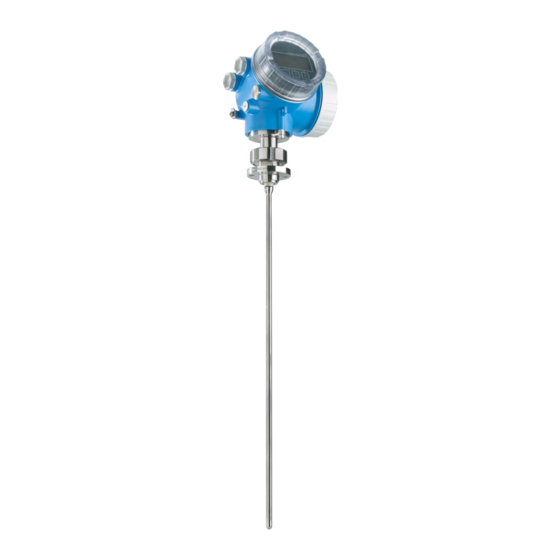

Levelflex FMP53
Guided wave radar
Level measurement in hygienic applications
Application
• Rod probe
• Process connections for hygiene requirements (Tri-Clamp, 11851, 11864,
NEUMO, Varivent N, SMS)
• Process temperature: –20 to +150 °C (–4 to +302 °F)
• Process pressure: –1 to +16 bar (–14.5 to +232 psi)
• Maximum measuring range: Rod 6 m (20 ft)
• Accuracy: ±2 mm (±0.08 in)
• International explosion protection certificates; WHG; EN10204-3.1; EHEDG; 3-A;
CoC ASME-BPE
• Linearity protocol (3-point, 5-point)
Your benefits
• Reliable measurement even for changing product and process conditions
• HistoROM data management for easy commissioning, maintenance and
diagnostics
• Highest reliability due to Multi-Echo Tracking
• Hardware and software developed according to IEC 61508 (up to SIL3)
• Seamless integration into control or asset management systems
• Intuitive user interface in national languages
• Bluetooth® wireless technology for commissioning, operation and maintenance via
free iOS / Android app SmartBlue
• Easy proof test for SIL and WHG
• Heartbeat Technology™
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Levelflex FMP53

Summary of Contents for Endress+Hauser Levelflex FMP53

  • Page 1 Products Solutions Services TI01002F/00/EN/24.22-00 71567333 2022-04-12 Technical Information Levelflex FMP53 Guided wave radar Level measurement in hygienic applications Application • Rod probe • Process connections for hygiene requirements (Tri-Clamp, 11851, 11864, NEUMO, Varivent N, SMS) • Process temperature: –20 to +150 °C (–4 to +302 °F) •...

  • Page 2: Table Of Contents

    Levelflex FMP53 Table of contents Important document information ....4 Process pressure range ......48 Dielectric constant (DC) .
  • Page 3 Levelflex FMP53 Accessories ....... 85 Device-specific accessories ..... .

  • Page 4: Important Document Information

    Levelflex FMP53 Important document information Symbols used Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury.

  • Page 5: Function And System Design

    Levelflex FMP53 Function and system design Measuring principle General principles The Levelflex is a "downward-looking" measuring system that functions according to the time-of- flight method (ToF). The distance from the reference point to the product surface is measured. High- frequency pulses are injected to a probe and led along the probe. The pulses are reflected by the product surface, received by the electronic evaluation unit and converted into level information.
  • Page 6 Levelflex FMP53 Dielectric constant The dielectric constant (DC) of the medium directly affects the degree of reflection of the high- frequency pulses. In the case of large DC values, such as with water or ammonia, there is strong pulse reflection while, in the case of low DC values, such as with hydrocarbons, pulse reflection is weak.

  • Page 7: Measuring System

    • Measurement is unaffected by product properties • Hardware and software developed according to SIL IEC 61508 • Genuine, direct interface measurement Procurement • As the global market leader in level measurement, Endress+Hauser guarantees the security of your investment • Worldwide support and service Installation •...
  • Page 8 Levelflex FMP53 Rod probe • Maximum probe length • 4 m (13 ft); inseparable rod probes • 6 m (20 ft); separable rod probes • Material: • 316L, Ra<0.76 µm (30 µin) • 316L, electropolished Ra<0.38 µm (15 µin) • Connectable reference probe Calibration kit FMP53 (order no.: 71041382)

  • Page 9: Input

    Levelflex FMP53 Input Measured variable The measured variable is the distance between the reference point and the product surface. The level is calculated based on "E", the empty distance entered. Optionally, the level can be converted to other variables (volume, mass) by linearization (32 points).

  • Page 10: Blocking Distance

    Levelflex FMP53 Blocking distance The upper blocking distance (= UB) is the minimum distance from the reference point of the measurement (mounting flange) to the maximum level. 100% A0011279  3 Definition of blocking distance and safety distance Reference point of measurement...

  • Page 11: Output

    Levelflex FMP53 Output Output signal HART • Signal coding: FSK ±0.5 mA over current signal • Data transmission rate: 1 200 Bit/s • Galvanic isolation: Bluetooth® wireless technology • Device version: Order code 610 "Accessory mounted", option NF "Bluetooth" • Operation / configuration: Via the SmartBlue app •...

  • Page 12: Signal On Alarm

    Levelflex FMP53 • Scan rate: Corresponds to the measuring cycle • Signal source / device variables: • Level linearized • Distance • Terminal voltage • Electronic temperature • Relative echo amplitude • Diagnostic values, advanced diagnostic blocks • Only for active interface measurement •...

  • Page 13: Protocol-Specific Data

    Levelflex FMP53 Protocol-specific data HART Manufacturer ID 17 (0x11) Device type ID 0x1122 HART specification Device description files (DTM, DD) Information and files under: • www.endress.com • www.fieldcommgroup.org HART load min. 250 Ω HART device variables The measured values can be freely assigned to the device variables.
  • Page 14 Levelflex FMP53 PROFIBUS PA Manufacturer ID 17 (0x11) Ident number 0x1558 Profile version 3.02 GSD file Information and files under: • www.endress.com GSD file version • www.profibus.org Output values Analog Input: • Level linearized • Distance • Terminal voltage • Electronic temperature •...
  • Page 15 Service with information about the state of the device Data Transfer Contains parameters for backing up the device No output values Transducer Block configuration in the display module and for writing the saved configuration to the device. Access to these parameters is reserved for Endress+Hauser Service. Endress+Hauser...
  • Page 16 Levelflex FMP53 Function blocks Block Contents Number of Number of Execution Functionality permanent instantiatable time blocks blocks Resource Block The Resource Block contains all Enhanced the data that uniquely identify the device. It is an electronic version of a nameplate of the device.
  • Page 17 Levelflex FMP53 Block Contents Number of Number of Execution Functionality permanent instantiatable time blocks blocks Integrator The Integrator Block integrates a 25 ms Standard Block variable as a function of the time or accumulates the counts from a Pulse Input Block. The Block can...

  • Page 18: Power Supply

    Levelflex FMP53 Power supply Terminal assignment Terminal assignment 2-wire: 4-20 mA HART A0036498  4 Terminal assignment 2-wire: 4-20 mA HART Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 19 Levelflex FMP53 Terminal assignment 2-wire: 4-20 mA HART, switch output A0036500  6 Terminal assignment 2-wire: 4-20 mA HART, switch output Without integrated overvoltage protection With integrated overvoltage protection Connection 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage protection...
  • Page 20 Levelflex FMP53 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA A0036500  8 Terminal assignment 2-wire: 4-20 mA HART, 4-20 mA Without integrated overvoltage protection With integrated overvoltage protection Connection current output 1, 4-20 mA HART passive: terminals 1 and 2, without integrated overvoltage...
  • Page 21 Levelflex FMP53 Terminal assignment 4-wire: 4-20 mA HART (10.4 to 48 V A0036516  10 Terminal assignment 4-wire: 4-20 mA HART (10.4 to 48 V Connection 4-20 mA HART (active): terminals 3 and 4 Connection supply voltage: terminals 1 and 2 Terminal for cable screen Block diagram 4-wire: 4-20 mA HART (10.4 to 48 V...
  • Page 22 Levelflex FMP53 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V A0036519  12 Terminal assignment 4-wire: 4-20 mA HART (90 to 253 V Connection 4-20 mA HART (active): terminals 3 and 4 Connection supply voltage: terminals 1 and 2...
  • Page 23 Levelflex FMP53 Block diagram 4-wire: 4-20 mA HART (90 to 253 V A0036527  13 Block diagram 4-wire: 4-20 mA HART (90 to 253 V Evaluation unit, e.g. PLC HART communication resistor (≥ 250 Ω); observe maximum load Connection for Commubox FXA195 or FieldXpert SFX350/SFX370 (via VIATOR Bluetooth modem) Analog display device;...
  • Page 24 Levelflex FMP53 Block diagram PROFIBUS PA / FOUNDATION Fieldbus A0036530  15 Block diagram PROFIBUS PA / FOUNDATION Fieldbus Cable screen; observe cable specifications Connection PROFIBUS PA / FOUNDATION Fieldbus Measuring device Switch output (open collector) Endress+Hauser...
  • Page 25 Levelflex FMP53 Connection examples for the switch output For HART devices, the switch output is available as an option. A0015909  16 Connection of a relay A0015910  17 Connection to a digital input Pull-up resistor Digital input For optimum interference immunity we recommend to connect an external resistor (internal resistance of the relay or pull-up resistor) of <...

  • Page 26: Device Plugs

    Levelflex FMP53 Device plugs In device versions with a device plug (M12 or 7/8"), it is not necessary to open the housing in order to connect the signal cable. A0011175  18 Pin assignment of M12 plug Signal + Not assigned Signal –...

  • Page 27: Power Supply

    Levelflex FMP53 Power supply An external power supply is required. Various supply units can be ordered from Endress+Hauser. 2-wire, 4-20mA HART, passive 2-wire; 4-20mA HART "Approval" Terminal voltage U at the device Maximum load R, depending on the supply voltage U...
  • Page 28 Levelflex FMP53 2-wire; 4-20 mA HART, switch output "Approval" Terminal voltage U at the device Maximum load R, depending on the supply voltage U at the supply unit 3) 4) • Non-Ex 13.5 to 35 V R [ ] Ω...
  • Page 29 Levelflex FMP53 Polarity reversal protection Admissible residual ripple < 1 V at f = 0 to 100 Hz Admissible residual ripple < 10 mV at f = 100 to 10000 Hz Endress+Hauser...

  • Page 30: Power Consumption

    Levelflex FMP53 4-wire, 4-20mA HART, active "Power supply; Output" Terminal voltage Maximum load R K: 4-wire 90-253VAC; 4-20mA HART 90 to 253 V (50 to 60 Hz), overvoltage 500 Ω category II L: 4-wire 10,4-48VDC; 4-20mA HART 10.4 to 48 V...

  • Page 31: Power Supply Failure

    Levelflex FMP53 FOUNDATION Fieldbus Device basic current 15 mA Failure current FDE (Fault 0 mA Disconnection Electronic) FISCO 17.5 V 550 mA 5.5 W 5 nF 10 μH Power supply failure • Configuration is retained in the HistoROM (EEPROM). • Error messages (incl. value of operated hours counter) are stored.

  • Page 32: Overvoltage Protection

    < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...

  • Page 33: Performance Characteristics

    Levelflex FMP53 Performance characteristics Reference operating • Temperature = +24 °C (+75 °F) ±5 °C (±9 °F) conditions • Pressure = 960 mbar abs. (14 psia) ±100 mbar (±1.45 psi) • Humidity = 60 % ±15 % • Reflection factor ≥ 0.8 (metal plate for rod probe with min. 1 m (40 in) diameter) •...

  • Page 34: Resolution

    Levelflex FMP53 The following measured error applies in the area of the upper probe end: 40 (1.57) DC = 2 30 (1.18) DC = 80 10 (0.39) 2 (0.08) 0 (0) - 2 (- 0.08) - 10 (-0.39) - 30 (- 1.18) - 40 (- 1.57)

  • Page 35: Installation

    Levelflex FMP53 Installation Installation conditions Suitable mounting position A0014130  22 Installation conditions for Levelflex Spacing requirements when mounting • Distance (A) between the vessel wall and rod probes: • For smooth metallic walls: > 50 mm (2 in) • For plastic walls: > 300 mm (12 in) to metallic parts outside the vessel •...
  • Page 36 Levelflex FMP53 Additional conditions • When mounting outdoors, a weather protection cover (1) can be used to protect the device against extreme weather conditions. • Do not mount the probe in the filling curtain (2). When the housing is mounted in a recess (e.g. in a concrete ceiling), observe a minimum distance of 100 mm (4 in) between the cover of the connection compartment/electronics compartment and the wall.
  • Page 37 Levelflex FMP53 Mounting under confined conditions Mounting with remote probe The device version with a remote probe is suitable for applications with restricted mounting space (product structure: probe design). In this case, the electronics housing is mounted at a separate position from the probe.
  • Page 38 Levelflex FMP53 Separable probes 4.5 Nm A0014166 The use of separable rod probes (Ø 8 mm) is advisable in confined mounting conditions (limited distance to the ceiling). • Max. probe length 6 m (19.68 ft) • Max. lateral loading capacity 10 Nm •...
  • Page 39 Levelflex FMP53 Notes on the mechanical load of the probe Lateral loading capacity (flexural strength) of rod probes FMP53 Rod 8mm (0.31") 316L 10 Nm Rod 8mm (0.31") 316L separable 10 Nm Lateral load (bending moment) from flow conditions The formula for calculating the bending moment M acting on the probe: M = c ×...
  • Page 40 Levelflex FMP53 Special installation situations Tanks with spray ball for probe cleaning A0014131 Mounting close to vessel wall Mounting the probe close to the vessel wall improves the cleaning effect when a spray ball is used. The cleaning jet is directed onto the probe via the vessel wall. As a result, the probe is also cleaned in places the spray ball jet would normally not reach.
  • Page 41 Levelflex FMP53 Mounting at an angle A0014145 • For mechanical reasons, the probe should be installed as vertically as possible. • If the probe is installed at an angle, the length of the probe must be reduced depending on the angle of installation.
  • Page 42 Levelflex FMP53 Non-metal vessels A0012527 Non-metal vessel Metal sheet or metal flange To ensure good measurement results when mounting on non-metal vessels, at the process connection mount a metal sheet with a diameter of at least 200 mm (8 in) at a right angle to the probe.
  • Page 43 Levelflex FMP53 Plastic and glass vessels: Mounting the probe on the outside wall In the case of plastic and glass vessels, the probe can also be mounted on the outside wall under certain conditions. A0014150 Plastic or glass vessel Metal plate with screw-in sleeve...
  • Page 44 Levelflex FMP53 Vessel with thermal insulation If process temperatures are high, the device must be included in normal vessel insulation (1) in order to prevent the electronics heating up as a result of thermal radiation or convection. The insulation may not go beyond the points labeled "MAX" in the drawings.

  • Page 45: Operating Conditions: Environment

    Levelflex FMP53 Operating conditions: Environment Ambient temperature Measuring device –20 to +80 °C (–4 to +176 °F) Local display –20 to +70 °C (–4 to +158 °F), the readability of the display may be impaired at temperatures outside the temperature range.
  • Page 46 Levelflex FMP53 In the event of temperature (T ) at the process connection, the permitted ambient temperature (T is reduced as indicated in the following diagram (temperature derating): Temperature derating for FMP53 [°C] ([°F])T a +80(+176) GT20: +68(+154) +53(+127) GT19: 4...20 mA HART...

  • Page 47: Storage Temperature

    Levelflex FMP53 Storage temperature • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use original packaging. Climate class DIN EN 60068-2-38 (test Z/AD) Altitude according to • Generally up to 2 000 m (6 600 ft) above MSL.

  • Page 48: Process

    Levelflex FMP53 Process Process temperature range The maximum temperature permitted at the process connection is determined by the O-ring version ordered: Device O-ring material Process temperature Approval FMP53 EPDM (Freudenberg 70 EPDM 291) –20 to +130 °C (–4 to +266 °F) EHEDG USP Cl.

  • Page 49: Mechanical Construction

    Levelflex FMP53 Mechanical construction Dimensions Dimensions of the electronics housing 99 (3.9)* 78 (3.07) 90 (3.54) A0011346  24 GT19 housing (plastic PBT). Unit of measurement mm (in) *For devices with integrated overvoltage protection. 98 (3.86)* 78 (3.07) 90 (3.54) A0020751 ...
  • Page 50 Levelflex FMP53 Mounting bracket dimensions ø42...60 (1.65...2.36) 127...140 122 (4.8) (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  26 Mounting bracket for electronics housing. Unit of measurement mm (in) Wall mounting Post mounting With "remote sensor" device versions (see feature 060 in the product structure), the mounting bracket is included in the scope of delivery.
  • Page 51 Levelflex FMP53 FMP53: Dimensions of process connection M24x1.5 ø42.9 (ø1.69) A0012763  27 DIN11864-1 A DN25 pipe DIN11866-A, 316L. Unit of measurement mm (in) M24x1.5 ø66.9 (ø2.63) A0012764  28 DIN11864-1 A DN50 pipe DIN11866-A, 316L. Unit of measurement mm (in) M24x1.5...
  • Page 52 Levelflex FMP53 ø70 (2.76) M24x1.5 ø49.9 (1.96) ø90 (3.54) A0012768  32 NEUMO BioControl D50 PN16, 316L. Unit of measurement mm (in) Reference point of measurement ø115 (4.53) M24x1.5 ø87.4 (3.44) ø140 (5.51) A0012769  33 NEUMO BioControl D80 PN16, 316L. Unit of measurement mm (in) Reference point of measurement M24x1.5...
  • Page 53 Levelflex FMP53 M24x1.5 ø91 (ø3.58) A0035143  36 Tri-Clamp ISO2852 DN70-76.1 (3"), 316L. Unit of measurement mm (in) M24x1.5 ø68 (ø2.68) ø71 (ø2.8) ø84 (ø3.31) A0012773  37 Varivent N tube DN40-162 PN16, 316L. Unit of measurement mm (in) M24x1.5 ø54.85 (ø2.16)
  • Page 54 Levelflex FMP53 ø65 (2.7) A0012776  41 Weld-in adapter for thread M24, 316L (71041381). Unit of measurement mm (in) Endress+Hauser...

  • Page 55: Probe Length Tolerances

    Levelflex FMP53 FMP53: Probe dimensions 122 (4.8) ø53.6 27 mm (2.11) 27 mm ø25 (0.98) ø13 (0.51) 10 mm ø53.6 (2.11) 10 mm ø8 (0.31) ø53.6 ø13 (0.51) (2.11) ø25 (0.98) 27 mm ø8 (0.31) 10 mm 10 mm A0012762 ...
  • Page 56 Levelflex FMP53 Probe length tolerances Rod probes Permitted tolerance depending on the probe length: • < 1 m (3.3 ft) = +0 to –3 mm (+0 to –0.12 in) • 1 to 4 m (3.3 to 13 ft) = +0 to –5 mm (+0 to –0.2 in)

  • Page 57: Weight

    Levelflex FMP53 Weight Housing Part Weight GT19 housing - plastic Approx. 1.2 kg GT20 housing - aluminum Approx. 1.9 kg FMP53 Part Weight Part Weight Sensor Approx. 1.2 kg Rod probe 8 mm Approx. 0.4 kg/m probe length Endress+Hauser...

  • Page 58: Materials: Gt19 Housing (Plastic)

    Levelflex FMP53 Materials: GT19 housing (plastic) A0013788 No. Component part Material Housing 2.1 Electronics compartment cover • Sight glass: PC • Rim: PBT-PC • Cover seal: EPDM • Thread coating: graphite-based lubricant varnish 2.2 Connection compartment cover • Cover: PBT •...

  • Page 59: Materials: Gt20 Housing

    Levelflex FMP53 Materials: GT20 housing (die-cast aluminum, powder- coated) A0036037 No. Component part Material Housing, RAL 5012 (blue) • Housing: AlSi10Mg(<0.1% Cu) • Coating: polyester 2.1 Electronics compartment cover, RAL 7035 (gray) • Cover: AlSi10Mg(<0.1% Cu) • Window: glass • Cover seal: NBR •...
  • Page 60 Levelflex FMP53 No. Component part Material Ground terminal • Screw: A2 • Spring washer: A2 • Clamp: 304 (1.4301) • Bracket: 304 (1.4301) Adhesive nameplate Plastic In the version with the M12 plug, the seal material is Viton (different from standard).

  • Page 61: Materials: Process Connection

    Levelflex FMP53 Materials: Process Levelflex FMP53 connection Separable sensor Non-separable sensor No. Material Approval 304 (1.4301) — 304 (1.4301) — 316L (1.4435) — Ketron LSG PEEK Food FDA, 3A, Grade natural USP Cl. VI A0013904 A0013903 304L (1.4307) — Endress+Hauser...

  • Page 62: Materials: Probe

    Levelflex FMP53 Materials: Probe Levelflex FMP53 Feature 060 "Probe" • DA: rod 8mm • FA: rod 8mm, 500mm separable • DB: rod 0.31in • FB: rod 0.31in, 20in separable • EA: rod 8mm, electropolished • GA: rod 8mm, 500mm separable, electropolished No.

  • Page 63: Materials: Mounting Bracket

    Levelflex FMP53 Materials: Mounting bracket A0015143 Mounting bracket for "remote sensor" version Component part Material Holder 316L (1.4404) Round bracket 316Ti (1.4571) Screws/nuts A4-70 Distance sleeves 316Ti (1.4571) or 316L (1.4404) Half-shells 316L (1.4404) Materials: Adapter and cable for remote sensor A0024684 Adapter and cable for "remote sensor"...

  • Page 64: Materials: Weather Protection Cover

    Levelflex FMP53 Materials: Weather protection cover A0015473 Component: Material Protection cover: 316L (1.4404) Rubber molded part (4x): EPDM Tensioning screw: 316L (1.4404) + carbon thread Holder: 316L (1.4404) Ground terminal • Screw: A4 • Spring washer: A4 • Clamp: 316L (1.4404) •...

  • Page 65: Operability

    Levelflex FMP53 Operability Operating concept Operator-oriented menu structure for user-specific tasks • Commissioning • Operation • Diagnostics • Expert level Operating languages • English • Deutsch • Français • Español • Italiano • Nederlands • Portuguesa • Polski • русский язык (Russian) •...

  • Page 66: Local Operation

    Levelflex FMP53 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in event of device error Format for displaying measured variables and status variables can be individually configured Permitted ambient temperature for the display: –20 to +70 °C (–4 to +158 °F)

  • Page 67: Operation Via Bluetooth® Wireless Technology

    Levelflex FMP53 Operation via Bluetooth® Requirements wireless technology A0036790  44 Device with Bluetooth module Electronics housing of the device Bluetooth module This operation option is only available for devices with Bluetooth module. There are the following options: • The device has been ordered with a Bluetooth module: Feature 610 "Accessory Mounted", option NF "Bluetooth"...

  • Page 68: Remote Operation

    Levelflex FMP53 Remote operation Via HART protocol A0036169  46 Options for remote operation via HART protocol PLC (Programmable Logic Controller) Transmitter power supply unit, e.g. RN221N (with communication resistor) Connection for Commubox FXA191, FXA195 and Field Communicator 375, 475 Field Communicator 475 Computer with operating tool (e.g.
  • Page 69 Levelflex FMP53 Via FOUNDATION Fieldbus FF-HSE FF-H1 FF-H1 A0017188  48 FOUNDATION Fieldbus system architecture with associated components FFblue Bluetooth modem Field Xpert SFX350/SFX370 DeviceCare/FieldCare NI-FF interface card Industrial network FF-HSE High Speed Ethernet FF-H1 FOUNDATION Fieldbus-H1 Linking Device FF-HSE/FF-H1...
  • Page 70 Levelflex FMP53 DeviceCare/FieldCare via service interface (CDI) A0032466  49 DeviceCare/FieldCare via service interface (CDI) Service interface (CDI) of the instrument (= Endress+Hauser Common Data Interface) Commubox FXA291 Computer with DeviceCare/FieldCare operating tool Endress+Hauser...

  • Page 71: Integration In Tank Gauging System

    Levelflex FMP53 Integration in tank gauging The Endress+Hauser Tank Side Monitor NRF81 provides integrated communications for sites with multiple tanks, each with one or more sensors on the tank, such as radar, spot or average system temperature, capacitive probe for water detection and/or pressure sensors. Multiple protocols out of the Tank Side Monitor guarantee connectivity to nearly any of the existing industry standard tank gauging protocols.
  • Page 72 Levelflex FMP53 SupplyCare inventory SupplyCare is a web-based operating program for coordinating the flow of material and information along the supply chain. SupplyCare provides a comprehensive overview of the levels of management software geographically distributed tanks and silos, for instance, providing complete transparency over the current inventory situation, regardless of time and location.
  • Page 73 Levelflex FMP53 A0034288  51 Example of inventory management platform with SupplyCare Enterprise SCE30B SupplyCare Enterprise (via Web browser) SupplyCare Enterprise installation SupplyCare Enterprise on mobile devices (via Web browser) Ethernet/WLAN/UMTS Fieldgate FXA42 Power supply 24 V DC Modbus TCP via Ethernet as server/client...
  • Page 74 Levelflex FMP53 Cloud-based application: SupplyCare Hosting SupplyCare Hosting is offered as a hosting service (software as a service). Here, the software is installed within the Endress+Hauser IT infrastructure and made available to the user in the Endress +Hauser portal. A0034289 ...

  • Page 75: Certificates And Approvals

    CE mark in the corresponding EU Declaration of Conformity along with the standards applied. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark. The measuring system complies with the substance restrictions of the Restriction on Hazardous RoHS Substances Directive 2011/65/EU (RoHS 2).

  • Page 76: Pressure Equipment With Allowable Pressure ≤ 200 Bar (2 900 Psi)

    Levelflex FMP53 Pressure equipment with Pressure instruments with a flange and threaded boss that do not have a pressurized housing do not fall within the scope of the Pressure Equipment Directive, irrespective of the maximum allowable allowable pressure pressure. ≤ 200 bar (2 900 psi)

  • Page 77: Test, Certificate

    Levelflex FMP53 Test, certificate Feature 580 "Test, Designation Approval certificate" 3.1 Material documentation, wetted metal parts, EN10204-3.1 inspection FMP53 certificate Surface finish measurement ISO4287/Ra, wetted metal parts, inspection FMP53 certificate Pressure test, internal procedure, inspection certificate FMP53 3.1 Material certificate + Delta-Ferrite measurement, internal procedure,...

  • Page 78: Other Standards And Guidelines

    Levelflex FMP53 Other standards and • EN 60529 Degrees of protection provided by enclosures (IP code) guidelines • EN 61010-1 Safety requirements for electrical equipment for measurement, control and laboratory use • IEC/EN 61326 "Emission in accordance with Class A requirements". Electromagnetic compatibility (EMC requirements).

  • Page 79: Ordering Information

    • Depending on the device: Direct input of measuring point-specific information such as measuring range or operating language • Automatic verification of exclusion criteria • Automatic creation of the order code and its breakdown in PDF or Excel output format • Ability to order directly in the Endress+Hauser Online Shop Endress+Hauser...

  • Page 80: 3-Point Linearity Protocol

    Levelflex FMP53 3-point linearity protocol The following points must be considered if option F3 (3-point linearity protocol) was selected in feature 550 ("Calibration"). The 3 points of the linearity protocol are defined as follows, depending on the selected probe: A0021090...

  • Page 81: 5-Point Linearity Protocol

    Levelflex FMP53 5-point linearity protocol The following points must be considered if option F4 (5-point linearity protocol) was selected in feature 550 ("Calibration"). The 5 points of the linearity protocol are evenly distributed over the measuring range (0% - 100%).

  • Page 82: Customer-Specific Configuration

    Levelflex FMP53 Customer-specific If the option IJ: "Customized parameterization HART", IK "Customized parameterization PA" or IL "Customized parameterization FF" has been selected in feature 570 "Service", presettings that differ configuration from the default settings can be selected for the following parameters:...

  • Page 83: Heartbeat Verification

    Levelflex FMP53 Advantages • Device condition information is available immediately and processed in time. • The status signals are classified in accordance with VDI/VDE 2650 and NAMUR recommendation NE 107 and contain information about the cause of the error and remedial action.
  • Page 84 Levelflex FMP53 Function • In addition to the verification parameters, the corresponding parameter values are also logged. • Existing measured variables, such as the echo amplitude, are used in the Foam detection and Build-up detection wizards. In the Levelflex FMP5x, the Foam detection and Build-up detection wizards cannot be used together.

  • Page 85: Accessories

    Levelflex FMP53 Accessories Device-specific accessories Weather protection cover Accessory Description Weather protection cover A0015466 300 (11.8) 275 (10.8) 255.1 (10) 164 (6.46) A0015472  53 Weather protection cover; Dimensions: mm (in)  The weather protection cover can be ordered together with the device (product structure, feature 620 "Accessory Enclosed", option PB "Weather Protection Cover").
  • Page 86 Levelflex FMP53 Mounting bracket for electronics housing Accessories Description Mounting bracket for electronics housing ø42...60 (1.65...2.36) 127...140 122 (4.8) (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  54 Mounting bracket for electronics housing; engineering unit: mm (in) Wall mounting Post mounting ...
  • Page 87 For details, see Operating Instructions BA362F. Calibration kit Accessories Description Calibration kit The calibration kit is used for regular testing of the accuracy and reproducibility of the Levelflex FMP53 level measurement device. Order number: 71041382 For details, see Operating Instructions SD01003F. Endress+Hauser...
  • Page 88 Levelflex FMP53 Remote display FHX50 Accessories Description Remote display FHX50 A0019128 • Material: • Plastic PBT • 316L/1.4404 • Aluminum • Degree of protection: IP68 / NEMA 6P and IP66 / NEMA 4x • Suitable for display modules: • SD02 (push buttons) •...
  • Page 89 Levelflex FMP53 Overvoltage protection Accessories Description Overvoltage protection for 2-wire devices OVP10 (1-channel) OVP20 (2-channel) A0021734 Technical data • Resistance per channel: 2 × 0.5 Ω • Threshold DC voltage: 400 to 700 V • Threshold surge voltage: < 800 V • Capacitance at 1 MHz: < 1.5 pF •...
  • Page 90 Levelflex FMP53 Bluetooth module for HART devices Accessory Description Bluetooth module A0036493 • Quick and easy commissioning via SmartBlue (app) • No additional tools or adapters required • Signal curve via SmartBlue (app) • Encrypted single point-to-point data transmission (tested by Fraunhofer institue) and password protected communication via Bluetooth®...

  • Page 91: Communication-Specific Accessories

    For details, see "Technical Information" TI00404F Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information" TI00405C...

  • Page 92: Service-Specific Accessories

    Technical Information TI00081R and Brief Operating Instructions KA00110R Supplementary documentation The following document types are available in the Downloads section of the Endress+Hauser website (www.endress.com/downloads): For an overview of the scope of the associated Technical Documentation, refer to the following: •...

  • Page 93: Functional Safety Manual (Fy/Sd)

    Levelflex FMP53 Functional Safety Manual Depending on the SIL approval, the Functional Safety Manual (FY/SD) is an integral part of the Operating Instructions and applies in addition to the Operating Instructions, Technical Information (FY/SD) and ATEX Safety Instructions. The different requirements that apply for the protective function are described in the Functional Safety Manual (FY / SD).
  • Page 96 *71567333* 71567333 www.addresses.endress.com...
