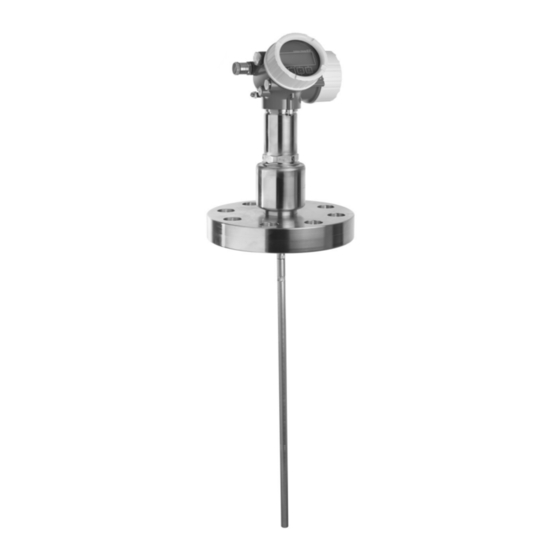

Summary of Contents for Endress+Hauser Levelflex FMP51
Page 1
Safety Instructions Levelflex FMP51/52/53/54/55/56/57 PROFIBUS PA Zone 0/1 Ex ia IIC T6 Ga/Gb Zone 20/21 Ex iaD 20/21 T* en - Document: XA00644F-A Safety instructions for electrical apparatus for explosion-hazardous areas È ä 3 zh - 文档:XA00644F-A 爆炸环境中电气仪表的安全指南 È ä 11 XA00644F-A/00/B2/02.12 71161825...
Explosion-protection brochure: documentation CP021Z/00 The Explosion-protection brochure is available: • In the download area of the Endress+Hauser website: www.endress.com → Download → Advanced → Documentation Code: CP021Z • On the CD for devices with CD-based documentation Manufacturer's certificates NEPSI Declaration of Conformity Certificate number: GYJ11.1553X...
Page 5
XA00644F-A Levelflex FMP51/52/53/54/55/56/57 Device type: FMP51, FMP52, FMP53, FMP54, FMP55, FMP56, FMP57 Basic specifications Position Selected option Description 1, 2 Approval Zone 0/1 Ex ia IIC T6 Ga/Gb, Zone 20/21 Ex iaD 20/21 T* Power Supply; Output 2-wire, PROFIBUS PA Display;...
• Modifications to the device can affect the explosion protection and must be carried out by staff authorized to perform such work by Endress+Hauser. • When replacing the probe electronics or opening the connection between the remote cable and the probe, a jumper plug must be used or a short-circuit must be established between the probe contact and the potential equalization conductor to avoid electrostatically charging the probe.
• Observe the pertinent guidelines when interconnecting intrinsically safe circuits (GB3836.13, GB3836.15, GB3836.16). • The device can be connected to the Endress+Hauser FXA291 service tool: refer to the Operating Instructions. • When the intrinsically safe Ex ia circuits of the device are connected to certified intrinsically safe circuits of Category Ex ib for Equipment Groups IIC or IIB, the type of protection changes to Ex ib[ia] IIC or Ex ib[ia] IIB.
Page 8
Levelflex FMP51/52/53/54/55/56/57 XA00644F-A Potential equalization • Integrate the device into the local potential equalization. • For grounding the screen → å 2. XA00640Fxx02 å 2 Version 1 Use small capacitors (e.g. 1 nF, 1500 V, dielectric strength, ceramic). Total capacitance connected to the screen may not exceed 10 nF.
C = 24 nF leak current ≤ 50 μA Service interface (CDI) Taking the following values into consideration, the device can be connected to the Endress+Hauser FXA291 service tool or a similar interface: Service interface = 7.3 V...
