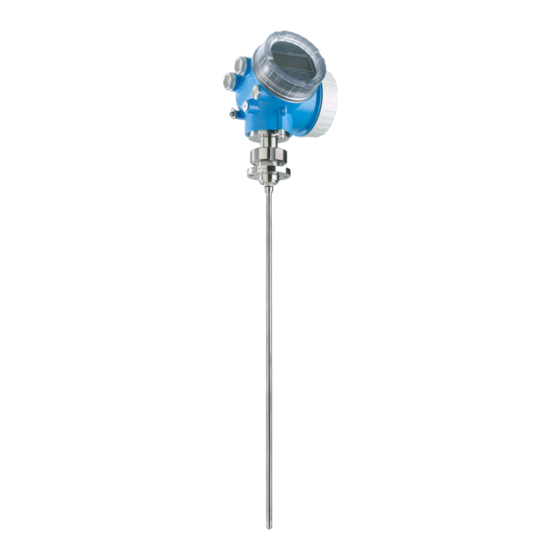

Endress+Hauser Levelflex FMP53 Operating Instructions Manual

Profibus pa guided wave radar
Hide thumbs Also See for Levelflex FMP53:
Table of Contents

Advertisement

Quick Links

Download this manual
BA01007F/00/EN/19.22-00
71603679
2022-12-13
01.01.zz (Device firmware)
Products
Operating Instructions
Levelflex FMP53
PROFIBUS PA
Guided wave radar
Solutions
Services

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Levelflex FMP53

Summary of Contents for Endress+Hauser Levelflex FMP53

  • Page 1 Products Solutions Services BA01007F/00/EN/19.22-00 71603679 2022-12-13 01.01.zz (Device firmware) Operating Instructions Levelflex FMP53 PROFIBUS PA Guided wave radar...
  • Page 2 Levelflex FMP53 PROFIBUS PA Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...

  • Page 3: Table Of Contents

    3.1.1 Levelflex FMP53 ....12 menu ......

  • Page 4: Decimal Places 1 To

    Table of contents Levelflex FMP53 PROFIBUS PA 15.1.6 Remote display FHX50 ... Commissioning via operating 15.1.7 Overvoltage protection ... menu ......58 15.1.8 Bluetooth module BT10 for HART...

  • Page 5: Important Document Information

    Levelflex FMP53 PROFIBUS PA Important document information Important document information Purpose of this document These Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.

  • Page 6: Symbols For Certain Types Of Information And Graphics

    Important document information Levelflex FMP53 PROFIBUS PA Flat blade screwdriver Torx screwdriver Allen key Open-ended wrench 1.2.4 Symbols for certain types of information and graphics  Permitted Procedures, processes or actions that are permitted  Preferred Procedures, processes or actions that are preferred  Forbidden...

  • Page 7: Documentation

    For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.3.1 Technical Information (TI)

  • Page 8: Registered Trademarks

    Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany Bluetooth® The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Endress+Hauser is under license. Other trademarks and trade names are those of their respective owners. Apple®...

  • Page 9: Basic Safety Instructions

    The manufacturer is not liable for damage caused by improper or non-intended use. Clarification of borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability.

  • Page 10: Workplace Safety

    Basic safety instructions Levelflex FMP53 PROFIBUS PA Workplace safety When working on and with the device: ‣ Wear the required protective equipment according to federal or national regulations. With separable probe rods, medium may penetrate the joints between the individual parts of the rod.

  • Page 11: Eac Conformity

    Levelflex FMP53 PROFIBUS PA Basic safety instructions 2.5.2 EAC conformity The measuring system meets the legal requirements of the applicable EAC guidelines. These are listed in the corresponding EAC Declaration of Conformity along with the standards applied. The manufacturer confirms successful testing of the device by affixing to it the EAC mark.

  • Page 12: Product Description

    Product description Levelflex FMP53 PROFIBUS PA Product description Product design 3.1.1 Levelflex FMP53 A0013421  1 Design of the Levelflex Electronics housing Process connection Rod probe Endress+Hauser...

  • Page 13: Electronics Housing

    Levelflex FMP53 PROFIBUS PA Product description 3.1.2 Electronics housing A0012422  2 Design of the electronics housing Electronics compartment cover Display module Main electronics module Cable glands (1 or 2, depending on instrument version) Nameplate I/O electronics module Terminals (pluggable spring terminals)

  • Page 14: Incoming Acceptance And Product

    • Do the nameplate data match the ordering information on the delivery note? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Product identification The following options are available for the identification of the measuring device: •...

  • Page 15: Nameplate

    Levelflex FMP53 PROFIBUS PA Incoming acceptance and product identification 4.2.1 Nameplate 92 (3.62) Order code: Ser. no.: Ext. ord. cd.: MWP: LN = Lref = Mat.: DeviceID: Dev.Rev.: if modification see sep. label Date: A0010725  3 Nameplate of the Levelflex; engineering unit: mm (in)

  • Page 16: Storage, Transport

    Storage, transport Levelflex FMP53 PROFIBUS PA Storage, transport Storage temperature • Permitted storage temperature: –40 to +80 °C (–40 to +176 °F) • Use original packaging. Transporting the product to the measuring point WARNING Housing or rod may become damaged or pull off.

  • Page 17: Mounting

    Levelflex FMP53 PROFIBUS PA Mounting Mounting Mounting requirements 6.1.1 Suitable mounting position A0014130  4 Installation conditions for Levelflex Spacing requirements when mounting • Distance (A) between the vessel wall and rod probes: • For smooth metallic walls: > 50 mm (2 in) •...
  • Page 18 Mounting Levelflex FMP53 PROFIBUS PA Additional conditions • When mounting outdoors, a weather protection cover (1) can be used to protect the device against extreme weather conditions. • Do not mount the probe in the filling curtain (2). When the housing is mounted in a recess (e.g. in a concrete ceiling), observe a minimum distance of 100 mm (4 in) between the cover of the connection compartment/electronics compartment and the wall.

  • Page 19: Mounting Under Confined Conditions

    Levelflex FMP53 PROFIBUS PA Mounting 6.1.2 Mounting under confined conditions Mounting with remote probe The device version with a remote probe is suitable for applications with restricted mounting space (product structure: probe design). In this case, the electronics housing is mounted at a separate position from the probe.
  • Page 20 Mounting Levelflex FMP53 PROFIBUS PA Separable probes 4.5 Nm A0014166 The use of separable rod probes (Ø 8 mm) is advisable in confined mounting conditions (limited distance to the ceiling). • Max. probe length 6 m (19.68 ft) • Max. lateral loading capacity 10 Nm •...

  • Page 21: Notes On The Mechanical Load Of The Probe

    Levelflex FMP53 PROFIBUS PA Mounting 6.1.3 Notes on the mechanical load of the probe Lateral loading capacity (flexural strength) of rod probes FMP53 Rod 8mm (0.31") 316L 10 Nm Rod 8mm (0.31") 316L separable 10 Nm Lateral load (bending moment) from flow conditions...

  • Page 22: Special Installation Situations

    Mounting Levelflex FMP53 PROFIBUS PA 6.1.4 Special installation situations Tanks with spray ball for probe cleaning A0014131 Mounting close to vessel wall Mounting the probe close to the vessel wall improves the cleaning effect when a spray ball is used. The cleaning jet is directed onto the probe via the vessel wall. As a result, the probe is also cleaned in places the spray ball jet would normally not reach.
  • Page 23 Levelflex FMP53 PROFIBUS PA Mounting Mounting at an angle A0014145 • For mechanical reasons, the probe should be installed as vertically as possible. • If the probe is installed at an angle, the length of the probe must be reduced depending on the angle of installation.
  • Page 24 Mounting Levelflex FMP53 PROFIBUS PA Non-metal vessels A0012527 Non-metal vessel Metal sheet or metal flange To ensure good measurement results when mounting on non-metal vessels, at the process connection mount a metal sheet with a diameter of at least 200 mm (8 in) at a right angle to the probe.
  • Page 25 Levelflex FMP53 PROFIBUS PA Mounting Plastic and glass vessels: Mounting the probe on the outside wall In the case of plastic and glass vessels, the probe can also be mounted on the outside wall under certain conditions. A0014150 Plastic or glass vessel...
  • Page 26 Mounting Levelflex FMP53 PROFIBUS PA 2. Parameter Expert → Sensor → Gas phase compensation → Const. GPC factor  Quotient: Enter "(actual probe length)/(measured probe length)". Compensation via the calibration parameters If it is necessary to actually compensate for a gas phase, the gas phase compensation function is not available for the correction of external mounting.
  • Page 27 Levelflex FMP53 PROFIBUS PA Mounting Vessel with thermal insulation If process temperatures are high, the device must be included in normal vessel insulation (1) in order to prevent the electronics heating up as a result of thermal radiation or convection. The insulation may not go beyond the points labeled "MAX" in the drawings.

  • Page 28: Mounting The Measuring Device

    Mounting Levelflex FMP53 PROFIBUS PA Mounting the measuring device 6.2.1 Tool list AF 8 mm 3 mm 6 mm • To shorten rope probes: use a saw or bolt cutters • To shorten rod or coax probes: use a saw •...

  • Page 29: Turning The Transmitter Housing

    Levelflex FMP53 PROFIBUS PA Mounting Mounting the electronics housing ø42...60 (1.65...2.36) 122 (4.8) 127...140 (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  6 Mounting the electronics housing with the mounting bracket. Unit of measurement mm (in) Wall mounting Post mounting Connecting the connecting cable...

  • Page 30: Turning The Display

    Mounting Levelflex FMP53 PROFIBUS PA max. 350° 8 mm 8 mm A0032242 1. Unscrew the securing screw using an open-ended wrench. 2. Rotate the housing in the desired direction. 3. Tighten the securing screw (1.5 Nm for plastic housing; 2.5 Nm for aluminum or stainless steel housing).

  • Page 31: Post-Installation Check

    Levelflex FMP53 PROFIBUS PA Mounting Closing the cover of the electronics compartment 3 mm 2.5 Nm A0021451 1. Screw down the cover of the electronics compartment. 2. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm), tighten the screw of the securing clamp on the electronics compartment cover with 2.5 Nm.

  • Page 32: Electrical Connection

    Electrical connection Levelflex FMP53 PROFIBUS PA Electrical connection Connecting requirements 7.1.1 Terminal assignment Terminal assignment, 4-wire: 4 to 20 mA HART (90 to 253 V A0036519  7 Terminal assignment, 4-wire: 4 to 20 mAHART (90 to 253 V Connection 4 to 20 mA HART (active): terminals 3 and 4...
  • Page 33 Levelflex FMP53 PROFIBUS PA Electrical connection Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0036500  8 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated overvoltage...

  • Page 34: Cable Specification

    Electrical connection Levelflex FMP53 PROFIBUS PA Connection examples for the switch output A0015909  10 Connection of a relay A0015910  11 Connection to a digital input Pull-up resistor Digital input For optimum interference immunity we recommend to connect an external resistor (internal resistance of the relay or pull-up resistor) of <...

  • Page 35: Supply Voltage

    < 1.5 pF Nominal arrest impulse voltage (8/20 μs) 10 kA External overvoltage protection module HAW562 or HAW569 from Endress+Hauser are suited as external overvoltage protection. For detailed information please refer to the following documents: • HAW562: TI01012K • HAW569: TI01013K...

  • Page 36: Connecting The Device

    Electrical connection Levelflex FMP53 PROFIBUS PA Connecting the device WARNING Explosion Hazard! ‣ Observe applicable national standards. ‣ Comply with the specifications in the Safety Instructions (XA). ‣ Use specified cable glands only. ‣ Check to ensure that the power supply matches the information on the nameplate.

  • Page 37: Plug-In Spring-Force Terminals

    Levelflex FMP53 PROFIBUS PA Electrical connection 5. Connect the cable according to the terminal assignment.  A0034682 6. If using shielded cables: Connect the cable shield to the ground terminal. 7.2.3 Plug-in spring-force terminals The electrical connection of device versions without an integrated overvoltage protection is via plug-in spring-force terminals.
  • Page 38 Electrical connection Levelflex FMP53 PROFIBUS PA  Do the mounted cables have adequate strain relief? Are all the cable glands installed, firmly tightened and leak-tight?  Does the supply voltage match the specifications on the nameplate?  Is the terminal assignment correct? If necessary, has a protective ground connection been established?

  • Page 39: Operation Methods

    Levelflex FMP53 PROFIBUS PA Operation methods Operation methods Overview 8.1.1 Local operation Operation Pushbuttons Touch Control with Order code for Option C "SD02" Option E "SD03" "Display; Operation" A0036312 A0036313 Display 4-line display 4-line display elements white background lighting; switches to red in...

  • Page 40: Operation With Remote Display And Operating Module Fhx50

    Computer with PROFIusb and operating tool (e.g. DeviceCare/FieldCare ) PLC (programmable logic controller) Transmitter Additional functions (valves etc.) Via service interface (CDI) A0039148 Computer with FieldCare/DeviceCare operating tool Commubox FXA291 Service interface (CDI) of the measuring device (= Endress+Hauser Common Data Interface) Endress+Hauser...

  • Page 41: Structure And Function Of The Operating Menu

    Levelflex FMP53 PROFIBUS PA Operation methods Structure and function of the operating menu 8.2.1 Structure of the operating menu Menu Submenu / Meaning parameter Language Defines the operating language of the local display Commissioning Launches the interactive wizard for guided commissioning.
  • Page 42 Operation methods Levelflex FMP53 PROFIBUS PA Menu Submenu / Meaning parameter Communication Contains all parameters needed to configure the digital communication interface. Diagnostics Contains all parameters needed to detect and analyze operational errors. If you are operating via operating tools (e.g. FieldCare), the "Language" parameter is located under "Setup ...

  • Page 43: User Roles And Related Access Authorization

    Levelflex FMP53 PROFIBUS PA Operation methods 8.2.2 User roles and related access authorization The two user roles Operator and Maintenance have different write access to the parameters if a device-specific access code has been defined. This protects the device configuration via the local display from unauthorized access (Verweisziel existiert nicht, aber @y.link.required=' t rue' )
  • Page 44 Operation methods Levelflex FMP53 PROFIBUS PA Disabling write protection via access code If the  symbol appears in front of a parameter on the local display, the parameter is write-protected by a device-specific access code and its value cannot currently be changed via the local display →...
  • Page 45 Levelflex FMP53 PROFIBUS PA Operation methods XXXXXXXXXXXXX 3 mm A0026157 1. Loosen the securing clamp. 2. Unscrew the electronics compartment cover. 3. Pull out the display module with a gentle rotational movement. To make it easier to access the write protection switch, attach the display module to the edge of the electronics compartment.
  • Page 46 Operation methods Levelflex FMP53 PROFIBUS PA 4. Setting the write protection switch (WP) on the main electronics module to the ON position enables hardware write protection. Setting the write protection switch (WP) on the main electronics module to the OFF position (factory setting) disables hardware write protection.
  • Page 47 Levelflex FMP53 PROFIBUS PA Operation methods Enabling and disabling the keypad lock Access to the entire operating menu via local operation can be locked via the keypad lock. When access is locked, it is no longer possible to navigate through the operating menu or change the values of individual parameters.

  • Page 48: Display And Operating Module

    Operation methods Levelflex FMP53 PROFIBUS PA Display and operating module 8.3.1 Display User ABC_ DEFG HIJK LMNO PQRS TUVW A0012635  16 Display format on the display and operating module Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active) 1.2 Measured value symbols...
  • Page 49 Levelflex FMP53 PROFIBUS PA Operation methods Display symbols for the submenus Symbol Meaning Display/operat. Is displayed: • In the main menu next to the "Display/operat." selection A0018367 • In the header on the left in the "Display/operat." menu Setup Is displayed: •...
  • Page 50 Operation methods Levelflex FMP53 PROFIBUS PA Measured value symbols Symbol Meaning Measured values Level A0032892 Distance A0032893 Current output A0032908 Measured current A0032894 Terminal voltage A0032895 Electronics or sensor temperature A0032896 Measuring channels Measuring channel 1 A0032897 Measuring channel 2...

  • Page 51: Operating Elements

    Levelflex FMP53 PROFIBUS PA Operation methods 8.3.2 Operating elements Meaning Minus key In a menu, submenu Moves the selection bar upwards in a picklist. A0018330 In the text and numeric editor In the input mask, moves the selection bar to the left (backwards).

  • Page 52: Entering Numbers And Text

    Operation methods Levelflex FMP53 PROFIBUS PA 8.3.3 Entering numbers and text Numeric editor Text editor User ABC_ DEFG HIJK LMNO PQRS TUVW A0013999 A0013941 Editing view Display area of the entered values Input mask Operating elements Input mask The following input and operating symbols are available in the input mask of the numeric...

  • Page 53: Opening The Context Menu

    Levelflex FMP53 PROFIBUS PA Operation methods Toggle • Between upper-case and lower-case letters • For entering numbers A0013981 • For entering special characters Confirms selection. A0013985 Switches to the selection of the correction tools. A0013987 Exits the input without applying the changes.
  • Page 54 Operation methods Levelflex FMP53 PROFIBUS PA 3. Press  to confirm the selection.  The selected menu opens. Endress+Hauser...

  • Page 55: Envelope Curve Display On The Display And Operating Module

    Levelflex FMP53 PROFIBUS PA Integration into a PROFIBUS network 8.3.5 Envelope curve display on the display and operating module In order to assess the measuring signal, the envelope curve and - if a mapping has been recorded - the mapping curve can be shown on the display and operating module:...

  • Page 56: Setting The Device Address

    Integration into a PROFIBUS network Levelflex FMP53 PROFIBUS PA Setting the device address A0015686  17 Address switch in the connection compartment 9.2.1 Hardware addressing 1. Set switch 8 to the "OFF" position. 2. Using switches 1 to 7, set the address as indicated in the table below.

  • Page 57: Commissioning Using The Commissioning Wizard

    Levelflex FMP53 PROFIBUS PA Commissioning using the Commissioning Wizard Commissioning using the Commissioning Wizard A Wizard is provided in FieldCare and DeviceCare that guides the user through the initial commissioning process. 1. Connect the device with FieldCare or DeviceCare. 2. Open the device in FieldCare or DeviceCare.

  • Page 58: Commissioning Via Operating

    Commissioning via operating menu Levelflex FMP53 PROFIBUS PA Commissioning via operating menu 11.1 Function check Before commissioning your measuring point, ensure that the post-installation and post- connection checks have been performed: 11.2 Setting the operating language Factory setting: English or ordered local language X X X X X X X 20.50...

  • Page 59: Configuring Level Measurement

    Levelflex FMP53 PROFIBUS PA Commissioning via operating menu 11.3 Configuring level measurement 20 mA 100% 4 mA A0011360  21 Configuration parameters for level measurement in liquids Probe length Reference point of measurement Distance Level Empty calibration (= zero point) Full calibration (= span) If the ε...
  • Page 60 Commissioning via operating menu Levelflex FMP53 PROFIBUS PA 11. Navigate to: Setup → Signal quality  Displays the signal quality of the analyzed level echo. 12. Operation via local display: Navigate to: Setup → Mapping → Confirm distance  Compare the distance displayed with the actual value to start recording an interference echo map (where applicable).

  • Page 61: Recording The Reference Envelope Curve

    Levelflex FMP53 PROFIBUS PA Commissioning via operating menu 11.4 Recording the reference envelope curve After the measurement has been configured, it is recommended to record the current envelope curve as a reference envelope curve. This can then be used later for diagnostic purposes.

  • Page 62: Configuring The Local Display

    Commissioning via operating menu Levelflex FMP53 PROFIBUS PA 11.5 Configuring the local display 11.5.1 Factory setting of local display for level measurements Parameter Factory setting for devices with 1 current Factory setting for devices with 2 current output outputs Format display 1 value, max. size 1 value, max.

  • Page 63: Configuration Management

    Levelflex FMP53 PROFIBUS PA Commissioning via operating menu 11.6 Configuration management After commissioning, you can save the current device configuration, copy it to another measuring point or restore the previous device configuration. You can do so using the Configuration management parameter and the options available.

  • Page 64: Protecting Settings From Unauthorized Access

    Commissioning via operating menu Levelflex FMP53 PROFIBUS PA 11.7 Protecting settings from unauthorized access The settings can be protected from unauthorized access in two ways: • Locking via parameters (software locking) • Locking via write protection switch (hardware locking) Endress+Hauser...

  • Page 65: Diagnostics And Troubleshooting

    Levelflex FMP53 PROFIBUS PA Diagnostics and troubleshooting Diagnostics and troubleshooting 12.1 General troubleshooting 12.1.1 General errors Error Possible cause Solution Device does not respond. Supply voltage not connected. Connect the correct voltage. The cables do not contact the Ensure electrical contact between terminals properly.

  • Page 66: Parametrization Errors

    Diagnostics and troubleshooting Levelflex FMP53 PROFIBUS PA 12.1.2 Parametrization errors Parametrization errors for level measurements Problem Possible cause Remedy Measured value is incorrect If measured distance (Setup • Check the Empty calibration → Distance) matches the real parameter (→  103) and correct if distance: necessary.

  • Page 67: Diagnostic Information On Local Display

    Levelflex FMP53 PROFIBUS PA Diagnostics and troubleshooting 12.2 Diagnostic information on local display 12.2.1 Diagnostic message Faults detected by the self-monitoring system of the measuring device are displayed as a diagnostic message in alternation with the measured value display. Measured value display in alarm condition...
  • Page 68 Diagnostics and troubleshooting Levelflex FMP53 PROFIBUS PA Diagnostic event and event text The fault can be identified by means of the diagnostic event. The event text helps you by providing information about the fault. In addition, the associated status symbol is displayed in front of the diagnostic event.

  • Page 69: Calling Up Remedial Measures

    Levelflex FMP53 PROFIBUS PA Diagnostics and troubleshooting 12.2.2 Calling up remedial measures X X X X X X X X X X X X X X 20.50 S801 Supply voltage Menu Diagnostic list Diagnostics 1 S801 Supply voltage Diagnostics 2...

  • Page 70: Diagnostic Event In The Operating Tool

    Diagnostics and troubleshooting Levelflex FMP53 PROFIBUS PA 12.3 Diagnostic event in the operating tool If a diagnostic event is present in the device, the status signal appears in the top left status in the operating tool along with the corresponding symbol for event level in accordance with NAMUR NE 107: •...

  • Page 71: Diagnostic List

    Levelflex FMP53 PROFIBUS PA Diagnostics and troubleshooting 3. Click "Save as ..." and save a PDF of the protocol.  The protocol contains the diagnostic messages and remedy information. C: Via the "Eventlist / Extended HistoROM" function Select the "Eventlist / Extended HistoROM" function.

  • Page 72: List Of Diagnostic Events

    Diagnostics and troubleshooting Levelflex FMP53 PROFIBUS PA 12.5 List of diagnostic events Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Diagnostic of sensor Broken probe detected 1. Check map Alarm 2. Check sensor...

  • Page 73: Event Logbook

    Levelflex FMP53 PROFIBUS PA Diagnostics and troubleshooting Diagnostic Short text Remedy instructions Status Diagnostic number signal behavior [from the [from the factory] factory] Linearization Check linearization table Alarm Configuration 1. Restart device Alarm incompatible 2. Contact service Dataset 1. Check data set file Warning 2.

  • Page 74: Filtering The Event Logbook

    Diagnostics and troubleshooting Levelflex FMP53 PROFIBUS PA Navigation path Diagnostics → Event logbook → Event list A maximum of 100 event messages can be displayed in chronological order. Die Ereignishistorie umfasst Einträge zu: • Diagnostic events • Information events In addition to the operation time of its occurrence, each event is also assigned a symbol that indicates whether the event has occurred or is ended: •...
  • Page 75 Levelflex FMP53 PROFIBUS PA Diagnostics and troubleshooting Info number Info name I1185 Display backup done I1186 Restore via display done I1187 Settings downloaded with display I1188 Display data cleared I1189 Backup compared I1256 Display: access status changed I1264 Safety sequence aborted...

  • Page 76: Firmware History

    Diagnostics and troubleshooting Levelflex FMP53 PROFIBUS PA 12.7 Firmware history Date Firmware Modifications Documentation (FMP53, PROFIBUS) version Operating Instructions Description of Device Technical Information Parameters 07.2011 01.00.zz Original software BA01007F/00/EN/10.10 GP01001F/00/EN/10.10 TI01002F/00/EN/13.11 02.2015 01.01.zz • Support of SD03 BA01007F/00/EN/14.14 GP01001F/00/EN/13.14 TI01002F/00/EN/17.14...

  • Page 77: Maintenance

    Levelflex FMP53 PROFIBUS PA Maintenance Maintenance No special maintenance work is required. 13.1 Exterior cleaning When cleaning the exterior, always use cleaning agents that do not corrode the surface of the housing and the seals. 13.2 General cleaning instructions Dirt or buildup may form on the probe depending on the application. A thin, even layer has little impact on the measurement.

  • Page 78: Cleaning The Probe Outside The Vessel

    Maintenance Levelflex FMP53 PROFIBUS PA 13.3.2 Cleaning the probe outside the vessel The probe can be removed for better cleaning. The following tool is required for cleaning: • Vise with fiber jaws (surface protection for the polished rod probe) • Hook wrench with lug  54 mm (2.1 in) •...

  • Page 79: Repair

    General information 14.1.1 Repair concept Under the Endress+Hauser repair concept, devices have a modular design and repairs can be carried out by Endress+Hauser Service or by properly trained customers. Spare parts are grouped into logical kits with the associated replacement instructions.

  • Page 80: Spare Parts

    Repair Levelflex FMP53 PROFIBUS PA 14.2 Spare parts • Some replaceable measuring device components are identified by means of a spare part nameplate. This contains information about the spare part. • In the connection compartment cover of the device there is a spare part nameplate which contains the following information: •...

  • Page 81: Accessories

    Levelflex FMP53 PROFIBUS PA Accessories Accessories 15.1 Device-specific accessories 15.1.1 Weather protection cover The weather protection cover can be ordered together with the device via the "Accessory enclosed" product structure. A0015466  25 Height. Unit of measurement mm (in) 299 (11.8) 202 (7.95)

  • Page 82: Mounting Bracket For Electronics Housing

    Accessories Levelflex FMP53 PROFIBUS PA 15.1.2 Mounting bracket for electronics housing Accessories Description Mounting bracket for electronics housing ø42...60 (1.65...2.36) 127...140 122 (4.8) (5...5.51) 161 (6.34) 162...175 (6.38...6.89) A0014793  27 Mounting bracket for electronics housing; engineering unit: mm (in)

  • Page 83: Protective Cover

    Calibration kit Accessories Description Calibration kit The calibration kit is used for regular testing of the accuracy and reproducibility of the Levelflex FMP53 level measurement device. Order number: 71041382 For details, see Operating Instructions SD01003F. 15.1.6 Remote display FHX50 A0019128 Technical data •...

  • Page 84: Overvoltage Protection

    Accessories Levelflex FMP53 PROFIBUS PA • Connecting cable: • Cable supplied with device up to 30 m (98 ft) • Standard cable supplied by customer up to 60 m (196 ft) • Ambient temperature:–40 to 80 °C (–40 to 176 °F) •...

  • Page 85: Bluetooth Module Bt10 For Hart

    Levelflex FMP53 PROFIBUS PA Accessories • Capacitance at 1 MHz: < 1.5 pF • Nominal leakage current (8/20 μs): 10 kA • Suitable for conductor cross-sections: 0.2 to 2.5 mm (24 to 14 AWG) If retrofitting: • Order number for 1-channel devices (OVP10): 71128617 •...

  • Page 86: Communication-Specific Accessories

    For details, see the "Special Documentation" SD02252F 15.2 Communication-specific accessories Commubox FXA291 Connects Endress+Hauser field devices with a CDI interface (= Endress+Hauser Common Data Interface) and the USB port of a computer or laptop Order number: 51516983 For details, see "Technical Information" TI00405C 15.3...

  • Page 87: Operating Menu

    Levelflex FMP53 PROFIBUS PA Operating menu Operating menu 16.1 Overview of the operating menu (display module) Navigation  Operating menu Language  Setup →  101 Device tag →  101 Device address →  101 Distance unit →  101 Tank type →...
  • Page 88 Operating menu Levelflex FMP53 PROFIBUS PA PV filter time →  109 Fail safe type →  110 →  110 Fail safe value ‣ Advanced setup →  111 Locking status →  111 Access status display →  112 →...
  • Page 89 Levelflex FMP53 PROFIBUS PA Operating menu ‣ Edit table Level Customer value Activate table →  127 ‣ Safety settings →  128 Output echo lost →  128 Value echo lost →  128 Ramp at echo lost →  129 Blocking distance →...
  • Page 90 Operating menu Levelflex FMP53 PROFIBUS PA Switch-off value →  139 Switch-off delay →  140 →  140 Failure mode Switch status →  140 Invert output signal →  140 ‣ Display →  142 →  142...
  • Page 91 Levelflex FMP53 PROFIBUS PA Operating menu Configuration management →  148 →  149 Comparison result ‣ Administration →  151 ‣ Define access code →  153 Define access code →  153 Confirm access code →  153 Device reset →...
  • Page 92 Operating menu Levelflex FMP53 PROFIBUS PA Status PROFIBUS Master Config →  159 PROFIBUS ident number →  159 ‣ →  160 Measured values Distance →  104 Level linearized →  124 Terminal voltage 1 →  161 →...
  • Page 93 Levelflex FMP53 PROFIBUS PA Operating menu Diagnostic event category →  170 Simulation diagnostic event ‣ Device check →  171 Start device check →  171 Result device check →  171 Last check time →  171 Level signal →...

  • Page 94: Tool)

    Operating menu Levelflex FMP53 PROFIBUS PA 16.2 Overview of the operating menu (operating tool) Navigation  Operating menu  Setup →  101 Device tag →  101 →  101 Device address Distance unit →  101 Tank type →...
  • Page 95 Levelflex FMP53 PROFIBUS PA Operating menu Fail safe type →  110 →  110 Fail safe value ‣ Advanced setup →  111 Locking status →  111 Access status tooling →  111 Enter access code →  112 ‣...
  • Page 96 Operating menu Levelflex FMP53 PROFIBUS PA Level →  127 Customer value →  127 →  127 Activate table ‣ Safety settings →  128 Output echo lost →  128 Value echo lost →  128 →  129...
  • Page 97 Levelflex FMP53 PROFIBUS PA Operating menu Failure mode →  140 →  140 Switch status Invert output signal →  140 ‣ Display →  142 Language →  142 Format display →  142 Value 1 to 4 display →...
  • Page 98 Operating menu Levelflex FMP53 PROFIBUS PA Backup state →  149 Comparison result →  149 ‣ →  151 Administration Define access code Device reset →  151  Diagnostics →  154 →  154 Actual diagnostics Timestamp →...
  • Page 99 Levelflex FMP53 PROFIBUS PA Operating menu ‣ Measured values →  160 →  104 Distance Level linearized →  124 Terminal voltage 1 →  161 Switch status →  140 ‣ Analog inputs ‣ Analog input 1 to 6 →...
  • Page 100 Operating menu Levelflex FMP53 PROFIBUS PA Last check time →  171 Level signal →  172 →  172 Launch signal ‣ Heartbeat →  173 Endress+Hauser...

  • Page 101: Setup" Menu

    Levelflex FMP53 PROFIBUS PA Operating menu 16.3 "Setup" menu • : Indicates how to navigate to the parameter using the display and operating module • : Indicates how to navigate to the parameter using operating tools (e.g. FieldCare) • : Indicates parameters that can be locked via the access code.
  • Page 102 Operating menu Levelflex FMP53 PROFIBUS PA Selection • Metallic • Bypass / pipe • Non metallic • Mounted outside • Coaxial Factory setting Depending on the probe Additional information • Depending on the probe some of the options mentioned above may not be available or there may be additional options.
  • Page 103 Levelflex FMP53 PROFIBUS PA Operating menu Empty calibration  Navigation  Setup → Empty calibr. Description Distance process connection to min. level. User entry Depending on the probe Factory setting Depending on the probe Additional information A0013178  28 Empty calibration (E) for level measurements in liquids Full calibration ...

  • Page 104: Distance

    Operating menu Levelflex FMP53 PROFIBUS PA Additional information 100% A0013186  29 Full calibration (F) for level measurements in liquids Level Navigation  Setup → Level Description Displays measured level L (before linearization). Additional information A0013194  30 Level in case of liquid measurements The unit is defined in the Level unit parameter (→...
  • Page 105 Levelflex FMP53 PROFIBUS PA Operating menu Additional information A0013198  31 Distance for liquid measurements The unit is defined in the Distance unit parameter (→  101). Signal quality Navigation  Setup → Signal quality Description Displays the signal quality of the evaluated echo.
  • Page 106 Operating menu Levelflex FMP53 PROFIBUS PA Confirm distance  Navigation  Setup → Confirm distance Description Specify, whether the measured distance matches the real distance. Depending on the selection the device automatically sets the range of mapping. Selection • Manual map •...
  • Page 107 Levelflex FMP53 PROFIBUS PA Operating menu Present mapping Navigation  Setup → Present mapping Description Indicates up to which distance a mapping has already been recorded. Mapping end point  Navigation  Setup → Map. end point Prerequisite Confirm distance (→  106) = Manual map or Distance too small Description Specify new end of the mapping.

  • Page 108: Mapping" Wizard

    Operating menu Levelflex FMP53 PROFIBUS PA 16.3.1 "Mapping" wizard The Mapping wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the mapping are located directly in the Setup menu (→  101).

  • Page 109: Analog Input 1 To 6" Submenu

    Levelflex FMP53 PROFIBUS PA Operating menu 16.3.2 "Analog input 1 to 6" submenu There is an Analog input submenu for each AI block of the device. The AI block is used to configure the measured value transmission to the bus.

  • Page 110: Fail Safe Type

    Operating menu Levelflex FMP53 PROFIBUS PA Additional information This parameter defines the damping constant τ (in seconds) for the output of the Analog Input Block. Fail safe type  Navigation  Expert → Analog inputs → Analog input 1 to 6 → Fail safe type...

  • Page 111: Advanced Setup" Submenu

    Levelflex FMP53 PROFIBUS PA Operating menu 16.3.3 "Advanced setup" submenu Navigation  Setup → Advanced setup Locking status Navigation  Setup → Advanced setup → Locking status Description Indicates the write protection with the highest priority that is currently active.

  • Page 112: Access Status Display

    • If no key is pressed for 10 minutes or the user goes from the navigation and editing mode back to the measured value display mode, the device automatically locks the write- protected parameters after another 60 s. Please contact your Endress+Hauser Sales Center if you lose your access code. Endress+Hauser...

  • Page 113: Level

    Levelflex FMP53 PROFIBUS PA Operating menu "Level" submenu Navigation  Setup → Advanced setup → Level Medium type  Navigation  Setup → Advanced setup → Level → Medium type Description Specify type of medium. User interface • Liquid • Solid...

  • Page 114: Process Property

    • Dielectric constant (DC value) Compendium CP01076F • The Endress+Hauser "DC Values app" (available for Android and iOS) If EOP level evaluation = Fix DC, the exact dielectric constant must be specified in the DC value parameter. The Medium property parameter therefore does not apply in this case.

  • Page 115: Advanced Process Conditions

    Levelflex FMP53 PROFIBUS PA Operating menu For "Operating mode" = "Level" and "Medium type" = "Solid" Process property Step response time / s Very fast > 100 m (333 ft) /h Fast > 10 m (33 ft) /h Standard < 10 m (33 ft) /h Medium <...

  • Page 116: Level Unit

    Operating menu Levelflex FMP53 PROFIBUS PA Level unit  Navigation  Setup → Advanced setup → Level → Level unit Description Select level unit. Selection SI units US units • % • ft • m • in • mm Additional information The level unit may differ from the distance unit defined in the Distance unit parameter (→...

  • Page 117: Level Correction

    Levelflex FMP53 PROFIBUS PA Operating menu A0013219  32 Blocking distance (UB) for liquid measurements Level correction  Navigation  Setup → Advanced setup → Level → Level correction Description Specify level correction (if required). User entry –200 000.0 to 200 000.0 % Additional information The value specified in this parameter is added to the measured level (before linearization).
  • Page 118 Operating menu Levelflex FMP53 PROFIBUS PA "Linearization" submenu 100% L‘ I‘ L‘ 100% L‘1 L‘2 L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ 100% L‘ A0016084  33 Linearization: Conversion of the level and, if applicable, interface into a volume or a weight; the...

  • Page 119: Linearization

    Levelflex FMP53 PROFIBUS PA Operating menu Structure of the submenu on the local display Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Maximum value Diameter Intermediate height Table mode ‣ Edit table...
  • Page 120 Operating menu Levelflex FMP53 PROFIBUS PA Structure of the submenu in the operating tool (e.g. FieldCare) Navigation  Setup → Advanced setup → Linearization ‣ Linearization Linearization type Unit after linearization Free text Level linearized Maximum value Diameter Intermediate height...

  • Page 121: Linearization Type

    Levelflex FMP53 PROFIBUS PA Operating menu Description of the parameters Navigation  Setup → Advanced setup → Linearization Linearization type  Navigation  Setup → Advanced setup → Linearization → Lineariz. type Description Select linearization type. Selection • None • Linear •...

  • Page 122: Unit After Linearization

    Operating menu Levelflex FMP53 PROFIBUS PA Meaning of the options • None The level is output in the level unit without being converted (linearized) beforehand. • Linear The output value (volume/weight) is proportional to the level L. This applies, for example, to vertical cylindrical tanks and silos.

  • Page 123: Free Text

    Levelflex FMP53 PROFIBUS PA Operating menu Description Select the unit for the linearized value. Selection Selection/input (uint16) • 1095 = [short Ton] • 1094 = [lb] • 1088 = [kg] • 1092 = [Ton] • 1048 = [US Gal.] • 1049 = [Imp. Gal.] •...

  • Page 124: Maximum Value

    Operating menu Levelflex FMP53 PROFIBUS PA User entry Up to 32 alphanumerical characters (letters, numbers, special characters) Level linearized Navigation  Setup → Advanced setup → Linearization → Level linearized Description Displays linearized level. Additional information The unit is defined by the Unit after linearization parameter →  122.

  • Page 125: Intermediate Height

    Levelflex FMP53 PROFIBUS PA Operating menu Intermediate height  Navigation  Setup → Advanced setup → Linearization → Intermed. height Prerequisite Linearization type (→  121) has one of the following values: • Pyramid bottom • Conical bottom • Angled bottom...
  • Page 126 Operating menu Levelflex FMP53 PROFIBUS PA Conditions the linearization table must meet: • The table may consist of up to 32 pairs of values "Level - Linearized Value". • The table must be monotonic (monotonically increasing or decreasing). • The first linearization point must refer to the minimum level.

  • Page 127: Level

    Levelflex FMP53 PROFIBUS PA Operating menu Level (Semiautomatic) Navigation  Setup → Advanced setup → Linearization → Level Prerequisite • Linearization type (→  121) = Table • Table mode (→  125) = Semiautomatic Description Displays measured level (value before linearization). This value is transmitted to the table.

  • Page 128: Safety Settings

    Operating menu Levelflex FMP53 PROFIBUS PA "Safety settings" submenu Navigation  Setup → Advanced setup → Safety sett. Output echo lost  Navigation  Setup → Advanced setup → Safety sett. → Output echo lost Description Output signal in case of a lost echo.

  • Page 129: Ramp At Echo Lost

    Levelflex FMP53 PROFIBUS PA Operating menu Ramp at echo lost  Navigation  Setup → Advanced setup → Safety sett. → Ramp echo lost Prerequisite Output echo lost (→  128) = Ramp at echo lost Description Slope of the ramp in the case of a lost echo...
  • Page 130 Operating menu Levelflex FMP53 PROFIBUS PA due to a level change during operation. Signals which are already in the blocking distance when the device is switched on, are ignored. This behavior is only valid if the following two conditions are met: •...

  • Page 131: Whg Confirmation

    Levelflex FMP53 PROFIBUS PA Operating menu "WHG confirmation" wizard The WHG confirmation wizard is only available for devices with WHG approval (Feature 590: "Additional Approval", option LC: "WHG overfill prevention" ) which are currently not in the WHG-locked state. The WHG confirmation wizard is used to lock the device according to WHG. For details refer to the "Functional Safety Manual"...

  • Page 132: Deactivate Whg

    Operating menu Levelflex FMP53 PROFIBUS PA "Deactivate WHG" wizard The Deactivate WHG wizard (→  132) is only visible if the device is WHG-locked. For details refer to the "Functional Safety Manual" of the respective device. Navigation  Setup → Advanced setup → Deactivate WHG Reset write protection ...

  • Page 133: Probe Settings

    Levelflex FMP53 PROFIBUS PA Operating menu "Probe settings" submenu The Probe settings submenu helps to ensure that the end of probe signal within the envelope curve is correctly assigned by the evaluation algorithm. The assignment is correct if the length of probe indicated by the device matches the acutal lenght of the probe. The automatic probe length correction can only be performed if the probe is installed in the vessel and is completely uncovered (no medium).

  • Page 134: Confirm Probe Length

    Operating menu Levelflex FMP53 PROFIBUS PA Confirm probe length  Navigation  Setup → Advanced setup → Probe settings → Confirm length Description Select, whether the value displayed in the Present probe length parameter →  133 matches the actual length of the probe. Based on this input, the device performs a probe length correction.
  • Page 135 Levelflex FMP53 PROFIBUS PA Operating menu "Probe length correction" wizard The Probe length correction wizard is only available when operating via the local display. When operating via an operating tool, all parameters concerning the probe length correction are located directly in the Probe settings submenu (→  133).

  • Page 136: Switch Output

    Operating menu Levelflex FMP53 PROFIBUS PA "Switch output" submenu The Switch output submenu (→  136) is only visible for devices with switch output. Navigation  Setup → Advanced setup → Switch output Switch output function  Navigation  Setup → Advanced setup → Switch output → Switch out funct Description Select function for switch output.

  • Page 137: Assign Limit

    Levelflex FMP53 PROFIBUS PA Operating menu Selection • Off • Digital output AD 1 • Digital output AD 2 • Digital output 1 • Digital output 2 • Digital output 3 • Digital output 4 Additional information The Digital output AD 1 and Digital output AD 2 options refer to the Advanced Diagnostic Blocks.

  • Page 138: Switch-On Value

    Operating menu Levelflex FMP53 PROFIBUS PA Switch-on value  Navigation  Setup → Advanced setup → Switch output → Switch-on value Prerequisite Switch output function (→  136) = Limit Description Enter measured value for the switch-on point. User entry...

  • Page 139: Switch-On Delay

    Levelflex FMP53 PROFIBUS PA Operating menu A0015586 Switch-on value Switch-off value Output closed (conductive) Output opened (non-conductive) Switch-on delay  Navigation  Setup → Advanced setup → Switch output → Switch-on delay Prerequisite • Switch output function (→  136) = Limit •...

  • Page 140: Switch-Off Delay

    Operating menu Levelflex FMP53 PROFIBUS PA Switch-off delay  Navigation  Setup → Advanced setup → Switch output → Switch-off delay Prerequisite • Switch output function (→  136) = Limit • Assign limit (→  137) ≠ Off Description Define delay for the switch-off of status output.
  • Page 141 Levelflex FMP53 PROFIBUS PA Operating menu Additional information Meaning of the options • No The behavior of the switch output is as described above. • Yes The states Open and Closed are inverted as compared to the description above. Endress+Hauser...

  • Page 142: Display

    Operating menu Levelflex FMP53 PROFIBUS PA "Display" submenu Display submenu is only visible if a display module is connected to the device. Navigation  Setup → Advanced setup → Display Language Navigation  Setup → Advanced setup → Display → Language Description Set display language.
  • Page 143 Levelflex FMP53 PROFIBUS PA Operating menu Additional information 4841.000 Â A0019963  36 "Format display" = "1 value, max. size" Â 93.5 % Â 159.0 A0019964  37 "Format display" = "1 bargraph + 1 value" Â 93.5 Â 159.0 A0019965 ...

  • Page 144: Value 1 To 4 Display

    Operating menu Levelflex FMP53 PROFIBUS PA Value 1 to 4 display  Navigation  Setup → Advanced setup → Display → Value 1 display Description Select the measured value that is shown on the local display. Selection • Level linearized •...

  • Page 145: Display Damping

    Levelflex FMP53 PROFIBUS PA Operating menu User entry 1 to 10 s Additional information This parameter is only relevant if the number of selected measuring values exceeds the number of values the selected display format can display simultaneously. Display damping ...

  • Page 146: Separator

    Operating menu Levelflex FMP53 PROFIBUS PA Additional information The number of characters which can be displayed depends on the characters used. Separator  Navigation  Setup → Advanced setup → Display → Separator Description Select decimal separator for displaying numerical values.

  • Page 147: Backlight

    Levelflex FMP53 PROFIBUS PA Operating menu Backlight Navigation  Setup → Advanced setup → Display → Backlight Prerequisite The device has the SD03 local display (with optical keys). Description Switch the local display backlight on and off. Selection • Disable •...

  • Page 148: Configuration Backup Display

    Operating menu Levelflex FMP53 PROFIBUS PA "Configuration backup display" submenu This submenu is only visible if a display module is connected to the device. The configuration of the device can be saved to the display module at a certain point of time (backup).

  • Page 149: Backup State

    Levelflex FMP53 PROFIBUS PA Operating menu Additional information Meaning of the options • Cancel No action is executed and the user exits the parameter. • Execute backup A backup copy of the current device configuration in the HistoROM (built-in in the device) is saved to the display module of the device.
  • Page 150 Operating menu Levelflex FMP53 PROFIBUS PA Additional information Meaning of the display options • Settings identical The current device configuration of the HistoROM is identical to the backup copy in the display module. • Settings not identical The current device configuration of the HistoROM is not identical to the backup copy in the display module.

  • Page 151: Administration

    Enter access code parameter (→  112). Please contact your Endress+Hauser Sales Center if you lose the access code. If operating via the local display: the new access code is only valid once it has been confirmed in the Confirm access code parameter (→...
  • Page 152 Operating menu Levelflex FMP53 PROFIBUS PA • Of customer settings All customer parameters are reset to their factory setting. Service parameters, however, remain unchanged. • To transducer defaults Every measurment-related parameter is reset to its factory setting. Service parameters and communication-related parameters, however, remain unchanged.
  • Page 153 Levelflex FMP53 PROFIBUS PA Operating menu "Define access code" wizard The Define access code wizard is only available when operating via the local display. When operating via an operating tool, the Define access code parameter is located directly in the Administration submenu. The Confirm access code parameter is not available for operation via operating tool.

  • Page 154: Diagnostics" Menu

    Operating menu Levelflex FMP53 PROFIBUS PA 16.4 "Diagnostics" menu Navigation  Diagnostics Actual diagnostics Navigation  Diagnostics → Actual diagnos. Description Displays current diagnostic message. Additional information The display consists of: • Symbol for event behavior • Code for diagnostic behavior •...

  • Page 155: Timestamp

    Levelflex FMP53 PROFIBUS PA Operating menu Timestamp Navigation  Diagnostics → Timestamp Operating time from restart Navigation  Diagnostics → Time fr. restart Description Displays the time the device has been in operation since the last device restart. Operating time Navigation ...

  • Page 156: Diagnostic List" Submenu

    Operating menu Levelflex FMP53 PROFIBUS PA 16.4.1 "Diagnostic list" submenu Navigation  Diagnostics → Diagnostic list Diagnostics 1 to 5 Navigation  Diagnostics → Diagnostic list → Diagnostics 1 Description Display the current diagnostics messages with the highest to fifth-highest priority.

  • Page 157: Event Logbook" Submenu

    Levelflex FMP53 PROFIBUS PA Operating menu 16.4.2 "Event logbook" submenu The Event logbook submenu is only available when operating via the local display. When operating via FieldCare, the event list can be displayed in the FieldCare function "Event List / HistoROM".

  • Page 158: Device Information" Submenu

    Shows the serial number of the measuring device. Additional information Uses of the serial number • To identify the device quickly, e.g. when contacting Endress+Hauser. • To obtain specific information on the device using the Device Viewer: www.endress.com/deviceviewer The serial number is also indicated on the nameplate.

  • Page 159: Order Code

    Levelflex FMP53 PROFIBUS PA Operating menu Order code  Navigation  Diagnostics → Device info → Order code Description Shows the device order code. User interface Character string comprising numbers, letters and special characters Additional information The order code is generated from the extended roder code, which defines all device features of the product structure.

  • Page 160: Measured Values" Submenu

    Operating menu Levelflex FMP53 PROFIBUS PA 16.4.4 "Measured values" submenu Navigation  Diagnostics → Measured val. Distance Navigation  Diagnostics → Measured val. → Distance Description Displays the measured distance D between the reference point (lower edge of the flange or threaded connection) and the level.

  • Page 161: Terminal Voltage 1

    Levelflex FMP53 PROFIBUS PA Operating menu Terminal voltage 1 Navigation  Diagnostics → Measured val. → Terminal volt. 1 Switch status Navigation  Diagnostics → Measured val. → Switch status Description Shows the current switch output status. Endress+Hauser...

  • Page 162: Analog Input 1 To 6" Submenu

    Operating menu Levelflex FMP53 PROFIBUS PA 16.4.5 "Analog input 1 to 6" submenu There is an Analog input submenu for each Analog Input Block of the device. Only the most important parameters of the respective block are available at this position of the operating menu.

  • Page 163: Out Status

    Levelflex FMP53 PROFIBUS PA Operating menu Additional information • For Mode block actual = Man: Enter the output value of the Analog Input Block. • Else: Displays the output value of the Analog Input Block. Out status Navigation  Diagnostics → Analog inputs → Analog input 1 to 6 → Out status...

  • Page 164: Data Logging" Submenu

    Operating menu Levelflex FMP53 PROFIBUS PA 16.4.6 "Data logging" submenu Navigation  Diagnostics → Data logging Assign channel 1 to 4  Navigation  Diagnostics → Data logging → Assign chan. 1 to 4 Selection • Off • Level linearized •...

  • Page 165: Clear Logging Data

    Levelflex FMP53 PROFIBUS PA Operating menu Additional information This parameter defines the interval between the individual data points in the data log, and thus the maximum loggable process time T • If 1 logging channel is used: T = 1000 ⋅ t •...
  • Page 166 Operating menu Levelflex FMP53 PROFIBUS PA "Display channel 1 to 4" submenu The Display channel 1 to 4 submenus are only available for operation via the local display. When operating via FieldCare, the logging diagram can be displayed in the FieldCare function "Event List / HistoROM"...

  • Page 167: Simulation" Submenu

    Levelflex FMP53 PROFIBUS PA Operating menu 16.4.7 "Simulation" submenu The Simulation submenu is used to simulate specific measuring values or other conditions. This helps to check the correct configuration of the device and connected control units. Conditions which can be simulated...

  • Page 168: Simulation

    Operating menu Levelflex FMP53 PROFIBUS PA Structure of the submenu Navigation  Expert → Diagnostics → Simulation ‣ Simulation Assign measurement variable →  169 Value process variable →  169 Switch output simulation →  169 →  170...

  • Page 169: Assign Measurement Variable

    Levelflex FMP53 PROFIBUS PA Operating menu Description of parameters Navigation  Expert → Diagnostics → Simulation Assign measurement variable  Navigation  Expert → Diagnostics → Simulation → Assign meas.var. Selection • Off • Level • Interface • Level linearized •...

  • Page 170: Switch Status

    Operating menu Levelflex FMP53 PROFIBUS PA Switch status  Navigation  Expert → Diagnostics → Simulation → Switch status Prerequisite Switch output simulation (→  169) = On Description Select the status of the status output for the simulation. Selection •...

  • Page 171: Device Check" Submenu

    Levelflex FMP53 PROFIBUS PA Operating menu 16.4.8 "Device check" submenu Navigation  Diagnostics → Device check Start device check  Navigation  Diagnostics → Device check → Start dev. check Description Start a device check. Selection • No • Yes Additional information In the case of a lost echo a device check can not be performed.
  • Page 172 Operating menu Levelflex FMP53 PROFIBUS PA Level signal Navigation  Diagnostics → Device check → Level signal Prerequisite Device check has been performed. Description Displays result of the device check for the level signal. User interface • Check not done •...

  • Page 173: Heartbeat" Submenu

    Levelflex FMP53 PROFIBUS PA Operating menu 16.4.9 "Heartbeat" submenu The Heartbeat submenu is only available via FieldCare or DeviceCare. It contains the wizards which are part of the Heartbeat Verification and Heartbeat Monitoring application packages. Detailed description SD01872F Navigation  Diagnostics → Heartbeat...
