KA01080F/00/EN/17.22-00
71565959
2022-04-05
Products
Brief Operating Instructions

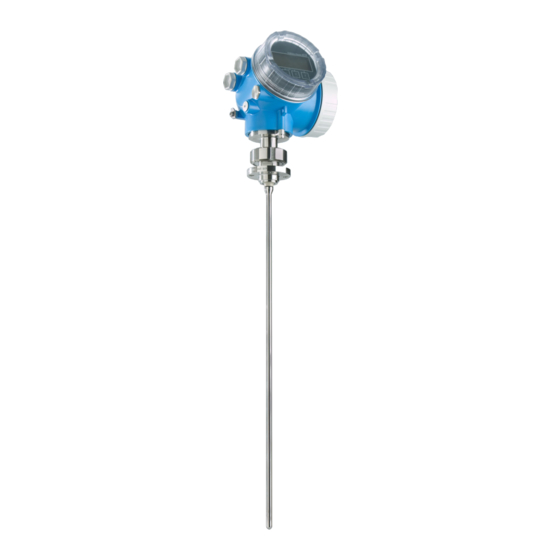

Levelflex FMP53
PROFIBUS PA
Guided wave radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
• Internet:
www.endress.com/deviceviewer
• Smart phone/tablet: Endress+Hauser Operations App
Solutions
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Levelflex FMP53
Summary of Contents for Endress+Hauser Levelflex FMP53
- Page 1 Operating Instructions pertaining to the device. Detailed information about the device can be found in the Operating Instructions and the other documentation: Available for all device versions via: • Internet: www.endress.com/deviceviewer • Smart phone/tablet: Endress+Hauser Operations App...
-
Page 2: Associated Documentation
Associated documentation Levelflex FMP53 PROFIBUS PA Associated documentation Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 About this document Symbols 2.1.1 Safety symbols DANGER This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in serious or fatal injury. - Page 3 Levelflex FMP53 PROFIBUS PA About this document WARNING This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in serious or fatal injury. CAUTION This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in minor or medium injury.
-
Page 4: Basic Safety Instructions
Basic safety instructions Levelflex FMP53 PROFIBUS PA Series of steps Result of a step Visual inspection 1, 2, 3, ... Item numbers A, B, C, ... Views 2.1.5 Symbols on the device Safety instructions Observe the safety instructions contained in the associated Operating Instructions Temperature resistance of the connection cables... -
Page 5: Workplace Safety
The manufacturer is not liable for damage caused by improper or non-intended use. Verification for borderline cases: ‣ For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in verifying the corrosion resistance of fluid-wetted materials, but does not accept any warranty or liability. -
Page 6: Product Safety
• Are the goods undamaged? • Do the nameplate data match the ordering information on the delivery note? • If required (see nameplate): are the Safety Instructions (XA) provided? If one of these conditions is not met, please contact your Endress+Hauser sales office. Endress+Hauser... -
Page 7: Product Identification
‣ Enter the serial number from the nameplate in the Endress+Hauser Operations app or scan the 2-D matrix code on the nameplate with the camera All of the information on the measuring device and on the scope of the technical documentation pertaining to the device is displayed. -
Page 8: Mounting Requirements
Mounting Levelflex FMP53 PROFIBUS PA Mounting Mounting requirements 5.1.1 Suitable mounting position A0014130 1 Installation conditions for Levelflex Spacing requirements when mounting • Distance (A) between the vessel wall and rod probes: • For smooth metallic walls: > 50 mm (2 in) •... -
Page 9: Mounting The Device
Levelflex FMP53 PROFIBUS PA Mounting Mounting the device 5.2.1 Turning the transmitter housing To provide easier access to the connection compartment or display module, the transmitter housing can be turned: max. 350° 8 mm 8 mm A0032242 Unscrew the securing screw using an open-ended wrench. -
Page 10: Electrical Connection
Electrical connection Levelflex FMP53 PROFIBUS PA Turning the display module A0036401 Pull out the display module with a gentle rotational movement. Turn the display module to the desired position: Max. 8 × 45 ° in each direction. Feed the coiled cable into the gap between the housing and main electronics module and plug the display module into the electronics compartment until it engages. - Page 11 Levelflex FMP53 PROFIBUS PA Electrical connection Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus A0036500 2 Terminal assignment PROFIBUS PA / FOUNDATION Fieldbus Without integrated overvoltage protection With integrated overvoltage protection Connection, PROFIBUS PA / FOUNDATION Fieldbus: terminals 1 and 2, without integrated...
- Page 12 Electrical connection Levelflex FMP53 PROFIBUS PA A0011175 4 Pin assignment of M12 plug Signal + Not assigned Signal - Ground 6.1.3 Supply voltage PROFIBUS PA, FOUNDATION Fieldbus "Power supply; output" "Approval" Terminal voltage E: 2-wire; FOUNDATION • Non-hazardous 9 to 32 V Fieldbus, switch output •...
-
Page 13: Connecting The Device
Levelflex FMP53 PROFIBUS PA Electrical connection Connecting the device WARNING Explosion Hazard! ‣ Observe applicable national standards. ‣ Comply with the specifications in the Safety Instructions (XA). ‣ Use specified cable glands only. ‣ Check to ensure that the power supply matches the information on the nameplate. - Page 14 Electrical connection Levelflex FMP53 PROFIBUS PA Push the cable through the cable entry . To ensure tight sealing, do not remove the sealing ring from the cable entry. Remove the cable sheath. Strip the cable ends 10 mm (0.4 in). In the case of stranded cables, also fit ferrules.
-
Page 15: Operation Options
Levelflex FMP53 PROFIBUS PA Operation options 6.2.4 Closing the cover of the connection compartment 3 mm 2,5 Nm A0021491 Screw down the cover of the connection compartment. Turn the securing clamp 90 ° in the clockwise direction and, using an Allen key (3 mm), tighten the screw of the securing clamp on the connection compartment cover with 2.5 Nm. -
Page 16: Structure And Function Of The Operating Menu
Operation options Levelflex FMP53 PROFIBUS PA Structure and function of the operating menu 7.1.1 Display User ABC_ DEFG HIJK LMNO PQRS TUVW A0012635 7 Display format on the display and operating module Measured value display (1 value max. size) 1.1 Header containing tag and error symbol (if an error is active) - Page 17 Levelflex FMP53 PROFIBUS PA Operation options 7.1.2 Operating elements Functions • Display of measured values and fault and notice messages • Background lighting, which switches from green to red in the event of an error • The device display can be removed for easier operation The device displays are available with the additional option of Bluetooth®...
- Page 18 Operation options Levelflex FMP53 PROFIBUS PA • key and key (ESC function - press keys simultaneously) • In the menu, submenu: Pressing the key briefly: • Exits the current menu level and takes you to the next higher level.
-
Page 19: Switching On The Device
Levelflex FMP53 PROFIBUS PA Commissioning • Setup • Conf. backup disp. • Envelope curve • Keylock on Calling up and closing the context menu The user is in the operational display. Press for 2 s. The context menu opens. - Page 20 Commissioning Levelflex FMP53 PROFIBUS PA X X X X X X X 20.50 Main menu 0104-1 Display language English Operation Setup Display language 0104-1 English à Deutsch Español Français Display language 0104-1 à English Deutsch Español Français Hauptmenü 0104-1 Sprache...
-
Page 21: Device Configuration
Levelflex FMP53 PROFIBUS PA Commissioning Device configuration 8.3.1 Configuring level measurement 20 mA 100% 4 mA A0011360 10 Configuration parameters for level measurement in liquids LN = Probe length R = Reference point of measurement D = Distance E = Empty calibration (= zero point) - Page 22 Commissioning Levelflex FMP53 PROFIBUS PA Setup → Empty calibration Specify the empty distance E (distance from the reference point R to the 0% mark). Setup → Full calibration Specify the full distance F (distance from the 0% mark to the 100% mark).
- Page 24 *71565959* 71565959 www.addresses.endress.com...
