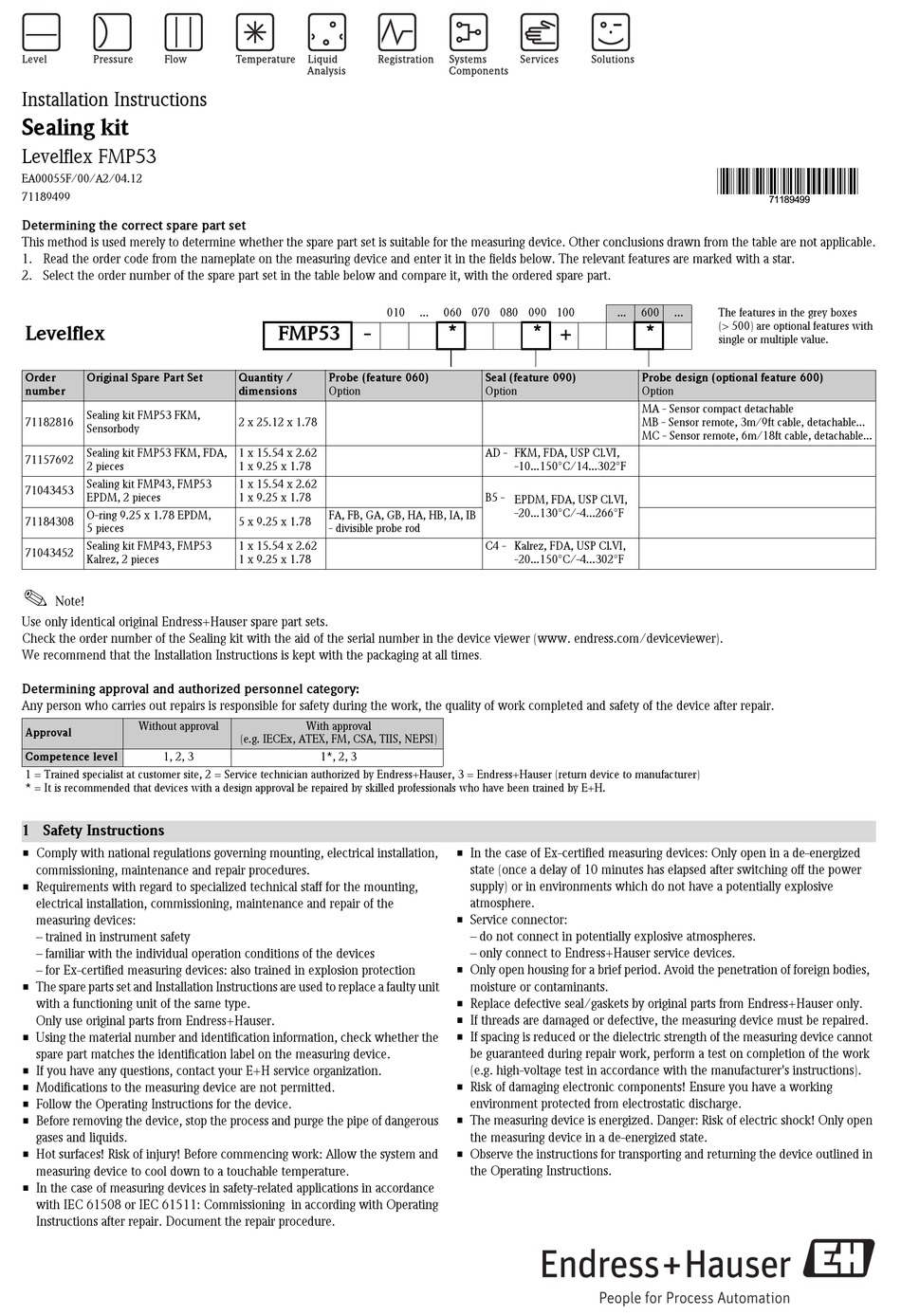

Installation Instructions
Sealing kit
Levelflex FMP53
EA00055F/00/A2/04.12
71189499
Determining the correct spare part set
This method is used merely to determine whether the spare part set is suitable for the measuring device. Other conclusions drawn from the table are not applicable.
1. Read the order code from the nameplate on the measuring device and enter it in the fields below. The relevant features are marked with a star.
2. Select the order number of the spare part set in the table below and compare it, with the ordered spare part.
Levelflex
Order 
Original Spare Part Set
number
Sealing kit FMP53 FKM, 
71182816
Sensorbody
Sealing kit FMP53 FKM, FDA, 
71157692
2 pieces
Sealing kit FMP43, FMP53
71043453
EPDM, 2 pieces
O-ring 9.25 x 1.78 EPDM, 
71184308
5 pieces
Sealing kit FMP43, FMP53
71043452
Kalrez, 2 pieces
!
Note!
Use only identical original Endress+Hauser spare part sets. 
Check the order number of the Sealing kit with the aid of the serial number in the device viewer (www. endress.com/deviceviewer).
We recommend that the Installation Instructions is kept with the packaging at all times.
Determining approval and authorized personnel category:
Any person who carries out repairs is responsible for safety during the work, the quality of work completed and safety of the device after repair.
Without approval
Approval
Competence level 1, 2, 3
1 = Trained specialist at customer site, 2 = Service technician authorized by Endress+Hauser, 3 = Endress+Hauser (return device to manufacturer)
* = It is recommended that devices with a design approval be repaired by skilled professionals who have been trained by E+H.
1 Safety Instructions
• Comply with national regulations governing mounting, electrical installation,
commissioning, maintenance and repair procedures.
• Requirements with regard to specialized technical staff for the mounting,
electrical installation, commissioning, maintenance and repair of the
measuring devices:
– trained in instrument safety
– familiar with the individual operation conditions of the devices
– for Ex-certified measuring devices: also trained in explosion protection
• The spare parts set and Installation Instructions are used to replace a faulty unit
with a functioning unit of the same type.
Only use original parts from Endress+Hauser.
• Using the material number and identification information, check whether the
spare part matches the identification label on the measuring device.
• If you have any questions, contact your E+H service organization.
• Modifications to the measuring device are not permitted.
• Follow the Operating Instructions for the device.
• Before removing the device, stop the process and purge the pipe of dangerous
gases and liquids.
• Hot surfaces! Risk of injury! Before commencing work: Allow the system and
measuring device to cool down to a touchable temperature.
• In the case of measuring devices in safety-related applications in accordance
with IEC 61508 or IEC 61511: Commissioning in according with Operating
Instructions after repair. Document the repair procedure.
010
FMP53 -
Quantity / Probe (feature 060)
dimensions Option
2 x 25.12 x 1.78
1 x 15.54 x 2.62
1 x 9.25 x 1.78
1 x 15.54 x 2.62
1 x 9.25 x 1.78
FA, FB, GA, GB, HA, HB, IA, IB
5 x 9.25 x 1.78
- divisible probe rod
1 x 15.54 x 2.62
1 x 9.25 x 1.78
With approval
(e.g. IECEx, ATEX, FM, CSA, TIIS, NEPSI)
1*, 2, 3
... 060 070 080 090 100
* * +
Seal (feature 090)
Option
AD - FKM, FDA, USP Cl.VI, 
-10...150°C/14...302°F
B5 - EPDM, FDA, USP Cl.VI, 
-20...130°C/-4...266°F
C4 - Kalrez, FDA, USP Cl.VI,
-20...150°C/-4...302°F
• In the case of Ex-certified measuring devices: Only open in a de-energized
state (once a delay of 10 minutes has elapsed after switching off the power
supply) or in environments which do not have a potentially explosive
atmosphere.
• Service connector:
– do not connect in potentially explosive atmospheres.
– only connect to Endress+Hauser service devices.
• Only open housing for a brief period. Avoid the penetration of foreign bodies,
moisture or contaminants.
• Replace defective seal/gaskets by original parts from Endress+Hauser only.
• If threads are damaged or defective, the measuring device must be repaired.
• If spacing is reduced or the dielectric strength of the measuring device cannot
be guaranteed during repair work, perform a test on completion of the work
(e.g. high-voltage test in accordance with the manufacturer's instructions).
• Risk of damaging electronic components! Ensure you have a working
environment protected from electrostatic discharge.
• The measuring device is energized. Danger: Risk of electric shock! Only open
the measuring device in a de-energized state.
• Observe the instructions for transporting and returning the device outlined in
the Operating Instructions.
71189499
The features in the grey boxes 
... 600 ...
(> 500) are optional features with
*
single or multiple value.
Probe design (optional feature 600)
Option
MA - Sensor compact detachable
MB - Sensor remote, 3m/9ft cable, detachable...
MC - Sensor remote, 6m/18ft cable, detachable...
