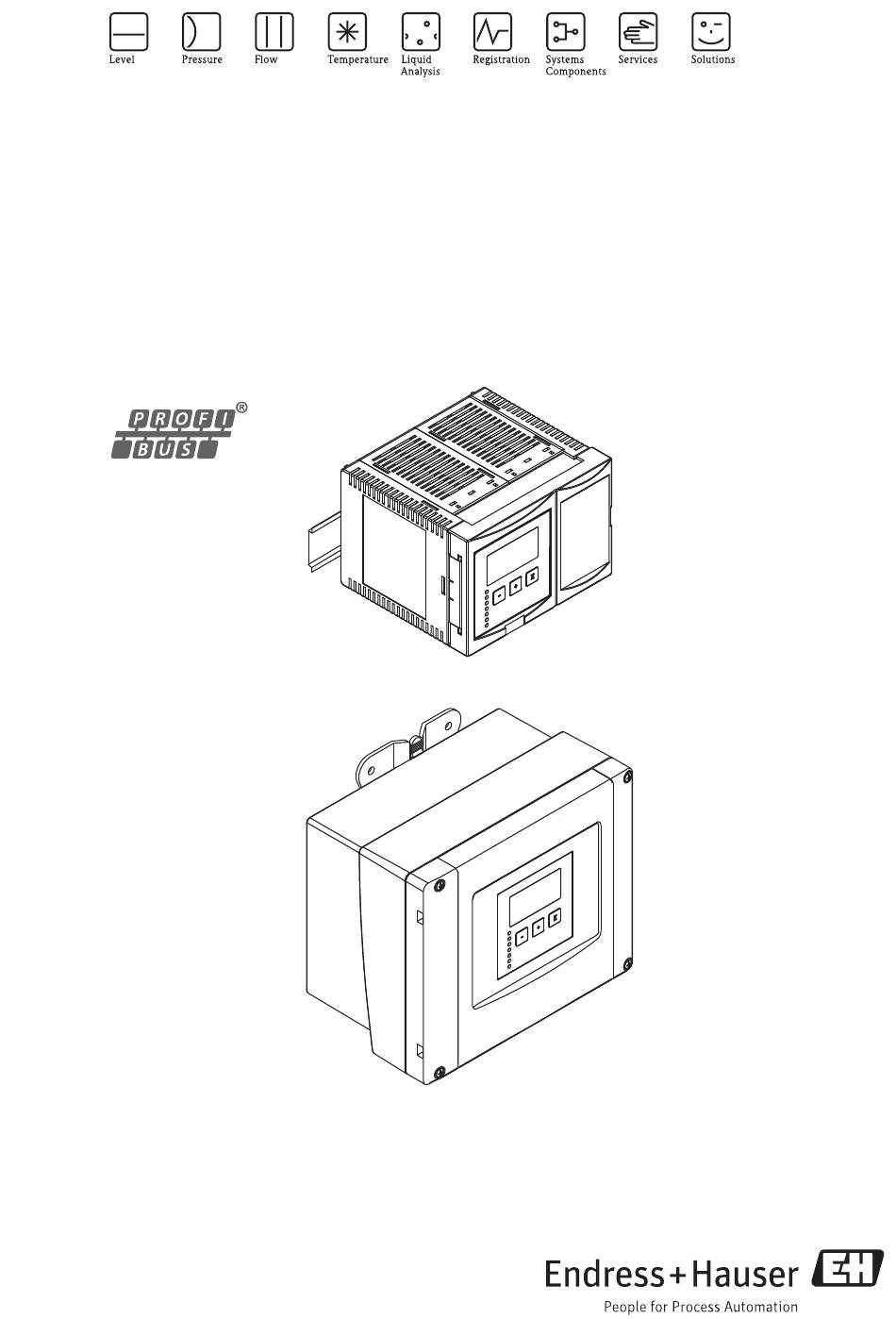

Operating Instructions

Prosonic S FMU90
Slot-Index Lists for PROFIBUS DP
BA00333F/00/EN/13.12
71164427
