Operating Instructions

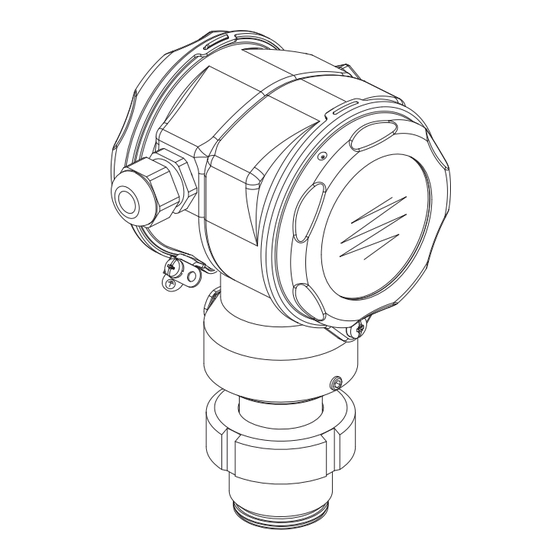

Deltapilot S FMB70
Hydrostatic Level Measurement
BA00372P/00/EN/17.14
71270399
Valid from software version:
04.00.zz

Advertisement

Table of Contents
loading

Summary of Contents for Endress+Hauser Deltapilot S FMB70

  • Page 1: Operating Instructions

    Operating Instructions Deltapilot S FMB70 Hydrostatic Level Measurement BA00372P/00/EN/17.14 71270399 Valid from software version: 04.00.zz...
  • Page 2: Serial Number

    Deltapilot S FMB70 with FOUNDATION Fieldbus Order code 00X00-XXXX0XX0XXX Ser. No.: X000X000000 TAG No.: XXX000 Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
  • Page 3: Table Of Contents

    Deltapilot S FMB70 with FOUNDATION Fieldbus Table of contents Table of contents Safety instructions ....4 Diagnostics and troubleshooting ..69 Designated use .
  • Page 4: Safety Instructions

    Safety instructions Deltapilot S FMB70 with FOUNDATION Fieldbus Safety instructions Designated use The Deltapilot S is a hydrostatic pressure sensor for measuring pressure and level. The manufacturer accepts no liability for damages resulting from incorrect use or use other than that designated.
  • Page 5: Notes On Safety Conventions And Icons

    Deltapilot S FMB70 with FOUNDATION Fieldbus Safety instructions Notes on safety conventions and icons In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding icon in the margin.
  • Page 6: Identification

    Identification Deltapilot S FMB70 with FOUNDATION Fieldbus Identification Product identification The following options are available for identification of the measuring device: • Nameplate specifications • Order code with breakdown of the device features on the delivery note • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the measuring device is displayed.
  • Page 7 Deltapilot S FMB70 with FOUNDATION Fieldbus Identification Devices for use in hazardous areas are fitted with an additional nameplate. A0021222 Fig. 2: Additional nameplate Approval-specific information Document number for safety instructions or drawing number Hygenic stainless steel housing (T17) Order code: Ext.
  • Page 8: Scope Of Delivery

    The devices comply with the applicable standards and regulations as listed in the EC Declaration of Conformity and thus comply with the statutory requirements of the EC Directives. Endress+Hauser confirms the conformity of the device by affixing to it the CE mark.
  • Page 9: Installation

    • To ensure optimal readability of the onsite display, it is possible to rotate the housing up to 380°. See  ä 14, Section 3.3.5 "Rotating the housing". • Endress+Hauser offers a mounting bracket for installations on pipes or walls. See  ä 12, Section 3.3.3 "Wall and pipe-mounting (optional)".
  • Page 10 Installation Deltapilot S FMB70 with FOUNDATION Fieldbus 3.3.1 Installation instructions Note! • If a heated Deltapilot S is cooled during the cleaning process (e.g. by cold water), a vacuum develops for a short time, whereby moisture can penetrate the sensor through the pressure compensation (1).
  • Page 11 Deltapilot S FMB70 with FOUNDATION Fieldbus Installation • Do not install the device at the following positions: – in the filling curtain – in the tank outflow – in the suction area of a pump – or at a point in the tank that can be affected by pressure pulses from the agitator •...
  • Page 12 Installation Deltapilot S FMB70 with FOUNDATION Fieldbus 3.3.3 Wall and pipe-mounting (optional) Endress+Hauser offers a mounting bracket for installations on pipes or walls. mm (in) P01-xMx5xxxx-06-xx-xx-xx-001 Please note the following when mounting: • When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least 5 Nm (3.69 lbs ft).
  • Page 13 Deltapilot S FMB70 with FOUNDATION Fieldbus Installation 3.3.4 Assembling and mounting the "separate housing" version r ³ 120 mm P01-FMB70xxx-11-xx-xx-xx-003 Fig. 6: "Separate housing" version In the "separate housing" version, the sensor is supplied with the process connection and cable ready-fitted.
  • Page 14 Installation Deltapilot S FMB70 with FOUNDATION Fieldbus 3.3.5 Rotating the housing The housing can be rotated up to 380° by loosening the setscrew. max. 380° P01-FMB70xxx-17-xx-xx-xx-000 Fig. 7: Aligning the housing – For aluminum housings (T14/T15): Loosen setscrew with a 2 mm (0.08 in) Allen key.
  • Page 15: Post-Installation Check

    Deltapilot S FMB70 with FOUNDATION Fieldbus Installation 3.3.8 Closing the housing cover Note! When closing the housing cover, make sure that the threads of the cover and the housing are free from dirt, such as sand. If you encounter resistance when closing the cover, check the threads again for fouling and dirt.
  • Page 16: Wiring

    Wiring Deltapilot S FMB70 with FOUNDATION Fieldbus Wiring Connecting the device Warning! If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals. Risk of electric shock! In a wet environment, do not open the cover if voltage is present.
  • Page 17: Connecting The Measuring Unit

    Deltapilot S FMB70 with FOUNDATION Fieldbus Wiring 4.1.1 Devices with 7/8" plug PIN assignment for 7/8" connector Meaning Signal – Signal + Not assigned Shield A0011176 Connecting the measuring unit Note! For further information on the network structure and grounding and for further bus system components such as bus cables, see the relevant documentation, e.g.
  • Page 18: Overvoltage Protection (Optional)

    Wiring Deltapilot S FMB70 with FOUNDATION Fieldbus Overvoltage protection (optional) Devices showing version "M" in feature 100 "Additional options 1" or feature 110 "Additional options 2" in the order code are equipped with overvoltage protection (see also Technical Information TI00416P "Ordering information").
  • Page 19: Operation

    Deltapilot S FMB70 with FOUNDATION Fieldbus Operation Operation Feature 20 "Output; operation" in the order code provides you with information on the operating options available to you. Versions in the order code Operation FOUNDATION Fieldbus; external operation, LCD Via onsite display and 1 key on the exterior of the device FOUNDATION Fieldbus;...
  • Page 20 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Parameter Measured value display Identification Function name Value number Header line Main line Unit Information line Symbol – Bargraph Bargraph Editing modes Operating keys Selection options Value that can be edited Current measured value P01-xxxxxxxx-07-xx-xx-en-011 The following table illustrates the symbols that can appear on the onsite display.
  • Page 21: Operating Elements

    Deltapilot S FMB70 with FOUNDATION Fieldbus Operation Operating elements 5.2.1 Position of the operating elements On the aluminum housing (T14/T15), the operating key is located either under the protective flap on the exterior of the device or inside on the electronic insert. In the case of the hygienic stainless steel housing (T17), the operating key is always inside on the electronic insert.
  • Page 22 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus 5.2.2 Function of the operating elements – onsite display not connected Operating elements Meaning – Position adjustment (zero point correction): press key for at least 3 seconds. The LED on the electronic insert lights up briefly if the pressure applied has been accepted for position adjustment.
  • Page 23 Deltapilot S FMB70 with FOUNDATION Fieldbus Operation 5.2.3 Function of the operating elements – onsite display connected Key(s) Meaning – Navigate upwards in the picklist – Edit numerical values or characters within a function – Navigate downwards in the picklist –...
  • Page 24: Foundation Fieldbus Interface

    Operation Deltapilot S FMB70 with FOUNDATION Fieldbus FOUNDATION Fieldbus interface 5.3.1 System architecture Industrial Network FF-HSE FF-H1 FF-H1 P01-xxxxxxxx-02-xx-xx-xx-001 Fig. 12: FOUNDATION Fieldbus system architecture with associated components FF-HSE: High Speed Ethernet, FF-H1: FOUNDATION Fieldbus-H1, LD: Linking Device FF-HSE/FF-H1, PS: bus power supply unit, SB: safety barrier, BT: bus terminator The system can be connected in the following ways: –...
  • Page 25 5.3.2 Number of devices • The Endress+Hauser Deltapilot S devices meet the requirements of the FISCO model. • Due to the low current consumption, the following number of devices can be operated on one bus segment if installing to FISCO: –...
  • Page 26 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus 5.3.5 Device identification and addressing FOUNDATION Fieldbus identifies the device using its ID code and automatically assigns it a suitable field address. The identity code cannot be changed. The device appears in the network display once you have started the FF configuration program and integrated the device into the network.
  • Page 27 Endress+Hauser Guideline BA00062S. The guideline provides an overview of the standard function blocks that are described in FOUNDATION Fieldbus Specifications FF 890 - 894. It is designed to help operators use the blocks implemented in the Endress+Hauser field devices. Endress+Hauser...
  • Page 28 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Block configuration when device is delivered The block model shown below illustrates the block configuration when the device is delivered. Measured variable Sensor Display Resource Block Signal evaluation with scaling Primary value Pressure...
  • Page 29 Deltapilot S FMB70 with FOUNDATION Fieldbus Operation 5.3.7 Assignment of Transducer Blocks (CHANNEL) Settings for the Analog Input Block Process variable Transducer Block Parameter name CHANNEL parameter in the Analog Input Block Primary Value, a pressure or level Pressure Transducer Block PRIMARY_VALUE...
  • Page 30 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Discrete Input Block settings Alarm conditions Transducer Block Parameter name Parameter CHANNEL, Discrete Input Block General device error Configuration error Sensor overpressure Sensor underpressure Sensor overtemperature Sensor undertemperature Process isolating diaphragm broken Diagnostic Transducer...
  • Page 31 Deltapilot S FMB70 with FOUNDATION Fieldbus Operation 5.3.8 Index tables of Endress+Hauser parameters The following tables list the manufacturer-specific device parameters for the Resource Block, the Transducer Blocks and the Analog Input Blocks. For the FF parameters, see either the FF specification or Operating Instructions BA00303P "Description of Device Functions, Cerabar S/...
  • Page 32 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Pressure Transducer Block Parameter name, Parameter name, Index Data type Size Storage Read Write MODE_BLK Reset codes option "Symbolic name" option "Label" (Byte) Class MEASURED_TEMPERATURE Temperature DS-65 MEASURED_TEMPERATURE_UNIT Temp. eng. unit Unsigned16 DEVICE_DIALOG...
  • Page 33 Deltapilot S FMB70 with FOUNDATION Fieldbus Operation Parameter name, Parameter name, Index Data type Size Storage Read Write MODE_BLK Reset codes option "Symbolic name" option "Label" (Byte) Class EMPTY_CALIBRATION_EASY Full calib. level easy Float 7864, 333 FULL_PRESSURE_EASY Full pressure Float...
  • Page 34 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Display Transducer Block Parameter name, Parameter name, Index Data type Size Storage Read Write BLK_MODE Reset codes option "Symbolic name" option "Label" (Byte) Class DEVICE_DIALOG Device dialog Unsigned8 DISPLAY_MAINLINE_CONTENT Main line cont. Unsigned8...
  • Page 35 Deltapilot S FMB70 with FOUNDATION Fieldbus Operation Analog Input Blocks Parameter name, Parameter name, Index Data type Size Storage Read Write BLK_MODE Reset codes option "Symbolic name" option "Label" (Byte) Class FSAFE_TYPE Fsafe_Type Unsigned8 OOS, MAN FSAFE_VALUE Fsafe_Value Float AUTO, OOS, MAN...
  • Page 36: Local Operation - Onsite Display Connected

    Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Local operation – onsite display connected If the onsite display is connected, the three operating keys are used to navigate through the operating menu,  ä 23, Section 5.2.3 "Function of the operating elements – onsite display connected".
  • Page 37 Deltapilot S FMB70 with FOUNDATION Fieldbus Operation 5.4.2 Selecting an option Example: Selecting the "Pressure" measuring mode. Onsite display Operation "Level" has been selected as the measuring mode. The option currently active is indicated by a ✓ in front of the menu text.
  • Page 38 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Onsite display Operation Press "+" or "–" until "0" is displayed. 2. Press the "E" key to confirm "0". The cursor goes to the next position.  Is displayed and highlighted in black. See next graphic.
  • Page 39: Fieldcare

    FieldCare is Endress+Hauser's plant asset management tool based on FDT technology. You can use FieldCare to configure all Endress+Hauser devices as well as third-party devices which support the FDT standard. Hardware and software requirements you can find on the internet: www.endress.com ...
  • Page 40 Operation Deltapilot S FMB70 with FOUNDATION Fieldbus 5.6.1 Copying configuration data ➁ ➀ Zero Display Sensor OUNDATION HW-Version: SW-Version: P01-xxxxxxxx-19-xx-xx-xx-123 ® Electronic insert with optional HistoROM /M-DAT memory module ® Optional HistoROM /M-DAT ® ® To copy configuration data from the HistoROM/...
  • Page 41: Locking/Unlocking Operation

    Deltapilot S FMB70 with FOUNDATION Fieldbus Operation 10. Reestablish supply voltage to the device. ® Copying configuration data from a HistoROM /M-DAT to a device: Note! Operation must be unlocked. Disconnect the device from the supply voltage. ® Attach the HistoROM /M-DAT to the electronic insert.
  • Page 42: Simulation

    Operation Deltapilot S FMB70 with FOUNDATION Fieldbus Note! • If operation is locked by means of the DIP switch, you can only unlock operation again by means of the DIP switch. If operation is locked by means of remote operation e.g. FieldCare, you can only unlock operation again by means of remote operation.
  • Page 43: Factory Setting (Reset)

    Deltapilot S FMB70 with FOUNDATION Fieldbus Operation Set the Analog Input Block to the AUTO block mode. Enter the value and status for the SIMULATION_VALUE and SIMULATION_STATUS elements. During the simulation, the output value and status of the Pressure Transducer Block are replaced by the simulated value and status.
  • Page 44 – The device is restarted. The table uses the group and parameter names as they appear in Field Care. See  ä 31, Section 5.3.8 "Index tables of Endress+Hauser parameters" for the assignment of the FieldCare parameter names and the FF configuration program.
  • Page 45: Commissioning

    Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning Commissioning Warning! • If a pressure that is lower than the minimum permitted pressure is present at the device, messages "E120 sensor low pressure" and "E727 sensor pressure error - overrange" are output in succession.
  • Page 46 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus If necessary, change other parameters as per the requirements. Configuring the Transducer Blocks Deltapilot S has the following Transducer Blocks: • Pressure Transducer Block • Service Transducer Block • Display Transducer Block • Diagnostic Transducer Block The explanation that follows is an example for the Pressure Transducer Block.
  • Page 47: Selecting The Language And Measuring Mode

    Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning Additional configuration Depending on the control or automation task, configure additional function blocks and output blocks. See also Operating Instructions BA00303P "Description of Device Functions Cerabar S/Deltabar S/Deltapilot S". Link the function blocks and output blocks.
  • Page 48: Position Adjustment

    Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus Language, selection Select the menu language for FieldCare using the "Language Button" in the configuration window. Select the menu language for the FieldCare frame by means of the "Extra" menu  "Options" "Display"  "Language".
  • Page 49 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning Parameter name Description CALIB. OFFSET Position adjustment – the pressure difference between zero (set point) and the measured Entry pressure is known. (A reference pressure is not present at the device.) Example: – MEASURED VALUE = 2.2 mbar (0.032 psi) –...
  • Page 50: Level Measurement

    Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus Level measurement 6.5.1 Information on level measurement Note! • A Quick Setup menu is available for each of the measuring modes Pressure and Level which guides you through the most important basic functions. For the "Level" Quick Setup menu, see ...
  • Page 51 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning 6.5.2 Overview of level measurement Measuring task LEVEL Measured variable Description Comment Measured value display SELECTION/LEVEL selection MODE The measured variable is LEVEL SELECTION: Via the OUTPUT – Calibration with – Incorrect entries are...
  • Page 52 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus Measuring task LEVEL Measured variable Description Comment Measured value display SELECTION/LEVEL selection MODE – Two measured variables LEVEL SELECTION: Via the COMB. – Calibration with – Incorrect entries are The measured value display...
  • Page 53 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning MEASURED VALUE GROUP SELECTION LANGUAGE MEASURING MODE MEASURING MODE QUICK SETUP OPERATING MENU LEVEL SELECTION Pressure Level POS. ZERO ADJUST EMPTY CALIB. FULL CALIB. DAMPING VALUE 1) On-site display only 2) FieldCare only 3) –...
  • Page 54 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus Note! For onsite operation, see also  ä 23, Section 5.2.3 "Function of the operating elements – onsite display connected" and  ä 36, Section 5.4 "Local operation – onsite display connected". Endress+Hauser...
  • Page 55: Pressure Measurement

    Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning Pressure measurement 6.6.1 Information on pressure measurement Note! • A Quick Setup menu is available for each of the measuring modes Pressure and Level which guides you through the most important basic functions. With the setting in the MEASURING MODE parameter, you specify which Quick Setup menu should be displayed.
  • Page 56 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus Local operation FieldCare DAMPING VALUE DAMPING VALUE Enter damping time (time constant ). The damping Enter damping time (time constant ). The damping affects the speed at which all subsequent elements, such affects the speed at which all subsequent elements, such...
  • Page 57: Scaling The Out Parameter

    Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning Scaling the OUT parameter In the Analog Input Block, the input value or input range can be scaled in accordance with the automation requirements. Example: The measuring range 0 to 500 mbar (0 to 7.5 psi) should be rescaled to 0 to 100 %.
  • Page 58: Configuring Event Behavior In Accordance With Foundation Fieldbus Specification Ff912 Field Diagnostic Profile

    Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus Configuring event behavior in accordance with FOUNDATION Fieldbus Specification FF912 Field Diagnostic Profile The device complies with FOUNDATION Fieldbus Specification FF912. Among other things, this means that: • The diagnostic category according to NAMUR Recommendation NE107 is transmitted via the fieldbus in a format that is independent of the manufacturer: –...
  • Page 59 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning Event severity Default event category Event source Events in this group High severity Check (C) Sensor • 101: C>Sensor electronic EEPROM error • 725: C>Sensor connection error, cycle disturbance • 747: C>Sensor software not compatible to electronics Electronics •...
  • Page 60 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus 6.8.2 Assignment parameters The event categories are assigned to the event groups via four assignment parameters. These parameters are located in the RESOURCE (RB2) Block: • FD_FAIL_MAP: for event category Failure (F) • FD_CHECK_MAP: for event category Check (C) •...
  • Page 61 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning In the Failure column search for the Highest Severity Electronic group and disable the associated check box (A). Enable the appropriate check box in the Function column (B). Please note that the "Accept" button must be pressed to confirm each entry.
  • Page 62 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus 6.8.3 Configurable area The event category can be individually defined for the following events - irrespective of the event group to which they are assigned in the factory setting: • 115: Sensor overpressure •...
  • Page 63 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning Select the "Configurable area" tab. In the factory setting, all the bits in the Configurable Area Bits column have the value not assigned (A). (A) (B) Select one of these bits (here Configurable Area Bit 15, for instance) and select the Sensor overpressure (B) option from the associated picklist.
  • Page 64 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus The "Simulation" tab makes it possible to simulate an event. Endress+Hauser...
  • Page 65 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning 6.8.4 Transmission of independent event messages on the bus Event priority Event messages are only transmitted on the bus if their priority is between 2 and 15. Priority 1 events are displayed but are not transmitted on the bus. Events whose priority is 0 are ignored. All events are assigned the priority 0 in the factory setting.
  • Page 66 Commissioning Deltapilot S FMB70 with FOUNDATION Fieldbus 6.8.5 Overview of the settings made and the current events In the FieldCare navigation window navigate to Diagnose Alarm Indication (Polling) The following overview is displayed: – "Troubleshooting information" if an event has occurred –...
  • Page 67 Deltapilot S FMB70 with FOUNDATION Fieldbus Commissioning To change the assigned status (Bad, Uncertain, Good) of an event, select the desired status from the associated picklist. Example The status of error 115 "Sensor overpressure" should no longer be indicated as "Uncertain" and should instead be indicated as "Bad".
  • Page 68: Maintenance

    Maintenance Deltapilot S FMB70 with FOUNDATION Fieldbus Maintenance ® Keep the pressure compensation and GORE-TEX filter (1) free from contamination. P01-FMB70xxx-17-xx-xx-xx-003 Exterior cleaning Please note the following points when cleaning the device: • The cleaning agents used should not attack the surface and the seals.
  • Page 69: Diagnostics And Troubleshooting

    Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostics and troubleshooting Troubleshooting 8.1.1 General errors Error Possible cause Remedy Device is not The supply voltage does not match the Apply correct voltage. responding. specifications on the nameplate. Supply voltage has incorrect polarity.
  • Page 70: Diagnostic Information On Local Display

    • If the device detects a defect in the onsite display during initialization, special error messages are generated. For the error messages,  ä 70, Section 8.2.2 "Onsite display error messages". • For support and further information, please contact Endress+Hauser Service. • See also Section 8.8, Section 8.9 and Section 8.10.
  • Page 71: Diagnostic Event In The Operating Tool

    Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting Message Measure Initialization, VU Electr. Defect A110 Exchange onsite display. Initialization, VU Electr. Defect A114 Initialization, VU Electr. Defect A281 Initialization, VU Checksum Err. A110 Initialization, VU Checksum Err. A112 Initialization, VU Checksum Err. A171...
  • Page 72: Diagnostic Messages In The Diagnostic Transducer Block (Trddiag)

    Diagnostics and troubleshooting Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostic messages in the DIAGNOSTIC Transducer Block (TRDDIAG) • The Actual Diagnostics parameter shows the message with the highest priority. Every message is also displayed as per the FOUNDATION Fieldbus Specification by means of the XD_ERROR and BLOCK_ERROR parameters.
  • Page 73 Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting Alarm Electronics Failure Other BAD_DEVICE_FAILURE Pressure, Level, Flow Electronics Failure Other BAD_DEVICE_FAILURE Pressure, Level, Flow Electronics Failure Other BAD_DEVICE_FAILURE Pressure, Level, Flow Data Integrity Error Other BAD_DEVICE_FAILURE Pressure, Level, Flow Data Integrity Error...
  • Page 74 Diagnostics and troubleshooting Deltapilot S FMB70 with FOUNDATION Fieldbus Warning General Error Other STATUS_UNCERTAIN Pressure, Level, Flow General Error Other GOOD Pressure, Level, Flow None General Error Other – BAD_NON_SPECIFIC Pressure, Level, Flow – STATUS_UNCERTAIN – GOOD General Error Other...
  • Page 75: Overview Of Diagnostic Events

    Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting Overview of diagnostic events 8.5.1 Failure (F) Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm F>Sensor electronic – Electromagnetic effects are – Wait a few minutes.
  • Page 76 Diagnostics and troubleshooting Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm F>Sensor connection – Electromagnetic effects are – Block off electromagnetic effects error, cycle disturbance...
  • Page 77 Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting 8.5.2 Check (C) Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Warning C>Downloading - please – Downloading. – Wait for download to complete. 61...
  • Page 78 Diagnostics and troubleshooting Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm C>100% POINT – The sensor was replaced. – Carry out calibration again. (LEVEL_100_PERCENT _VALUE) level out of...
  • Page 79 Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting 8.5.3 Maintenance required (M) Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Warning M>Checksum error in – Main electronics defect. Correct – Replace main electronics.
  • Page 80 Diagnostics and troubleshooting Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm/ M>Calculation overflow, – Level measuring mode: the – Check configuration and warning bad configuration...
  • Page 81 Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting 8.5.4 Out of specification (S) Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm/ S>Sensor overpressure – Overpressure present. – Reduce pressure until message warning disappears.
  • Page 82 Diagnostics and troubleshooting Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm/ S>Sensor temperature – Electromagnetic effects are – Block off electromagnetic effects warning error - overrange...
  • Page 83 Deltapilot S FMB70 with FOUNDATION Fieldbus Diagnostics and troubleshooting Diagnostic Error Message/description BLOCK_ Cause Measure Prio- Code response ERROR ERROR rity Value Bit Value Bit Alarm/ S>Tmax ALARM – Temperature measured value – Check system/temperature Warning WINDOW has overshot the value specified measured value.
  • Page 84: Response Of Outputs To Errors

    Diagnostics and troubleshooting Deltapilot S FMB70 with FOUNDATION Fieldbus Response of outputs to errors The device makes a distinction between the output behavior "Alarm", "Warning" and "Error".  See the following table and  ä 70, Section 8.2 "Diagnostic information on local display".
  • Page 85: Confirming Messages

    FieldCare: Menu path for ALARM DISPL. TIME and ACK. ALARM MODE: OPERATING MENU DIAGNOSTICS MESSAGES Repair The Endress+Hauser repair concept provides for measuring devices to have a modular design and also that the customer may carry out repairs  ä 86 "Spare Parts" on ). Note! •...
  • Page 86: Spare Parts

    The measuring device must be returned if repairs or a factory calibration are required, or if the wrong measuring device has been ordered or delivered. According to legal regulations, Endress+Hauser, as a ISO-certified company, is required to follow certain procedures when handling returned products that are in contact with process fluids.
  • Page 87: Technical Data

    Deltapilot S FMB70 with FOUNDATION Fieldbus Technical data Technical data For technical data, please refer to the Technical Information for Deltapilot S TI00416P. Endress+Hauser...
  • Page 88: Index
