  5. Prosonic S FMU95
  6. Operating instructions manual

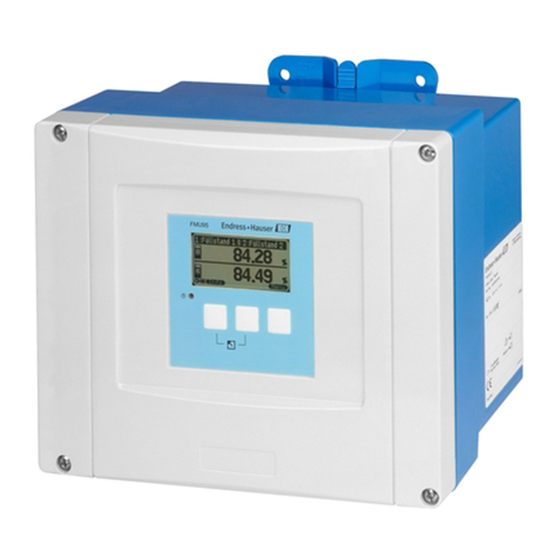

Endress+Hauser Prosonic S FMU95 Operating Instructions Manual

Transmitter for 5 or 10 ultrasonic sensors
Hide thumbs Also See for Prosonic S FMU95:
Table of Contents

Advertisement

Quick Links

Download this manual

Operating Instructions

Prosonic S FMU95
Transmitter for 5 or 10 ultrasonic sensors
BA00344F/00/EN/13.12
71164423

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Prosonic S FMU95

Summary of Contents for Endress+Hauser Prosonic S FMU95

  • Page 1: Operating Instructions

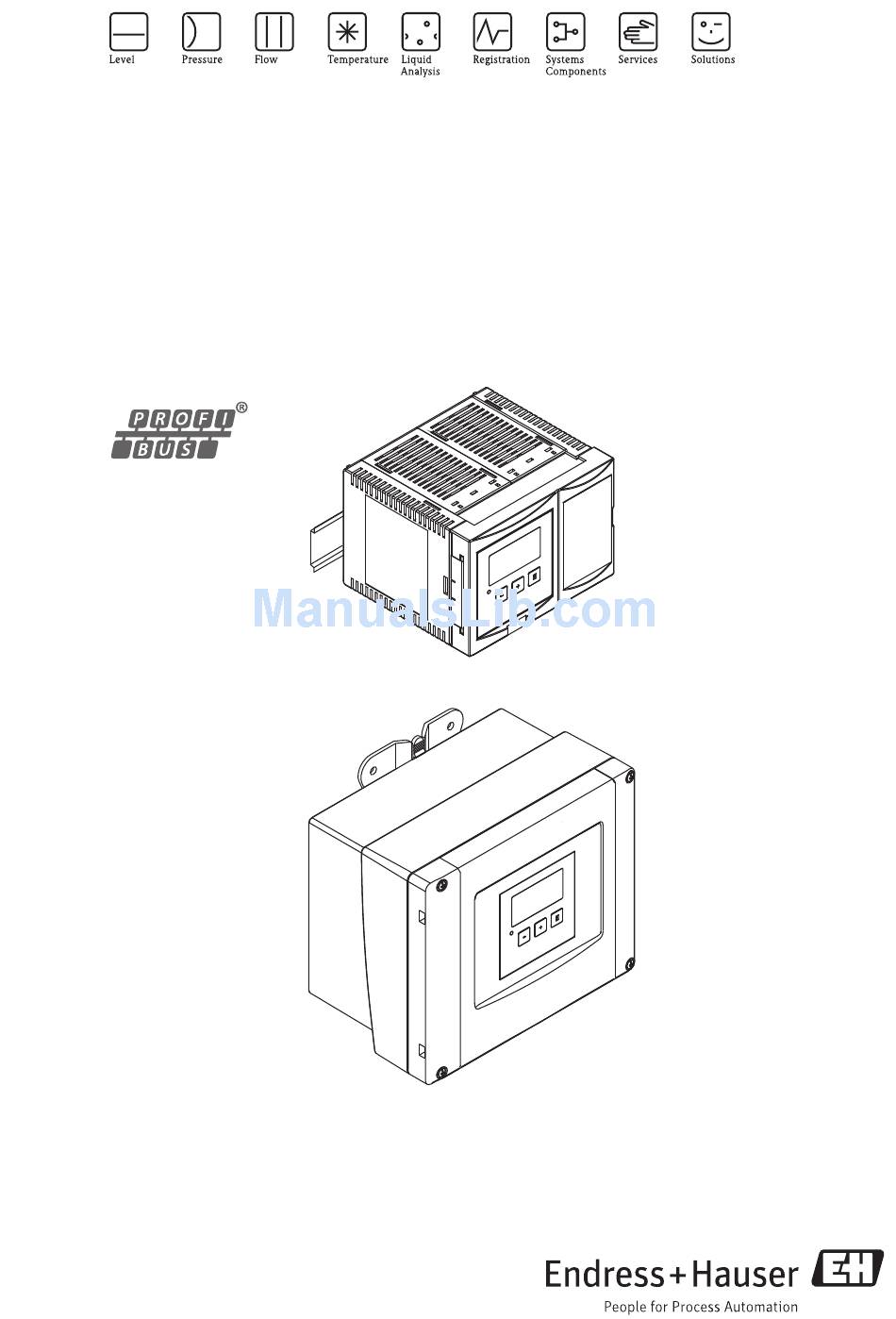

    Operating Instructions Prosonic S FMU95 Transmitter for 5 or 10 ultrasonic sensors BA00344F/00/EN/13.12 71164423...

  • Page 3: Table Of Contents

    Return ........87 Parts of the Prosonic S FMU95 ....6 Disposal .

  • Page 4: Safety Instructions

    Prosonic S FMU95 Safety Instructions Designated use The Prosonic S FMU95 is a transmitter for up to 10 ultrasonic sensors FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95 and FDU96. The sensors of the class FDU8x can be connected as well. Functions: •...

  • Page 5: Notes On Safety Conventions And Symbols

    Prosonic S FMU95 Safety Instructions Notes on safety conventions and symbols In order to highlight safety-relevant or alternative operating procedures in the manual, the following conventions have been used, each indicated by a corresponding symbol in the margin. Safety conventions...

  • Page 6: Identification

    Identification Prosonic S FMU95 Identification Parts of the Prosonic S FMU95 2.1.1 FMU95 in the field housing 9 Ma 9 Ma r Co r Co r.-N r.-N … … 4 … 4 … °C °C x°C x°C > 60 > 60...

  • Page 7: Nameplate (Example)

    Prosonic S FMU95 Identification 2.1.3 FMU95 with remote display and operating module for cabinet door and switchboard mounting (96 x 96 mm (3.78 x 3.78 in)) m an G er lb ur e in M au M ad 0 -J...

  • Page 8: Product Structure

    Identification Prosonic S FMU95 Product structure Approval Non-hazarous area ATEX II 3D CSA General Purpose Application Level Housing, material Field mounting PC, IP66 NEMA 4x DIN rail mounting PBT, IP20 Operation Illuminated display + keypad Illuminated display + keypad, 96x96, panel mounting, front IP65...

  • Page 9: Scope Of Delivery

    The device complies with the applicable standards and regulations as listed in the EC declaration of conformity and thus complies with the statutory requirements of the EC directives. Endress+Hauser confirms the successful testing of the device by affixing to it the CE mark.

  • Page 10: Installation

    Installation Prosonic S FMU95 Installation Incoming acceptance, transport, storage 3.1.1 Incoming acceptance Check the packing and contents for any signs of damage. Check the shipment, make sure nothing is missing and that the scope of supply matches your order. 3.1.2 Transport, storage Pack the measuring instrument so that it is protected against impacts for storage and transport.
  • Page 11 Prosonic S FMU95 Installation 3.2.2 Installation conditions Weather protection In order to avoid excessive sunlight exposure, the instrument should be mounted in a position which is protected against direct sunlight or a protection cover should be applied ( ä 88, "Accessories").

  • Page 12: Mounting The Din-Rail Housing

    Installation Prosonic S FMU95 Mounting the DIN-rail housing 3.3.1 Dimensions of the DIN-rail housing EN 60715 TH 35x7.5/15 (1.4x0.3/0.6) » 0,7 kg (1.54 lbs) L00-FMU90xxx-06-00-00-xx-005 Dimensions in mm (in) 3.3.2 Installation conditions • The DIN-rail housing must be mounted outside hazardous areas in a cabinet.

  • Page 13: Mounting The Remote Display And Operating Module

    Prosonic S FMU95 Installation Mounting the remote display and operating module 3.4.1 Scope of delivery If the Prosonic S is ordered with the display for cabinet door mounting, the following is contained in the scope of delivery: • Display and operating module, 96 x 96 mm (3.78 x 3.78 in) •...

  • Page 14: Mounting Of The Sensors

    Installation Prosonic S FMU95 3.4.4 Adaption plate If an opening of 138 x 138 mm and the remote display of the Prosonic FMU860/861/862 are already present, you can use the adaption plate (Order Code: 52027441, ( ä 88, "Accessories"). It is inserted into the remote display of the FMU860/861/862.

  • Page 15: Wiring

    Prosonic S FMU95 Wiring Wiring Warning! The instrument may only be installed if the supply voltage is switched off. Terminal compartment 4.1.1 Terminal compartment of the field housing The field housing has a separate terminal compartment. It can be opened after loosening the four screws of the lid.
  • Page 16 Wiring Prosonic S FMU95 4.1.3 Terminal compartment of the DIN-rail housing Single instrument L00-FMU95xxx-04-00-00-xx-005 The catch can be unlocked by slightly pressing onto the clip. Then, the cover of the terminal compartment can be opened. Endress + Hauser...
  • Page 17 Prosonic S FMU95 Wiring Several instruments mounted side by side L00-FMU95KAx-04-00-00-xx-005 Open the catch of the cover (e.g. by a screwdriver). Pull the cover out by approx. 20 mm (0.79 in) . The cover can now be opened. Note! • The cables can be inserted into the housing from above or from below.

  • Page 18: Terminal Assignment

    FDU-Sensor Sync Service Fuse Display L00-FMU90xxx-04-00-00-xx-001 Terminals of the Prosonic S FMU95; the terminals depicted in grey are not present in every instrument version. Terminals Meaning Remarks Auxiliary energy • L (for AC version) depending on instrument version: • L+ (for DC version) •...
  • Page 19 Prosonic S FMU95 Wiring Warning! When using the public supply mains, an easily accesible power switch must be installed in the proximity of the device. The power switch must be marked as a disconnector for the device (IEC/ EN 61010) Note! •...

  • Page 20: Connection To A Profibis Dp Network

    9 dB over the entire length of the segment Screening woven copper sheath or woven sheath and foil sheath Pre-assembled cables are available from Endress+Hauser ( ä 88, "Accessories"). 4.3.2 T-box It is recommended to connect the Prosonic S to the bus by a T-box.

  • Page 21: Sensor Connection

    Prosonic S FMU95 Wiring Sensor connection 4.4.1 Connection diagram FDU90/91/92 (FDU80/80F/81/81F/82) max. 30 m FDU90/91/92 max. (FDU80/80F/81/81F/82) 300 m YE BK RD FMU95 FDU91F/93/95/96 FDU91F/93/95/96 (FDU83/84/85/86) (FDU83/84/85/86) max. 30 m FDU91F/93/95/96 RD GNYE RD GNYE max. (FDU83/84/85/86) 300 m YE BK RD...
  • Page 22 If the terminal box is installed in explosion hazardous areas, all applicable national guidelines must be observed. Suitable extension cables can be obtained from Endress+Hauser ( ä 88, "Accessories") Alternatively, cables with the following properties can be used: • Number of cores according to the connection diagram (see above) •...

  • Page 23: Shortening The Sensor Cable

    Prosonic S FMU95 Wiring Shortening the sensor cable If required, the sensor cable can be shortened. Please note: • Do not damage the cores when removing the insulation. • The cable is shielded by a metallic braiding. This shielding serves as a return cable and corresponds to the black (BK) strand of the unshortened cable.

  • Page 24: Synchronization Line

    Wiring Prosonic S FMU95 Synchronization line • If wiring several Prosonic S (FMU90/FMU95) which are mounted in a common cabinet and FMU90 FMU90 FMU90 if the sensor cables run in parallel, the synchronization terminals (39 and 40) must be interconnected.

  • Page 25: Connection Of The Separate Display And Operating Module

    Prosonic S FMU95 Wiring Connection of the separate display and operating module FDU-Sensor FDU-Sensor Sync Service Fuse Display L00-FMU95xxx-04-00-00-xx-008 1 Connection of the display plug with the cable (3 m (9.8 ft)) For the version of the Prosonic S with a separate display for panel mounting, a pre-assembled connecting cable (3 m (9.8 ft)) is supplied.

  • Page 26: Potential Equalization

    Wiring Prosonic S FMU95 Potential equalization 4.8.1 Potential equalization in the field housing Warning! The grounding line of the sensors FDU91F/93/ 95/96 and FDU83/84/85/86 must be connected to the local potential equalization system after a maximum of 30 m (98 ft), (...
  • Page 27 Prosonic S FMU95 Wiring 4.8.2 Potential equalization for the DIN-rail hosuing If the DIN-rail housing is used, the potential equalization must be connected in the cabinet, e.g. at a metallic DIN rail: Warning! The grounding line of the sensors FDU91F/93/95/96 and FDU83/84/85/86 must be connected to the local potential equalization system after a maximum of 30 m (98 ft), (...

  • Page 28: Post-Connection Check

    Wiring Prosonic S FMU95 Post-connection check After wiring the transmitter, carry out the following checks: • Is the terminal assignment correct? • For the field housing: Are the cable glands tight and is the cover of the terminal compartment securely closed? •...

  • Page 29: Operation

    The measning of the individual parameters is not part of this chapter but can be found in: •  Chap. 6: "Commissioning" • Operating Intructions BA00345F: "Prosonic S FMU95 - Description of Instrument Functions" This chapter contains the following sections: •...
  • Page 30 Operation Prosonic S FMU95 Acyclic communication with a Class 2 master (MS2AC) In the case of MS2AC, a Class 2 master opens a communication channel via a so-called service access point (SAP) in order to access the device. Class 2 masters is for example: •...

  • Page 31: Operation Via The Display And Operating Module

    Prosonic S FMU95 Operation Operation via the display and operating module 5.2.1 Display and operating elements FMU95 L00-FMU95xxx-07-00-00-xx-001 1 Softkey symbol 2 Key 3 LED indicating the operating state 4 Display symbols 5 Value of the parameter, including unit 6 Name of the parameter...
  • Page 32 Operation Prosonic S FMU95 LEDs LED indicating the operating state (pos. 3 in the figure) green normal measuring mode; no error detected Warning: red (flashing) An error is detected but the measurement continues. Reliability of the measured value is no longer ensured.
  • Page 33 Prosonic S FMU95 Operation General key combinations The following key combinations do not depend on the menu position: Key combination Meaning Escape • While editing a parameter: Exit the editing mode without accepting the changes. • Within the navigation: Move upwards to the previous layer of the menu.
  • Page 34 Operation Prosonic S FMU95 • The second digit (2) is used if the parameter set occurs several times within the Prosonic S (e.g. for different inputs or outputs). Example: – L1002: level 1 – L2002: level 2 – ... – L9002: level 9 –...
  • Page 35 Prosonic S FMU95 Operation Navigation within the menu (Example) L00-FMU90xxx-19-00-00-en-050 Endress + Hauser...
  • Page 36 Operation Prosonic S FMU95 Entering the menu The navigation always starts from the main screen (measured value display ). From there, the following menus can be opened by the keys: FMU95 shortcut menu main menu tag marking level envelope curve...
  • Page 37 Prosonic S FMU95 Operation Selecting a submenu In the main menu press W or V until the main menu required submenu is marked by the bar. Note! The symbols indicate that the selection list contains more items than can be displayed on the module.
  • Page 38 Operation Prosonic S FMU95 Selecting a parameter By pressing U or T you can switch between the parameter sets of the current submenu. For each parameter set the values of all its parameters are displayed. In order to change one of the values,...
  • Page 39 Prosonic S FMU95 Operation Editing a parameter with selection list Press W or V, until the required option is marked by the bar (in the example: "turb. surface"). Note! The symbols indicate that the selection list contains more items than can be displayed on the module.
  • Page 40 Operation Prosonic S FMU95 Entering numbers and characters When you select a numeric parameter ("empty calibration", "full calibration" etc.) or an alpha- numeric parameter ("device marking" etc.), the editor for numbers and text strings appears. Enter the desired value in the following way: The cursor is at the first digit.
  • Page 41 Prosonic S FMU95 Operation Special editing functions Within the editor for alphanumeric characters, pressing S or O does not only lead to numbers and characters but also to the following symbols for special editing functions. They simplify the editing procedure.
  • Page 42 Operation Prosonic S FMU95 L00-FMU90xxx-19-00-00-yy-047 Delete: The current digit and all digits to its right are deleted. Return to the measured value display By pressing the left and middle keys FMU95 simultaneously you can return • from a parameter to the parameter set •...

  • Page 43: Operation Via Endress+Hauser Operating Tool "Fieldcare

    Prosonic S FMU95 Operation Operation via Endress+Hauser operating tool "FieldCare" L00-FMU90xxx-19-00-00-en-087 Operation via the FieldCare is similar to the operation via the display module. • The operating menu can be found in the navigation bar (1). • Input fields for the parameters can be found in the parameter editor (2).

  • Page 44: Commissioning

    Commissioning Prosonic S FMU95 Commissioning Warning! For the version with field housing: The instrument may only be operated if the field housing is closed. This chapter describes the steps of the commissioning procedure: • 6.1 Preparatory steps – 6.1.1 Setting the device address –...
  • Page 45 Prosonic S FMU95 Commissioning Hardware addressing Address 8 + 2 = 10 L00-FMU90xxx-04-00-00-xx-016 Hardware addressing comes into operation when DIP switch 8 is in the position "HW (OFF)". In this case the address is determinded by the position of DIP-switches 1 to 7 according to the following table: Switch No.
  • Page 46 "Download" and enter "GSD" into the "Text search" field. The "Software" link opens a list containing the links to all available GSD files. • CD-ROM with GSD files for all Endress+Hauser devices. Order-Code: 50097200 • GSD library of the PROFIBUS User Organisation (PNO):http: //www.PROFIBUS.com...
  • Page 47 Prosonic S FMU95 Commissioning 6.1.4 Unlock configuration appears on the display, the instrument is locked against parameter changes. Before commissioning the instrument must be unlocked. For the Prosonic S there are three types of locking: • Software locking • Locking by key combination •...
  • Page 48 Commissioning Prosonic S FMU95 Hardware locking The instrument can be locked against parameter changes by the locking switch in the terminal compartment of the Prosonic S. Sync Service Fuse Display L00-FMU90xxx-19-00-00-yy-105 Switch position A: unlocked; parameters can be changed Switch position B: locked; parameters can not be changed.

  • Page 49: Configuration Of The Measurement

    To realize this, the parameter "zero distance" is fine adjusted. After a reset the value for the zero distance has to be re-parameterized in the service menu according to the data on the associated 5- point linearity protocol for the FDU9x sensor. Please contact the Endress+Hauser service. Configuration of the measurement 6.2.1...
  • Page 50 Commissioning Prosonic S FMU95 6.2.2 Preparing the basic setup After the first setup the main screen appears. However, the displayed value does not correspond to the real level before you have performed the basic setup. To do so, enter the main menu by pressing "Menu"...
  • Page 51 Prosonic S FMU95 Commissioning 6.2.3 Basic setup Overview The following table gives an overview of the basic setup for level measurements. Detailed information on the parameters can be found in the sections 6.3.2. to 6.3.11. Step Parameter Set Parameter Remarks...
  • Page 52 Commissioning Prosonic S FMU95 Step Parameter Set Parameter Remarks page Interference echo suppression lvl N check value act. distance N Indicates the currently measured distance between the sensor membrane (N = 1 - 10) (N = 1 - 10) and the product surface.
  • Page 53 Prosonic S FMU95 Commissioning "LVL N sensor selection" (N = 1 - 10) LVL1 sensor sel. L1003  input: sensor selection: detected: "input" Use this parameter to assign a sensor to the channel. Selection: • no sensor • sensor 1 •...
  • Page 54 Commissioning Prosonic S FMU95 "LVL N application parameters" (N = 1 - 10) LVL1 appl. para. L1004  tank shape: medium property: process cond.: "tank shape" Use this parameter to specify the tank shape of your application. Selection: L00-FMU90xxx-14-00-00-xx-002 A Dome ceiling B Horizontal cyl.
  • Page 55 Prosonic S FMU95 Commissioning "process conditions" Use this parameter to specify the process conditions of your application. The filters of the signal evaluation are automatically adjusted to the selected conditions. "process conditions" for the following situations Example filter settings standard liquid...
  • Page 56 Commissioning Prosonic S FMU95 "LVL N empty calibration" (N = 1 - 10) LVL1 empty cal. L1005 empty E: 0,00 m  "empty E" Use this parameter to specify the empty distance E, i.e. the distance between the sensor membrane (reference point of the measurement) and the minimum level (zero point).
  • Page 57 Prosonic S FMU95 Commissioning "LVL N full calibration" (N = 1 - 10) LVL1 full calib. L1006 full F: 0,00 m  block.dist. BD: "full F" Use this parameter to specify the span F, i.e. the distance from the minimum level to the maximum level.
  • Page 58 Commissioning Prosonic S FMU95 "LVL N unit" (N = 1 to 10) LVL 1 unit level L1007  unit level: level 1: sensor: "unit level" Use this parameter to select the distance unit. If no linearization is performed, the level is displayed in this unit.
  • Page 59 Prosonic S FMU95 Commissioning "LVL N linearisation" (N = 1 - 10) LVL 1 linearisat. L1008 Note!  type: Number and type of the parameters in this set depend on the mode: selected linearization type. Only the parameters "type" and "mode" are always present.
  • Page 60 Commissioning Prosonic S FMU95 • horizontal cylinder • sphere In these linearization types the measured level is convertet to the volume in a horizontal cylinder or a spherical tank. 100% The following additional parameters have to be specified: – the unit of the linearized value, e.g. kg, m , ft , ...
  • Page 61 Prosonic S FMU95 Commissioning • table In this linearization mode the measured value is calculated from a linearization table. The table may consist of up to 32 pairs of values (level - volume). The table must be monotonically increasing or decreasing.
  • Page 62 Commissioning Prosonic S FMU95 "customer unit" Use this parameter to select the desired unit for the linearized values (e.g. kg, m , ft , ...). This unit is only indicated on the display. It does not cause a conversion of the measured value.
  • Page 63 Prosonic S FMU95 Commissioning "edit" Use this parameter to enter, change or read a linearization table. There are the following options: • read: The table editor is opened. The existing table can be read but not changed. • manual: The table editor is opened. Table values can be entered and changed.
  • Page 64 Commissioning Prosonic S FMU95 Interference echo suppression: Basic principles The "check value" and "distance mapping" parameters are used to configure the interference echo suppression of the Prosonic S. The following picture shows the operating principle of the interference echo suppression:...
  • Page 65 Prosonic S FMU95 Commissioning "LVL N check value" (N = 1 - 10) LVL1 check value L100B  act. distance 1: check distance: L100B LVL1 dist. corr. act. distance: D display display > D check distance: display < D display L00-FMU90xxx-19-00-00-de-016 "actual distance N"...
  • Page 66 Commissioning Prosonic S FMU95 The Prosonic S changes to the "distance mapping" parameter set, where you can define the required range of mapping. "LVL N distance mapping" (N = 1 - 10) LVL1 dist.map. L100B  act. distance 1: range of mapping:...
  • Page 67 Prosonic S FMU95 Commissioning "LVL N state" (N = 1 - 10) LVL1 state L100C  level 1: act. distance 1: status: "level N" (N = 1 - 10) Displays the currently measured level. "act. distance N" (N = 1 - 10) Displays the currently measured distance.

  • Page 68: Parametrization Of The Analog Input Blocks

    The measured values are transmitted to the PLC via the Analog Input Blocks of the Prosonic S. The Prosonic S FMU95 provides 20 Analog Input Blcks. They are parametrized in the parameter set "output calculations/analog input/analog input N" (N = 1 to 20). The parameters of this set are described in this section.

  • Page 69: Parametrization Of The Cyclic Data Telegram

    6.4.2 Modules for the cyclic data telegram Each AI Block of the Prosonic S FMU95 provides a module of five bytes for the cyclic data telegram. According to the PROFIBUS specifications "Profiles for process control devices" there are two options for each module: •...
  • Page 70 Commissioning Prosonic S FMU95 10-channel version (FMU95 - *****B***) The AI Blocks 1 to 10 are contained in the cyclic data telegram and transmit the respective level values. The other AI Blocks (AI11 to AI20) are not used by default. If required, they can be used to transmit sensor temperatures, averages or sums.

  • Page 71: Parametrization Of The On-Site Display

    Prosonic S FMU95 Commissioning Parametrization of the on-site display 6.5.1 "display" display DX202  type: time: value 1: cust. text 1: "type" Use this parameter to select the format of the measured value display. Selection: • 1x value+bargraph • 2x value+bargraph •...
  • Page 72 Commissioning Prosonic S FMU95 • bargraph profile (default) Bargraphs are displayed for up to 10 measuring values. "time" This parameter is used for the options "value max. size" and "alter 53x2 values". It specifies the time after which the next page appears.
  • Page 73 Prosonic S FMU95 Commissioning "customized text" Determines if "text 1" to "text 10" from the "display" parameter set are displayed. Selection: • no (Default) • yes 6.5.3 "back to home" back to home DX200  back to home: "back to home"...

  • Page 74: Troubleshooting

    Troubleshooting Prosonic S FMU95 Troubleshooting System error messages 7.1.1 Error signal Errors occurring during commissioning or operation are signalled in the following way: • Error symbol, error code and error description on the display and operating module • Status of the output values in the cyclic data telegram •...

  • Page 75: Error Codes

    Prosonic S FMU95 Troubleshooting 7.1.4 Error codes The error code consists of 6 digits with the following meaning: • Digit 1: Type of error – A: alarm – W: warning – E: error (the user can define if the error behaves like an alarm or a warning.) •...
  • Page 76 Troubleshooting Prosonic S FMU95 Code Description of error Remedy W 01 501 no sensor selected for channel 01 - 10 allocate sensor ("level" or "flow" menu) W 10 501 A 01 502 Sensor 01 - 10 not recognized Enter type of sensor manually ("level"...
  • Page 77 Prosonic S FMU95 Troubleshooting 7.1.5 Influence of the errors on the status byte of the output signal The following table specifies the status, which the block output values assume if an error is present. There are three possible status values: GOOD, UNCERTAIN and BAD.
  • Page 78 Troubleshooting Prosonic S FMU95 Errors in the sensor block (US1 to US10) Code Output Status A 01 231 distance temperature GOOD A 10 231 A 01 281 distance temperature A 10 281 W 01 281 distance UNCERTAIN temperature UNCERTAIN W 10 281...
  • Page 79 Prosonic S FMU95 Troubleshooting Code Output Status W 0N 801 level UNCERTAIN W 10 801 Errors in the averaging and sum blocks (SL1 to SL5 and AL1 to AL5) Code Output Status A 00 820 • sum • average A 00 832 Note! The output of the AI Block assumes the strongest status of all blocks connected to it.

  • Page 80: Possible Calibration Errors

    Troubleshooting Prosonic S FMU95 Possible calibration errors Error Remedy Incorrect measured value Check "actual distance" "Actual distance" is incorrect – For measurements in bypasses or ultrasound guide pipes: Select the appropriate option in the "application parameters" parameter set. – Perform tank map ("distance mapping") b.

  • Page 81: Envelope Curve Display

    Prosonic S FMU95 Troubleshooting Envelope curve display The measuring signal can be checked by the envelope curve display. From the envelope curve it is possible to see if there are interference echos and if they are completely suppressed by the interfe- rence echo suppression.
  • Page 82 Troubleshooting Prosonic S FMU95 L00-FMU90xxx-19-00-00-en-084 Moving the envelope curve display To move the envelope curve display, press the right key a second time. The symbol appears in the upper right corner of the display. You have got the following options: –...
  • Page 83 Prosonic S FMU95 Troubleshooting 7.3.2 Envelope curve display in the FieldCare L00-FMU90xxx-19-00-00-xx-208 Klick on "F"  "Additional Function"  "Envelope Curve". Select the sensor whose envelope curve you want to check. Click on "read curve" to display a single curve.

  • Page 84: Software History

    Troubleshooting Prosonic S FMU95 Software history Date Software version Changes to software Documentation 04.2007 01.00.00 Original software BA344F/00/en/04.07 71034224 07.2009 01.01.00 Integration of the FDU90 sensor • BA344F/00/en/07.09 71100152 05.2011 01.01.03 Improvement temperature plausibility • BA00344F/00/EN/13.12 71164423 Endress + Hauser...

  • Page 85: Maintenance

    Repairs The Endress+Hauser repair concept assumes that the measuring devices have a modular design and that customers are able to undertake repairs themselves  ä 86, "Spare Parts". For more information on service and spare parts, please contact your Endress+Hauser sales representative.

  • Page 86: Spare Parts

    Maintenance Prosonic S FMU95 Spare Parts An overview of the spare parts for your device is available in the internet at www.endress.com. To obtain information on the spare parts, proceed as follows: Go to "www.endress.com" and select your country. Click "Instruments".

  • Page 87: Return

    To ensure swift, safe and professional device returns, please read the return procedures and condi- tions on the Endress+Hauser website at www.services.endress.com/return-material Disposal In case of disposal please seperate the different components according to their material consistence.

  • Page 88: Accessories

    Accessories Prosonic S FMU95 Accessories Commubox FXA291 For intrinsically safe communication with FieldCare via the service interface (IPC) of the instrument and the USB interface of a PC/Notebook. Ordering Code: 51516983 Protection cover for the field housing • Material: 316Ti (1.4571) •...

  • Page 89: Mounting Bracket

    Prosonic S FMU95 Accessories Mounting bracket 3.2 (0.13) 60 (2.36) ø33.7(1.3) 4 (0.16) 20 (0.8) (2.17) (3.94) 130 (5.12) 150 (5.91) mm (in) L00-FMUxx-00-00-00-xx-005 Height Material Order Code 700 (27.6) galv. steel 919791-0000 700 (27.6) 316Ti (1.4571) 919791-0001 1400 (55.16) galv.

  • Page 90: Adaption Plate For Remote Display

    (3.78 x 3.78 in)). Can be used to replace the FMU86x remote display or DMU2160/2260. Order Code: TSPFU 0390 Please contact your Endress+Hauser sales representative. Overvoltage protection (in IP66 housing) • Overvoltage protection for the mains voltage and up to 3 signal outputs •...

  • Page 91: Overvoltage Protection Haw562

    Prosonic S FMU95 Accessories Overvoltage protection HAW562 9.7.1 System principle Prosonic S FMU90 FMU95 L00-FMU9x-15-00-00-en-001 Extension cable for sensors for Sensor Material Cable type Order code • FDU90 • FDU91 LiYCY 2x(0.75) 71027742 • FDU92 • FDU91F PVC (-40 to +105 °C) •...

  • Page 92: Technical Data

    Technical Data Prosonic S FMU95 Technical Data 10.1 Technical data at a glance 10.1.1 Input Sensor inputs Depending on the instrument version, up to 5 or up to 10 of the sensors FDU90, FDU91, FDU91F, FDU92, FDU93, FDU95 and FDU96 can be connected. The Prosonic S identifies these sensors automatically.

  • Page 93: Power Supply

    Prosonic S FMU95 Technical Data 10.1.2 Output PROFIBUS DP interface Profile Transmittable values • main value (level 1 to level 10 • distances • temperatures • averages/sums Function blocks • 20 Analog Input Blocks (AI) Supported baud rates • 9.6 kbaud •...

  • Page 94: Ambient Conditions

    (hydrochloric acid, sulfuric acid, ...), dilute bases (caustic soda, ...), oils, greases, slurries, pastes, ... High vapor pressures or outgassing media (ethanol, acetone, ammonia, ...) can influence the accuracy. If conditions like these are present, please contact your Endress+Hauser sales representative. 10.1.5...
  • Page 95 Prosonic S FMU95 Technical Data Vibration resistance • Housing for DIN rail: DIN EN 60068-2-64 / IEC 68-2-64; 20 ... 2000 Hz; 0,5 (m/s • Field housing: DIN EN 60068-2-64 / IEC 68-2-64; 20 ... 2000 Hz; 1,0 (m/s Ingress protection •...

  • Page 96: Operating Menu

    Operating menu Prosonic S FMU95 Operating menu 11.1 "level" main menu LX001 level… level L1002 level (LVL) 1 level (LVL) 1 L1003 L1004 L1005 L1006 basic setup LVL1 sensor sel. LVL1 appl. para. LVL1 empty cal. LVL1 full calib. level (LVL) 10...
  • Page 97 Prosonic S FMU95 Operating menu L1007 L1008 L100B LVL 1 unit LVL1 linearisation LVL 1 check value customer unit: type: act distance: unit level: check distance: % (Default) - dist unknown none - dist. too big … mode: level 1:...

  • Page 98: Safety Settings

    Operating menu Prosonic S FMU95 11.2 "safety settings" main menu AX102 AX103 AX104 safety settings outp. echo loss delay echo loss safety distance … level 1: delay sensor 1 saf. dist. sen 1 default: 60s default: 0,0 m hold ramp level 1 ramp %/min customer spec.

  • Page 99: Device Properties

    Prosonic S FMU95 Operating menu AX105 AX107 AX108 in safety dist. react. high temp def. temp. sensor in saf. dist. s 1 overtemp. sen 1 def.temp. sensor 1 warning warning warning alarm alarm alarm self holding max.temp. sen. 1 (reset sensor 1) in saf.

  • Page 100: System Information

    Operating menu Prosonic S FMU95 11.5 "system information" main menu IX001 system informat. system informat. … IX101 IX102 IX103 IX105 device information device family device order code serial no. device family: device name: order code: serial no.: IX108 Ix108 in/output info...
  • Page 101 Prosonic S FMU95 Operating menu IX106 IX107 IX108 software version dev. Version DD version software version: dev. rev: DD version: IX11A IX11A analog input 1 analog input 20 measured value 1: measured value 20: L00-FMU95xxx-19-15-02-en-001 Endress + Hauser...

  • Page 102: Display

    Operating menu Prosonic S FMU95 11.6 "display" main menu DX201 DX202 DX200 display display format display back to home … type: format: back to home: decimal bargr. profil default: 900 s … ft-in-1/16" (time:) no. of decimals: (value 1:) default: x.xx (cust.

  • Page 103: Appendix

    Prosonic S FMU95 Appendix Appendix 12.1 Default Block Configuration The Prosonic S contains the following function blocks. During commissioning they are linked to each other according to the required measuring task. Signal inputs • 10 Ultrasonic Sensor Blocks (US1 bis US10) Measured value calculation •...
  • Page 104 Appendix Prosonic S FMU95 Endress + Hauser...

  • Page 105: Index

    Prosonic S FMU95 Index Index Symbols "back to home" ....... . . 73 Incoming acceptance .
  • Page 106 Prosonic S FMU95 Index Sensor cable extension......22 Sensor cable shortening ......23 Sensor connection .
  • Page 107 Prosonic S FMU95 Index Endress + Hauser...
  • Page 108 www.endress.com/worldwide BA00344F/00/EN/13.12 71164423 FM+SGML 9.0 71164423...
