IP Configuration

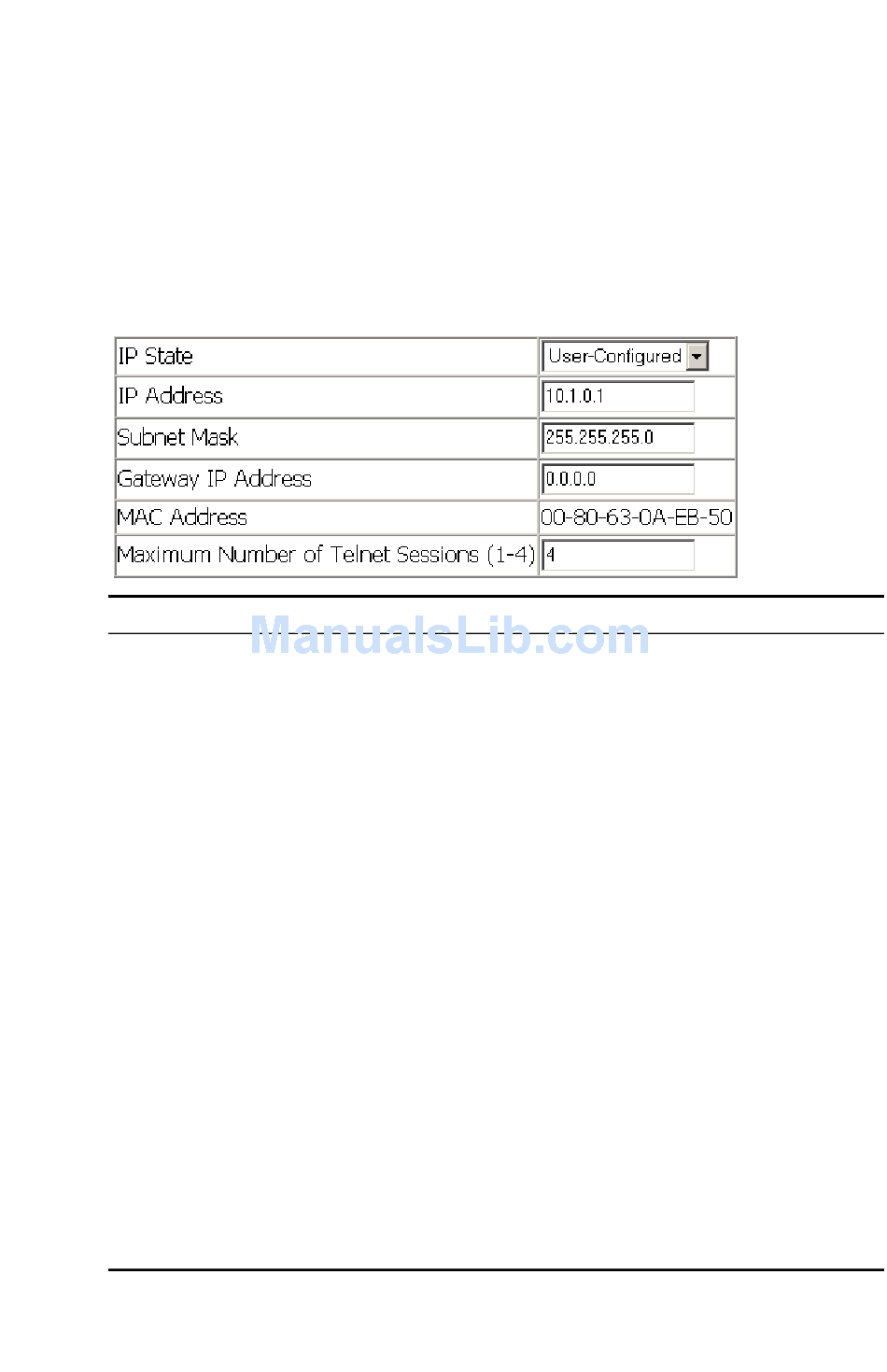

Use the IP Configuration screen to set the bootup option, configure the IP
address for the on-board management agent, or set the number or
concurrent Telnet sessions allowed. The screen shown below is described
in the following table.
Parameter
IP State
IP Address
Default
Description
USER-CONFIG Specifies whether IP functionality is enabled via
manual configuration, or set by Boot Protocol
(BOOTP). Options include:
USER-CONFIG - IP functionality is enabled
based on the default or user specified IP
Configuration. (This is the default setting.)
BOOTP Get IP - IP is enabled but will not
function until a BOOTP reply has been received.
BOOTP requests will be periodically broadcast
by the switch in an effort to learn its IP address.
(BOOTP values can include the IP address,
default gateway, and subnet mask.)
10.1.0.1
IP address of the switch you are managing. The
switch supports SNMP over UDP/IP transport
protocol. In this environment, all systems on the
Internet, such as network interconnection
devices and any PC accessing the on-board agent
(or running EliteView) are assigned an IP
address. Valid IP addresses consist of four
decimal numbers, of 0 to 255, separated by
periods. Anything outside of this format will not
be accepted by the configuration program.
IP C
ONFIGURATION
3-11
