ATTENTION:
• Do not touch the electronic components or the connectors on the backplane or on
the circuit boards without being electrically grounded. Handle circuit boards by their
edges only. ESD can damage circuits, even if you cannot feel, see, or hear it.
• Ne pas toucher les composants électroniques ou les connecteurs sur la carte mère
ou sur les circuits imprimés sans être électriquement relié à la terre. Manipuler
les circuits imprimés en les tenant seulement par leurs bords. Cela pourrait
endommager le commutation de la gamme FOX.
NOTE: The I/O boards are hot-swappable. You do not need to power down the
switcher to remove or install an I/O board.

Removing an I/O Board or Blank Panel

Remove an I/O board or blank panel as follows:
1. For an I/O board, disconnect any connected cables.
2. Rotate the left and right knurled knobs to completely loosen the captive thumbscrews.
Gently pull on the screws to loosen the board or panel from the backplane.
3.

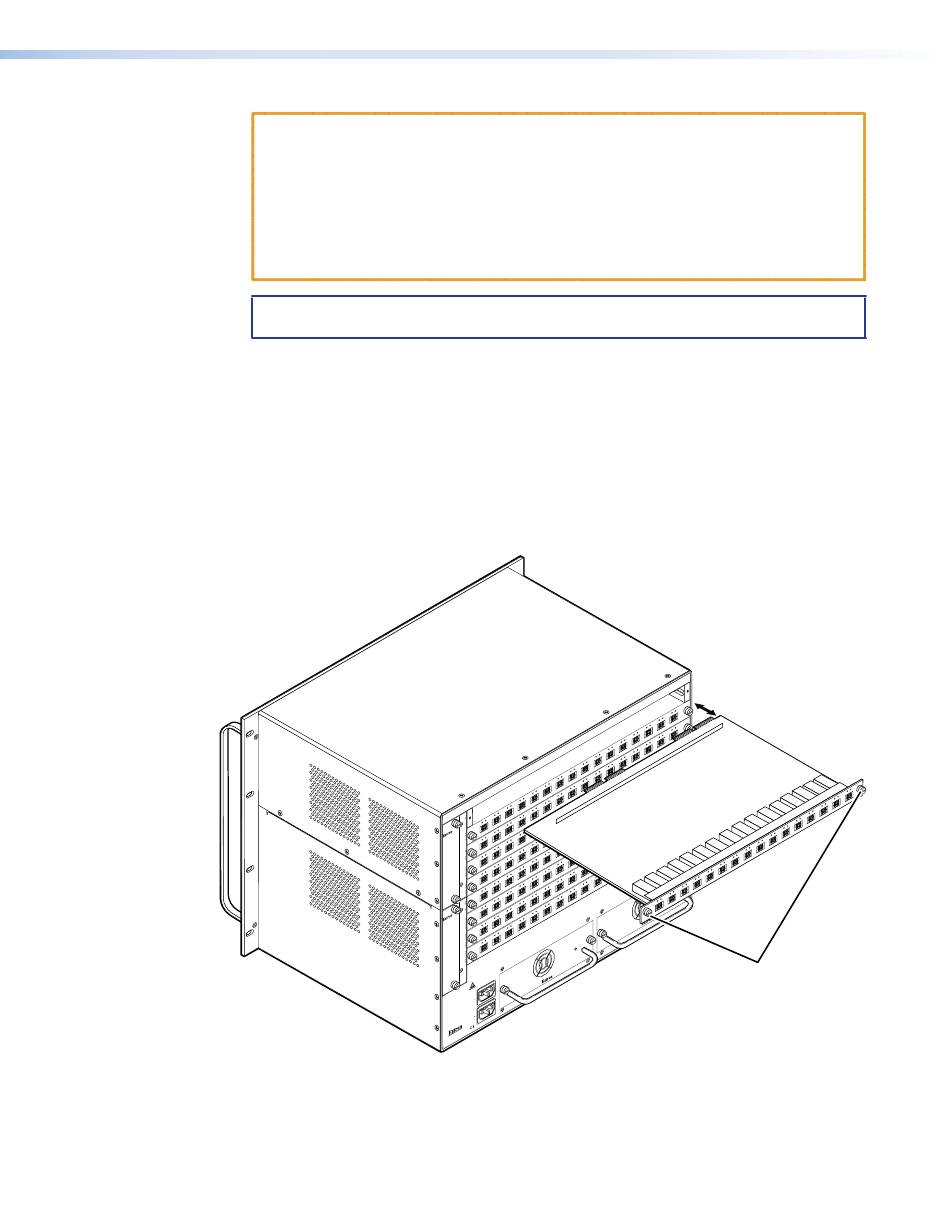

4. Slide the board or panel out of the chassis (see figure 47) and place it on an anti-static
surface or in an anti-static container.
Figure 47.
