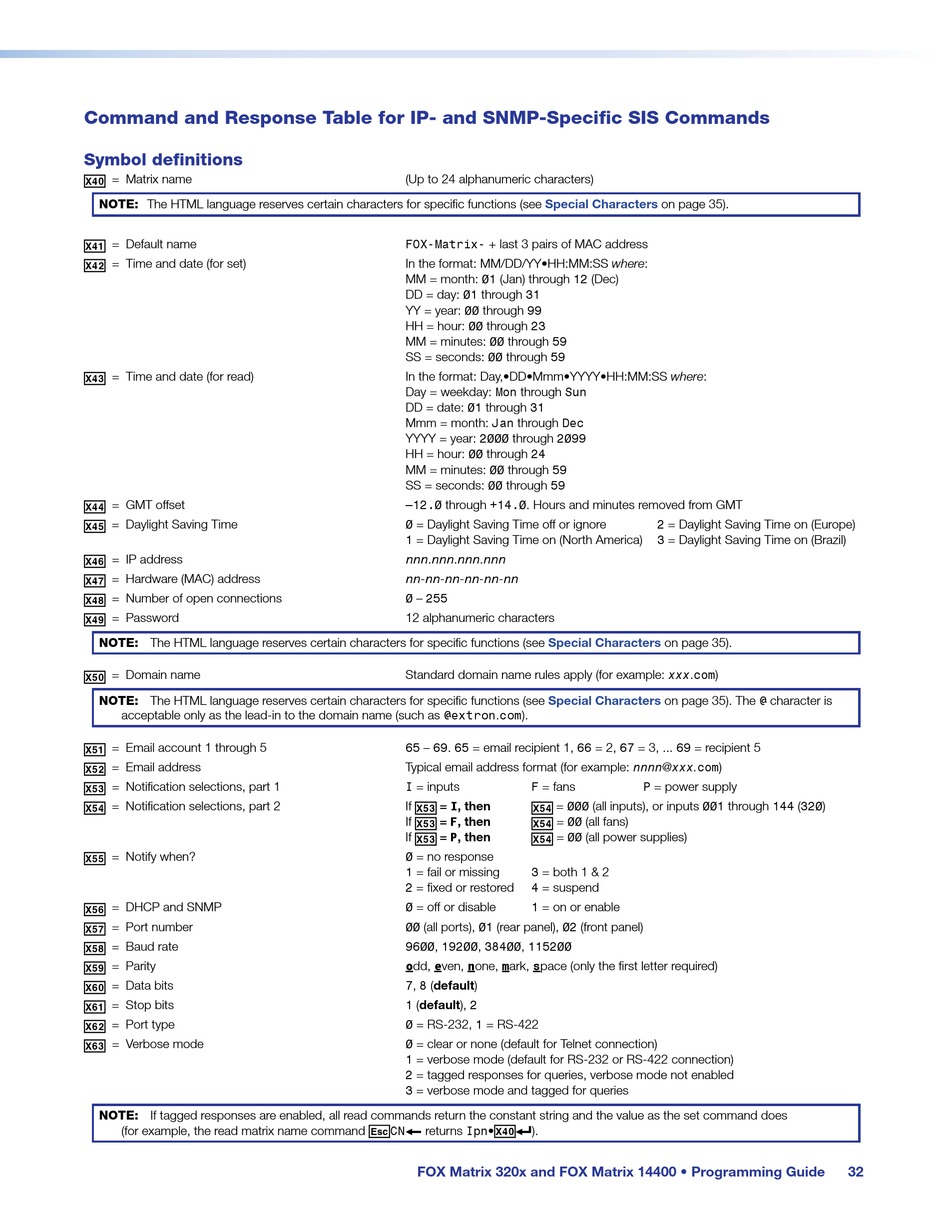

Command and Response Table for IP- and SNMP-Specific SIS Commands

Symbol definitions
X4)
= Matrix name
NOTE: The HTML language reserves certain characters for specific functions (see
X4!
= Default name
X4@
= Time and date (for set)
X4#
= Time and date (for read)
X4$
= GMT offset
X4%
= Daylight Saving Time
X4^
= IP address
X4&
= Hardware (MAC) address
X4* = Number of open connections
X4(
= Password
NOTE: The HTML language reserves certain characters for specific functions (see
X5)
= Domain name
NOTE: The HTML language reserves certain characters for specific functions (see
acceptable only as the lead-in to the domain name (such as @extron.com).
X5!
= Email account 1 through 5
X5@
= Email address
X5#
= Notification selections, part 1
X5$
= Notification selections, part 2
X5%
= Notify when?
X5^
= DHCP and SNMP
X5&
= Port number
X5*
= Baud rate
X5(
= Parity
X6)
= Data bits
X6! = Stop bits
X6@
= Port type
X6# = Verbose mode
NOTE: If tagged responses are enabled, all read commands return the constant string and the value as the set command does
(for example, the read matrix name command
(Up to 24 alphanumeric characters)
Special Characters
FOX-Matrix- + last 3 pairs of MAC address
In the format: MM/DD/YY•HH:MM:SS where:
MM = month: 01 (Jan) through 12 (Dec)
DD = day: 01 through 31
YY = year: 00 through 99
HH = hour: 00 through 23
MM = minutes: 00 through 59
SS = seconds: 00 through 59
In the format: Day,•DD•Mmm•YYYY•HH:MM:SS where:
Day = weekday: Mon through Sun
DD = date: 01 through 31
Mmm = month: Jan through Dec
YYYY = year: 2000 through 2099
HH = hour: 00 through 24
MM = minutes: 00 through 59
SS = seconds: 00 through 59
–12.0 through +14.0 . Hours and minutes removed from GMT
0 = Daylight Saving Time off or ignore
1 = Daylight Saving Time on (North America)
nnn.nnn.nnn.nnn
nn-nn-nn-nn-nn-nn
0 – 255
12 alphanumeric characters
Special Characters
Standard domain name rules apply (for example: xxx . com )
Special Characters
65 – 69 . 65 = email recipient 1, 66 = 2, 67 = 3, ... 69 = recipient 5
Typical email address format (for example: nnnn @ xxx . com )
I = inputs F = fans
X5# X5$
If = I, then
X5# = F, then X5$
If
X5# X5$
If = P, then
0 = no response
1 = fail or missing 3 = both 1 & 2
2 = fixed or restored 4 = suspend
0 = off or disable 1 = on or enable
00 (all ports), 01 (rear panel), 02 (front panel)
9600 , 19200 , 38400 , 115200
odd, even, none, mark, space (only the first letter required)
7 , 8 (default)
1 (default), 2
0 = RS-232, 1 = RS-422
0 = clear or none (default for Telnet connection)
1 = verbose mode (default for RS-232 or RS-422 connection)
2 = tagged responses for queries, verbose mode not enabled
3 = verbose mode and tagged for queries
E X4) ]
} returns Ipn • ).
CN
FOX Matrix 320x and FOX Matrix 14400 • Programming Guide
on page 35).
2 = Daylight Saving Time on (Europe)
3 = Daylight Saving Time on (Brazil)
on page 35).
on page 35). The @ character is
P = power supply
= 000 (all inputs), or inputs 001 through 144 ( 320 )
= 00 (all fans)
= 00 (all power supplies)
32
