Front Panel Features

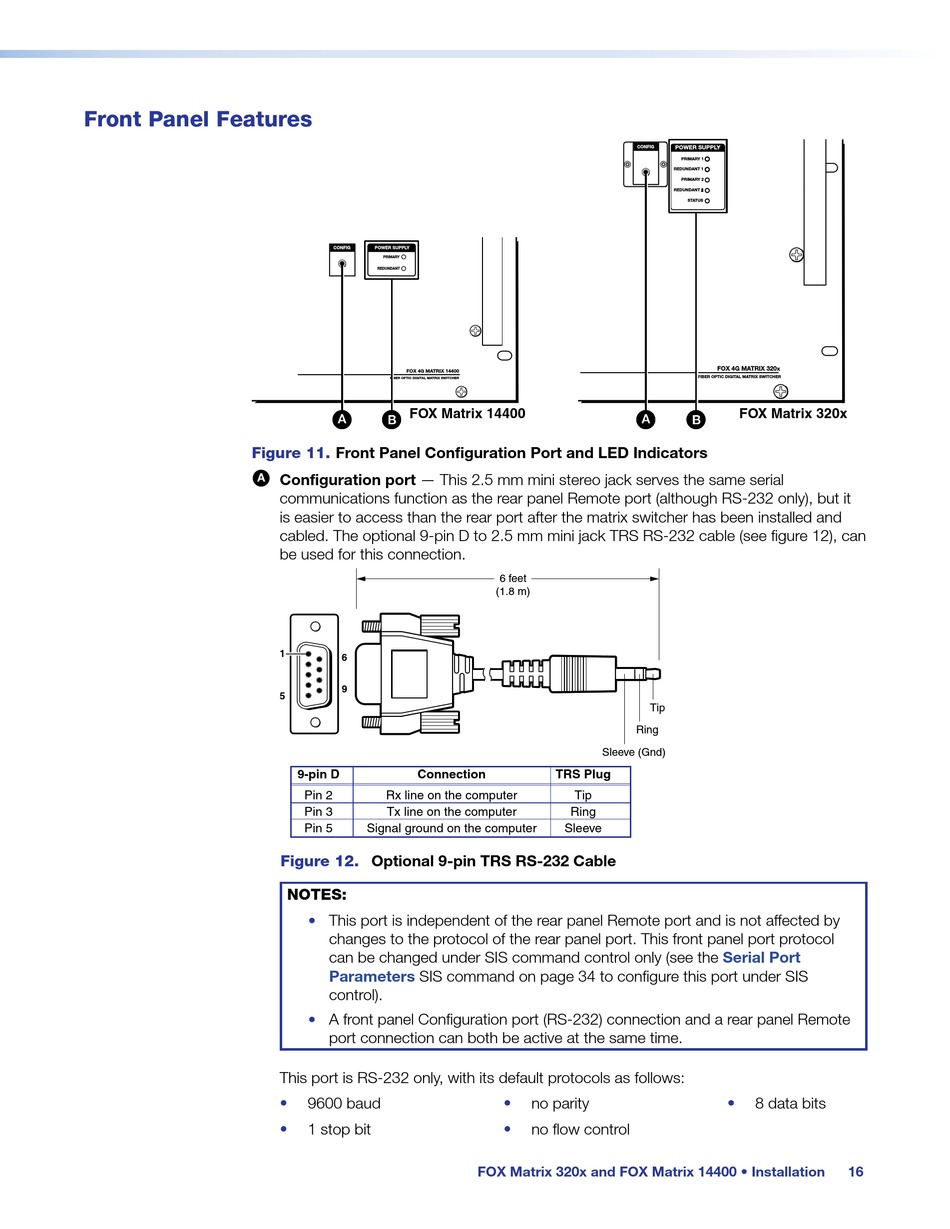

Figure 11.
A
CONFIG
POWER SUPPLY
PRIMARY
REDUNDANT
FOX 4G MATRIX 14400
FIBER OPTIC DIGITAL MATRIX SWITCHER
FOX Matrix 14400
A A
A
B
B B
Front Panel Configuration Port and LED Indicators
Configuration port — This 2.5 mm mini stereo jack serves the same serial
communications function as the rear panel Remote port (although RS-232 only), but it
is easier to access than the rear port after the matrix switcher has been installed and
cabled. The optional 9-pin D to 2.5 mm mini jack TRS RS-232 cable (see figure 12), can
be used for this connection.
1
6
9
5
9-pin D
Connection
Pin 2
Rx line on the computer
Pin 3
Tx line on the computer
Pin 5
Signal ground on the computer
Figure 12.
Optional 9-pin TRS RS-232 Cable
NOTES:
•
This port is independent of the rear panel Remote port and is not affected by
changes to the protocol of the rear panel port. This front panel port protocol
can be changed under SIS command control only (see the
Parameters
SIS command on page 34 to configure this port under SIS
control).
•
A front panel Configuration port (RS-232) connection and a rear panel Remote
port connection can both be active at the same time.
This port is RS-232 only, with its default protocols as follows:
•
9600 baud
•
1 stop bit
CONFIG
A A
A
6 feet
(1.8 m)
Tip
Ring
Sleeve (Gnd)
TRS Plug
Tip
Ring
Sleeve
•
no parity
•
no flow control
FOX Matrix 320x and FOX Matrix 14400 • Installation
POWER SUPPLY
PRIMARY 1
REDUNDANT 1
PRIMARY 2
REDUNDANT 2 2
STATUS
FOX 4G MATRIX 320x
FIBER OPTIC DIGITAL MATRIX SWITCHER
FOX Matrix 320x
B
B B
Serial Port
•
8 data bits
16
