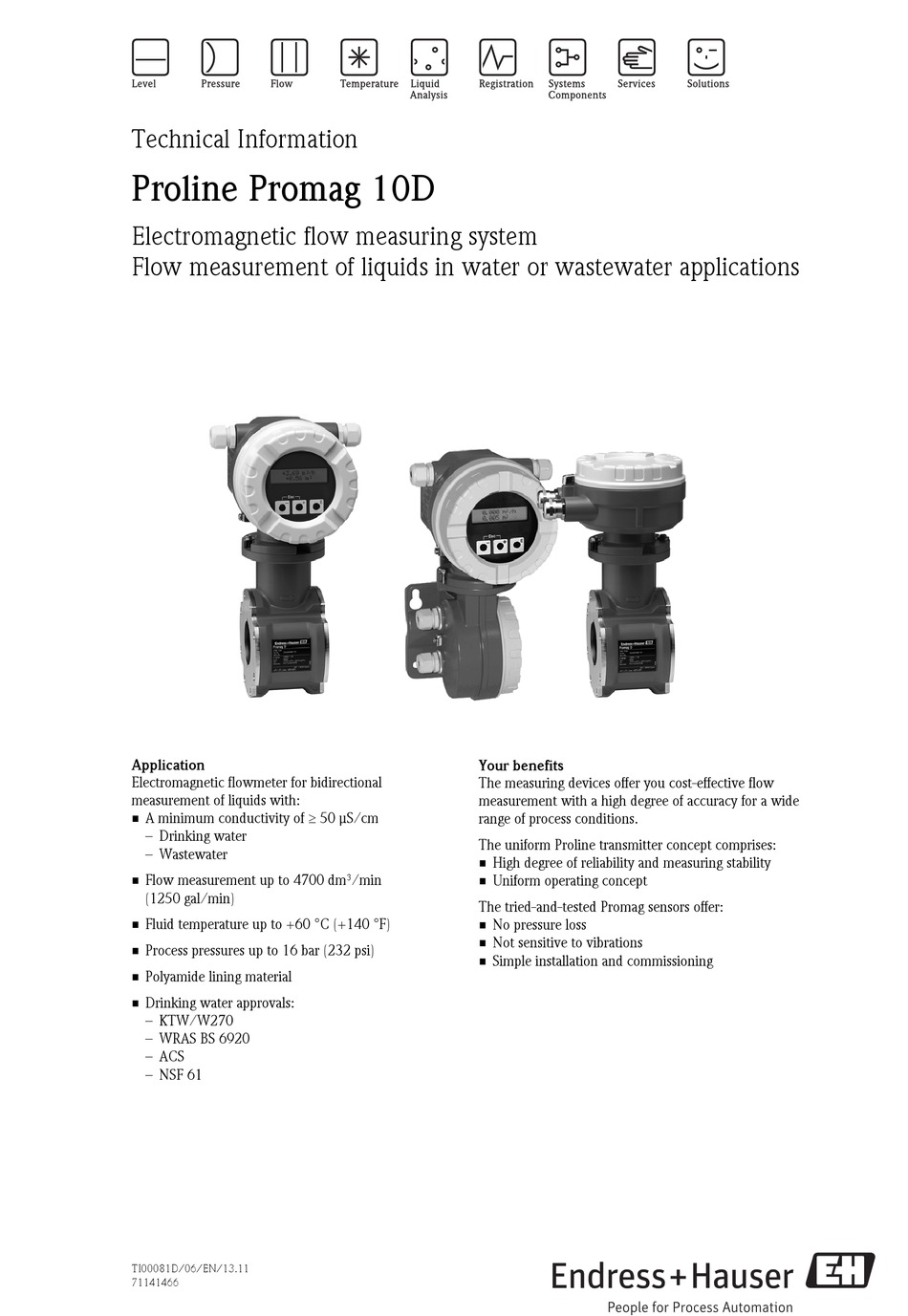

Technical Information
Technical Information
Proline Promag 10D
Electromagnetic flow measuring system
Flow measurement of liquids in water or wastewater applications
Application
Electromagnetic flowmeter for bidirectional
measurement of liquids with:
• A minimum conductivity of 50 μS/cm
– Drinking water
– Wastewater
• Flow measurement up to 4700 dm³/min
(1250 gal/min)
• Fluid temperature up to +60 °C (+140 °F)
• Process pressures up to 16 bar (232 psi)
• Polyamide lining material
• Drinking water approvals:
– KTW/W270
– WRAS BS 6920
– ACS
– NSF 61
TI00081D/06/EN/13.11
71141466
Your benefits
The measuring devices offer you cost-effective flow
measurement with a high degree of accuracy for a wide
range of process conditions.
The uniform Proline transmitter concept comprises:
• High degree of reliability and measuring stability
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline Promag 10D
Summary of Contents for Endress+Hauser Proline Promag 10D
- Page 1 Technical Information Proline Promag 10D Electromagnetic flow measuring system Flow measurement of liquids in water or wastewater applications Application Your benefits Electromagnetic flowmeter for bidirectional The measuring devices offer you cost-effective flow measurement of liquids with: measurement with a high degree of accuracy for a wide •...
-
Page 2: Table Of Contents
Proline Promag 10D Table of contents Function and system design..... 3 Mechanical construction ..... . 17 Measuring principle . -
Page 3: Function And System Design
Proline Promag 10D Function and system design Measuring principle Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. In the electromagnetic measuring principle, the flowing fluid is the moving conductor. -
Page 4: Input
Proline Promag 10D Input Measured variable Flow velocity (proportional to induced voltage) Measuring range Typically v = 0.01 to 10 m/s (0.033 to 33 ft/s) with the specified accuracy Operable flow range Over 1000 : 1 Output Output signal Current output •... -
Page 5: Power Supply
Proline Promag 10D Power supply Terminal assignment Order version Terminal No. 24 (+) 25 (–) 26 (+) 27 (–) 1 (L1/L+) 2 (N/L–) 10***-***********A Pulse/status output HART current output Power supply Functional values See "Output signal" See "Supply voltage"... -
Page 6: Electrical Connection Remote Version
Proline Promag 10D Electrical connection remote version 4 37 36 42 41 n.c. n.c. 4 37 42 41 A0010695 Connecting the remote version Wall-mount housing connection compartment Sensor connection housing Signal cable Coil current cable n.c. Not connected, insulated cable shields Cable colors/numbers for terminals:... -
Page 7: Cable Entries
Proline Promag 10D Special cases Operating conditions Potential equalization When using the measuring device in a: • Metal pipe that is not grounded This connection method also applies in situations where: • Customary potential equalization cannot be ensured • Excessively high equalizing currents can be expected Potential equalization takes place via the ground terminal of the transmitter and the two pipe flanges. - Page 8 Proline Promag 10D A0003194 Signal cable Coil current cable Core Core insulation Core shield Core jacket Core reinforcement Cable shield Outer jacket Operation in zones of severe electrical interference The measuring device complies with the general safety requirements in accordance with EN 61010-1,...
-
Page 9: Performance Characteristics
Proline Promag 10D Performance characteristics Reference operating As per DIN EN 29104 and VDI/VDE 2641 conditions • Fluid temperature: +28 °C ± 2 K (+82 °F ± 2 K) • Ambient temperature: +22 °C ± 2 K (+72 °F ± 2 K) •... -
Page 10: Installation
Proline Promag 10D Installation Mounting location The sensor should preferably be installed in an ascending pipe. Ensure the sensor is an adequate distance ( 2 × DN) away from the next pipe bend. Note! Entrained air or gas bubble formation in the measuring tube can result in an increase in measuring errors. -
Page 11: Installation Instructions
Proline Promag 10D Installation instructions Installation with pumps The sensor should only be installed on the pump pressure side. Note! • The sensor should never be installed on the pump suction side in order to avoid the risk of low pressure, and thus damage to the measuring tube. -
Page 12: Inlet And Outlet Runs
Proline Promag 10D Vibrations Secure the piping and the sensor if vibration is severe. " Caution! If vibrations are too severe, we recommend the sensor and transmitter be mounted separately. Information on the permitted shock and vibration resistance ä 15, section "Shock and vibration resistance". -
Page 13: Adapters
Proline Promag 10D Adapters Suitable adapters to DIN EN 545 (double-flange reducers) can be used to install the sensor in larger-diameter pipes. The resultant increase in the rate of flow improves measuring accuracy with very slow-moving fluids. The nomogram shown here can be used to calculate the pressure loss caused by reducers and expanders. -
Page 14: Mounting Kit
Proline Promag 10D Mounting kit The device is centered using the recesses on the sensor. Centering sleeves are also provided depending on the flange standard or the diameter of the pitch circle. Note! A mounting kit consisting of mounting bolts, seals, nuts and washers can be ordered separately (see "Accessories"). -
Page 15: Environment
Proline Promag 10D Environment Ambient temperature range • Sensor: –20 to +60 °C (–4 to +140 °F) • Transmitter: –20 to +60 °C (–4 to +140 °F) " Caution! • The permitted temperature range of the measuring tube lining may not be undershot or overshot ... -
Page 16: Pressure Tightness
Proline Promag 10D Measuring tube: 0 mbar abs (0 psi abs) with a fluid temperature of 60 °C (140 °F) Pressure tightness Limiting flow The diameter of the pipe and the flow rate determine the nominal diameter of the sensor. -
Page 17: Mechanical Construction
Proline Promag 10D Mechanical construction Design, dimensions Compact version DN 25…40 DN 50 DN 65…100 (1"…1½”) (2") 2½ "…4 ") (inch) A0010716 Dimensions (SI units) max. seals EN (DIN) / JIS 20 to 27.5 153 to 168 All dimensions in [mm] Dimensions (US units) max. - Page 18 Proline Promag 10D Transmitter remote version ANSCHLUSSKLEMMEN - FIELD TERMINALS A0010718 Transmitter dimensions, remote version Dimensions (SI units) Ø H 20 to 27.5 153 to 168 8.6 (ISO-M8) 177.5 327.5 All dimensions in [mm] Dimensions (US units) Ø H 7.00...
- Page 19 Proline Promag 10D 248 ±2 (9.76 ±0.08) 238 (9.37) ANSCHLUSSKLEMMEN - FIELD TERMINALS ANSCHLUSSKLEMMEN - FIELD TERMINALS mm (inch) A0010719 Transmitter mounting, remote version Direct wall mounting Pipe mounting Endress+Hauser...
- Page 20 Proline Promag 10D Sensor remote version DN 25…40 DN 50 DN 65…100 (1"…1½”) (2") (2½"…4") (inch) A0010717 Dimensions (SI units) max. seals EN (DIN) / JIS All dimensions in [mm] Dimensions (US units) max. seals ANSI 1" 2.17 7.56...
-
Page 21: Weight
Proline Promag 10D Weight Weight data without packaging material. Compact version Remote version (without cable) Transmitter Diameter Total Sensor Transmitter Sensor (field housing) [inch] [mm] [lbs] [kg] [lbs] [kg] [lbs] [kg] [lbs] [kg] [lbs] [kg] 1" 1 ½" 2"... -
Page 22: Material
Proline Promag 10D Pressure rating ANSI Pressure Centering sleeves Measuring tube Diameter Mounting bolts rating length internal diameter [inch] [mm] [inch] [mm] [inch] [mm] [inch] [mm] 1" 4 × UNC 1/2" × 5.70" – * 0.94" 1 ½" 4 × UNC 1/2" ×... -
Page 23: Certificates And Approvals
Ex approval Information about currently available Ex versions (ATEX, FM, CSA, IECEx, NEPSI etc.) can be supplied by your Endress+Hauser Sales Center on request. All explosion protection data are given in a separate documentation which is available upon request. Drinking water approval •... -
Page 24: Accessories
Proline Promag 10D Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Your Endress+Hauser service organization can provide detailed information on the specific order codes on request. Device-specific accessories Accessory... -
Page 25: Communication-Specific Accessories
SFX100 - ******* Field Xpert handheld obtaining measured values via the HART current output terminal (4 to 20 mA) and FOUNDATION Fieldbus. Contact your Endress+Hauser representative for more information. Fieldgate FXA320 Gateway for remote interrogation of HART sensors and FXA320 - ***** actuators via Web browser: •... -
Page 26: Documentation
• Operating Instructions Promag 10 (BA00082D/06/EN) Registered trademarks ® HART Registered trademark of the HART Communication Foundation, Austin, USA ® ® ® FieldCare , Fieldcheck , Field Xpert™, Applicator Registered or registration-pending trademarks of Endress+Hauser Flowtec AG, Reinach, CH Endress+Hauser... -
Page 27: Endress+Hauser
Proline Promag 10D Endress+Hauser... - Page 28 Instruments International Endress+Hauser Instruments International AG Kaegenstrasse 2 4153 Reinach Switzerland Tel.+41 61 715 81 00 Fax+41 61 715 25 00 www.endress.com info@ii.endress.com TI00081D/06/EN/13.11 71141466 FM+SGML 9.0 ProMoDo...
