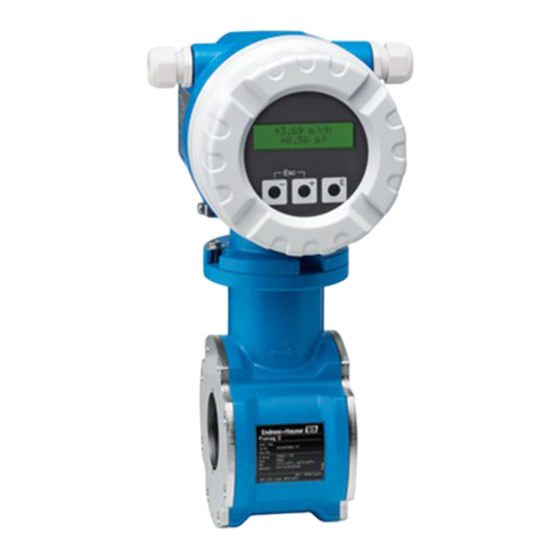

The highly cost-effective flowmeter, available as compact wafer
Application
• The measuring principle is virtually independent of pressure,
density, temperature and viscosity
• For basic water applications; optimized for limited space and
plastic pipe installations
Device properties
• Short installation length and low weight
• Integrated ground disks made of stainless steel
• International drinking water approvals
• 2-line display with push buttons
• Device in compact or remote version
• HART
Products
Technical Information
Proline Promag 10D
Electromagnetic flowmeter
Solutions
Your benefits
• Easy, fast centering of the sensor – innovative housing
construction
• Energy-saving flow measurement – no pressure loss due to
cross-section construction
• Maintenance-free – no moving parts
• Cost-effective – designed for easy applications and direct
integration
• Safe operation – display provides easy readable process
information
• Fully industry compliant – IEC/EN/NAMUR
Services
Advertisement
Table of Contents
Related Manuals for Endress+Hauser Proline Promag 10D
Summary of Contents for Endress+Hauser Proline Promag 10D

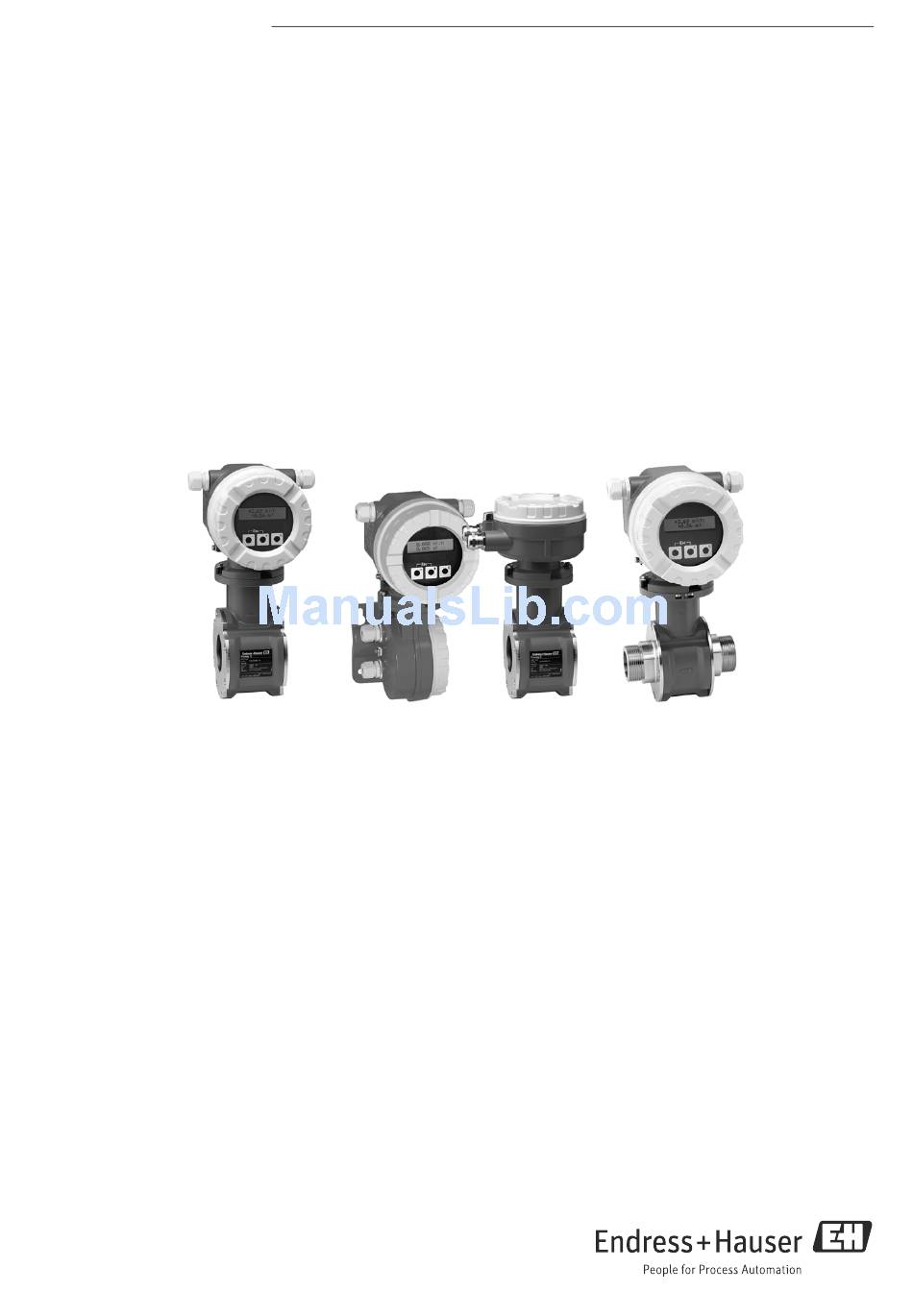

- Page 1 Products Solutions Services TI00081D/06/EN/14.16 71314546 Technical Information Proline Promag 10D Electromagnetic flowmeter The highly cost-effective flowmeter, available as compact wafer Application Your benefits • The measuring principle is virtually independent of pressure, • Easy, fast centering of the sensor – innovative housing...
-
Page 2: Table Of Contents
Proline Promag 10D Table of contents Function and system design ..... .3 Pressure loss ......... 15 Vibrations . -
Page 3: Function And System Design
Proline Promag 10D Function and system design Measuring principle Following Faraday' s law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. In the electromagnetic measuring principle, the flowing fluid is the moving conductor. -
Page 4: Measuring Range
Proline Promag 10D Measuring range Typically v = 0.01 to 10 m/s (0.033 to 33 ft/s) with the specified accuracy Flow characteristic values (SI units) Diameter Recommended flow Factory settings min./max. full scale Full scale value current output Pulse value... -
Page 5: Load
Proline Promag 10D Pulse output Failsafe mode can be selected Status output "Not conductive" in the event of fault or power supply failure Load See "Output signal" Low flow cut off Low flow cut off, switch-on point can be selected as required... -
Page 6: Electrical Connection
Proline Promag 10D Electrical connection – – (L+) (L-) A0003192 Connecting the transmitter, cable cross-section max. 2.5 mm (14 AWG) Electronics compartment cover Power supply cable Ground terminal for protective ground Terminal connector for power supply cable Signal cable Ground terminal for signal cable... -
Page 7: Potential Equalization
Proline Promag 10D Potential equalization Perfect measurement can only be guaranteed if the fluid and sensor are on the same electric potential. This is ensured by the two ground disks of the sensor. The following should also be taken into consideration for potential equalization: •... -
Page 8: Cable Entries
Proline Promag 10D Cable entries Power supply and signal cables (inputs/outputs): • Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47") • Thread for cable entries, ½" NPT, G ½" Connecting cable for remote version: • Cable entry M20 × 1.5 (8 to 12 mm / 0.31 to 0.47") •... -
Page 9: Performance Characteristics
Proline Promag 10D Performance characteristics Reference operating • Error limits following DIN EN 29104, future ISO 20456 conditions • Water, typically +4 to +35°C (+39 to +95 °F); 2 to 6 bar (29 to 87 psi) • Specification as per calibration protocol ± 5°C (± 41 °F) and ± 2 bar (± 29 psi) •... -
Page 10: Installation
Proline Promag 10D Installation Mounting location The sensor should preferably be installed in an ascending pipe. Ensure the sensor is an adequate distance (≥ 2 × DN) away from the next pipe bend. Note! Entrained air or gas bubble formation in the measuring tube can result in an increase in measuring errors. -
Page 11: Orientation
Proline Promag 10D Partially filled pipes Partially filled pipes with gradients necessitate a drain-type configuration. ³ 2 x DN ³ 5 x DN A0010707 Installation with partially filled pipes Down pipes Install a siphon or a vent valve downstream of the sensor in down pipes h ≥ 5 m (16,4 ft). This precaution is to avoid low pressure and the consequent risk of damage to the measuring tube. -
Page 12: Inlet And Outlet Runs
Proline Promag 10D Inlet and outlet runs If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows etc. The following inlet and outlet runs must be observed in order to meet accuracy specifications: • Inlet run ≥ 5 × DN •... -
Page 13: Mounting Kit
Proline Promag 10D [mbar] 8 m/s 7 m/s 6 m/s 5 m/s 4 m/s max. 8° 3 m/s 2 m/s 1 m/s d / D A0010713 Pressure loss due to adapters Mounting kit The sensor Promag D as wafer version is installed between the pipe flanges with a mounting kit. The device is centered using the recesses on the sensor. -
Page 14: Length Of Connecting Cable
Proline Promag 10D Length of connecting cable Note the following when mounting the remote version: • Fix cable run or lay in armored conduit. Note! Cable movements can falsify the measuring signal especially in the case of low fluid conductivities. -
Page 15: Process
Proline Promag 10D Process Medium temperature range 0 to +60 °C (+32 to +140 °F) Medium pressure range • EN 1092-1 (DIN 2501) up to PN 16 • ASME B 16.5 up to Class 150 • JIS B2220 up to 10 K •... -
Page 16: Vibrations
Proline Promag 10D Vibrations Secure the piping and the sensor if vibration is severe. " Caution! If vibrations are too severe, we recommend the sensor and transmitter be mounted separately. Information on the permitted shock and vibration resistance → 14, section "Shock and vibration resistance". -
Page 17: Mechanical Construction
Proline Promag 10D Mechanical construction Design, dimensions Compact version Promag D as wafer version DN 25…40 DN 50 DN 65…100 (1"…1½”) (2") (2½"…4") A0010716 Engineering unit mm (in) Dimensions (SI units) EN (DIN) / JIS max. ⌀ seals 303 104 324 124 178 20 to 27.5 153 to 168 113... - Page 18 Proline Promag 10D Compact version Promag D with threaded connection A0029291 Dimensions (SI units) SW1) EN (DIN) G1" 20 to 153 to 104 34.4 50 G1 ½" 27,5 G2" SW = Width across flats (AF) All dimensions in [mm] Dimensions (US units) ANSI 1"...
- Page 19 Proline Promag 10D Transmitter remote version A0010718 Transmitter dimensions, remote version Dimensions (SI units) Ø H 20 to 27.5 153 to 168 8.6 (ISO-M8) 177.5 327.5 All dimensions in [mm] Dimensions (US units) Ø H 7.00 14.5 5.31 0.79 to 1.08 6.02 to 6.61 4.45...
- Page 20 Proline Promag 10D 248 ±2 238 (9.37) (9.76 ±0.08) ANSCHLUSSKLEMMEN - FIELD TERMINALS A0010719 Transmitter mounting, remote version. Engineering unit mm (in) Direct wall mounting Pipe mounting Endress+Hauser...
- Page 21 Proline Promag 10D Sensor remote version Promag D as wafer version DN 25…40 DN 50 DN 65…100 (1 to 1½") (2") (2½ to 4") A0021694 Engineering unit mm (in) Dimensions (SI units) EN (DIN) / JIS max. ⌀ seals All dimensions in [mm]...
- Page 22 Proline Promag 10D Sensor remote version Promag D with threaded connection A0029292 Dimensions (SI units) SW1) EN (DIN) G1" 34,4 50 G1 ½" G2" SW = Width across flats (AF) All dimensions in [mm] Dimensions (US units) SW1) ANSI 1"...
-
Page 23: Weight
Proline Promag 10D Weight Weight data without packaging material. Compact version Remote version (without cable) Transmitter Diameter Total Sensor Transmitter Sensor (field housing) [inch] [mm] [lbs] [kg] [lbs] [kg] [lbs] [kg] [lbs] [kg] [lbs] [kg] 1" 1 ½" 2" –... -
Page 24: Material
Proline Promag 10D Pressure rating ANSI Pressure Centering slee- Measuring tube Diameter Mounting bolts rating ves length internal diameter [inch] [mm] [inch] [mm] [inch] [mm] [inch] [mm] 1" 4 × UNC ½ " × 5.70" – * 0.94" 1 ½"... -
Page 25: Process Connections
Ex approval Information about currently available Ex versions (ATEX, FM, CSA, IECEx, NEPSI etc.) can be supplied by your Endress+Hauser Sales Center on request. All explosion protection data are given in a separate documentation which is available upon request. Drinking water approval •... -
Page 26: Ordering Information
• Ability to order directly in the Endress+Hauser Online Shop Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Your Endress+Hauser service organization can provide detailed information on the specific order codes on request. -
Page 27: Communication-Specific Accessories
Handheld terminal for remote configuration and for obtaining measured Field Xpert handheld terminal values via the HART current output (4 to 20 mA) and FOUNDATION Fieldbus. Contact your Endress+Hauser representative for more information. Fieldgate FXA320 Gateway for remote interrogation of HART sensors and actuators via Web browser: •... -
Page 28: Service-Specific Accessories
Contact your Endress+Hauser representative for more information. FieldCare FieldCare is Endress+Hauser' s FDT-based asset management tool. It can configure all intelligent field units in your system and helps you manage them. By using status information, it is also a simple but effective way of checking their status and condition. - Page 29 Proline Promag 10D Endress+Hauser...
- Page 30 www.addresses.endress.com...
