See also: Technical Information

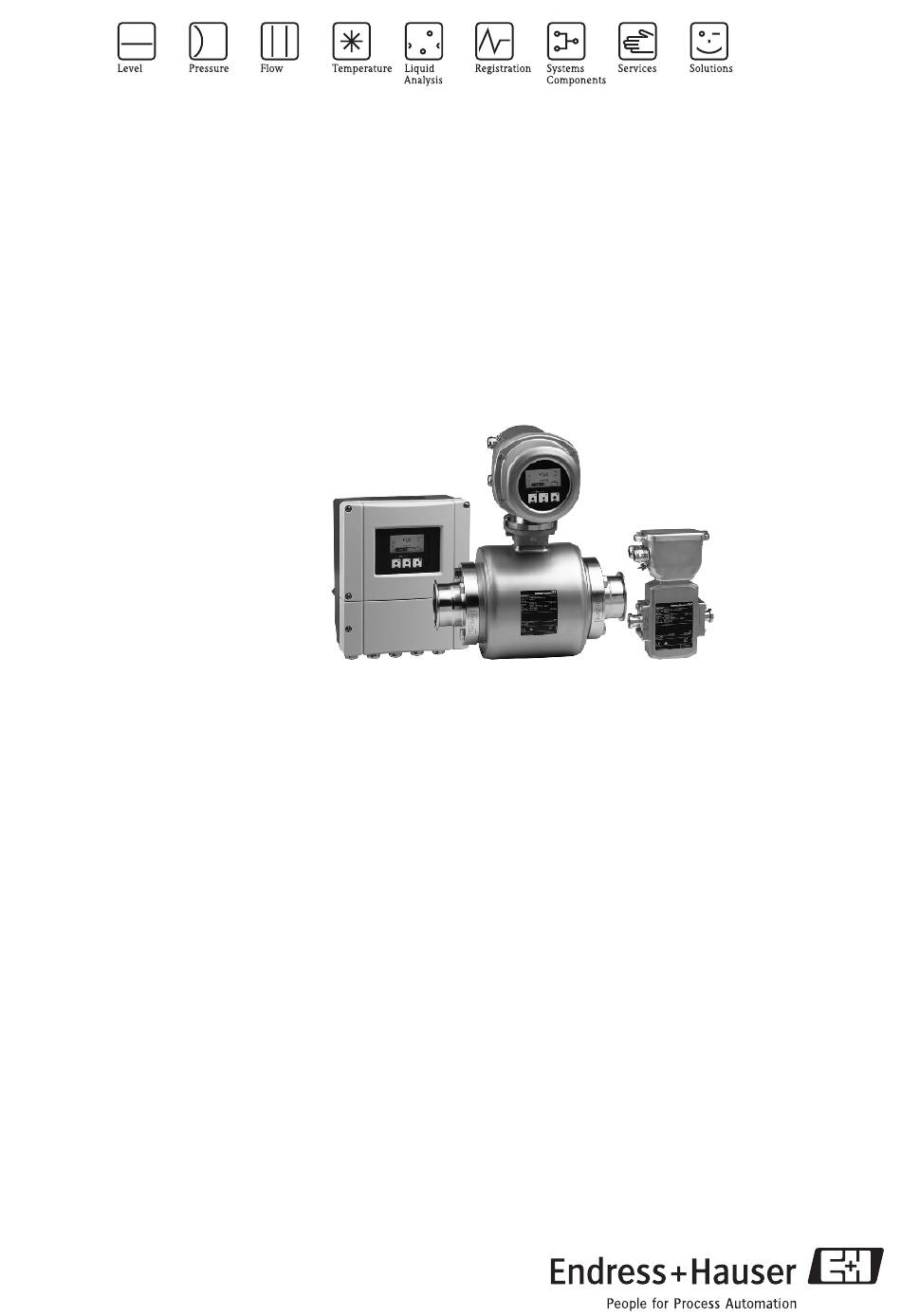

Technical Information

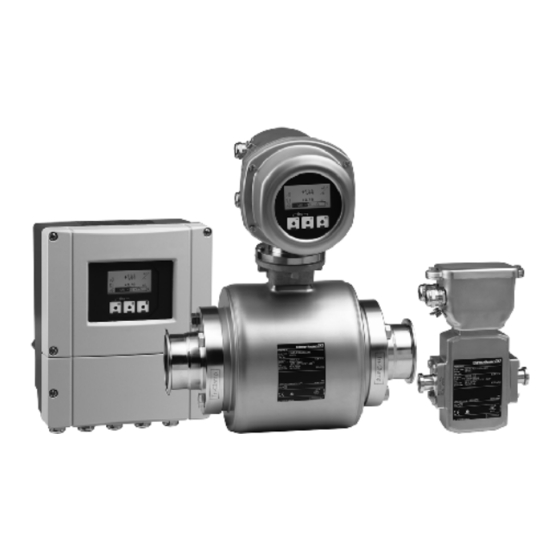

Proline Promag 50H, 53H
Electromagnetic Flow Measuring System
Flow measurement of liquids in
hygienic, food or process applications
Application
Electromagnetic flowmeter for bidirectional
measurement of liquids with a minimum
conductivity of ≥ 5 μS/cm:
• Beverages, e.g. fruit juice, beer, wine
• Dairy products, fruit juice mixes
• Saline solutions
• Acid, alkalis etc.
• Flow measurement up to 4700 dm³/min
(1250 gal/min)
• Fluid temperature up to +150 °C (+302 °F)
• Process pressures up to 40 bar (580 psi)
• CIP-/SIP cleaning
• Stainless steel housing
Approvals in food sector/hygiene sector:
• 3A approval, EHEDG-tested, conform to FDA,
USP Class VI
Application-specific lining material:
• PFA
Approvals for hazardous area:
• ATEX, FM, CSA, TIIS
TI048D/06/en/05.10
71114592
Connection to process control system:
• HART, PROFIBUS DP/PA, FOUNDATION Fieldbus,
MODBUS RS485
Your benefits
Promag measuring devices offer you cost-effective flow
measurement with a high degree of accuracy for a wide
range of process conditions.
The uniform Proline transmitter concept comprises:
• Modular device and operating concept resulting in a
higher degree of efficiency
• Software options for batching, electrode cleaning and
pulsating flow
• Uniform operating concept
The tried-and-tested Promag sensors offer:
• No pressure loss
• Not sensitive to vibrations
• Simple installation and commissioning

Advertisement

Table of Contents
loading

Related Manuals for Endress+Hauser Proline Promag 50H

Summary of Contents for Endress+Hauser Proline Promag 50H

  • Page 1 Technical Information Proline Promag 50H, 53H Electromagnetic Flow Measuring System Flow measurement of liquids in hygienic, food or process applications Application Connection to process control system: Electromagnetic flowmeter for bidirectional • HART, PROFIBUS DP/PA, FOUNDATION Fieldbus, measurement of liquids with a minimum MODBUS RS485 conductivity of ≥...

  • Page 2: Table Of Contents

    Proline Promag 50H, 53H Table of contents Function and system design..... 3 Mechanical construction ..... . 21 Measuring principle .

  • Page 3: Function And System Design

    Proline Promag 50H, 53H Function and system design Measuring principle Following Faraday's law of magnetic induction, a voltage is induced in a conductor moving through a magnetic field. In the electromagnetic measuring principle, the flowing medium is the moving conductor.

  • Page 4: Input

    Proline Promag 50H, 53H Input Measured variable Flow velocity (proportional to induced voltage) Measuring ranges Measuring ranges for liquids Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with the specified accuracy Operable flow range Over 1000 : 1...
  • Page 5 Proline Promag 50H, 53H Promag 53 Current output active/passive selectable, galvanically isolated, time constant selectable (0.01 to 100 s), full scale value selectable, temperature coefficient: typ. 0.005% o.r./°C (o.r. = of reading), resolution: 0.5 μA < 700 Ω (HART: R ≥...

  • Page 6: Signal On Alarm

    Proline Promag 50H, 53H FOUNDATION Fieldbus interface • FOUNDATION Fieldbus H1 • Transmission technology (Physical Layer): IEC 61158-2 (MBP), galvanically isolated • ITK version 5.01 • Current consumption: 12 mA • Error current FDE (Fault Disconnection Electronic): 0 mA • Bus connection with integrated reverse polarity protection •...

  • Page 7: Power Supply

    Proline Promag 50H, 53H Power supply Electrical connection, measuring unit b d/(g) PROFIBUS PA* HART* FOUNDATION Fieldbus* – 27 PA(–)/FF(–) + 26 PA(+)/FF(+) – – 25 + 24 – – 23 + 22 – – 21 + 20 N (L-)

  • Page 8: Electrical Connection, Terminal Assignment

    Proline Promag 50H, 53H Electrical connection, Terminal assignment, Promag 50 terminal assignment Order variant Terminal No. (inputs/outputs) 20 (+) / 21 (–) 22 (+) / 23 (–) 24 (+) / 25 (–) 26 (+) / 27 (–) 50***-***********W – –...

  • Page 9: Electrical Connection, Remote Version

    Proline Promag 50H, 53H Electrical connection, remote version 4 37 36 42 41 n.c. n.c. n.c. 4 37 42 41 A0011747 Connecting the remote version Wall-mount housing connection compartment Sensor connection housing cover Signal cable Coil current cable n.c. Not connected, insulated cable shields Terminal no.

  • Page 10: Power Consumption

    Proline Promag 50H, 53H A0003194 Signal cable Coil current cable Core Core insulation Core shield Core jacket Core reinforcement Cable shield Outer jacket Operation in zones of severe electrical interference The measuring device complies with the general safety requirements in accordance with EN 61010 and the EMC requirements of IEC/EN 61326 and NAMUR recommendation NE 21.

  • Page 11: Potential Equalization

    For this reason, with process connections without ground rings, these plastic washers/seals must not be removed, or must always be installed. • Ground rings can be ordered separately from Endress+Hauser as an accessory. Also make sure that the ground rings are compatible with the electrode material. Otherwise the danger exists that the electrodes could be destroyed by electrochemical corrosion.

  • Page 12: Performance Characteristics

    Proline Promag 50H, 53H Performance characteristics Reference operating As per DIN EN 29104 and VDI/VDE 2641: conditions • Fluid temperature: +28 °C ± 2 K (+82 °F ± 2 K) • Ambient temperature: +22 °C ±2 K (+72 °F ± 2 K) •...

  • Page 13: Operating Conditions: Installations

    Proline Promag 50H, 53H Operating conditions: Installations Installation instructions Mounting location Entrained air or gas bubble formation in the measuring tube can result in an increase in measuring errors. Avoid the following installation locations in the pipe: • Highest point of a pipeline. Risk of air accumulating! •...
  • Page 14 Proline Promag 50H, 53H Partially filled pipes Partially filled pipes with gradients necessitate a drain-type configuration. The empty pipe detection function (EPD) provides additional security in detecting empty or partially filled pipes. " Caution! Risk of solids accumulating. Do not install the sensor at the lowest point in the drain. It is advisable to install a cleaning valve.
  • Page 15 Proline Promag 50H, 53H Orientation An optimum orientation helps avoid gas and air accumulations and deposits in the measuring tube. However, the measuring device also offers the additional function of empty pipe detection (EPD) for detecting partially filled measuring tubes or if outgassing fluids or fluctuating operating pressures are present.

  • Page 16: Inlet And Outlet Run

    Proline Promag 50H, 53H Inlet and outlet run If possible, install the sensor well clear of assemblies such as valves, T-pieces, elbows etc. Note the following inlet and outlet runs to comply with measuring accuracy specifications: • Inlet run: ≥ 5 × DN •...

  • Page 17: Length Of Connecting Cable

    Proline Promag 50H, 53H Length of connecting cable When mounting the remote version, please note the following to achieve correct measuring results: • Fix cable run or lay in armored conduit. Cable movements can falsify the measuring signal especially in the case of low fluid conductivities.

  • Page 18: Operating Conditions: Environment

    Proline Promag 50H, 53H Operating conditions: Environment Ambient temperature range Transmitter • Standard: –20 to +60 °C (–4 to +140 °F) • Optional: –40 to +60 °C (–40 to +140 °F) Note! At ambient temperatures below –20 °C (–4 °F)the readability of the display may be impaired.

  • Page 19: Operating Conditions: Process

    Proline Promag 50H, 53H Operating conditions: Process Medium temperature range The permissible medium temperature depends on the sensor and the sealing material: Sensor: • DN 2 to 100 (1/12 to 4"): –20 to +150 °C (–4 to +302 °F) Seals: •...

  • Page 20: Pressure Loss

    Proline Promag 50H, 53H Flow characteristic values (US units) Diameter Recommended flow rate Factory settings Min./max. full scale value Full scale value, current output Pulse value Low flow cut off [inch] [mm] (v ~ 0.3 or 10 m/s) (v ~ 2.5 m/s) (~ 2 pulses/s) (v ~ 0.04 m/s)

  • Page 21: Mechanical Construction

    Proline Promag 50H, 53H Mechanical construction Design, dimensions Transmitter remote version, wall-mount housing (non Ex-zone and II3G/Zone 2) A0001150 Dimensions (SI units) 90.5 159.5 > 50 81.5 11.5 8 × M5 All dimensions in [mm] Dimensions (US units) 8.46 9.84 3.56...
  • Page 22 Proline Promag 50H, 53H Transmitter remote version, connection housing (II2GD/Zone 1) Nicht-eigensichere Stromkreise durch IP40-Abdeckung geschützt Non-intrinsically safe circuits Ip40 protected Boucles de courant sans sécurité intrinsèque protégées par Ip40 A0002128 Dimensions (SI units) Ø F (M8) All dimensions in [mm] Dimensions (US units) Ø...
  • Page 23 Proline Promag 50H, 53H There is a separate mounting kit for the wall-mounted housing. It can be ordered from Endress+Hauser as an accessory. The following installation variants are possible: • Panel-mounted installation • Pipe mounting Installation in control panel +0.5 (+0.019) –0.5 (–0.019)
  • Page 24 Proline Promag 50H, 53H Compact version, aluminum field housing DN 2 to 25 (1/12 to 1") A0005426 Dimensions in SI units 2.25 M6 × 4 Total length depends on the process connections. All dimensions in [mm] Dimensions in US units 1/12"...
  • Page 25 Proline Promag 50H, 53H Compact version, stainless-steel field housing DN 2 to 25 (1/12 to 1") A0005427 Dimensions in SI units 2.25 M6 × 4 Total length depends on the process connections. All dimensions in [mm] Dimensions in US units 1/12"...
  • Page 26 Proline Promag 50H, 53H Sensor, remote version DN 2 to 25 (1/12 to 1") A0005536 Dimensions in SI units 2.25 M6 × 4 16.0 26.0 Total length depends on the process connections. All dimensions in [mm] Dimensions in US units 1/12"...
  • Page 27 Proline Promag 50H, 53H Sensor, front view (without process connections) DN 2 to 25 (1/12 to 1") E – E – A0008190 Dimensions in SI units 41.6 50.2 All dimensions in [mm] Dimensions in US units 1/12" 0.35 1/8" 0.35 2.44...
  • Page 28 Proline Promag 50H, 53H Sensor, wall mounting kit DN 2 to 25 (1/12 to 1") A0005537 Dimensions in mm (inch) Ø D 125 (4.92") 88 (3.46") 120 (4.72") 7 (0.28") 110 (4.33") 140 (5.51") Endress+Hauser...
  • Page 29 Proline Promag 50H, 53H Process connections with O-ring seal (DN 2 to 25 / 1/12 to 1") Weld socket for DIN Sensor Fits to H × B 1.4404 / 316L Piping 5*H**-B*********** [mm] DIN EN ISO 1127 [mm] [mm] [mm]...
  • Page 30 Proline Promag 50H, 53H Flange Sensor Fits to H × B 20K / JIS B2220; 1.4404 / 316L Flange 5*H**-F*********** [mm] B2220 [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 ND 15 62 × 42 ND 15 62 × 42...
  • Page 31 Proline Promag 50H, 53H Flange Sensor Fits to H × B 10K / JIS B2220; PVDF Flange 5*H**-J*********** [mm] B2220 [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 ND 15 62 × 42 ND 15 62 × 42 25 (DIN) ND 25 27.2...
  • Page 32 Proline Promag 50H, 53H Adhesive fitting Sensor Fits to H × B Pipe 5*H**-R/S*********** [mm] [mm] [inch] [mm] [mm] [mm] [mm] 2 to 8 ½" [inch] 21.5 27.3 38.5 62 × 42 2 to 8 20 × 2 [mm] 20.2 27.0...
  • Page 33 Proline Promag 50H, 53H Clamp DIN 32676 Sensor Fits to H × B 1.4404 / 316L Piping 5*H**-0*********** [mm] DIN 11850 [mm] [mm] [mm] [mm] 2 to 8 Tube 14 × 2 34.0 41.0 62 × 42 (DN 10) Tube 20 × 2 34.0...
  • Page 34 Proline Promag 50H, 53H Flange DIN 11864-2 Sensor Fits to H × B Aseptic grooved flange, Form A 1.4404 / 316L Piping 5*H**-4*********** [mm] DIN 11850 [mm] [mm] [mm] [mm] [mm] [mm] 2 to 8 Tube 13 × 1.5 48.5 62 ×...
  • Page 35 Proline Promag 50H, 53H Process connections orderable only as accessories with aseptic gasket seal (DN 15) Tri-Clamp L14 AM17 Sensor Fits to H × B 1.4404 / 316L Piping DKH**-HF** [mm] [mm] [mm] [mm] [mm] Tube 25.4 × 1.65 22.1 50.4...
  • Page 36 Proline Promag 50H, 53H Compact version, aluminum field housing DN 40 to 100 (1½ to 4") A0005425 Dimensions in SI units M8 × 4 35.3 M8 × 4 48.1 M8 × 6 59.9 M12 × 4 72.6 M12 × 6 97.5...
  • Page 37 Proline Promag 50H, 53H Compact version, stainless-steel field housing DN 40 to 100 (1½ to 4") A0005428 Dimensions in SI units M8 × 4 35.3 M8 × 4 48.1 M8 × 6 59.9 M12 × 4 72.6 M12 × 6 97.5...
  • Page 38 Proline Promag 50H, 53H Sensor, remote version DN 40 to 100 (1½ to 4") A0005535 Dimensions in SI units 64.5 151.5 M8 × 4 35.3 77.0 164.0 M8 × 4 48.1 77.0 164.0 M8 × 6 59.9 101.5 188.5 M12 × 4 72.6...
  • Page 39 Proline Promag 50H, 53H Sensor, front view (without process connections) DN 40 to 100 (1½ to 4") Z–Z A0005528 Dimensions in SI units ±0.5° ±0.5° 90° 60° Threaded holes 71.0 51.0 35.3 – 83.5 63.5 48.1 – 100.0 76.1 59.9 –...
  • Page 40 Proline Promag 50H, 53H Process connections with aseptic gasket seal DN 40 to 100 (1½ to 4") Weld socket for DIN Sensor Fits to 1.4404 / 316L Piping 5*H**-U*********** [mm] DIN 11850 [mm] [mm] [mm] [mm] [mm] [mm] 42 × 2 38.0...
  • Page 41 Proline Promag 50H, 53H Clamp DIN 32676 Sensor Fits to 1.4404 / 316L Piping 5*H**-0*********** [mm] DIN 11850 [mm] [mm] [mm] [mm] [mm] 42 × 2 50.5 61.5 71.0 54 × 2 64.0 61.5 83.5 70 × 2 91.0 68.0 100.0...
  • Page 42 Proline Promag 50H, 53H Flange DIN 11864-2 Sensor Fits to LK 1 LK 2 Aseptic flat flange, Form A 1.4404 / 316L Piping 5*H**-4*********** [mm] DN 11850 [mm] [mm] [mm] [mm] [mm] [mm] 42 × 2 71.0 54 × 2 83.5...

  • Page 43: Weight

    Proline Promag 50H, 53H Weight Nominal diameter Compact version (DIN) Remote version (without cable; DIN) Sensor Transmitter (wall-mount housing) [mm] [inch] [kg] [lbs] [kg] [lbs] [kg] [lbs] 1/12" 11.5 1/8" 11.5 3/8" 11.7 ½" 11.9 1" 12.1 1½" 14.3 2"...

  • Page 44: Material

    Proline Promag 50H, 53H Material • Transmitter housing: – Compact housing: powder coated die-cast aluminium or stainless-steel field housing (1.4301/304) – Wall-mounted housing: powder coated die-cast aluminium • Sensor housing: stainless steel 1.4301/304 • Wall mounting kit (holder panel): 1.4301/304 •...
  • Page 45 Proline Promag 50H, 53H Weld socket to DIN 11850, ODT/SMS; Clamp (ISO 2852, DIN 32676, L14 AM7); coupling (DIN 11851, DIN 11864-1, ISO 2853, SMS 1145), flange DIN 11864-2 Material: 1.4404 / 316L (with moulded seal) [psi] [bar] PN 16 -60 -40 -20 20 40 60 80 100 120 140 160 180 [°C]...

  • Page 46: Fitted Electrodes

    Proline Promag 50H, 53H Flange connection to JIS B2220 Material: 1.4404 / 316L, PVDF [psi] [bar] 20K (1.4404 / 316L) 10K (PVDF) -60 -40 -20 20 40 60 80 100 120 140 160 180 [°C] 360 [°F] A0005599 Fitted electrodes Measuring electrodes and empty pipe detection electrodes •...

  • Page 47: Human Interface

    Equipment Directive 97/23/EC. Ex approval Information about currently available Ex versions (ATEX, FM, CSA etc.) can be supplied by your Endress+Hauser Sales Center on request. All explosion protection data are given in a separate documentation which is available upon request. Endress+Hauser...

  • Page 48: Sanitary Compatibility

    Proline Promag 50H, 53H Sanitary compatibility • 3A approval and EHEDG-tested • Seals → conform to FDA (apart from Kalrez seals) Other standards and • EN 60529 guidelines Degrees of protection by housing (IP code) • EN 61010 Protection Measures for Electrical Equipment for Measurement, Control, Regulation and Laboratory Procedures.

  • Page 49: Ordering Information

    Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Your Endress+Hauser service organization can provide detailed information on the order codes in question. Documentation • Flow Measurement (FA005D/06) •...
  • Page 50 Proline Promag 50H, 53H Endress+Hauser...
  • Page 51 Proline Promag 50H, 53H Endress+Hauser...
  • Page 52 Instruments International Endress+Hauser Instruments International AG Kaegenstrasse 2 4153 Reinach Switzerland Tel. +41 61 715 81 00 Fax +41 61 715 25 00 www.endress.com info@ii.endress.com TI048D/06/en/05.10 71114592 FM+SGML6.0 ProMoDo...
