TI 046D/24/ae
Electromagnetic
Flow Measuring System

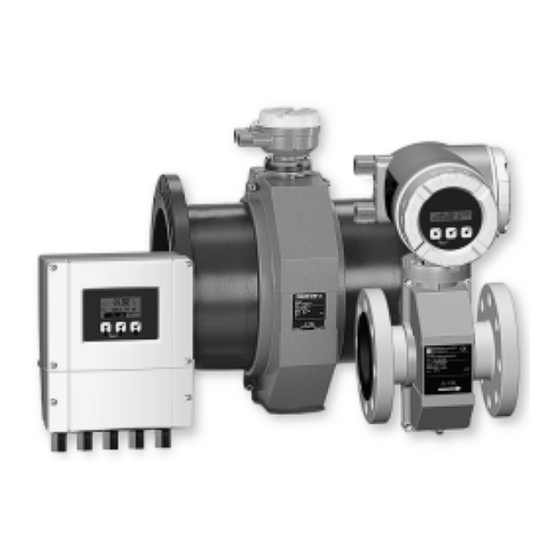

PROline promag 50/53 W
Flow measurement in
water or wastewater applications
Features and benefits
•
Nominal diameters 1" to 78"
•
Hard rubber or polyurethane liners
•
PFA for high-temperature applica-
tions up to +355°F (+180°C)
•
Fitting lengths to ISO and DVGW
•
High measuring accuracy for
improved process control:
– Promag 50: ± 0.5%
(option: ± 0.2%)
– Promag 53: ± 0.2%
•
Robust field housing, NEMA 4X
(IP 67)
•
NEMA 4X (IP 67) wall-mount housing
for straight-forward installation of the
remote version
•
NEMA 6P (IP 68) sensor version
•
Promag 53 with Touch Control:
operation without opening the
housing - also for explosion proof
applications
•
Expandable software packages:
–
electrode cleaning
–
pulsating flow
•
Quick setup menus for straight-
forward commissioning in the field
•
Potable-water approvals:
KTW, WRC, etc.
•
Interfaces for integration into all
major process-control systems:
–
®
HART
interface as standard
–
Promag 50: PROFIBUS-PA
–
Promag 53: PROFIBUS-PA/-DP,
FOUNDATION fieldbus
•
Explosion proof approval for
installation in Division 1 (FM, CSA,
ATEX, etc.)
Application
All fluids with a minimum conductivity of
≥ 5 µS/cm can be measured:
•
Drinking water
•
Wastewater
•
Wastewater sludge, etc.
A minimum conductivity of ≥ 20 µS/cm is
required for measuring demineralized
water.
Liner specific applications
•
Polyurethane lining for applications
with cold water and for slightly
abrasive fluids
•
Hard rubber lining for all applications
with water (especially for drinking
water)
The Power of Know How
Advertisement
Table of Contents
Related Manuals for Endress+Hauser PROline promag 50 w
Summary of Contents for Endress+Hauser PROline promag 50 w
- Page 1 Electromagnetic Technical Information Flow Measuring System TI 046D/24/ae PROline promag 50/53 W Flow measurement in water or wastewater applications Features and benefits • Interfaces for integration into all • Nominal diameters 1” to 78” major process-control systems: • Hard rubber or polyurethane liners –...
-
Page 2: Measuring Principle
Remote version: transmitter and sensor are installed separately. Transmitter: • Promag 50 (user interface with push buttons for operation, two-line display) • Promag 53 (“Touch Control” without opening the housing, four-line display) Sensor: • Promag W, 1” to 78” (DN 25 to 2000) Endress+Hauser... -
Page 3: Measured Variable
Function blocks: 1 x Analog Input, 1 x Totalizer • Output data: Volume flow, Totalizer • Input data: Positive zero return (ON/OFF), Control totalizer, Value for local display • Bus address adjustable via DIP switches at the measuring device Endress+Hauser... - Page 4 Function blocks: 5 x Analog Input, 1 x Discrete Output, 1 x PID • Output data: Volume flow, Corrected volume flow, Totalizer 1 to 3 • Input data: Positive zero return (ON/OFF), Reset totalizer • Link Master (LM) functionality is supported Endress+Hauser...
-
Page 5: Signal On Alarm
Configurable for: error messages, Empty Pipe Detection (EPD), flow direction, limit values, batching contacts Low flow cutoff Switch points for low flow cutoff are selectable Galvanic isolation All circuits for inputs, outputs, and power supply are galvanically isolated from each other. Endress+Hauser... -
Page 6: Power Supply
Signal cable: terminals No. 20 to 27 ´® see Page 8 Grounding terminal for protective conductor Grounding terminal for signal-cable shield Service connection for connecting service interface FXA 193 (FieldCheck, ToF Tool-Field Tool Package) Cover for wiring compartment Cover securing clamp Endress+Hauser... - Page 7 DP (A) = RxD/TxD-N; DP (B) = RxD/TxD-P Grounding terminal for protective conductor Grounding terminal for signal-cable shield Service connector for connecting service interface FXA 193 (FieldCheck, ToF Tool-Field Tool Package) Cover for connection compartment Cable for external termination (PROFIBUS only) Cover securing clamp Endress+Hauser...
- Page 8 Frequency output Current output ® 1 HART 53***-***********4 Current input Relay output Frequency output Current output HART ® 53***-***********5 Status input Current input Frequency output Current output HART ® Ground connection, power supply → refer to illustration on top of page 6 Endress+Hauser...
-
Page 9: Electrical Connection Remote Version
= signal cable, b = coil current cable (maximum 16 AWG (2.5 mm 1 = Core 5 = Core strengthening 2 = Core insulation 6 = Cable shield 3 = Core shield 7 = Outer jacket 4 = Core jacket Endress+Hauser... -
Page 10: Supply Voltage
Promag 50/53 W Endress+Hauser optionally supplies reinforced connecting cables with an additional metal braid. We recommend such cables for the following cases: • Underground laid cables • Danger of rodent attack • Device used with NEMA 6P (IP 68) ingress protection... - Page 11 When using ground disks, not the following points: • Ground disks (1” to 12”) can be ordered from Endress+Hauser as an accessory • Ground disks (including seals) increase the installation length. Refer to the disk dimensions on page 22.
-
Page 12: Reference Conditions
Current output: plus typically ± 5 µA Supply-voltage fluctuations have no effect within the specified range. 0.5 % 0.2 % (10) v ft/s (m/s) Measured error in [%] of reading Repeatability ± 0.1% o.r. ± 0.5 mm/s (o.r. = of reading) Endress+Hauser... -
Page 13: Installation Instructions
Caution: To avoid the risk of solids accumulating, do not install the sensor at the lowest point in the drain. It is advisable to install a cleaning valve. ³ 2 x D ³ 5 x D Endress+Hauser... -
Page 14: Vertical Pipes
Otherwise, there is no guarantee that Empty Pipe Detection will respond if the measuring tube is only partially filled or empty. 1 = EPD electrode (Empty Pipe Detection) 2 = Measuring electrodes (signal detection) 3 = Reference electrode (potential equalization) Endress+Hauser... -
Page 15: Inlet And Outlet Runs
2 x D Adapters With the help of the appropriate adapters (reducers and expanders) the sensor can be mounted in a pipeline of a larger diameter. For slowly flowing fluids, the resulting higher velocity increases the measuring accuracy. max. 4° Endress+Hauser... -
Page 16: Ambient Temperature
Standard: NEMA 4X (IP 67) for transmitter and sensor • Optional: NEMA 6P (IP 68) for Promag W sensor, remote version Shock and vibration resistance Acceleration up to 2 g in accordance with IEC 68-2-6 Electromagnetic compatibility (EMC) To EN 61326 and NAMUR recommendation NE 21 Endress+Hauser... -
Page 17: Process Conditions
Pressure tightness (liner) Size Measuring Resistance to partial vacuum of measuring tube lining tube limit values for abs. pressure (psia) at various lining fluid temperatures 75°F 160°F 175°F 212°F 265°F 300°F 355°F 1” to 40” Polyurethane 3” to 78” Hard rubber Endress+Hauser... -
Page 18: Flow Limit
As a rule, the pipeline diameter determines the sensor diameter. With a known flowrate and the help of the Endress+Hauser Flow Applicator, the best size can be selected. Generally, a velocity range of 6 to 10 ft/sec should be selected. -
Page 19: Mechanical Construction
Promag 50/53 W Mechanical construction Dimensions / mounting details Wall mounted housing Weight: 13 lbs (6 kg) NOTE: A mounting kit (for panel or post mounting) is available from Endress+Hauser. Please refer to Accessories. 6.27" (159.5) 9.84" (250) 3.56" (90.5) 3.54"... - Page 20 2600 104.3 2650.5 55.6 1412.5 48.7 1238 97.5 2476 68.2 1732 4600 NOTE: The fitting length (L) is always the same, regardless of the pressure rating. * Weight data valid for 150 lb ANSI and AWWA Class D versions. Endress+Hauser...
- Page 21 2600 2595.5 53.4 1357.5 48.7 1238 97.5 2476 68.2 1732 10,137 4598 NOTE: The fitting length (L) is always the same, regardless of the pressure rating * Weight data valid for 150 lb ANSI and AWWA Class D versions Endress+Hauser...
- Page 22 ANSI: A105 CS (< 14” with Al/Zn protective coating; > 12” with Amerlock 400 paint) or 316L SS • AWWA: A36 Electrodes: • Standard, 316L SS; optional Alloy C-22, tantalum Seal: • Seals to DIN 2690 Ground disks (accessory): • 316L SS or Alloy C-22 Endress+Hauser...
-
Page 23: Material Load Diagrams
Flange, 316L SS, ANSI B16.5 [bar] [psi] Class 300 Class 150 [°F] 160 [°C] Flange, A105 CS, ANSI B16.5 [psi] [bar] Class 300 Class 150 [°F] 160 [°C] Flange, A105 CS, to AS2129 Table E [psi] [bar] [°F] 160 [°C] Endress+Hauser... -
Page 24: Human Interface
Quick Setup menus for straightforward commissioning Promag 53: • Local operation with Touch Control (-, +, E) • Application specific Quick Setup menus for straightforward commissioning Remote operation Promag 50; remote operation via HART®, PROFIBUS-PA Promag 53; remote operation via HART®, PROFIBUS-PA/DP, FOUNDATION fieldbus Endress+Hauser... -
Page 25: Certificates And Approvals
(FM, CSA, ATEX, etc.) is available on request from Endress+Hauser. All information relevant to explosion protection is available in separate documentation. CE mark By attaching the CE mark, Endress+Hauser confirms that the instrument fulfills all the requirements of the relevant EC directives. Pressure equipment directive Flow meters with a nominal diameter smaller or equal to 1”... -
Page 26: Ordering Information
For use in nonhazardous areas FM explosion proof Class I, Div. 1 / CSA Class I, Div. 1 (only for aluminum field housing, compact version, not for 14” and larger sensors) FM non-incendive Class I, Div. 2 / CSA Class I, Div. 2 Endress+Hauser... - Page 27 For use in nonhazardous areas FM explosion proof Class I, Div. 1 / CSA Class I, Div. 1 (only for aluminum field housing, compact version, not for 12” and larger sensors) FM non-incendive Class I, Div. 2 / CSA Class I, Div. 2 Endress+Hauser...
- Page 28 (only for approvals A or R) -40°F (-40°C) ambient temperature, NEMA 4X / compact SS housing for transmitter (only for approvals A or R) -40°F (-40°C) ambient temperature, NEMA 4X / remote wall mount housing for transmitter (only for approvals A or R) Other Endress+Hauser...
- Page 29 (only for approvals A or R) -40°F (-40°C) ambient temperature, NEMA 4X / compact SS housing for transmitter (only for approvals A or R) -40°F (-40°C) ambient temperature, NEMA 4X / remote wall mount housing for transmitter (only for approvals A or R) Other Endress+Hauser...
- Page 30 Promag 50/53 W Accessories Various accessories, which can be ordered from Endress+Hauser, are available for the transmitter and the sensor. Contact your local representative or Endress+Hauser for detailed information. Promag 50/53 field housing mounting kit DK8WM - Transmitter type Panel/wall/pipe mount (2” pipe) hardware...
-
Page 31: Supplemental Documentation
Promag 50/53 P Technical Information (TI 047D/24/ae) Promag 50/53 H Technical Information (TI 048D/24/ae) Promag 50 Operating Instructions (BA 046D/06/en and BA 049D/06/en) Promag 53 Operating Instructions (BA 047D/06/en and BA 048D/06/en) Hazardous Area Approvals Documentation (FM, CSA, ATEX, etc.) Endress+Hauser... - Page 32 Col. Jardines del Pedregal Phone: (317) 535-7138 Phone: (905) 681-9292 01900, Mexico D.F. 888-ENDRESS 800-668-3199 Mexico FAX: (317) 535-8498 FAX: (905) 681-9444 Phone: (525) 568-2405 FAX: (525) 568-7459 Endress+Hauser The Power of Know How TI 046D/24/ae/05.04 © 2004 Endress+Hauser, Inc.
