Page 1: Command Reference

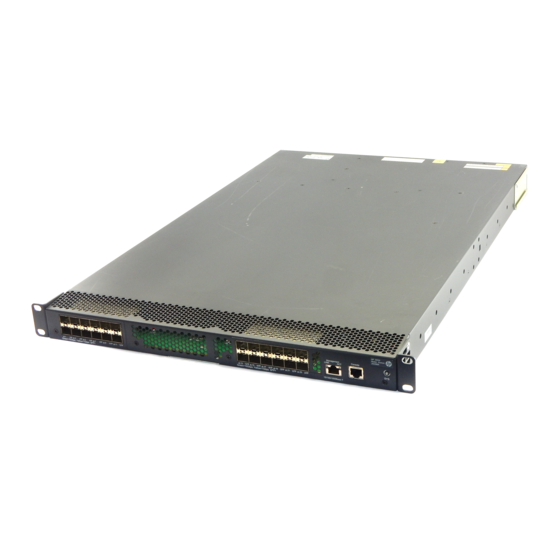

HP 5920 & 5900 Switch Series FC and FCoE Command Reference Part number: 5998-6629 Software version: Release 2416 Document version: 6W100-20150130...
Page 2 The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
Page 3: Table Of Contents
Contents FC and FCoE commands ············································································································································· 1 FCoE mode commands ····················································································································································· 1 display fcoe-mode ···················································································································································· 1 fcoe-mode ·································································································································································· 1 FC interface commands ···················································································································································· 3 bandwidth ································································································································································· 3 default ········································································································································································ 3 description ································································································································································· 4 ...
Page 4 port access vsan ···················································································································································· 46 port trunk mode ····················································································································································· 47 port trunk vsan ······················································································································································· 48 vsan ········································································································································································· 49 Fabric building commands ············································································································································ 49 allowed-domain-id ················································································································································· 49 display fc domain ·················································································································································· 50 display fc domain-list ············································································································································ 52 ...
Page 5 fspf spf-hold-time ···················································································································································· 96 reset fspf counters ·················································································································································· 96 FC zone commands ······················································································································································· 97 delete zone database all ······································································································································ 97 display zone ·························································································································································· 97 display zone member ··········································································································································· 99 display zone statistics ········································································································································· 101 ...
Page 6 ···································································································································································· 151 FC tracert commands ··················································································································································· 152 fctracert ································································································································································· 152 Support and other resources ·································································································································· 155 Contacting HP ······························································································································································ 155 Subscription service ············································································································································ 155 Related information ······················································································································································ 155 Documents ···························································································································································· 155 ...
Page 7: Fc And Fcoe Commands
FC and FCoE commands Only the HP FlexFabric 5900CP-48XG-4QSFP+ Switches (JG838A) and HP StoreFabric 5900CP-48XG-4QSFP+8Gb FC B-fan Trays Converged Switches (E7W29A) support FC commands. FCoE mode commands display fcoe-mode Use display fcoe-mode to display the FCoE mode of the switch.
Page 8 Default A switch operates in non-FCoE mode and does not provide any FC or FCoE capabilities. Views System view Predefined user roles network-admin Parameters fcf: Specifies the FCF mode. npv: Specifies the NPV mode. transit: Specifies the Transit mode. Usage guidelines The switch supports the following FCoE modes: FCF mode—A switch operating in this mode is called an FCF switch.
Page 9: Fc Interface Commands
<Sysname> system-view [Sysname] fcoe-mode fcf # Convert the switch operating in FCF mode to NPV mode. [Sysname] undo fcoe-mode All current FC configuration will be lost. Continue? [Y/N]:y [Sysname] fcoe-mode npv Related commands display fcoe-mode FC interface commands bandwidth Use bandwidth to configure the expected bandwidth of an FC interface. Use undo bandwidth to restore the default.
Page 10: Description
Views FC interface view Predefined user roles network-admin Usage guidelines CAUTION: The default command might interrupt ongoing network services. Make sure you are fully aware of the impacts of this command when you perform it on a live network. This command might fail to restore the default settings for some commands for reasons such as command dependencies or system restrictions.
Page 11: Display Interface Fc
display interface fc Use display interface fc to display FC interface information. Syntax display interface [ fc ] [ brief [ down ] ] display interface [ fc [ interface-number ] ] [ brief [ description ] ] Views Any view Predefined user roles network-admin network-operator...
Page 12 EVFP common VSAN : 1 Media type is optical fiber,Port hardware type is 16G_FC_SW_SFP Port priority: 0 4Gbps-speed mode, Link speed type is autonegotiation, Flow-control is enabled The Maximum Frame Length is 10000 Last clearing of counters: Never Peak value of input: 32 bytes/sec, at 2014-12-12 12:26:02 Peak value of output: 32 bytes/sec, at 2014-12-12 12:25:41 Last 300 seconds input: 0 packets/sec 9 bytes/sec 0%...
Page 13 Field Description Fill word mode of the FC interface: • Fill word idle-idle. • idle-arbff. FC mode Mode of the FC interface. state Operating mode of the FC interface through negotiation. BB_Credit value of the local end. Transmit B2B Credit This field is displayed only after the link comes up.
Page 14 Field Description Total numbers of frames and bytes received on the FC interface, including normal frames, error frames, and pause frames. • unicasts—Number of frames received that are destined to unicast Input (total): 142 packets, 13596 addresses. bytes • broadcasts—Number of frames received that are destined to 142 unicasts, 0 broadcast addresses.
Page 15 Field Description Total number of illegal incoming frames: • Fragment frames—CRC error frames shorter than 64 bytes. The length (in bytes) can be an integral or non-integral value. • Jabber frames—CRC error frames larger than the maximum frame allowed size on the FC interface (with an integral or non-integral length).
Page 16 Field Description Total number of frames that are not successfully sent for various reasons, aborts for example, collisions. Number of frames that are delayed for transmission because collisions are deferred detected before they are sent. Number of frames that the FC interface stopped transmitting because collisions collisions were detected during transmission.
Page 17 Field Description Negotiated mode (link layer negotiation) in which the FC interface is operating: • E—The FC interface is operating in E mode as an access port. • F—The FC interface is operating in F mode as an access port. •...
Page 18: Fc Mode (Fc Interface View)
Field Description Physical link state of the interface: • UP—The interface is physically up. • DOWN—The interface is physically down. Link • ADM—The interface has been administratively shut down. To bring up the interface, execute the undo shutdown command. • Stby—The interface is a standby interface.
Page 19: Fcb2Bcredit
[Sysname-Fc1/0/1] fc mode e fcb2bcredit Use fcb2bcredit to configure the Buffer-to-Buffer Credit (BB_ Credit) value for an FC interface. Use undo fcb2bcredit to restore the default. Syntax fcb2bcredit credit-value undo fcb2bcredit Default The BB_Credit value for an FC interface is 15. Views FC interface view Predefined user roles...
Page 20: Interface Fc
Predefined user roles network-admin Parameters idle-arbff: Specifies the idle-arbff mode. This mode uses the idle primitive signal in the link initialization phase and uses the ARBff primitive signal as the fill word. idle-idle: Specifies the idle-idle mode. This mode uses the idle primitive signal in the link initialization phase and uses the idle primitive signal as the fill word.
Page 21: Port-Type
port-type Use port-type to change a Layer 2 Ethernet interface to an FC interface or change an FC interface back to a Layer 2 Ethernet interface. Syntax In Layer 2 Ethernet interface view: port-type fc In FC interface view: port-type ethernet Default A Layer 2 Ethernet interface is not changed to an FC interface.
Page 22: Shutdown
Views User view Predefined user roles network-admin Parameters interface-number: Specifies an FC interface by its number. Usage guidelines Use this command to clear history statistics if you want to collect traffic statistics for a specific time period. If you do not specify the fc keyword, this command clears statistics for all interfaces. If you specify the fc keyword, this command clears statistics for all FC interfaces.
Page 23: Vfc Interface Commands
Use undo speed to restore the default. Syntax speed { 1000 | 2000 | 4000 | 8000 | 16000 | auto } undo speed Default The rate of an FC interface is autonegotiated. Views FC interface view Predefined user roles network-admin Parameters 1000: Configures the interface rate as 1000 Mbps.
Page 24: Bind Interface
Views VFC interface view Predefined user roles network-admin Parameters bandwidth-value: Specifies the expected bandwidth in the range of 1 to 400000000 kbps. Usage guidelines The expected bandwidth determines the cost of the interface, which is used for route calculation. By default, the baud rate of a VFC interface is 10 Gbps. Examples # Set the expected bandwidth of interface VFC 1 to 50 kbps.
Page 25 Usage guidelines To make a VFC interface work, bind it to a physical Ethernet interface. The VFC interface sends and receives packets through the Ethernet interface bound to it. To use one physical link to carry multiple VFC interfaces, you must bind these VFC interfaces to different peer FCoE MAC addresses.
Page 26: Default
<Sysname> system-view [Sysname] interface vfc 4 [Sysname-Vfc4] bind interface ten-gigabitethernet 1/0/1 mac 000c-2999-eacd # Bind interface VFC 5 to interface Bridge-aggregation 1 and FCoE MAC address 000c-2888-eacd. <Sysname> system-view [Sysname] interface vfc 5 [Sysname-Vfc5] bind interface bridge-aggregation 1 mac 000c-2888-eacd # Bind interface VFC 6 to interface S-Channel 1/0/1:10 and FCoE MAC address 000c-2999-eacd.
Page 27: Description
This command will restore the default settings. Continue? [Y/N]:y description Use description to configure a description for a VFC interface. Use undo description to restore the default. Syntax description text undo description Default The description of an interface is interface name Interface, for example, Vfc 1 Interface. Views VFC interface view Predefined user roles...
Page 28 Parameters interface-number: Specifies a VFC interface by its number in the range of 1 to 1024. brief: Displays brief information about interfaces. If you do not specify this keyword, the command displays detailed information about interfaces. description: Displays complete interface descriptions. down: Displays information about the interfaces in physically down state and the causes.
Page 29 Field Description FC mode Mode of the VFC interface. state Operating mode of the VFC interface through negotiation. Support the VSAN protocol Indicates the VFC interface supports the VSAN protocol. Link type of the interface: Trunk (Tagging) or Access (Non tagging).
Page 30 Field Description Negotiated mode (link layer negotiation) in which the VFC interface is operating: • E—The VFC interface is operating in E mode as an access port. • F—The VFC interface is operating in F mode as an access port. •...
Page 31: Fc Mode (Vfc Interface View)
Field Description Causes for the physical state of the VFC interface to be Down: • Not connected—No physical connection exists (possibly because the network cable is disconnected or faulty). Cause • Administratively—The port was shut down by using the shutdown command.
Page 32: Reset Counters Interface
undo interface vfc interface-number Default No VFC interface exists. Views System view Predefined user roles network-admin Parameters interface-number: Specifies the number of the VFC interface, in the range of 1 to 1024. Usage guidelines A VFC interface is a logical interface manually created on the FCF switch to simulate the function of a physical FC interface.
Page 33: Shutdown
<Sysname> reset counters interface vfc 1 Related commands display interface vfc shutdown Use shutdown to shut down a VFC interface. Use undo shutdown to bring up a VFC interface. Syntax shutdown undo shutdown Default A VFC interface is up. Views VFC interface view Predefined user roles network-admin...
Page 34: Default
Parameters bandwidth-value: Specifies the expected bandwidth in the range of 1 to 400000000 kbps. Usage guidelines The baud rate of an FC aggregate interface is the sum of the speed of each Selected member interface in the FC aggregation group. The expected bandwidth of an FC aggregate interface affects the link costs in FSPF.
Page 35: Display Interface San-Aggregation
Syntax description text undo description Default The description of an FC aggregate interface is interface name Interface, for example, SAN-Aggregation3 Interface. Views FC aggregate interface view Predefined user roles network-admin Parameters text: Specifies the interface description, a case-sensitive string of 1 to 255 characters. Examples # Configure the description as SAGG-interface for FC aggregate interface 3.
Page 36 Usage guidelines If you do not specify the san-aggregation keyword, this command displays information about all interfaces supported by the switch. If you specify the san-aggregation keyword, this command displays information about all FC aggregate interfaces. If you specify an FC aggregate interface, this command displays information about the specified FC aggregate interface.
Page 37 Admin Mode: auto - auto; E - e port; F - f port; NP - n port proxy Oper Mode: E - e port; F - f port; NP - n port proxy; TE - trunking e port; TF - trunking f port; TNP - trunking n port proxy Interface VSAN Admin Admin Oper Oper...
Page 38: Display San-Aggregation
Interface Description SAGG1 SAN-Aggregation1 Interface SAGG2 SAN-Aggregation2 Interface # Display information about the FC aggregate interfaces in physically down state and the causes. <Sysname> display interface san-aggregation brief down Brief information on interface(s) under bridge mode: Link: ADM - administratively down; Stby - standby Interface Link Cause SAGG3...
Page 39 Parameters verbose: Displays detailed information about FC aggregation groups. If you do not specify this keyword, the command displays brief information about the FC aggregation groups. interface san-aggregation interface-number: Specifies an FC aggregate interface by its number. The value range for the interface-number argument is 1 to 1024. If you do not specify an FC aggregate interface, this command displays information about all FC aggregation groups corresponding to existing FC aggregate interfaces.
Page 40 Selected port number : 1 Member port State Mode Speed Selected Fc1/0/1 2Gbps Fc1/0/2 1Gbps Interface SAN-Aggregation2: State : DOWN Mode : N/A Speed : N/A Member port number Selected port number : 0 Member port State Mode Speed Selected Fc1/0/3 DOWN Fc1/0/4...
Page 41: Fc Mode (Fc Aggregate Interface View)
Match criteria Description Operating mode of the member interface: • E—E mode. • F—F mode. Mode • NP—NP mode. When the member interface is down at the link layer, a hyphen (-) is displayed for this field. Speed of the member interface. When the member interface is down at the link Speed layer, a hyphen (-) is displayed for this field.
Page 42: Interface San-Aggregation
[Sysname-SAN-Aggregation3] fc mode e interface san-aggregation Use interface san-aggregation to create an FC aggregate interface and enter its view. If the FC aggregate interface already exists, this command leads you to the FC aggregate interface view directly. Syntax interface san-aggregation interface-number undo interface san-aggregation interface-number Default No FC aggregate interfaces exist.
Page 43: San-Aggregation Group
If you do not specify the san-aggregation keyword, this command clears statistics for all interfaces. If you specify the san-aggregation keyword, this command clears statistics for all FC aggregate interfaces. If you specify an FC aggregate interface, this command clears statistics for the specified FC aggregate interface.
Page 44: San-Aggregation Load-Sharing Mode Local-First
terface will be lost. Continue? [Y/N]:y Related commands display san-aggregation san-aggregation load-sharing mode local-first Use san-aggregation load-sharing mode local-first to enable local-first load sharing. Use undo san-aggregation load-sharing mode local-first to disable local-first load sharing. Syntax san-aggregation load-sharing mode local-first undo san-aggregation load-sharing mode local-first Default Local-first load sharing is enabled.
Page 45: Fcoe Commands
Syntax shutdown undo shutdown Default An FC aggregate interface is up. Views FC aggregate interface view Predefined user roles network-admin Examples # Bring up FC aggregate interface 3. <Sysname> system-view [Sysname] interface san-aggregation 3 [Sysname-SAN-Aggregation3] undo shutdown FCoE commands display fcoe Use display fcoe to display global FCoE configuration.
Page 46: Fcoe Enable
Field Description Interval at which a VFC interface sends Discovery Solicitations FKA period and unsolicited Discovery Advertisements. Related commands fcoe fcmap • fcoe fka-adv-period • • fcoe global fcf-priority fcoe enable Use fcoe enable to enable FCoE for a VLAN and map the VLAN to a VSAN. Use undo fcoe enable to disable FCoE for the VLAN.
Page 47: Fcoe Fcf-Priority
All member ports in an FCoE-capable VLAN are isolated and will not form loops. For this reason, • you do not need to enable STP or other loop detection protocols in an FCoE-capable VLAN. Otherwise, FCoE links might be blocked. •...
Page 48: Fcoe Fcmap
fcoe fcmap Use fcoe fcmap to configure an FC-MAP value. Use undo fcoe fcmap to restore the default. Syntax fcoe fcmap fc-map undo fcoe fcmap Default The FC-MAP value is 0x0EFC00. Views System view Predefined user roles network-admin Parameters fc-map: Specifies an FC-MAP value in the range of 0x0EFC00 to 0x0EFCFF. Usage guidelines An FC-MAP value identifies an FCoE network.
Page 49 Parameters fka-adv-period: Specifies an FKA advertisement interval value in the range of 4 to 600 seconds. Usage guidelines The FKA advertisement interval determines the length of time the switch takes to detect the disconnection of a virtual link. The FKA advertisement interval defines the interval for a switch to send unsolicited Discovery Advertisements to its peer switches or ENodes.
Page 50: Fcoe Global Fcf-Priority
Recommended Application scenarios Remarks value Active/standby switchover on the switch takes more than 2.5 x 60 seconds because of the amount of FCoE configuration. For more information about ISSU, see Fundamentals 60–90 seconds ISSU reboot on an IRF member Configuration Guide. switch with subordinate switches takes more than 2.5 x 60 seconds because of the...
Page 51: Vsan Commands
Examples # Configure the system FCF priority as 12. <Sysname> system-view [Sysname] fcoe global fcf-priority 12 VSAN commands display vsan port-member Use display vsan port-member to display the member interfaces of a VSAN. Syntax display vsan [ vsan-id ] port-member Views Any view Predefined user roles...
Page 52: Port
Fc1/0/4 Fc1/0/5 Fc1/0/6 port Use port to assign the specified interfaces to a VSAN as access ports in batch. Use undo port to remove the specified interfaces from a VSAN in batch. Syntax port interface-list undo port interface-list Default All interfaces belong to VSAN 1 as access ports. Views VSAN view Predefined user roles...
Page 53: Port Trunk Mode
Views FC interface view, FC aggregate interface view Predefined user roles network-admin Parameters vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. Make sure the VSAN already exists on the switch. Otherwise, this command fails. Usage guidelines To assign multiple interfaces to a VSAN as access ports in batch, use the port command.
Page 54: Port Trunk Vsan
When the switch is operating in FCF mode, its FC interfaces and FC aggregate interfaces support • all these modes. When the switch is operating in NPV mode, its FC interfaces and FC aggregate interfaces support • only on and off modes. The two interfaces of a link use the Exchange Virtual Fabrics Parameters (EVFP) protocol to negotiate whether to support VSAN tagging according to the trunk modes.
Page 55: Vsan
vsan Use vsan to create a VSAN and enter VSAN view. If the VSAN already exists, this command directly leads you to VSAN view. Use undo vsan to delete a VSAN. Syntax vsan vsan-id undo vsan vsan-id Default Only the default VSAN (VSAN 1) exists. Views System view Predefined user roles...
Page 56: Display Fc Domain
Otherwise, the non-principal switch refuses the assigned domain ID and isolates its interface connected to the principal switch. HP recommends that you configure the same allowed domain ID list for all switches in a VSAN. Examples # Configure VSAN 1 to allow domains 3 through 10.
Page 57 Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command displays the domain information of all VSANs. Usage guidelines The displayed domain information includes runtime and configuration information of the local switch and runtime information of the principal switch.
Page 58: Display Fc Domain-List
Field Description State of the automatic reconfiguration function: • Enabled—The automatic reconfiguration function is enabled on the switch. Domain auto-reconfigure • Disabled—The automatic reconfiguration function is disabled on the switch. Fabric name Fabric name configured on the switch. Priority Locally configured priority of the switch. Locally configured domain ID.
Page 59: Display Fc Ess
Domain list of VSAN 1: Number of domains: 3 Domain ID 0xc8(200) 20:01:00:05:30:00:47:df [Principal] 0x63(99) 20:01:00:0d:ec:08:60:c1 [Local] 0x61(97) 50:00:53:0f:ff:f0:10:06 Table 15 Command output Field Description Domain list of VSAN Domain ID list of the VSAN. Number of domains Total number of domains. WWN of the switch.
Page 60: Display Fc Login
Accept small + FC-4 Features name server objects: No Support receiving ACCept with 0 length: Yes Fabric Controller Capability: Support receiving the SW_RSCN Request: Yes Fabric Configuration Server Capability: Support basic configuration services: Yes Support platform configuration services: No Support topology discovery configuration services: Yes Support enhanced configuration services: Yes Enhanced Zone Server Capability: Support enhanced zoning management: Yes...
Page 61: Display Fc Name-Service Database
Predefined user roles network-admin network-operator Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command displays the node login information of all VSANs. count: Displays the total number of logged-in nodes. Examples # Display the node login information of VSAN 1.
Page 62 Predefined user roles network-admin network-operator Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command displays the name server database information of all VSANs. fcid fcid: Specifies an FC address in the range of 0x010000 to 0xEFFFFF (hexadecimal). If you do not specify an FC address, this command displays the name server database entries of all FC addresses.
Page 63 FC4 type—Includes SCSI-FCP, LLC/SNAP, SW_ILS, SNMP, GS3, FC4-types(FC4 features) VI, and NPV. • Feature—Includes supporting Initiator, Target, or Initiator/Target. Symbolic name, which is used for describing an N_Port. For an Symbolic-port-name NP_Port on an HP NPV switch, it is in the form of system-name:port-name.
Page 64: Display Fc Scr-Table
Field Description Symbolic name, which is used for describing a node. For an HP NPV Symbolic-node-name switch, it is the system-name. Port-type Link type of the N_Port, which can be N representing point-to-point. Fabric-port-WWN WWN of the F_Port. Hard-addr Hardware address of the N_Port.
Page 65: Display Fc Switch-Wwn
Field Description Type of Registered State Change Notification (RSCN) messages: • fabric detected rscns—Accepts all RSCN messages sent by the switches in the fabric. REGISTERED FOR • nx_port detected rscns—Accepts all RSCN messages sent by N_Ports. • full detected rscns—Accepts all RSCN messages. Total entries Number of SCR entries in the VSAN.
Page 66: Domain Auto-Reconfigure Enable
Usage guidelines If you do not specify the distributed-services, error-detect, or resource-allocation keyword, this command displays all the fabric timers. Examples # Display all the fabric timers for VSAN 1. <Sysname> display fc timer vsan 1 Timer of VSAN 1: Distributed-services timer: 5000 ms Error-detect timer: 2000 ms...
Page 67: Domain Configure Enable
domain configure enable Use domain configure enable to enable the fabric configuration function for the switch in a VSAN. Use undo domain configure enable to disable the fabric configuration function for the switch in a VSAN. Syntax domain configure enable undo domain configure enable Default The fabric configuration function is enabled in a VSAN.
Page 68: Domain-Id
Usage guidelines This command takes effect only when the fabric configuration function is enabled. A fabric reconfiguration triggers a principal switch selection phase. A fabric reconfiguration can be disruptive or nondisruptive. A fabric reconfiguration can be disruptive or nondisruptive. Disruptive reconfiguration—Floods Reconfigure Fabric (RCF) frames throughout the fabric and •...
Page 69: Fabric-Name
ID assigned by the principal switch. If the member switch fails to get a static domain ID, it does not accept any other domain ID and isolates the upstream principal link. HP recommends that you configure domain IDs of the same type for all switches in a VSAN. Examples # Configure static domain ID 55 in VSAN 1.
Page 70: Fc Domain Rcf-Reject
You need to configure fabric names only when you build a fabric statically. You must configure the same fabric name on all switches in a VSAN. In a dynamically built fabric, each VSAN uses the WWN of the principal switch as the fabric name. Examples # Configure a fabric name of 10:1 1:12:13:14:15:16:17 in VSAN 1.
Page 71: Fc Timer Distributed-Services
Use undo fc name-service auto-discovery to disable SCSI-FCP information autodiscovery. Syntax fc name-service auto-discovery undo fc name-service auto-discovery Default Auto discovery of SCSI-FCP information is enabled. Views VSAN view Predefined user roles network-admin Usage guidelines In some situations, for example, when a node logs out and then logs back in, the node does not register SCSI-FCP support.
Page 72: Fc Timer Error-Detect
Parameters value: Specifies the distributed service timeout period in the range of 5000 to 10000 milliseconds. Usage guidelines The distributed service timeout period can be configured in system view or VSAN view. • The configuration in system view takes effect on all VSANs. The configuration in VSAN view takes effect only on the current VSAN.
Page 73: Fc Timer Resource-Allocation
Related commands timer error-detect fc timer resource-allocation Use fc timer resource-allocation to specify the global resource allocation timeout period. Use undo fc timer resource-allocation to restore the default. Syntax fc timer resource-allocation value undo fc timer resource-allocation Default The global resource allocation timeout period is 10000 milliseconds. Views System view Predefined user roles...
Page 74: Priority
Default No default FC4 information is configured. Views System view Predefined user roles network-admin Parameters wwn-value: Specifies an N_Port by its WWN in the format of xx:xx:xx:xx:xx:xx:xx:xx (hexadecimal). type-value: Specifies a supported FC4-Type by its value in the range of 0 to 255. The FC4-Type field is 256 bits, each of which represents an FC4-Type.
Page 75: Rscn Aggregation Enable
Syntax priority value undo priority Default The switch priority is 128 in a VSAN. Views VSAN view Predefined user roles network-admin Parameters value: Specifies the switch priority in the range of 1 to 254. Usage guidelines The priority value for FC switches is in the range of 1 to 254. The smaller the value, the higher the priority. The FC switch with the highest priority will become the principal switch.
Page 76: Rscn Aggregation Timer
FC addressees of multiple nodes with changes into a single RSCN. This reduces the number of RSCNs sent to the concerned registered nodes. HP recommends that you enable RSCN aggregation and set the same timer value on all switches in a VSAN.
Page 77: Snmp-Agent Trap Enable Fc-Fabric
snmp-agent trap enable fc-fabric Use snmp-agent trap enable fc-fabric to enable SNMP notifications for the fabric module. Use undo snmp-agent trap enable fc-fabric to disable SNMP notifications for the fabric module. Syntax snmp-agent trap enable fc-fabric [ domain-id-change | fabric-change ] * undo snmp-agent trap enable fc-fabric [ domain-id-change | fabric-change ] * Default All SNMP notifications for the fabric module are disabled.
Page 78: Timer Distributed-Services
Syntax snmp-agent trap enable fc-name-service [ login| logout ] * undo snmp-agent trap enable fc-name-service [ login| logout ] * Default All SNMP notifications for the name service module are disabled. Views System view Predefined user roles network-admin Parameters login: Specifies node login. logout: Specifies node logout.
Page 79: Timer Error-Detect
Parameters value: Specifies the distributed service timeout period in the range of 5000 to 10000 milliseconds. Usage guidelines The distributed service timeout period can be configured in system view or VSAN view. • The configuration in system view takes effect on all VSANs. The configuration in VSAN view takes effect only on the current VSAN.
Page 80: Timer Resource-Allocation
[Sysname] vsan 1 [Sysname-vsan1] timer error-detect 6000 Related commands fc timer error-detect timer resource-allocation Use timer resource-allocation to specify the resource allocation timeout period for a VSAN. Use undo timer resource-allocation to restore the default. Syntax timer resource-allocation value undo timer resource-allocation Default The resource allocation timeout period is 10000 milliseconds.
Page 81: Fc Routing And Forwarding Commands
undo wwn wwn-value area-port-id Default The WWN of an N_Port is not bound to any FC address. Views VSAN view Predefined user roles network-admin Parameters wwn-value: Specifies the WWN of the N_Port, in the format of xx:xx:xx:xx:xx:xx:xx:xx, where x is a hexadecimal number.
Page 82 Parameters link: Displays link exchange entries. protocol: Displays protocol exchange entries. verbose: Displays detailed information about link exchange entries. exid exid: Displays link exchange entries for an exchange ID in the range of 0 to 65534. If you do not specify an exchange ID, this command displays all link exchange entries.
Page 83: Display Fc Fib
Field Description FC address and exchange ID of the peer end. Remote_ID:EXID/Remote This field is ignored for a protocol exchange. Connection state of the FC exchange: • PREPARE—The protocol exchange is successfully bound, or the link exchange is waiting for the response packet. •...
Page 84 Parameters fcid: Specifies a destination FC address in the range of 0x000000 to 0xFFFFFF (hexadecimal). mask-length: Specifies a mask length for the destination address, in the range of 0 to 24. vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 4095. Usage guidelines The device looks up the VSAN ID and FC address in the FC FIB for the outgoing interface.
Page 85: Display Fc Routing-Table
Table 22 Command output Field Description Destination count Number of destination addresses. FIB entry count Number of FIB entries, including equal-cost routes. Destination/Mask Destination address/mask length. Interface Outgoing interface. display fc routing-table Use display fc routing-table to display the FC routing table. Syntax display fc routing-table [ vsan vsan-id ] [ statistics | verbose ] display fc routing-table vsan vsan-id fcid [ mask | mask-length ] [ verbose ]...
Page 86 Examples # Display brief information about all the routes in VSAN 5. <Sysname> display fc routing-table vsan 5 Routing Table: VSAN 5 Destinations : 5 Routes : 8 Destination/mask Protocol Preference Cost Interface 0x040000/8 FSPF Vfc10 0x040000/8 FSPF Vfc20 0x040000/8 FSPF Vfc30 0x040000/8...
Page 87 State: Active Age: 0h21m36s Destination/mask: 0xfffffd/24 Protocol: DIRECT Preference: 0 Cost: 0 Interface: InLoop0 State: Active Age: 0h21m36s Table 23 Command output Field Description VSAN VSAN number. Destination/mask FC address/mask. Protocol type: • DIRECT—Direct routes. Protocol • STATIC—Static routes. • FSPF—FSPF routes.
Page 88: Display Fspf Graceful-Restart
Field Description deleted Number of deleted routes of the specified protocol type. Total Total number of routes. Related commands fc route-static display fspf graceful-restart Use display fspf graceful-restart to display FSPF GR status information. Syntax display fspf graceful-restart [ vsan vsan-id ] Views Any view Predefined user roles...
Page 89: Display Fspf Lsdb
Table 25 Command output Field Description Graceful-restart capability Indicates whether GR restarter capability is enabled: Enable or Disable. Helper capability Indicates whether GR helper capability is enabled: Enable or Disable. Number of neighbors under Number of neighbors acting as GR helpers. helper Number of restarting Number of neighbors acting as GR restarters.
Page 90: Display Fspf Neighbor
NbrDomainID IfIndex NbrIfIndex LinkType Cost -------------------------------------------------------- 0x68 0x68 FSPF Link State Database for Domain 02 LSR Type LSR Age LSR Incarnation number : 0x80000008 LSR Checksum : 0x7dea Number of links NbrDomainID IfIndex NbrIfIndex LinkType Cost -------------------------------------------------------- 0x68 0x68 Table 26 Command output Field Description FSPF LSDB information of...
Page 91: Display Fspf Statistics
Usage guidelines The FSPF neighbor information includes the following details: Neighbor domain ID. • • Neighbor interface index. Outgoing interface index of the local switch. • Remaining dead interval of the neighbor. • Neighbor state. • Examples # Display FSPF neighbor information. <Sysname>...
Page 92 network-operator Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command displays the FSPF statistics for all VSANs. Usage guidelines FSPF statistics contain global statistics and interface statistics. Global statistics—Contain the current number of SPF calculations, number of error packets, total •...
Page 93: Fc Route-Static
Field Description Output Number of packets sent. Related commands reset fspf counters fc route-static Use fc route-static to configure a static FC route. Use undo fc route-static to delete a static FC route. Syntax fc route-static fcid { mask | mask-length } interface-type interface-number [ cost cost-value ] undo fc route-static fcid { mask | mask-length } interface-type interface-number Default No static FC route exists.
Page 94: Fspf Cost
The mask length is 8. • • The outgoing interface is FC 1/0/1. The cost is 20. • <Sysname> system-view [Sysname] vsan 5 [Sysname-vsan5] fc route-static 010000 8 fc 1/0/1 cost 20 # Add a static FC route: The destination FC address is 0x010000. •...
Page 95: Fspf Dead-Interval
[Sysname] interface fc 1/0/1 [Sysname-Fc1/0/1] fspf cost 1000 vsan 4 # Configure the FSPF cost of interface VFC 1 in VSAN 4 as 1000. <Sysname> system-view [Sysname] interface vfc 1 [Sysname-Vfc1] fspf cost 1000 vsan 4 fspf dead-interval Use fspf dead-interval to configure the dead interval for the interface in a VSAN. Use undo fspf dead-interval to restore the default.
Page 96: Fspf Enable
fspf enable Use fspf enable to enable FSPF for a VSAN. Use undo fspf enable to disable FSPF for a VSAN. Syntax fspf enable undo fspf enable Default FSPF is enabled after a VSAN is created. Views VSAN view Predefined user roles network-admin Usage guidelines FSPF-related functions work in a VSAN only after you enable FSPF for the VSAN.
Page 97: Fspf Graceful-Restart Helper
An active/standby switchover. • GR involves the following roles: GR restarter—GR-capable device where a protocol restart or active/standby switchover occurs • GR helper—The GR restarter's neighboring device that assists in the GR process • Examples # Enable FSPF GR. <Sysname> system-view [Sysname] fspf graceful-restart Related commands display fspf graceful-restart...
Page 98: Fspf Hello-Interval
Use undo fspf graceful-restart interval to restore the default. Syntax fspf graceful-restart interval interval-value undo fspf graceful-restart interval Default The maximum FSPF GR interval is 120 seconds. Views System view Predefined user roles network-admin Parameters interval-value: Specifies the maximum FSPF GR interval in seconds, in the range of 40 to 1800. Usage guidelines If the GR restarter fails to complete the GR process within the maximum FSPF GR interval, it immediately exits the GR process.
Page 99: Fspf Min-Ls-Arrival
Usage guidelines The hello interval specifies the time between the hello packets sent periodically by the switch to discover and maintain neighbor relationships. The configured hello interval must be smaller than the dead interval and must be the same at the two ends of the link.
Page 100: Fspf Min-Ls-Interval
fspf min-ls-interval Use fspf min-ls-interval to configure the minimum LSR refresh interval for a VSAN. Use undo fspf min-ls-interval to restore the default. Syntax fspf min-ls-interval value undo fspf min-ls-interval Default The minimum LSR refresh interval is 5 seconds. Views VSAN view Predefined user roles network-admin...
Page 101: Fspf Silent
Parameters value: Specifies the LSR retransmission interval of the interface in seconds, in the range of 1 to 65535. vsan vsan-id: Specifies the VSAN to which the interface belongs, in the range of 1 to 3839. Usage guidelines The LSR retransmission interval specifies the time to wait for an LSR acknowledgment from the neighbor before retransmitting the LSR.
Page 102: Fspf Spf-Hold-Time
<Sysname> system-view [Sysname] interface vfc 1 [Sysname-Vfc1] fspf silent vsan 4 fspf spf-hold-time Use fspf spf-hold-time to configure the shortest SPF calculation interval in a VSAN. Use undo fspf spf-hold-time to restore the default. Syntax fspf spf-hold-time value undo fspf spf-hold-time Default The shortest SPF calculation interval is 0 seconds.
Page 103: Fc Zone Commands
Predefined user roles network-admin Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command clears the FSPF statistics for all VSANs. Examples # Clear FSPF statistics in VSAN 2. <Sysname>...
Page 104 Predefined user roles network-admin network-operator Parameters name zone-name: Specifies a zone by its name, a case-sensitive string of 1 to 64 characters. The name can contain letters (uppercase and lowercase), numbers, and special characters (see Table 29). It must start with a letter. Table 29 Special characters Field Description...
Page 105: Display Zone Member
Field Description initiator Role of the zone member. If no role is indicated, the member has both roles. target Related commands member (zone view) • • zone clone zone name • zone rename • display zone member Use display zone member to display parent information for a zone member. Syntax display zone member { fcid fcid | fwwn fwwn | pwwn pwwn | zone-alias zone-alias-name } [ vsan vsan-id ]...
Page 106 <Sysname> display zone member fcid 010000 vsan 1 fcid 0x010000 VSAN 1: zone z1 zone z2 zone z3 zone-alias a1 zone z2 zone z3 # Display parent information for zone member with pWWN 1 1:22:33:44:55:66:77:88 in all VSANs. <Sysname> display zone member pwwn 11:22:33:44:55:66:77:88 pwwn 11:22:33:44:55:66:77:88 VSAN 1: zone z1...
Page 107: Display Zone Statistics
Related commands member (zone view) • member (zone-alias view) • display zone statistics Use display zone statistics to display zone packet statistics. Syntax display zone statistics [ vsan vsan-id ] Views Any view Predefined user roles network-admin Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command displays zone packet statistics for all VSANs.
Page 108: Display Zone Status
display zone status Use display zone status to display the zoning configuration and status. Syntax display zone status[ vsan vsan-id ] Views Any view Predefined user roles network-admin network-operator Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command displays the zoning configuration and status in all VSANs.
Page 109: Display Zone-Alias
Field Description Mode Zoning mode: basic or enhanced. Default zone policy: • Default zone deny—Deny members in the default zone from accessing each other. • permit—Allow members in the default zone to access each other. Distribution and merge type: • active only—Incomplete distribution and merge.
Page 110: Display Zoneset
vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. Usage guidelines If you specify both a zone alias and a VSAN, this command displays information about the specified zone alias in the specified VSAN. If you specify only a VSAN, this command displays information about all zone aliases in the specified VSAN.
Page 111 Views Any view Predefined user roles network-admin network-operator Parameters name zoneset-name: Specifies a zone set by its name, a case-sensitive string of 1 to 64 characters. The name can contain letters (uppercase and lowercase), numbers, and special characters (see Table 29).
Page 112: Display Zoneset Active
Related commands member (zoneset view) • zoneset clone • • zoneset name zoneset rename • display zoneset active Use display zoneset active to display information about the active zone set. Syntax display zoneset active [ vsan vsan-id ] Views Any view Predefined user roles network-admin network-operator...
Page 113 Examples # Display information about the active zone sets in all VSANs. <Sysname> display zoneset active VSAN 1: zoneset name zs1 zone name z1 *fcid 0x222222 *fcid 0x111111 [pwwn 11:11:11:11:11:11:11:11] zone name z2 fcid 0x123456 *fcid 0x111111 [pwwn 11:11:11:11:11:11:11:11] pwwn 11:11:11:11:11:11:11:12 *fcid 0x333333 [pwwn 33:33:33:33:33:33:33:33] zone name #default-zone# *fcid 0x20abcd...
Page 114: Member (Zone View)
Table 36 Command output Field Description FC address of a zone member that can exists in the local name service *fcid database. FC address of a zone member that does not exist in the local name service fcid database. pwwn pWWN of a zone member.
Page 115: Member (Zone Alias View)
Usage guidelines You can also use this command to change the role (initiator, target, or both) of a member. If the role of a member is specified by using the same identifier (FC address, pWWN, fWWN, or zone alias) multiple times, the role of the member is the role most recently specified. If the role of a member is specified by using different identifiers multiple times, the role of the member is the union of the specified roles.
Page 116 Views Zone alias view Predefined user roles network-admin Parameters fcid fcid: Specifies a member by its FC address, in the format of xxxxxx, where x is a hexadecimal number. fwwn fwwn: Specifies a member F_Port by its fWWN, in the format of xx:xx:xx:xx:xx:xx:xx:xx, where x is a hexadecimal number.
Page 117: Member (Zone Set View)
member (zone set view) Use member to add a zone to a zone set. Use undo member to delete a zone from a zone set. Syntax member zone-name undo member zone-name Default No zone exists in a zone set. Views Zone set view Predefined user roles network-admin...
Page 118: Reset Zone Statistics
Default The Pairwise feature is disabled for a zone. Views Zone view Predefined user roles network-admin Usage guidelines The Pairwise feature can be configured only in enhanced zoning mode. The Pairwise feature runs on a per-zone basis. A member can have different roles in different zones. When the Pairwise feature is disabled for a zone, member roles do not take effect in that zone.
Page 119: Snmp-Agent Trap Enable Fc-Zone
Predefined user roles network-admin Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command clears zone packet statistics for zones in all VSANs. Examples # Clear zone packet statistics for VSAN 2. <Sysname>reset zone statistics vsan 2 Related commands display zone statistics...
Page 120: Zone Clone
<Sysname> system-view [Sysname] snmp-agent trap enable fc-zone defaultzone-change zone clone Use zone clone to copy a zone. Syntax zone clone src-name dest-name Views VSAN view Predefined user roles network-admin Parameters src-name: Specifies the name of the source zone to be copied, a case-sensitive string of 1 to 64 characters.
Page 121: Zone Hard-Zoning Enable
Views VSAN view Predefined user roles network-admin Usage guidelines In enhanced zoning mode, the switch distributes the default zone policy with other zone data. In basic zoning mode, you must manually configure a consistent default zone policy across the fabric. When the switch performs a zoning mode switchover, it also distributes the default zone policy with other zone data.
Page 122: Zone Merge-Control Restrict
To improve the security for a VSAN, you can enable hard zoning for the VSAN. When soft zoning can meet the access control requirements of a VSAN, you can disable hard zoning for the VSAN to save the hardware entry resources. After hard zoning is enabled for a VSAN, the system begins to deploy all zone rules of the VSAN.
Page 123: Zone Mode Enhanced
Examples # Configure the merge control mode as Restrict for VSAN 2. <Sysname>system-view [Sysname] vsan 2 [Sysname-vsan2] zone merge-control restrict # Configure the merge control mode as Allow for VSAN 2. [Sysname-vsan2] undo zone merge-control restrict Related commands zone mode enhanced •...
Page 124: Zone Name
Related commands display zone status • zoneset distribute • zone name Use zone name to create a zone and enter its view. If the zone has been created, this command leads you to the zone view directly. Use undo zone name to delete a zone. Syntax zone name zone-name undo zone name zone-name...
Page 125: Zone-Alias Clone
Parameters old-name: Specifies the name of the zone to be renamed, a case-sensitive string of 1 to 64 characters. This name can contain letters (uppercase and lowercase), numbers, and special characters (see Table 29). It must start with a letter. new-name: Specifies the new zone name, a case-sensitive string of 1 to 64 characters.
Page 126: Zone-Alias Name
[Sysname-vsan1] zone-alias clone za1 za2 Related commands • display zone-alias zone-alias name • zone-alias name Use zone-alias name to create a zone alias and enter its view. If the zone alias has been created, this command leads you to the zone alias view directly. Use undo zone-alias name to delete a zone alias.
Page 127: Zoneset Activate
Parameters old-name: Specifies the name of the zone alias to be renamed, a case-sensitive string of 1 to 64 characters. This name can contain letters (uppercase and lowercase), numbers, and special characters (see Table 29). It must start with a letter. new-name: Specifies the new zone alias name, a case-sensitive string of 1 to 64 characters.
Page 128: Zoneset Clone
In basic zoning mode, the distribution type specified by using the zoneset distribute full command applies to distribution operations triggered by the zoneset activate command. Examples # Create a zone named z1. <Sysname> system-view [Sysname] vsan 1 [Sysname-vsan1] zone name z1 # Add an N_Port with the FC address as 010000 to zone z1.
Page 129: Zoneset Distribute
[Sysname-vsan1-zoneset-zs1] quit # Create a zone set named zs1 by copying zone set zs2. [Sysname-vsan1] zoneset clone zs1 zs2 Related commands • display zoneset zoneset name • zoneset distribute Use zoneset distribute to trigger a one-time complete distribution, distributing both the active zone set and zone database.
Page 130: Zoneset Name
Predefined user roles network-admin Usage guidelines Complete distribution (or merge) distributes (or merges) both the active zone set and zone database. Incomplete distribution (or merge) distributes (or merges) only the active zone set. This command can be configured only in basic zoning mode. In enhanced zoning mode, the zone distribution and merge type is always complete, and this command is not supported.
Page 131: Zoneset Rename
Related commands display zoneset zoneset rename Use zoneset rename to rename a zone set. Syntax zoneset rename old-name new-name Views VSAN view Predefined user roles network-admin Parameters old-name: Specifies the name of the zone set to be renamed, a case-sensitive string of 1 to 64 characters. This name can contain letters (uppercase and lowercase), numbers, and special characters (see Table 29).
Page 132 Predefined user roles network-admin network-operator Parameters interface interface-type interface-number: Specifies an NP_Port by its type and number. The NP_Port can be an FC interface, a VFC interface, or an FC aggregate interface. If you do not specify an NP_Port, this command displays the login information of all NP_Ports.
Page 133: Display Npv Login
Field Description List of management addresses obtained by the NP_Port from the FCF switch. For example, snmp://192.168.6.151 indicates that SNMP is used as the Peer management address management protocol and the management address is 192.168.6.151. If the FCF switch is not configured with management addresses, this field is blank.
Page 134: Display Npv Status
Total entries: 3 Table 38 Command output Field Description Name of the downlink interface. Server Interface External interface Name of the uplink interface mapped by the downlink interface. FCID FC address of the node. Port WWN Port WWN of the node connected to the NPV switch. Entries Number of logged-in nodes for a VSAN.
Page 135 0x010001 Number of External Interfaces: 2 Server Interfaces: Interface: Fc1/0/5 VSAN tagging mode: Tagging VSAN State Down Number of Server Interfaces: 1 # Display information about uplink and downlink interfaces in all VSANs. <Sysname> display npv status External Interfaces: Interface: Fc1/0/1 VSAN tagging mode: Non tagging VSAN State...
Page 136: Display Npv Traffic-Map
Field Description State State of the interface: Up or Down. After an uplink interface goes up, the FC ID allocated by the core switch is displayed. A downlink interface does not have an FC ID. One uplink interface can be up but it cannot work as an uplink interface when the following conditions exist: •...
Page 137: Npv Load-Balance Disruptive
npv load-balance disruptive Use npv load-balance disruptive to initiate a disruptive load-balancing process in a VSAN. Syntax npv load-balance disruptive Views VSAN view Predefined user roles network-admin Usage guidelines This command is available only on switches operating in NPV mode. If the load is not distributed evenly across the interfaces in a VSAN, you can use this command to initiate a disruptive load-balancing process.
Page 138: Fip Snooping Commands
external-interface interface-type interface-number: Specifies an uplink interface by its type and number, which can be an FC or VFC interface. Usage guidelines This command is available only on switches operating in NPV mode. A downlink interface selects an uplink interface to map as follows: When uplink-to-downlink interface mappings are configured for the downlink interface, the •...
Page 139: Display Fip-Snooping Fcf
display fip-snooping fcf Use display fip-snooping fcf to display FCF switch information obtained by the Transit switch. Syntax display fip-snooping fcf [ vlan vlan-id ] Views Any view Predefined user roles network-admin network-operator Parameters vlan vlan-id: Specifies a VLAN by its ID in the range of 1 to 4094. If you do not specify a VLAN, this command displays FCF switch information for all VLANs.
Page 140: Display Fip-Snooping Rules
Parameters enode: Displays the ENode FIP snooping rules that are being flushed. fcf: Displays the FCF FIP snooping rules that are being flushed. vlan vlan-id: Specifies a VLAN by its ID in the range of 1 to 4094. If you do not specify a VLAN, this command displays the FIP snooping rules that are being flushed for all VLANs.
Page 141: Display Fip-Snooping Sessions
network-operator Parameters enode: Displays the ENode FIP snooping rules that have been flushed. fcf: Displays the FCF FIP snooping rules that have been flushed. vlan vlan-id: Specifies a VLAN by its ID in the range of 1 to 4094. If you do not specify a VLAN, this command displays the FIP snooping rules that have been flushed for all VLANs.
Page 142: Fip-Snooping Enable
Views Any view Predefined user roles network-admin network-operator Parameters vlan vlan-id: Specifies a VLAN by its ID in the range of 1 to 4094. If you do not specify a VLAN, this command displays information about FIP snooping sessions for all VLANs. Examples # Display information about FIP snooping sessions.
Page 143: Fip-Snooping Fc-Map
<Sysname> system-view [Sysname] vlan 10 [Sysname-vlan10] fip-snooping enable fip-snooping fc-map Use fip-snooping fc-map to configure an FC-MAP value for a VLAN. Use undo fip-snooping fc-map to restore the default. Syntax fip-snooping fc-map fc-map undo fip-snooping fc-map Default The FC-MAP value for a VLAN is 0x0EFC00. Views VLAN view Predefined user roles...
Page 144: Fcs Commands
Use undo fip-snooping port-mode to restore the default. Syntax fip-snooping port-mode { enode | fcf } undo fip-snooping port-mode Default An Ethernet interface operates in ENode mode. Views Layer 2 Ethernet interface view, Layer 2 aggregate interface view Predefined user roles network-admin Parameters enode: Specifies the ENode mode.
Page 145: Fcs Discovery Stop
Examples # Start a topology discovery in VSAN 1 through VSAN 100. <Sysname> system-view [Sysname] fcs discovery start vsan 1 to 100 Related commands display fcs database • display fcs discovery status • display fcs ie • display fcs port •...
Page 146: Display Fcs Database
Domain ID : 0x01 Management address list : snmp://192.168.6.100 snmp://192.168.0.100 Fabric name : 10:01:00:11:22:00:01:01 Logical name : IE-Sysname1 Information list : HP# HP FF 5900CP-48XG-4QSFP+ Switch#Version 7.1.045, ESS 2415 IE_Ports: Interface Port WWN Port type Attached port WWNs Fc1/0/2 2f:15:01:11:22:00:01:01 F_Port...
Page 147 Domain ID : 0x02 Management address list : snmp://192.168.6.101 Fabric name : 10:01:00:11:22:00:01:01 Logical name : IE-Sysname2 Information list : HP# HP FF 5900CP-48XG-4QSFP+ Switch#Version 7.1.045, ESS 2415 IE_Ports: Interface Port WWN Port type Attached port WWNs 2f:15:01:11:22:00:01:01 F_Port 2f:15:01:11:22:00:01:02...
Page 148: Display Fcs Ie
Field Description WWNs of connected ports. Attached port WWNs NA indicates that the port does not connect to any ports. Related commands fcs discovery start display fcs ie Use display fcs ie to display the IE information. Syntax display fcs ie [ vsan vsan-id ] [ nwwn wwn ] [ verbose ] Views Any view Predefined user roles...
Page 149 Management address list: snmp://192.168.6.100 snmp://192.168.0.100 Information list Vendor name : HP Model name/number: HP FF 5900CP-48XG-4QSFP+ Switch Release code : Version 7.1.045, ESS 2415 # Display the detailed IE information in all VSANs. <Sysname> display fcs ie verbose IE List for VSAN 1:...
Page 150: Display Fcs Port
Logical name : Sysname Management address list: snmp://192.168.6.100 snmp://192.168.0.100 Information list Vendor name : HP Model name/number: HP FF 5900CP-48XG-4QSFP+ Switch Release code : Version 7.1.045, ESS 2415 Total 1 IEs in Fabric. Table 46 Command output Field Description The IE type can only be Switch.
Page 151 Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command display the port information in all VSANs. pwwn wwn: Specifies a port by its WWN in the format of xx:xx:xx:xx:xx:xx:xx:xx (hexadecimal). If you do not specify a port, this command displays information about all ports in a VSAN.
Page 152 Port speed operation : 10Gbps Port zoning enforcement status : Soft, Hard Table 47 Command output Field Description Port mode: E_Port or F_Port. Port type Unknown is displayed for port modes other than E_Port and F_Port. Transmitter type of the port: •...
Page 153: Fdmi Commands
Field Description Current port state: • Online—The port link is connected. Port state • Offline—The port link is not connected. • Unknown—Port state other than Online or Offline. The supported speed can be one or more of the following options: •...
Page 154 network-operator Parameters vsan vsan-id: Specifies a VSAN by its ID in the range of 1 to 3839. If you do not specify a VSAN, this command displays the FDMI database information for all VSANs. hba-id hba-id: Specifies an HBA by its ID in the format of xx:xx:xx:xx:xx:xx:xx:xx (hexadecimal). verbose: Displays detailed FDMI database information.
Page 155 ROM version: 3.00 Firmware version: 5.04.01 OS name/version: Microsoft Windows Server 2003 R2 for x86 CT payload len: 2112 Port WWN: 21:00:00:c0:dd:13:cc:d5 Supported FC4 types: FCP Supported speed: 10Gbps Current speed: 10Gbps Maximum frame size: 2048 OS device name: S05131F Host name: S05131F Table 49 Command output Field...
Page 156 Field Description The current speed can only be one of the following options: • 1 Gbps. • 2 Gbps. • 4 Gbps. • 8 Gbps. • 10 Gbps. Current speed • 16 Gbps. • 20 Gbps. • 32 Gbps. • 40 Gbps.
Page 157: Fc Ping Commands
FC ping commands fcping Use fcping to FCping an address. Syntax fcping [ -c count | -t timeout ] * fcid fcid vsan vsan-id Views Any view Predefined user roles network-admin Parameters -c count: Specifies the number of echo requests to be sent, in the range of 0 to 2147483647 and defaulting to 5.
Page 158: Fc Tracert Commands
The output shows that all FC ping packets were successfully received. # FCping the address FFFC01 in VSAN 1. <Sysname> fcping fcid fffc01 vsan 1 FCPING fcid 0xfffc01: 128 data bytes, press CTRL_C to break. fcping: sendto: No route to host fcping: sendto: No route to host fcping: sendto: ^C --- 0xfffc01 fcping statistics ---...
Page 159 Syntax fctracert [ -t timeout ] fcid fcid vsan vsan-id Views Any view Predefined user roles network-admin Parameters -t timeout: Specifies the timeout value for the entire FC tracert process, in the range of 1 to 10 seconds. The default is 5 seconds. fcid fcid: Specifies the destination address.
Page 160 Field Description The FC tracert operation fails to be completed for the following possible reasons: • Resource is not enough. • Max hops reached. Fctracert uncompleted. • Fabric is being built. • No route to destination port. • Destination port is not in fabric. •...
Page 161: Support And Other Resources
Related information Documents To find related documents, browse to the Manuals page of the HP Business Support Center website: http://www.hp.com/support/manuals For related documentation, navigate to the Networking section, and select a networking category. •...
Page 162: Conventions
Conventions This section describes the conventions used in this documentation set. Command conventions Convention Description Boldface Bold text represents commands and keywords that you enter literally as shown. Italic Italic text represents arguments that you replace with actual values. Square brackets enclose syntax choices (keywords or arguments) that are optional. Braces enclose a set of required syntax choices separated by vertical bars, from which { x | y | ...
Page 163 Network topology icons Represents a generic network device, such as a router, switch, or firewall. Represents a routing-capable device, such as a router or Layer 3 switch. Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features.
Page 164: Index
Index A B D F I M N P R S T V W Z display fip-snooping rules,134 display fip-snooping sessions,135 allowed-domain-id,49 display fspf graceful-restart,82 display fspf lsdb,83 display fspf neighbor,84 bandwidth,27 display fspf statistics,85 bandwidth,3 display interface fc,5 bandwidth,17 display interface san-aggregation,29 bind...
Page 165 fcb2bcredit,13 port trunk vsan,48 fcoe enable,40 port-type,15 fcoe fcf-priority,41 priority,68 fcoe fcmap,42 fcoe fka-adv-period,42 reset counters interface,36 fcoe global fcf-priority,44 reset counters interface,26 fcoe-mode,1 reset counters interface,15 fcping,151 reset fspf counters,96 fcs discovery start,138 reset zone statistics,1 12 fcs discovery stop,139 rscn aggregation enable,69...
Page 166 zoneset activate,121 zoneset distribute full,123 zoneset clone,122 zoneset name,124 zoneset distribute,123 zoneset rename,125...

This manual is also suitable for:

5900 series Flexfabric 5930 series

HP 5920 Series Command Reference Manual

Quick Links

Command Reference

Related Manuals for HP 5920 Series

Summary of Contents for HP 5920 Series

This manual is also suitable for:

Table of Contents
