Using the Visual Fault Locator

The fiber module includes a visual fault locator that helps
you quickly check fiber continuity, trace fibers, and locate
faults along fibers and in connectors.
The visual fault locator port accepts connectors with
2.5 mm ferrules (SC, ST, or FC). To connect to other ferrule
sizes, use a test reference cord with the appropriate
connector at one end and a SC, ST, or FC connector at the
tester end.

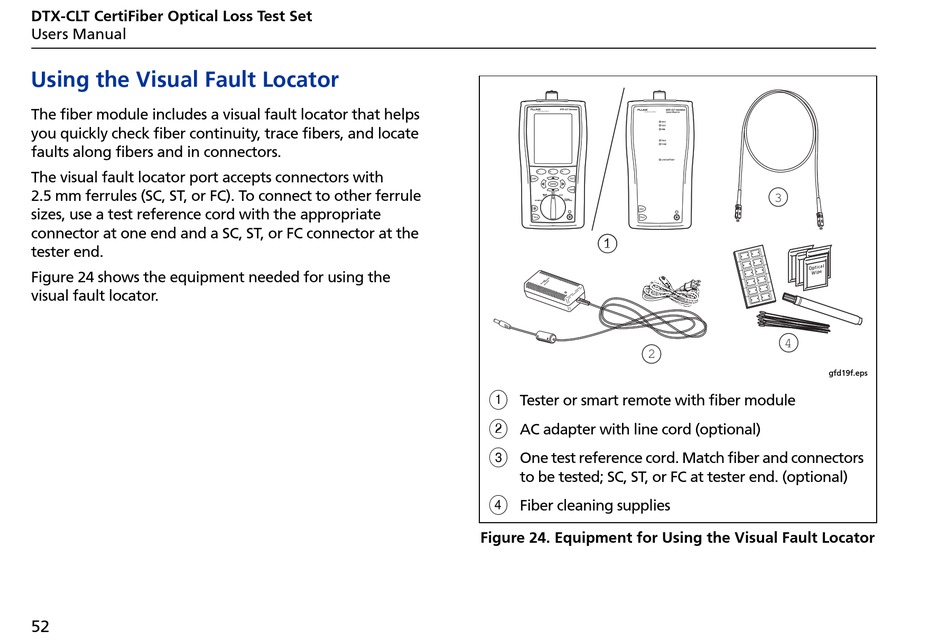

Figure 24 shows the equipment needed for using the
visual fault locator.
52
1
2
A
Tester or smart remote with fiber module
B
AC adapter with line cord (optional)
C
One test reference cord. Match fiber and connectors
to be tested; SC, ST, or FC at tester end. (optional)
D
Fiber cleaning supplies
Figure 24. Equipment for Using the Visual Fault Locator
3
4
gfd19f.eps
