DTX-CLT CertiFiber Optical Loss Test Set
Users Manual

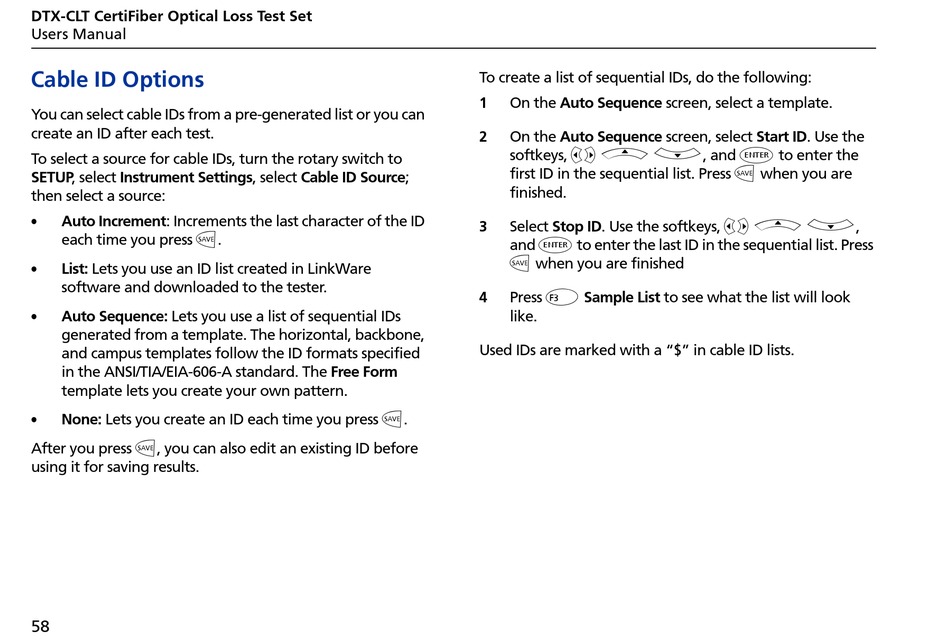

Cable ID Options

You can select cable IDs from a pre-generated list or you can
create an ID after each test.
To select a source for cable IDs, turn the rotary switch to
SETUP, select Instrument Settings, select Cable ID Source;
then select a source:
•
Auto Increment: Increments the last character of the ID
N
each time you press
•
List: Lets you use an ID list created in LinkWare
software and downloaded to the tester.
•
Auto Sequence: Lets you use a list of sequential IDs
generated from a template. The horizontal, backbone,
and campus templates follow the ID formats specified
in the ANSI/TIA/EIA-606-A standard. The Free Form
template lets you create your own pattern.
•
None: Lets you create an ID each time you press
N
After you press , you can also edit an existing ID before
using it for saving results.
58
.
N
To create a list of sequential IDs, do the following:
1 On the Auto Sequence screen, select a template.
2 On the Auto Sequence screen, select Start ID. Use the
BC A D
softkeys,
first ID in the sequential list. Press
finished.
3 Select Stop ID. Use the softkeys,
H
and to enter the last ID in the sequential list. Press
N
when you are finished
L
4 Press
like.
Used IDs are marked with a "$" in cable ID lists.
.
H
, and
N
when you are
BC A D
Sample List to see what the list will look
to enter the
,
