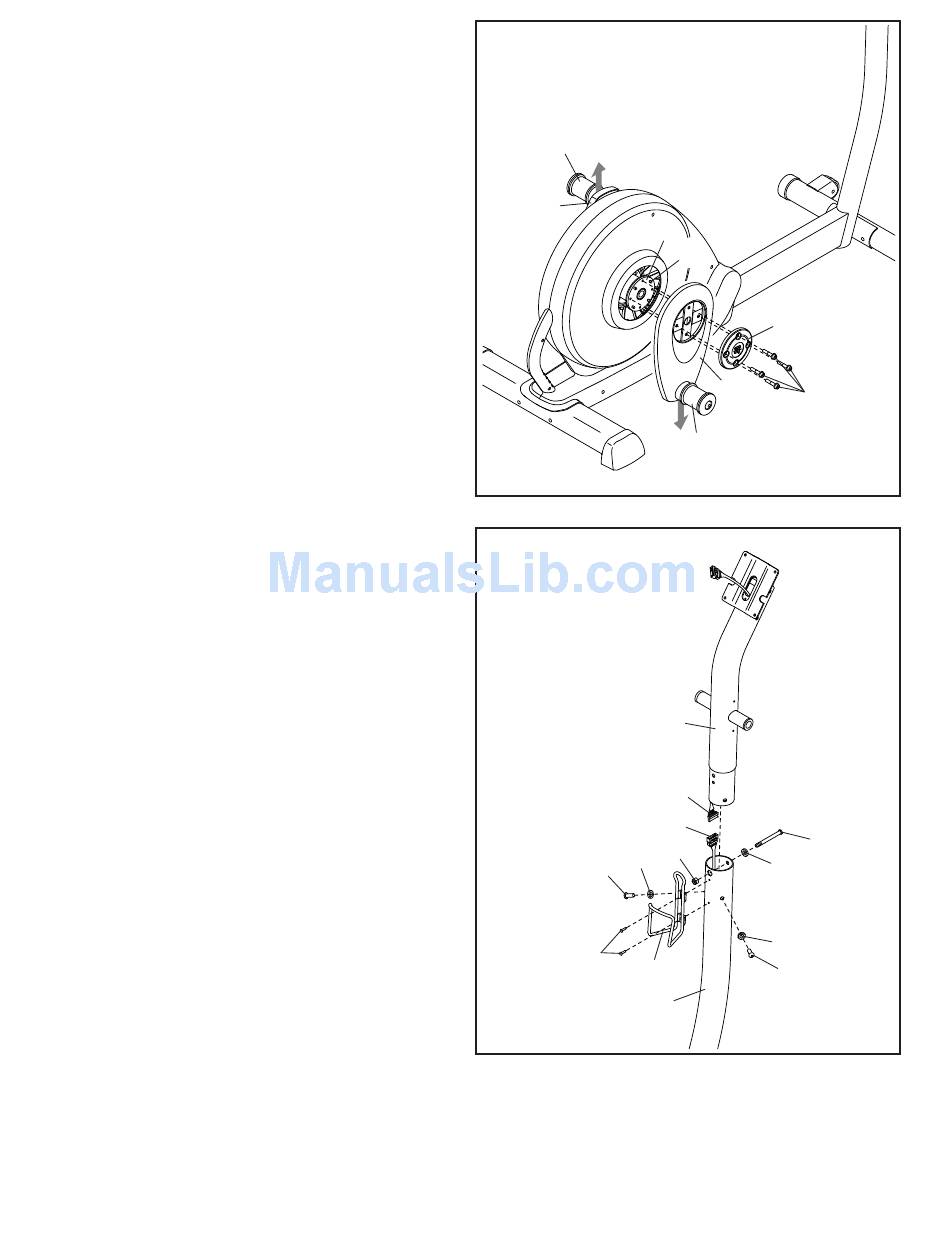

5. Hold a Hub Cover (75) and a Crank Arm (36)

against the Crank (45).

Align the holes in the Hub Cover (75) and the
Crank Arm (36) with the unused holes in the right
side of the Crank (45).
Insert four Hub Screws (87) into the Hub Cover
(75) and the Crank Arm (36), and finger tighten
the Hub Screws into the Crank (45). Tighten
one Hub Screw, and then tighten the Hub
Screw across from the first Hub Screw. Then,
tighten the remaining two Hub Screws.
Repeat this step on the left side of the
elliptical.
Make sure that the Crank Arms (36) are ori-
ented with the Crank Bushing Sleeves (43) in
the positions shown. Note: There are no Pulley
Screws (98) on the left side.
6. While a second person holds the Upright (3)
near the Base (1), connect the Upper Wire
Harness (48) to the Lower Wire Harness (49).
Tip: Avoid pinching the wires. Insert the
Upright (3) into the Base (1).
Attach the Upright (3) with an M8 x 69mm Bolt
(80), an M8 Split Washer (90), and an M8 Jam
Nut (79). Do not tighten the Bolt yet; make
sure that the Jam Nut is in the hexagonal
hole in the Base.
Next, finger tighten two M8 x 23mm Screws (84)
with two M8 Split Washers (90) into the Base (1).
Do not tighten the Screws yet.
Attach the Water Bottle Holder (22) to the Base
(1) with two M4 x 16mm Screws (103).
5
43
36
6
Avoid pinching
the wires
90
84
103
22
8
45
98
75
36
87
43
3
48
49
80
79
90
90
84
1
