Pro-Form 450 LE User Manual page 14

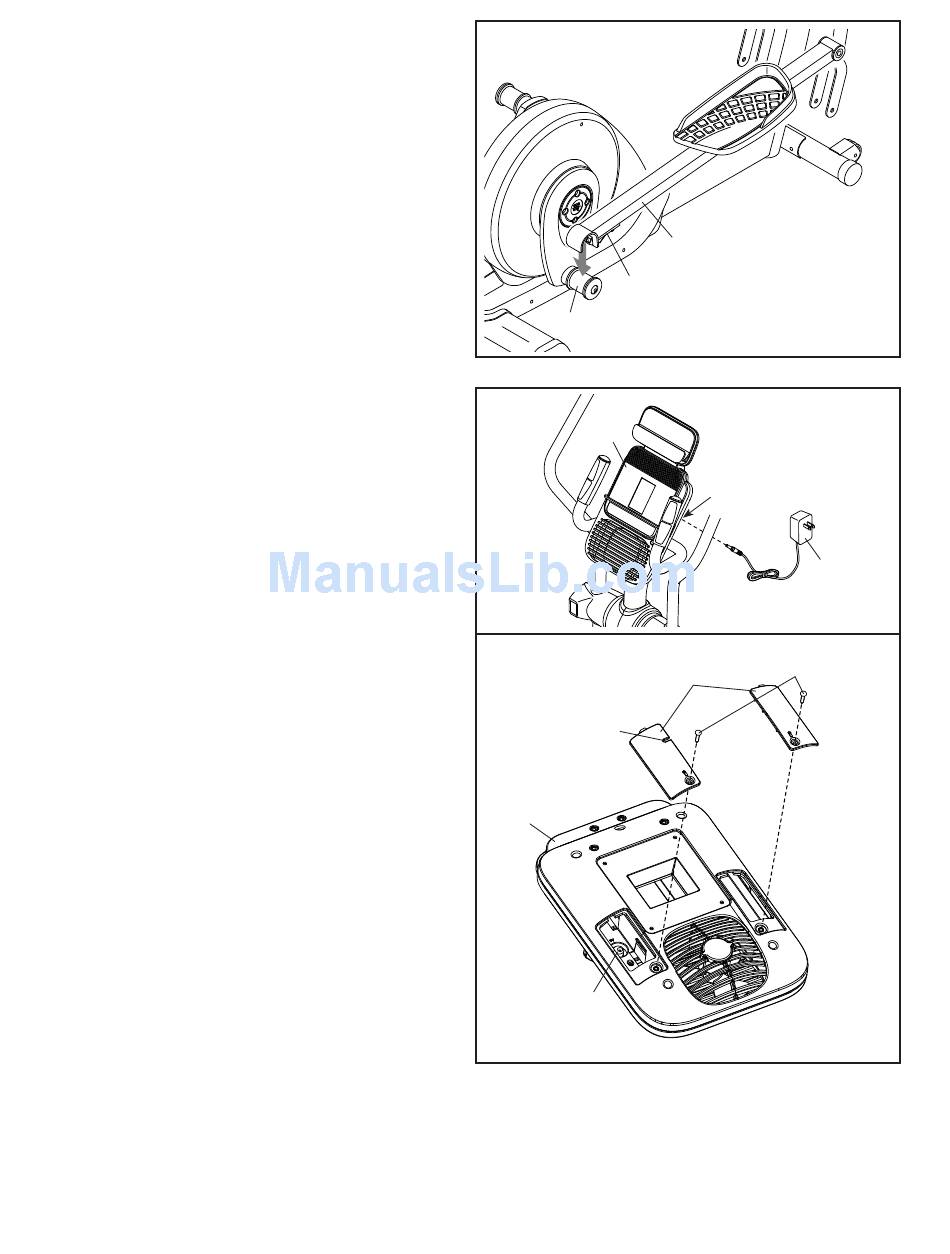

18. Lift the latch (E) on the underside of the Right
Pedal Arm (14), and set the Right Pedal Arm on
the right Crank Bushing Sleeve (43).
Release the lever, and make sure that the Right
Pedal Arm (14) is securely connected to the
Crank Bushing Sleeve (43).
Connect the Left Pedal Arm (not shown) in
the same way.
See step 6. Tighten the M8 x 69mm Bolt (80)
and the two M8 x 23mm Screws (84).
19. See the upper and lower drawings. Plug
the Power Adapter (60) into the receptacle (F)
inside the indicated battery compartment on
the Console (5), and route the power adapter
through the notch (G) in the battery cover.
Note: To plug the Power Adapter (60) into an
outlet, see HOW TO PLUG IN THE POWER
ADAPTER on page 15.
See the lower drawing. The Console (5) can
also be operated with four D batteries (not
included); alkaline batteries are recommended.
Do not use old and new batteries together or
alkaline, standard, and rechargeable batteries
together.
Remove the screws (H), remove the battery
covers (I) from the back of the Console (5),
insert batteries into the battery compartments,
and then reattach the battery covers. Make sure
to orient the batteries as shown by the dia-
grams inside the battery compartments.
20. Make sure that all parts of the elliptical are properly tightened. Extra parts may be included. To protect
the floor or carpet from damage, place a mat under the elliptical.
18
E
43
19
5
G
5
F
14
14
F
60
H
I
