Daikin RMXS-L Series Service Manual page 43

SiUS181631EA
Signal Receiver
PCB (PCB2)
1) S48
Display PCB
(PCB3)
1) S49
2) SW1
3) LED1 (H1P)
4) LED2 (H2P)
5) LED3 (H3P)
6) RTH1 (R1T)
INTELLIGENT
EYE Sensor PCB
1) S36
(PCB4)
Note: The symbols in the parenthesis are the names on the appropriate wiring diagram.

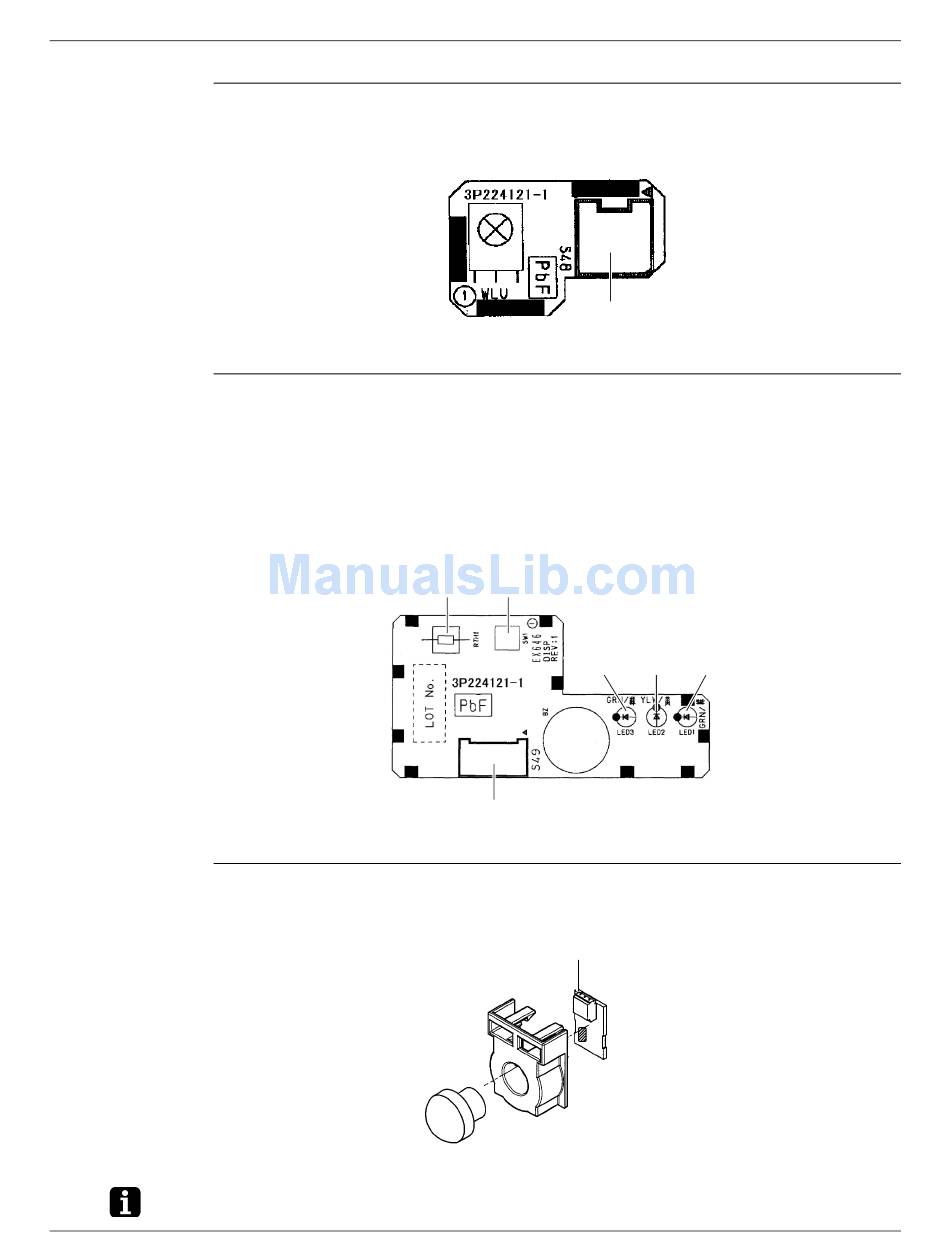

Printed Circuit Board Connector Wiring Diagram
Connector for control PCB (PCB1)
Connector for control PCB (PCB1)
Indoor unit ON/OFF button
LED for operation (green)
LED for timer (yellow)
LED for INTELLIGENT EYE (green)
Room temperature thermistor
RTH1 SW1
S49
Connector for control PCB (PCB1)
S48
3P224121-1
LED3 LED2 LED1
3P224121-1
S36
3P227885-1
Indoor Unit
33
