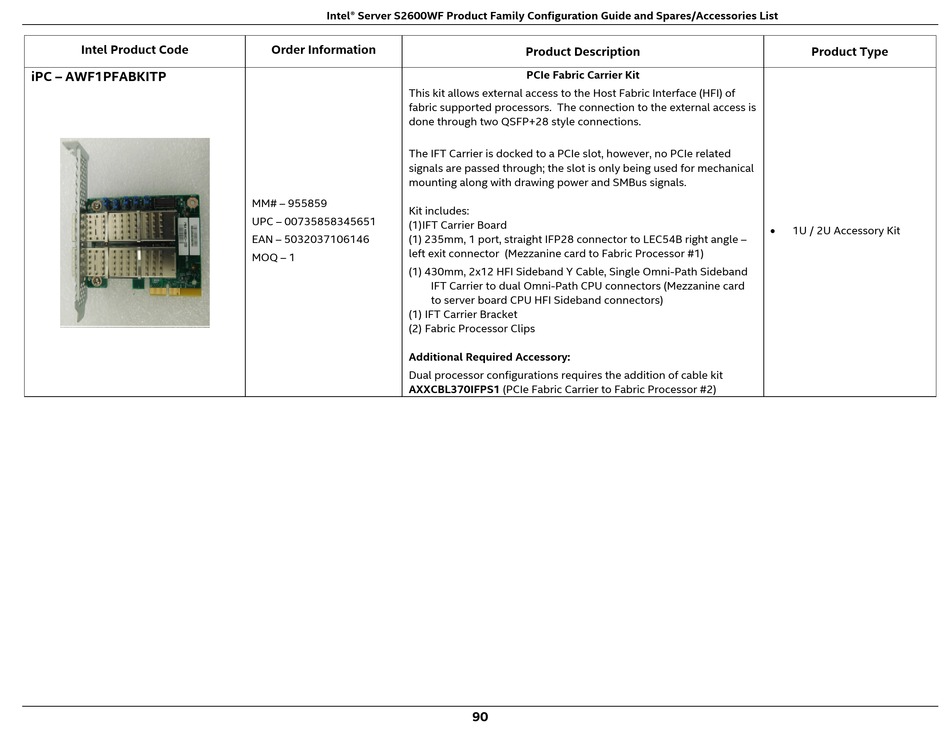

Intel R2000WF Configuration Manual page 98

Intel Product Code
iPC – AWF1PFABKITP
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Information
This kit allows external access to the Host Fabric Interface (HFI) of
fabric supported processors. The connection to the external access is
done through two QSFP+28 style connections.
The IFT Carrier is docked to a PCIe slot, however, no PCIe related
signals are passed through; the slot is only being used for mechanical
mounting along with drawing power and SMBus signals.
MM# – 955859
Kit includes:
UPC – 00735858345651
(1) IFT Carrier Board
EAN – 5032037106146 (1) 235mm, 1 port, straight IFP28 connector to LEC54B right angle –
left exit connector (Mezzanine card to Fabric Processor #1)
MOQ – 1
(1) 430mm, 2x12 HFI Sideband Y Cable, Single Omni-Path Sideband
IFT Carrier to dual Omni-Path CPU connectors (Mezzanine card
to server board CPU HFI Sideband connectors)
(1) IFT Carrier Bracket
(2) Fabric Processor Clips
Additional Required Accessory:
Dual processor configurations requires the addition of cable kit
AXXCBL370IFPS1 (PCIe Fabric Carrier to Fabric Processor #2)
Product Description
PCIe Fabric Carrier Kit
90
Product Type
 1U / 2U Accessory Kit
