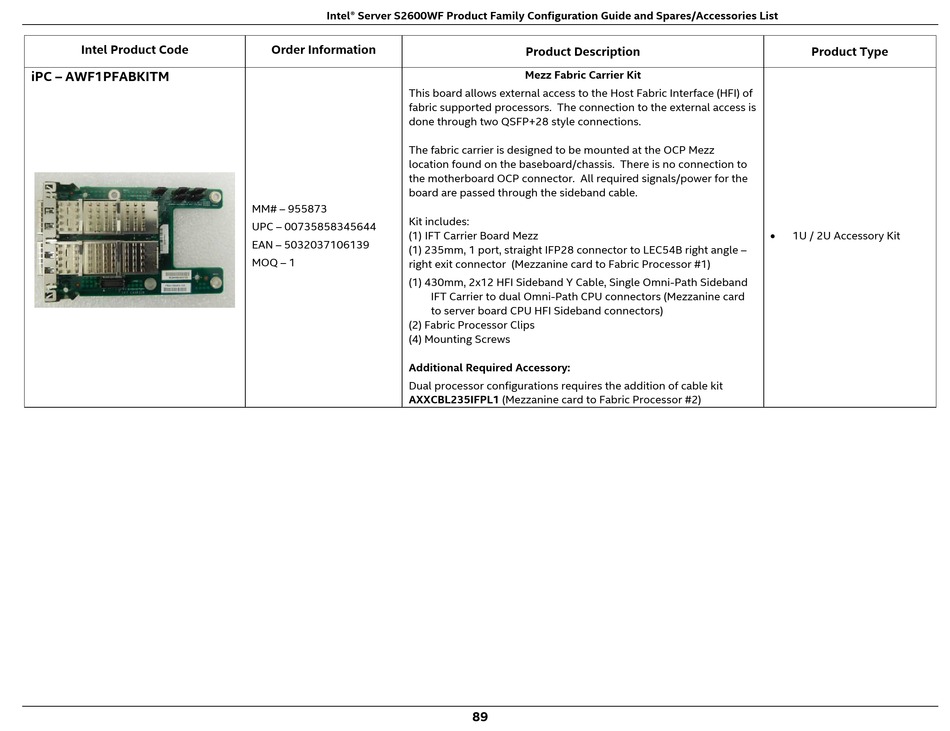

Intel R2000WF Configuration Manual page 97

Intel Product Code
iPC – AWF1PFABKITM
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Information
This board allows external access to the Host Fabric Interface (HFI) of
fabric supported processors. The connection to the external access is
done through two QSFP+28 style connections.
The fabric carrier is designed to be mounted at the OCP Mezz
location found on the baseboard/chassis. There is no connection to
the motherboard OCP connector. All required signals/power for the
board are passed through the sideband cable.
MM# – 955873
Kit includes:
UPC – 00735858345644
(1) IFT Carrier Board Mezz
EAN – 5032037106139
(1) 235mm, 1 port, straight IFP28 connector to LEC54B right angle –
MOQ – 1
right exit connector (Mezzanine card to Fabric Processor #1)
(1) 430mm, 2x12 HFI Sideband Y Cable, Single Omni-Path Sideband
IFT Carrier to dual Omni-Path CPU connectors (Mezzanine card
to server board CPU HFI Sideband connectors)
(2) Fabric Processor Clips
(4) Mounting Screws
Additional Required Accessory:
Dual processor configurations requires the addition of cable kit
AXXCBL235IFPL1 (Mezzanine card to Fabric Processor #2)
Product Description
Mezz Fabric Carrier Kit
89
Product Type
 1U / 2U Accessory Kit
