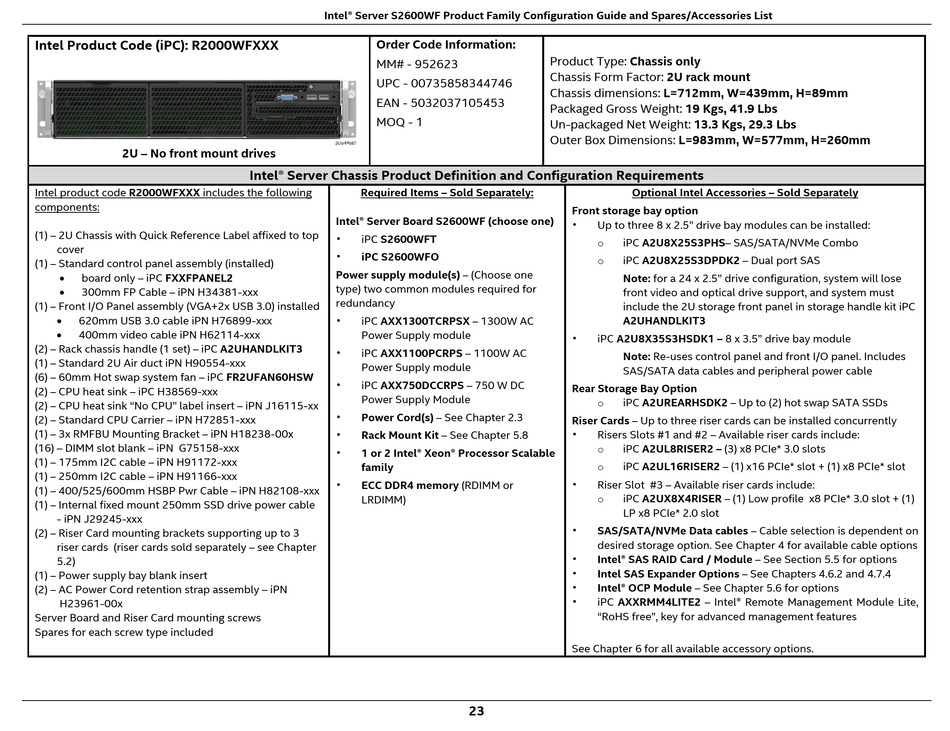

Intel R2000WF Configuration Manual page 31

Intel Product Code (iPC): R2000WFXXX
2U – No front mount drives
Intel product code R2000WFXXX includes the following
components:
(1) – 2U Chassis with Quick Reference Label affixed to top
cover
(1) – Standard control panel assembly (installed)
 board only – iPC FXXFPANEL2
 300mm FP Cable – iPN H34381-xxx
(1) – Front I/O Panel assembly (VGA+2x USB 3.0) installed
 620mm USB 3.0 cable iPN H76899-xxx
 400mm video cable iPN H62114-xxx
(2) – Rack chassis handle (1 set) – iPC A2UHANDLKIT3
(1) – Standard 2U Air duct iPN H90554-xxx
(6) – 60mm Hot swap system fan – iPC FR2UFAN60HSW
(2) – CPU heat sink – iPC H38569-xxx
(2) – CPU heat sink "No CPU" label insert – iPN J16115-xx
(2) – Standard CPU Carrier – iPN H72851-xxx
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(16) – DIMM slot blank – iPN G75158-xxx
(1) – 175mm I2C cable – iPN H91172-xxx
(1) – 250mm I2C cable – iPN H91166-xxx
(1) – 400/525/600mm HSBP Pwr Cable – iPN H82108-xxx
(1) – Internal fixed mount 250mm SSD drive power cable
- iPN J29245-xxx
(2) – Riser Card mounting brackets supporting up to 3
riser cards (riser cards sold separately – see Chapter
5.2)
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN
H23961-00x
Server Board and Riser Card mounting screws
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Code Information:
MM# - 952623
UPC - 00735858344746
EAN - 5032037105453
MOQ - 1
Intel® Server Chassis Product Definition and Configuration Requirements
Required Items – Sold Separately:
Intel® Server Board S2600WF (choose one)
iPC S2600WFT
•
iPC S2600WFO
•
Power supply module(s) – (Choose one
type) two common modules required for
redundancy
iPC AXX1300TCRPSX – 1300W AC
•
Power Supply module
iPC AXX1100PCRPS – 1100W AC
•
Power Supply module
iPC AXX750DCCRPS – 750 W DC
•
Power Supply Module
Power Cord(s) – See Chapter 2.3
•
Rack Mount Kit – See Chapter 5.8
•
1 or 2 Intel® Xeon® Processor Scalable
•
family
ECC DDR4 memory (RDIMM or
•
LRDIMM)
Product Type: Chassis only
Chassis Form Factor: 2U rack mount
Chassis dimensions: L=712mm, W=439mm, H=89mm
Packaged Gross Weight: 19 Kgs, 41.9 Lbs
Un-packaged Net Weight: 13.3 Kgs, 29.3 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
Optional Intel Accessories – Sold Separately
Front storage bay option
Up to three 8 x 2.5" drive bay modules can be installed:
•
iPC A2U8X25S3PHS– SAS/SATA/NVMe Combo
o
iPC A2U8X25S3DPDK2 – Dual port SAS
o
Note: for a 24 x 2.5" drive configuration, system will lose
front video and optical drive support, and system must
include the 2U storage front panel in storage handle kit iPC
A2UHANDLKIT3
iPC A2U8X35S3HSDK1 – 8 x 3.5" drive bay module
•
Note: Re-uses control panel and front I/O panel. Includes
SAS/SATA data cables and peripheral power cable
Rear Storage Bay Option
iPC A2UREARHSDK2 – Up to (2) hot swap SATA SSDs
o
Riser Cards – Up to three riser cards can be installed concurrently
Risers Slots #1 and #2 – Available riser cards include:
•
iPC A2UL8RISER2 – (3) x8 PCIe* 3.0 slots
o
iPC A2UL16RISER2 – (1) x16 PCIe* slot + (1) x8 PCIe* slot
o
Riser Slot #3 – Available riser cards include:
•
iPC A2UX8X4RISER – (1) Low profile x8 PCIe* 3.0 slot + (1)
o
LP x8 PCIe* 2.0 slot
SAS/SATA/NVMe Data cables – Cable selection is dependent on
•
desired storage option. See Chapter 4 for available cable options
Intel® SAS RAID Card / Module – See Section 5.5 for options
•
Intel SAS Expander Options – See Chapters 4.6.2 and 4.7.4
•
Intel® OCP Module – See Chapter 5.6 for options
•
iPC AXXRMM4LITE2 – Intel® Remote Management Module Lite,
•
"RoHS free", key for advanced management features
See Chapter 6 for all available accessory options.
23
