Intel R2000WF Configuration Manual page 52

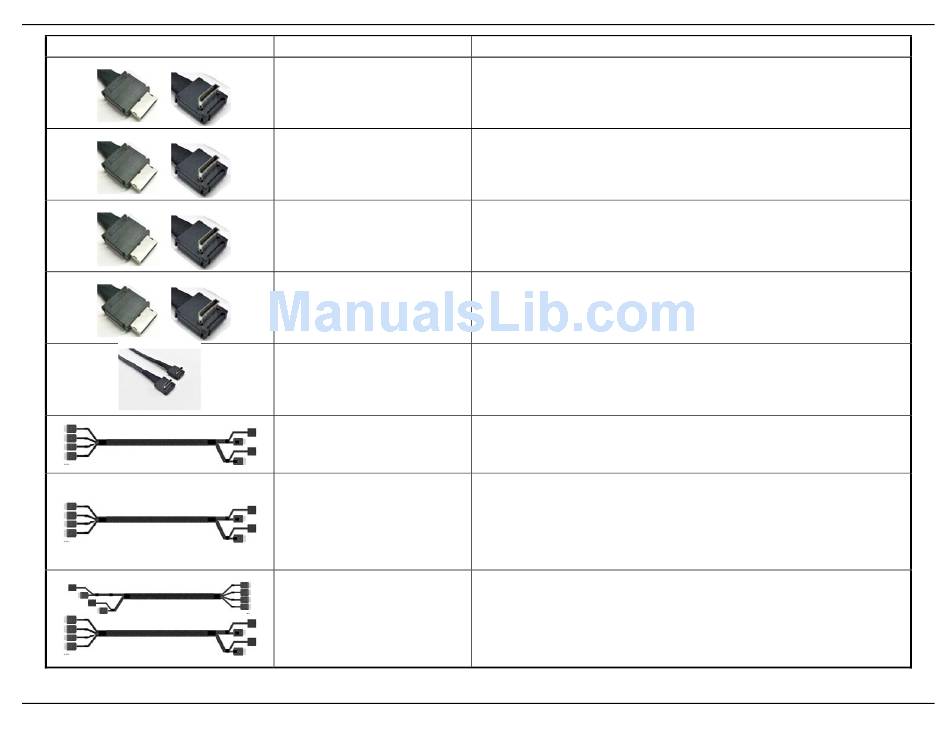

Image Order Information
iPC – AXXCBL530CVCR
MM – 958260
UPC – 00735858346153
EAN – 5032037106436
MOQ – 1
iPC – AXXCBL600CVCR
MM – 959345
UPC – 00735858346160
EAN – 5032037106443
MOQ – 1
iPC – AXXCBL700CVCR
MM – 958261
UPC – 00735858346177
EAN – 5032037106450
MOQ – 1
iPC – AXXCBL800CVCR
MM – 958262
UPC – 00735858346184
EAN – 5032037106467
MOQ – 1
iPC – AXXCBL620CRCR
MM – 958263
UPC – 00735858346191
EAN – 5032037106474
MOQ – 1
iPC – TBD
MM – TBD
UPC – TBD
EAN –MOQ – TBD
iPC – A2U4PSWCXCXK1
MM – 958266
UPC – 00735858346221
EAN – 5032037106504
MOQ – 1
iPC – A2U8PSWCXCXK1
MM – 958268
UPC – 00735858346245
EAN – 5032037106528
MOQ – 1
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
530 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used in R1208, R2208, R2208+8, and R2224 systems to connect the server board
OCuLink SSD connector to a HSBP SSD connector
600 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used to connect a server board OCuLink connector SSD#3 to HSBP drive 11 of the
R2312 system SKUs
700 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used in R1208, R2208, R2208+8, and R2224 systems to connect the server board
OCuLink SSD connector to a HSBP SSD connector
800 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used in R1208, R2208, R2208+8, and R2224 systems to connect the server board
OCuLink SSD connector to a HSBP SSD connector
620 mm long, accessory cable kit (1 cable included), right angle OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used to connect a server board OCuLink connector SSD#2 to HSBP drive 10 of the
R2312 system SKUs
1U 4 port Switch accessory cable kit – Available Q3, 2017
2U 4 port Switch accessory cable kit, Riser 1 or Riser 2 (1 cable included). Contains
the following OCuLink bundled cable:
755mm long, bundled cable kit (1 cable included) straight OCuLink SFF-
8611connectors to straight/right angle OCuLink SFF-8611 connectors
Used in the R2208, R2208+8 and R2224 to connect switch AICs to HSBP PCIe SSD
ports (SSD ports depend on installed location of the switch AIC)
2U 8 port Switch accessory cable kit, Riser 1 or Riser 2 (2 cables included). Contains
the following OCuLink bundled cables:
725mm long, bundled cable kit (2 cables included) straight OCuLink SFF-
8611connectors to straight/right angle OCuLink SFF-8611 connectors
Used in the R2208, R2208+8 and R2224 to connect switch AICs to HSBP PCIe SSD
ports (SSD ports depend on installed location of the switch AIC)
44
Description
