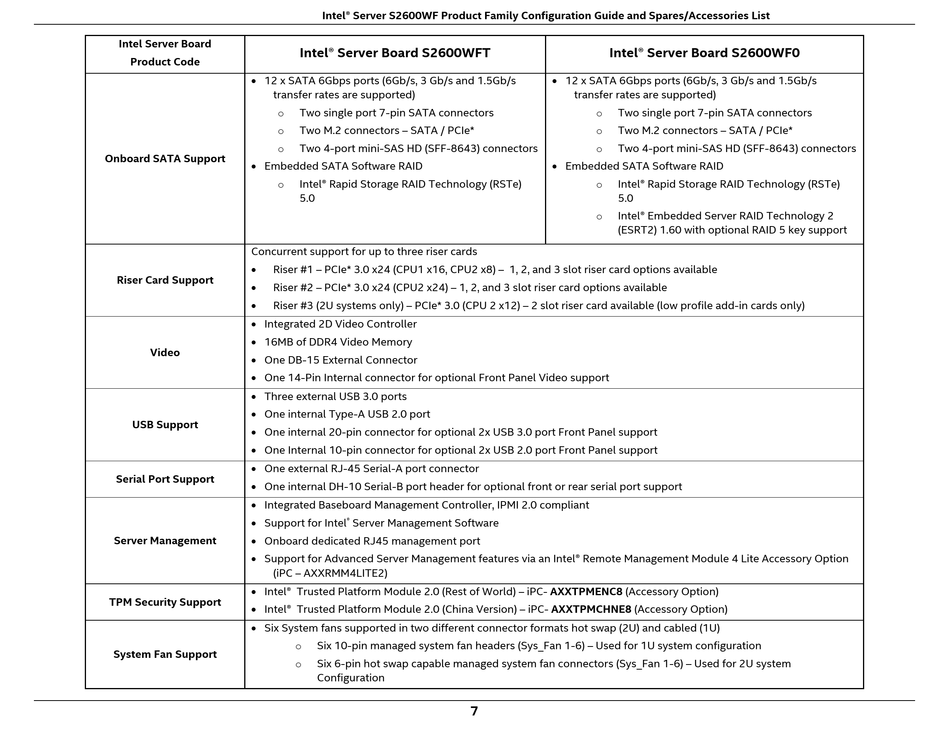

Intel Server Board
Product Code
 12 x SATA 6Gbps ports (6Gb/s, 3 Gb/s and 1.5Gb/s
transfer rates are supported)
o
o
o
Onboard SATA Support
 Embedded SATA Software RAID
o
Concurrent support for up to three riser cards
 Riser #1 – PCIe* 3.0 x24 (CPU1 x16, CPU2 x8) – 1, 2, and 3 slot riser card options available
Riser Card Support
 Riser #2 – PCIe* 3.0 x24 (CPU2 x24) – 1, 2, and 3 slot riser card options available
 Riser #3 (2U systems only) – PCIe* 3.0 (CPU 2 x12) – 2 slot riser card available (low profile add-in cards only)
 Integrated 2D Video Controller
 16MB of DDR4 Video Memory
Video
 One DB-15 External Connector
 One 14-Pin Internal connector for optional Front Panel Video support
 Three external USB 3.0 ports
 One internal Type-A USB 2.0 port
USB Support
 One internal 20-pin connector for optional 2x USB 3.0 port Front Panel support
 One Internal 10-pin connector for optional 2x USB 2.0 port Front Panel support
 One external RJ-45 Serial-A port connector
Serial Port Support
 One internal DH-10 Serial-B port header for optional front or rear serial port support
 Integrated Baseboard Management Controller, IPMI 2.0 compliant
 Support for Intel
Server Management  Onboard dedicated RJ45 management port
 Support for Advanced Server Management features via an Intel® Remote Management Module 4 Lite Accessory Option
(iPC – AXXRMM4LITE2)
 Intel® Trusted Platform Module 2.0 (Rest of World) – iPC- AXXTPMENC8 (Accessory Option)
TPM Security Support
 Intel® Trusted Platform Module 2.0 (China Version) – iPC- AXXTPMCHNE8 (Accessory Option)
 Six System fans supported in two different connector formats hot swap (2U) and cabled (1U)
System Fan Support
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server Board S2600WFT
Two single port 7-pin SATA connectors
Two M.2 connectors – SATA / PCIe*
Two 4-port mini-SAS HD (SFF-8643) connectors
Intel® Rapid Storage RAID Technology (RSTe)
5.0
® Server Management Software
Six 10-pin managed system fan headers (Sys_Fan 1-6) – Used for 1U system configuration
o
Six 6-pin hot swap capable managed system fan connectors (Sys_Fan 1-6) – Used for 2U system
o
Configuration
7
Intel® Server Board S2600WF0
 12 x SATA 6Gbps ports (6Gb/s, 3 Gb/s and 1.5Gb/s
transfer rates are supported)
Two single port 7-pin SATA connectors
o
Two M.2 connectors – SATA / PCIe*
o
Two 4-port mini-SAS HD (SFF-8643) connectors
o
 Embedded SATA Software RAID
Intel® Rapid Storage RAID Technology (RSTe)
o
5.0
Intel® Embedded Server RAID Technology 2
o
(ESRT2) 1.60 with optional RAID 5 key support
