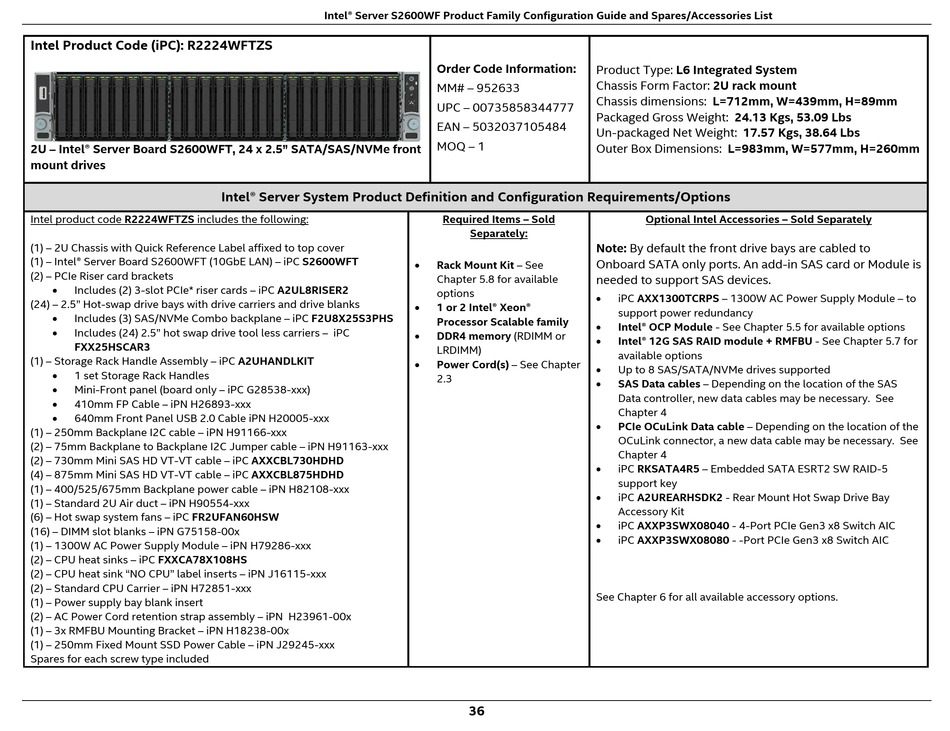

Intel Product Code (iPC): R2224WFTZS
2U – Intel® Server Board S2600WFT, 24 x 2.5" SATA/SAS/NVMe front
mount drives
Intel product code R2224WFTZS includes the following:
(1) – 2U Chassis with Quick Reference Label affixed to top cover
(1) – Intel® Server Board S2600WFT (10GbE LAN) – iPC S2600WFT
(2) – PCIe Riser card brackets
 Includes (2) 3-slot PCIe* riser cards – iPC A2UL8RISER2
(24) – 2.5" Hot-swap drive bays with drive carriers and drive blanks
 Includes (3) SAS/NVMe Combo backplane – iPC F2U8X25S3PHS
 Includes (24) 2.5" hot swap drive tool less carriers – iPC
FXX25HSCAR3
(1) – Storage Rack Handle Assembly – iPC A2UHANDLKIT

1 set Storage Rack Handles
 Mini-Front panel (board only – iPC G28538-xxx)
 410mm FP Cable – iPN H26893-xxx

640mm Front Panel USB 2.0 Cable iPN H20005-xxx
(1) – 250mm Backplane I2C cable – iPN H91166-xxx
(2) – 75mm Backplane to Backplane I2C Jumper cable – iPN H91163-xxx
(2) – 730mm Mini SAS HD VT-VT cable – iPC AXXCBL730HDHD
(4) – 875mm Mini SAS HD VT-VT cable – iPC AXXCBL875HDHD
(1) – 400/525/675mm Backplane power cable – iPN H82108-xxx
(1) – Standard 2U Air duct – iPN H90554-xxx
(6) – Hot swap system fans – iPC FR2UFAN60HSW
(16) – DIMM slot blanks – iPN G75158-00x
(1) – 1300W AC Power Supply Module – iPN H79286-xxx
(2) – CPU heat sinks – iPC FXXCA78X108HS
(2) – CPU heat sink "NO CPU" label inserts – iPN J16115-xxx
(2) – Standard CPU Carrier – iPN H72851-xxx
(1) – Power supply bay blank insert
(2) – AC Power Cord retention strap assembly – iPN H23961-00x
(1) – 3x RMFBU Mounting Bracket – iPN H18238-00x
(1) – 250mm Fixed Mount SSD Power Cable – iPN J29245-xxx
Spares for each screw type included
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Intel® Server System Product Definition and Configuration Requirements/Options
Order Code Information:
MM# – 952633
UPC – 00735858344777
EAN – 5032037105484
MOQ – 1
Required Items – Sold
Separately:

Rack Mount Kit – See
Chapter 5.8 for available
options
 1 or 2 Intel® Xeon®
Processor Scalable family
 DDR4 memory (RDIMM or
LRDIMM)
 Power Cord(s) – See Chapter
2.3
36
Product Type: L6 Integrated System
Chassis Form Factor: 2U rack mount
Chassis dimensions: L=712mm, W=439mm, H=89mm
Packaged Gross Weight: 24.13 Kgs, 53.09 Lbs
Un-packaged Net Weight: 17.57 Kgs, 38.64 Lbs
Outer Box Dimensions: L=983mm, W=577mm, H=260mm
Optional Intel Accessories – Sold Separately
Note: By default the front drive bays are cabled to
Onboard SATA only ports. An add-in SAS card or Module is
needed to support SAS devices.
 iPC AXX1300TCRPS – 1300W AC Power Supply Module – to
support power redundancy
 Intel® OCP Module - See Chapter 5.5 for available options
 Intel® 12G SAS RAID module + RMFBU - See Chapter 5.7 for
available options
 Up to 8 SAS/SATA/NVMe drives supported
 SAS Data cables – Depending on the location of the SAS
Data controller, new data cables may be necessary. See
Chapter 4
 PCIe OCuLink Data cable – Depending on the location of the
OCuLink connector, a new data cable may be necessary. See
Chapter 4
 iPC RKSATA4R5 – Embedded SATA ESRT2 SW RAID-5
support key
 iPC A2UREARHSDK2 - Rear Mount Hot Swap Drive Bay
Accessory Kit
 iPC AXXP3SWX08040 - 4-Port PCIe Gen3 x8 Switch AIC
 iPC AXXP3SWX08080 - -Port PCIe Gen3 x8 Switch AIC
See Chapter 6 for all available accessory options.
