Intel R2000WF Configuration Manual page 51

Image Order Information
iPC – AXXCBL370IFPS1
MM – 958251
UPC – 00735858346085
EAN – 5032037106368
MOQ – 1
iPC – AXXCBL235IFPL1
MM – 958252
UPC – 00735858346092
EAN – 5032037106375
MOQ – 1
iPC – AXXCBL430IFTSBY
MM – 958253
UPC – 00735858346108
EAN – 5032037106382
MOQ – 1
iPC – AXXCBL650HDHRT
MM – 958254
UPC – 00735858346115
EAN – 5032037106399
MOQ – 1
iPC – AXXCBL850HDHRS
MM – 958255
UPC – 00735858346122
EAN – 5032037106405
MOQ – 1
iPC – AXXCBL850HDHRT
MM – 958257
UPC – 00735858346139
EAN – 5032037106412
MOQ – 1
iPC – AXXCBL470CVCR
MM – 958258
UPC – 00735858346146
EAN – 5032037106429
MOQ – 1

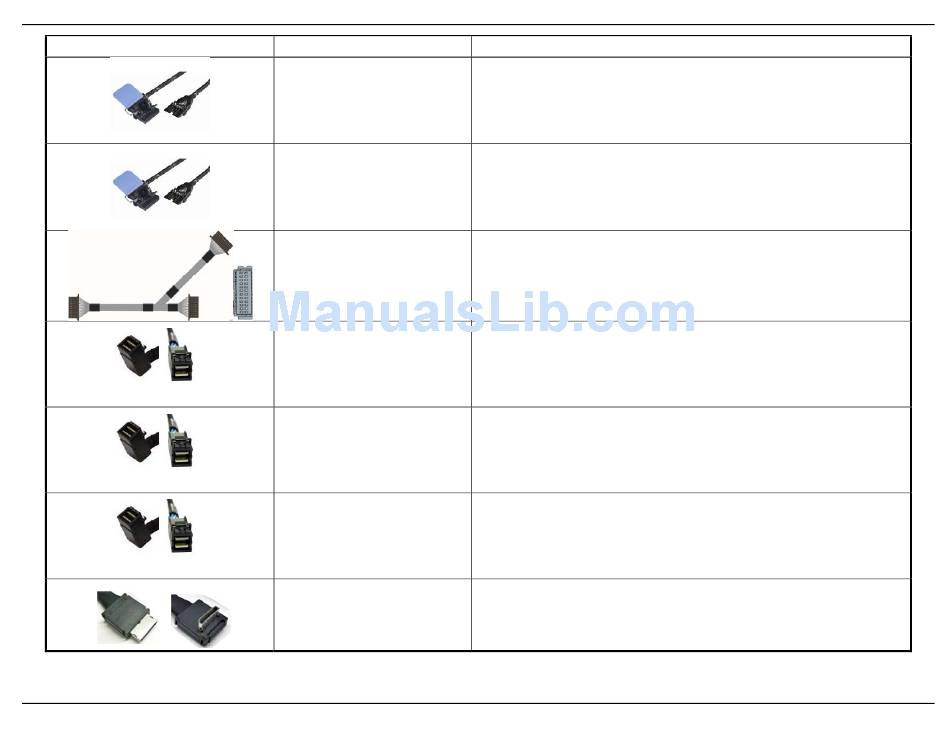

Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
370 mm long, accessory cable kit (1 cable included), straight IFP28 connector to
LEC54B right angle – right exit connector
Used to connect fabric processor #2 to the PCIe IFT Carrier add-in board
235 mm long, accessory cable kit (1 cable included), straight IFP28 connector to
LEC54B right angle – left exit connector
Used to connect fabric processor #2 to the IFT Carrier mezzanine board
430 mm long, spare cable kit (1 cable included), bundled straight 430mm, 2x12 HFI
Sideband Y Cable, Single Omni-Path Sideband IFT Carrier to dual Omni-Path CPU
connectors
Used to connect SB OmniPath IFT Carrier board or Mezzaine to the server board in
support of fabric processors
650 mm long, spare/accessory cable kit (2 cables included), straight HD Mini SAS
SFF8643 connector to right angle HD Mini SAS SFF8643 connector
Used in a R1208 as a spare and/or accessory to connect mSAS-HD connectors on the
server board to the HSBP to support drives 0-3
850 mm long, spare/accessory cable kit (2 cables included), straight HD Mini SAS
SFF8643 connector to right angle HD Mini SAS SFF8643 connector
Used in a R1208 as a spare and/or accessory to connect mSAS-HD connectors on the
server board to the HSBP to support drives 4-7
850 mm long, cable kit (2 cables included), straight HD Mini SAS SFF8643 connector
to right angle HD Mini SAS SFF8643 connector
Used in a R1304 as a spare and/or accessory to connect mSAS-HD connectors on the
server board to the HSBP to support drives 0-3
470 mm long, accessory cable kit (1 cable included), straight OCuLink SFF-8611
connector to right angle OCuLink SFF-8611 connector
Used in R1208, R2208, R2208+8, and R2224 systems to connect a server board
OCuLink SSD connector to a HSBP SSD connector
