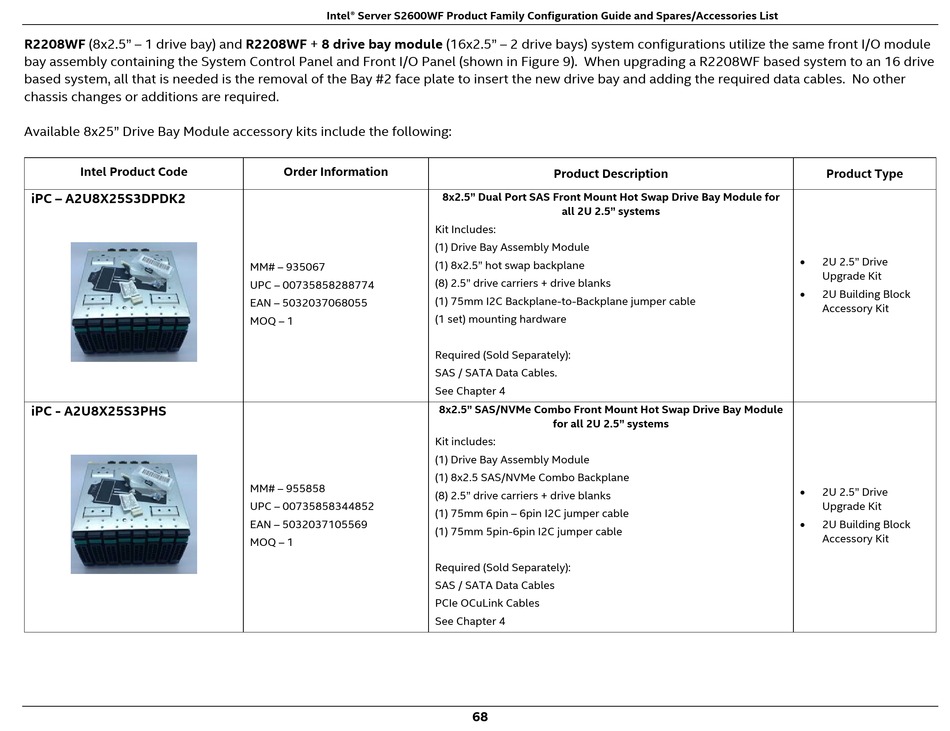

Intel R2000WF Configuration Manual page 76

R2208WF (8x2.5" – 1 drive bay) and R2208WF + 8 drive bay module (16x2.5" – 2 drive bays) system configurations utilize the same front I/O module
bay assembly containing the System Control Panel and Front I/O Panel (shown in Figure 9). When upgrading a R2208WF based system to an 16 drive
based system, all that is needed is the removal of the Bay #2 face plate to insert the new drive bay and adding the required data cables. No other
chassis changes or additions are required.
Available 8x25" Drive Bay Module accessory kits include the following:
Intel Product Code
iPC – A2U8X25S3DPDK2
iPC - A2U8X25S3PHS
Intel® Server S2600WF Product Family Configuration Guide and Spares/Accessories List
Order Information
MM# – 935067
UPC – 00735858288774
EAN – 5032037068055
MOQ – 1
MM# – 955858
UPC – 00735858344852
EAN – 5032037105569
MOQ – 1
Product Description
8x2.5" Dual Port SAS Front Mount Hot Swap Drive Bay Module for
all 2U 2.5" systems
Kit Includes:
(1) Drive Bay Assembly Module
(1) 8x2.5" hot swap backplane
(8) 2.5" drive carriers + drive blanks
(1) 75mm I2C Backplane-to-Backplane jumper cable
(1 set) mounting hardware
Required (Sold Separately):
SAS / SATA Data Cables.
See Chapter 4
8x2.5" SAS/NVMe Combo Front Mount Hot Swap Drive Bay Module
for all 2U 2.5" systems
Kit includes:
(1) Drive Bay Assembly Module
(1) 8x2.5 SAS/NVMe Combo Backplane
(8) 2.5" drive carriers + drive blanks
(1) 75mm 6pin – 6pin I2C jumper cable
(1) 75mm 5pin-6pin I2C jumper cable
Required (Sold Separately):
SAS / SATA Data Cables
PCIe OCuLink Cables
See Chapter 4
68
Product Type
 2U 2.5" Drive
Upgrade Kit
 2U Building Block
Accessory Kit

2U 2.5" Drive
Upgrade Kit
 2U Building Block
Accessory Kit
